HEIMDALL 2 DIGITAL INTERCONNECTS
Digital interconnect for 75 ohm S/PDIF or 110 ohm AES/EBU links.
fig. 01 · digital cables
HEIMDALL 2 DIGITAL INTERCONNECTS
From Nordost

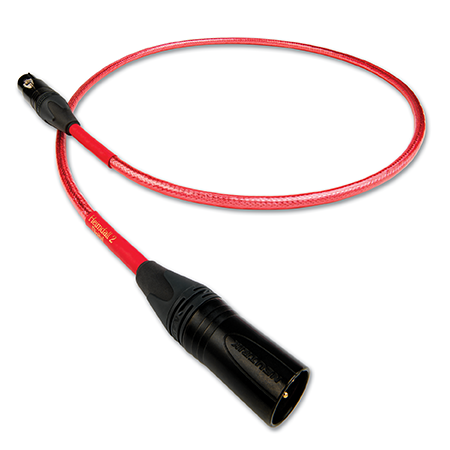

Heimdall 2 Digital Interconnects cover two digital paths: a 75 ohm co-axial S/PDIF cable with a true 75 ohm Neutrik BNC termination and included BNC-to-RCA adapter, plus a 110 ohm twin-axial AES/EBU cable with a true 110 ohm Neutrik XLR termination. Both versions use silver-plated OFC conductors, FEP insulation, Dual Mono-Filament construction, and 97% shield coverage. This row should be merchandised as a digital cable with impedance-specific connector options.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned spacing, length and Dual Mono-Filament, co-axial design |
| Conductors | 1 x 20 AWG |
| Material | Silver-plated 99.99999% solid-core OFC |
| Capacitance | 15.0pF/ft |
| Impedance | 75 Ohm |
| Overall Shield Coverage | 97% |
| Velocity of Propagation | 88% |
| Termination | Gold-plated true 75 Ohm Neutrik BNC. Gold-plated BNC to RCA adapter included. |
| Construction 2 | Mechanically tuned spacing, length and Dual Mono-Filament, twin-axial design |
| Conductors 2 | 2 x 20 AWG |
| Material 2 | Silver-plated 99.99999% solid core OFC |
| Capacitance 2 | 10.7pF/ft |
| Impedance 2 | 110 Ohm |
| Termination 2 | Gold-plated true 110 Ohm Neutrik XLR |
| Conductor material | silver-plated solid-core OFC |
