HEIMDALL 2 POWER CORD
Norse 2 power cord with 3 x 16 AWG silver-plated OFC conductors.

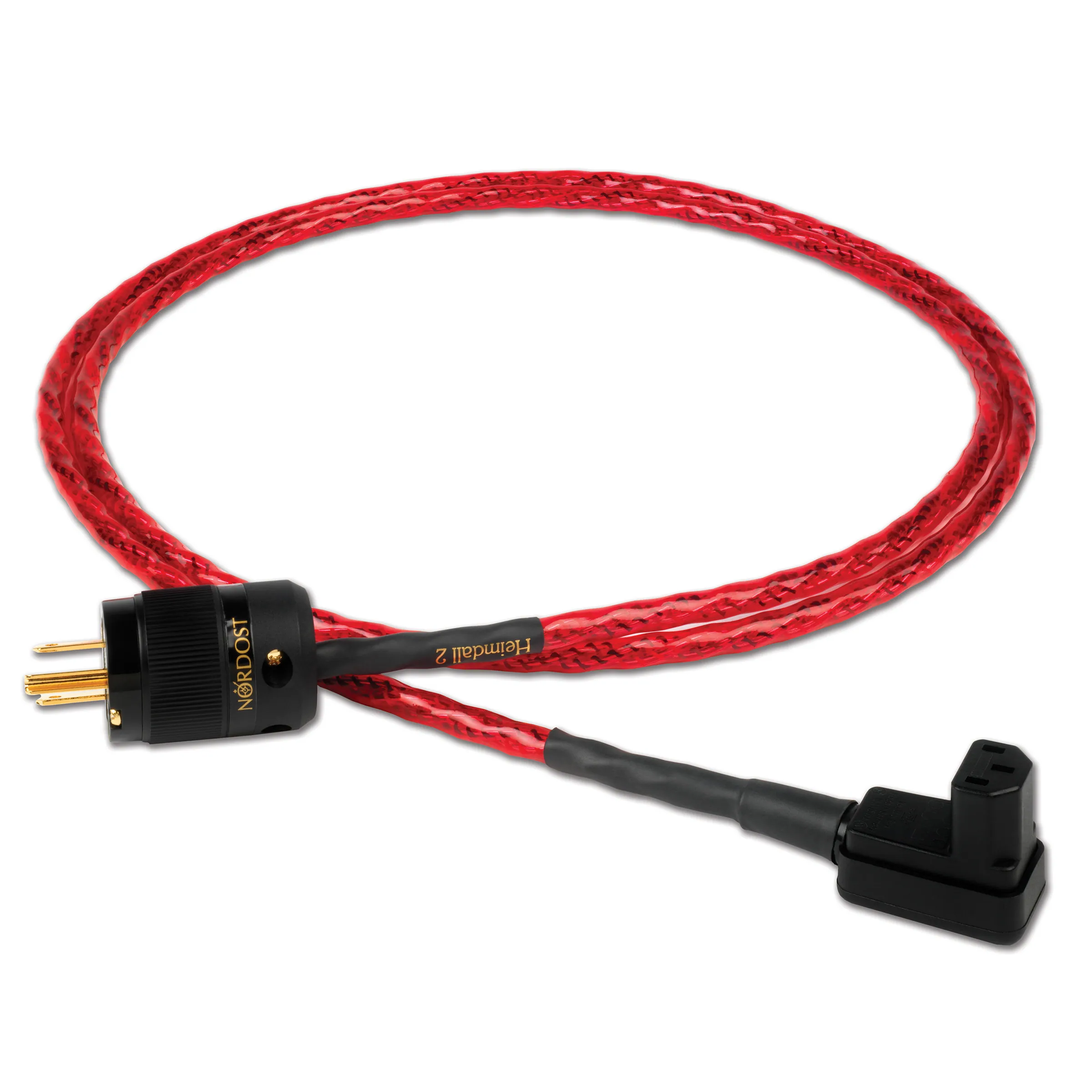

fig. 01 · power cables
HEIMDALL 2 POWER CORD
From Nordost
Heimdall 2 Power Cord uses Micro Mono-Filament construction, FEP insulation, and 3 x 16 AWG silver-plated solid-core OFC conductors. The saved specs list 4.0 ohms per 1000ft DC resistance, 85% velocity of propagation, and US, EU, UK, AUS, IEC-C15, and Figure 8 IEC-C7 termination options. Use it as the entry Norse 2 power-cord row where connector format and conductor count need to be clear.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, length and Micro Mono-Filament design |
| Conductors | 3 x 16 AWG |
| Material | Silver-plated 99.99999% solid-core OFC |
| DC Resistance | 4.0 Ohms per 1000ft |
| Velocity of Propagation | 85% |
| Termination | US (Nema), EU (Schuko), UK or AUS to IEC-C15. Figure 8 IEC-C7 also available |
| Conductor material | silver-plated solid-core OFC |
| Dielectric / insulation | FEP |
