HEIMDALL 2 TONEARM CABLE +
Tonearm cable with 4 x 28 AWG silver-plated OFC conductors.
fig. 01 · interconnects

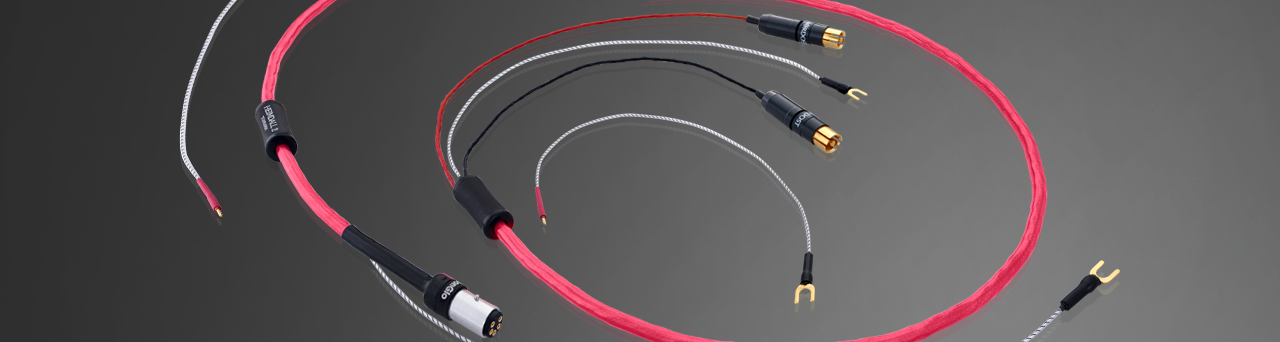

HEIMDALL 2 TONEARM CABLE +
From Nordost
Heimdall 2 Tonearm Cable + is a low-capacitance tonearm lead for analog systems. It uses 4 x 28 AWG silver-plated 99.99999% OFC solid-core conductors, 2 individually shielded twisted pairs, FEP insulation, and Micro Mono-Filament construction. The cable has 97% shield coverage, 11.46pF/ft capacitance, 76% velocity of propagation, MoonGlo straight or 90-degree 5-pin DIN/RCA/XLR termination options, and gold-plated 5mm spades for the whips and bond wire.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Conductors | 4 x 28 AWG |
| Construction | 2 Twisted pairs individually shielded. Mechanically tuned lay and lengths. Micro Mono-Filament design. |
| Material | Silver plated 99.99999% OFC Solid Core Conductors |
| Capacitance | 11.46pF/ft (37.5pF/m) |
| Velocity of Propagation | 76% |
| Overall Shield Coverage | 97% |
| Bond / Grounding Whips | 24 AWG silver-plated, stranded OFC, Micro Mono-Filament design. |
| Terminations | MoonGlo® Straight or 90° low-mass 5-pin din, RCA or XLR. |
| Termination (Whips & Bond) | Whips & bond wire terminated w/ gold-plated 5mm spades. |
