ODIN 2 ANALOG INTERCONNECTS

The Odin 2 is Nordost's Supreme Reference analog interconnect with 10 silver-plated 23 AWG OFC conductors.

fig. 01 · interconnects

ODIN 2 ANALOG INTERCONNECTS

Nordost ODIN 2 ANALOG INTERCONNECTS

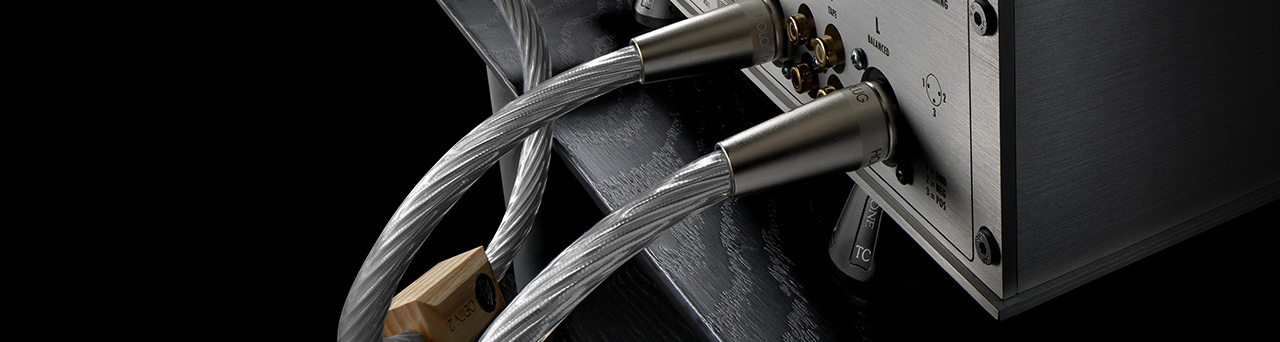

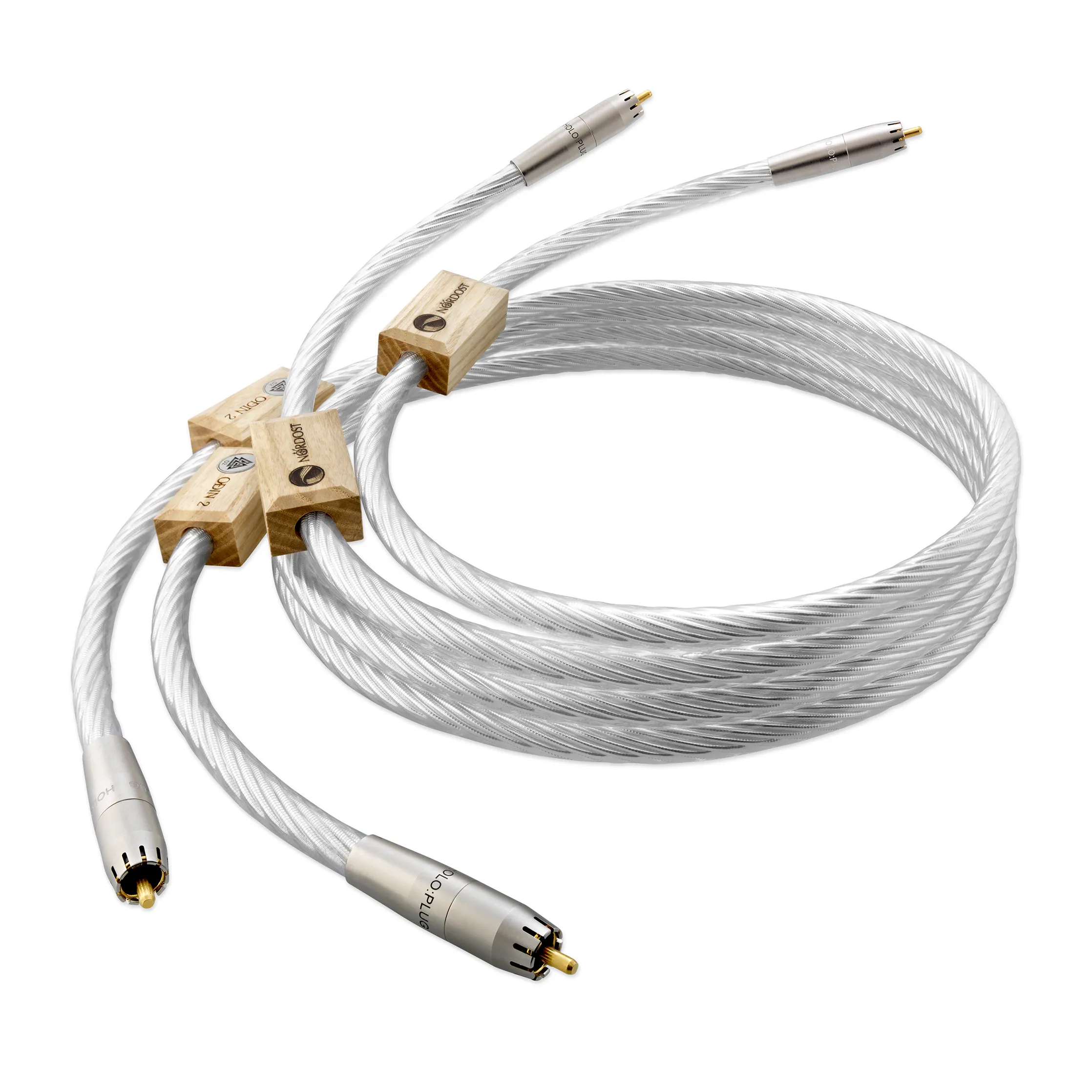

fig. 01 · ODIN 2 ANALOG INTERCONNECTSphotograph · Nordost

6 photographs · 5 shown

From Nordost

The Odin 2 uses 10 x 23 AWG silver-plated 99.999999% OFC conductors with FEP insulation, 100% individual shield coverage, and HOLO:PLUG RCA or XLR terminations. It's built with Nordost's Dual Mono-Filament construction and TSC spacing, running a 90% velocity of propagation.

Specifications

InsulationHigh purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned spacing, length and Dual Mono-Filament, TSC design
Conductors10 x 23 AWG
MaterialSilver-plated 99.999999% solid core OFC
Capacitance18.5pF/ft
Inductance0.05μH/ft
Overall Shield Coverage100% Individually shielded total coverage
Velocity of Propagation90%
TerminationHOLO:PLUG® gold-plated RCA, HOLO:PLUG® gold-plated XLR
Conductor gauge23 AWG
Conductor materialsilver-plated 99.999999% oxygen-free copper
Dielectric / insulationFEP extrusion
