ODIN 2 BI-WIRE JUMPERS

Bi-wire jumpers with 13 x 20 AWG silver-plated OFC conductors.

fig. 01 · speaker cables

ODIN 2 BI-WIRE JUMPERS

Nordost ODIN 2 BI-WIRE JUMPERS

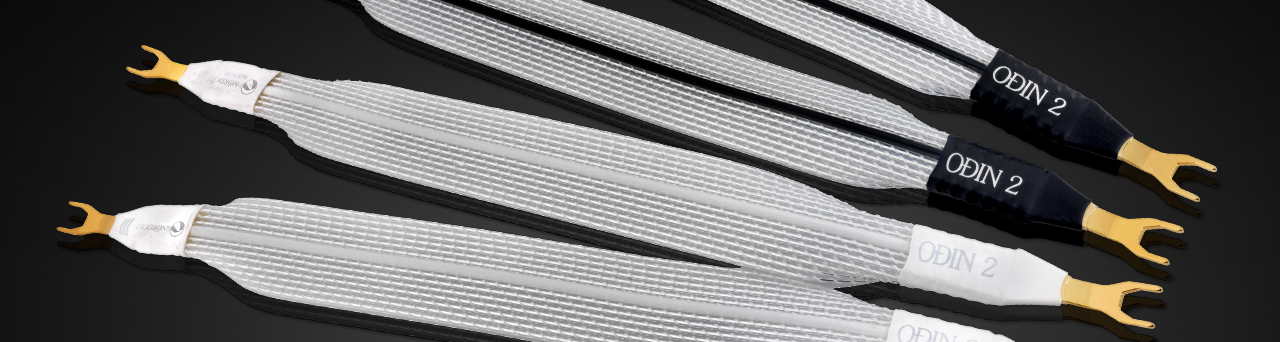

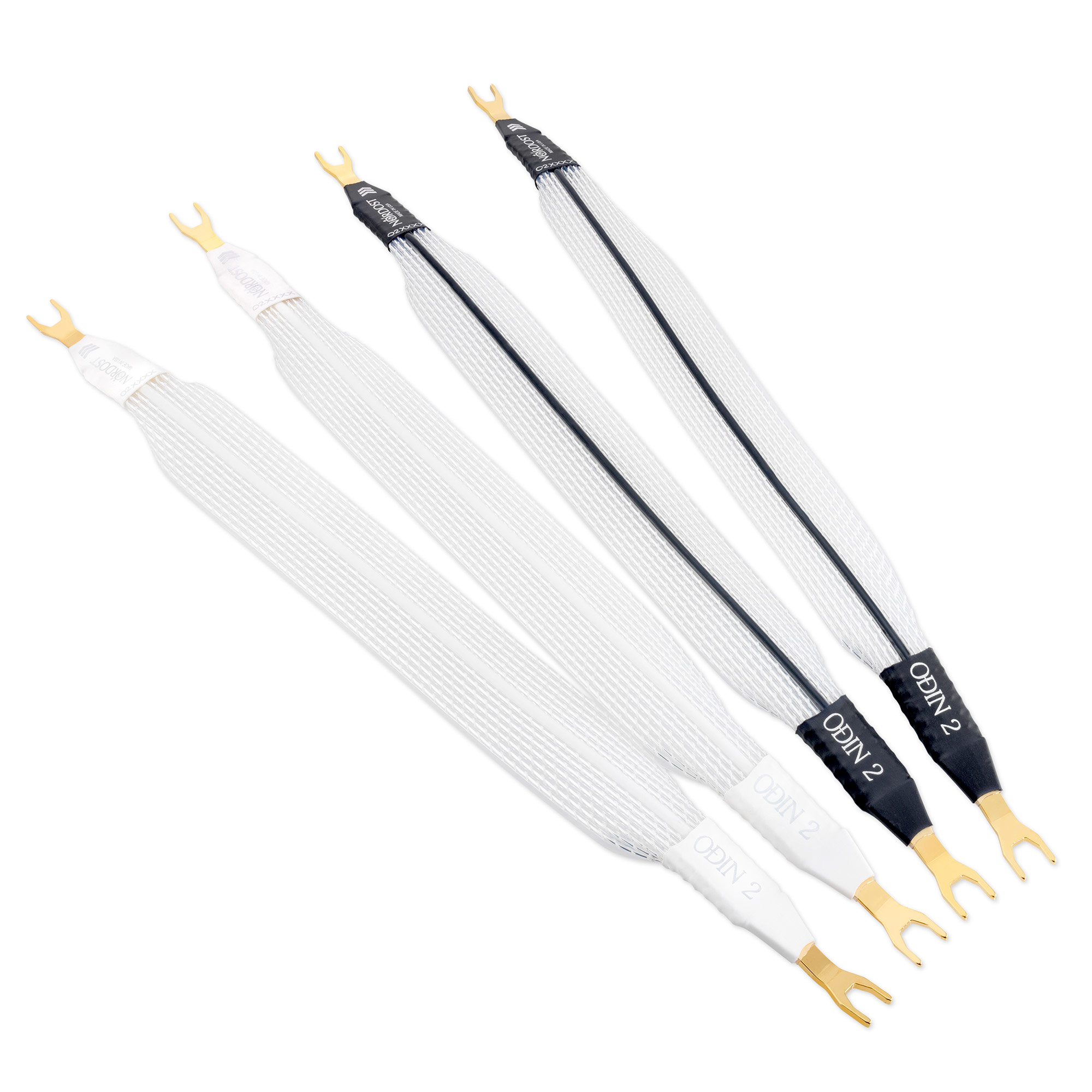

fig. 01 · ODIN 2 BI-WIRE JUMPERSphotograph · Nordost

From Nordost

Odin 2 Bi-Wire Jumpers are short speaker-terminal links for systems using bi-wire loudspeaker connections. The saved specs list 13 x 20 AWG silver-plated 99.999999% solid-core OFC conductors, FEP insulation, Dual Mono-Filament construction, 8.0pF/ft capacitance, and 98% velocity of propagation. They can be ordered with gold-plated HOLO:PLUG spades or low-mass Z-plug bananas.

Specifications

InsulationHigh purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned spacing, length and Dual Mono-Filament
Conductors13 x 20 AWG
MaterialSilver-plated 99.999999% solid core OFC
Capacitance8.0pF/ft
Inductance0.125μH/ft
Velocity of Propagation98%
TerminationHOLO:PLUG® gold-plated Spade or HOLO:PLUG® gold-plated low-mass Z-plug Banana
