ODIN 2 DIGITAL INTERCONNECTS
Supreme Reference digital interconnect with 100% shield coverage and HOLO:PLUG terminations.
fig. 01 · digital cables
ODIN 2 DIGITAL INTERCONNECTS
From Nordost

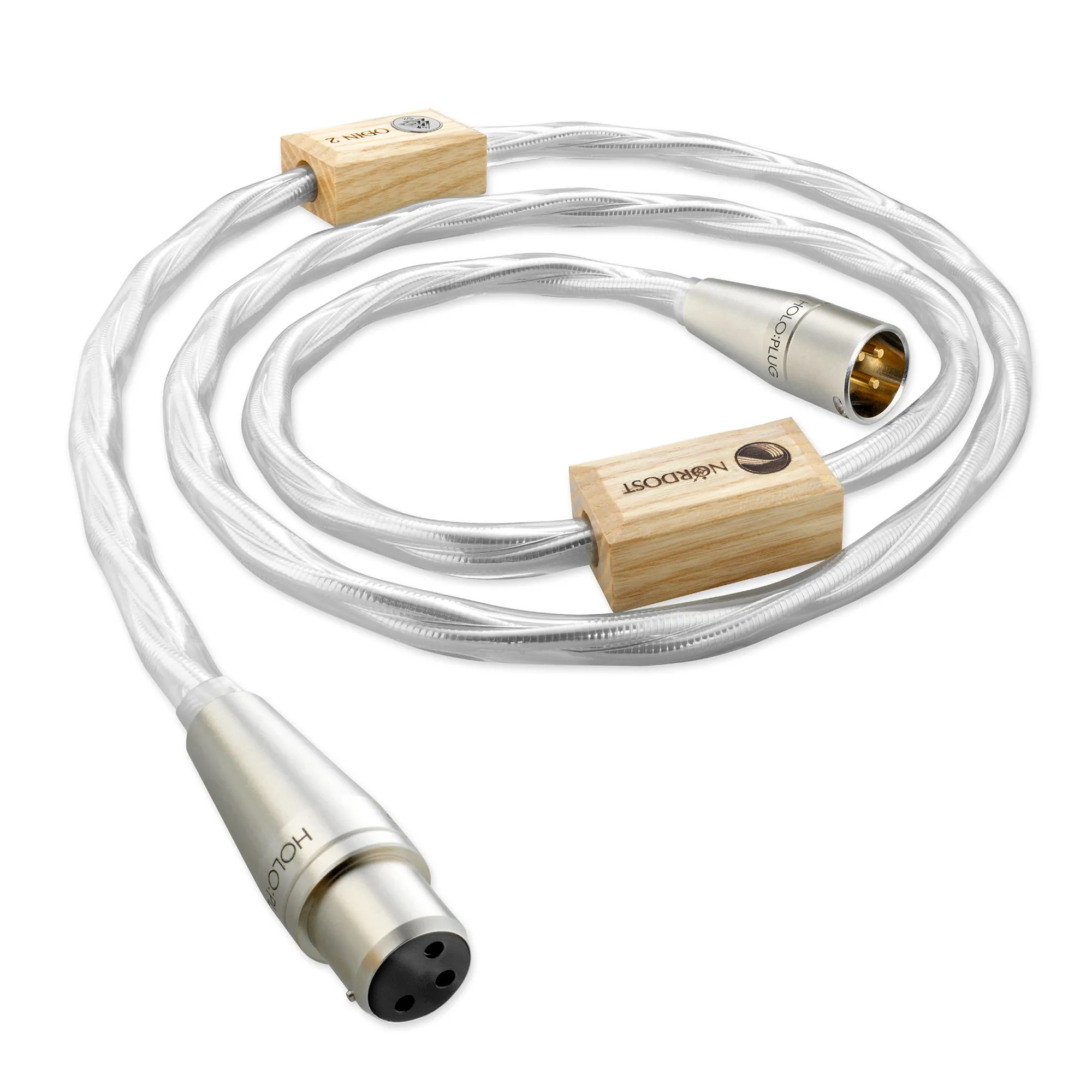

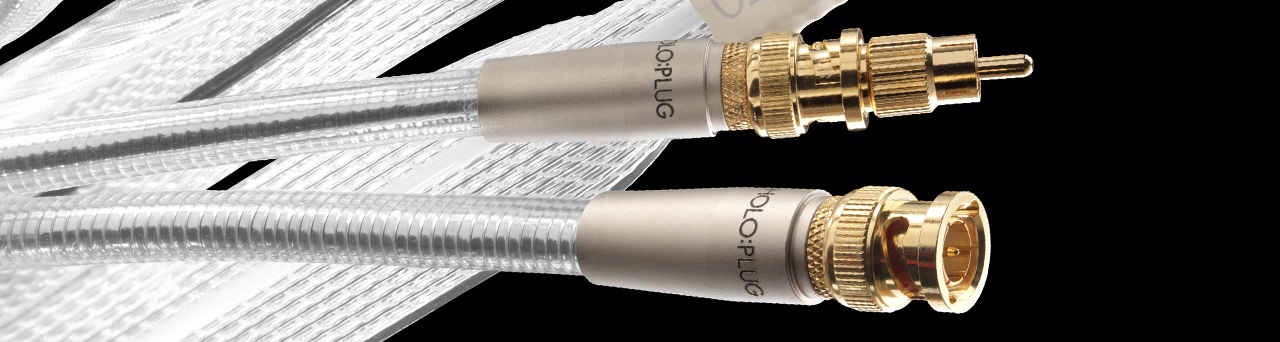

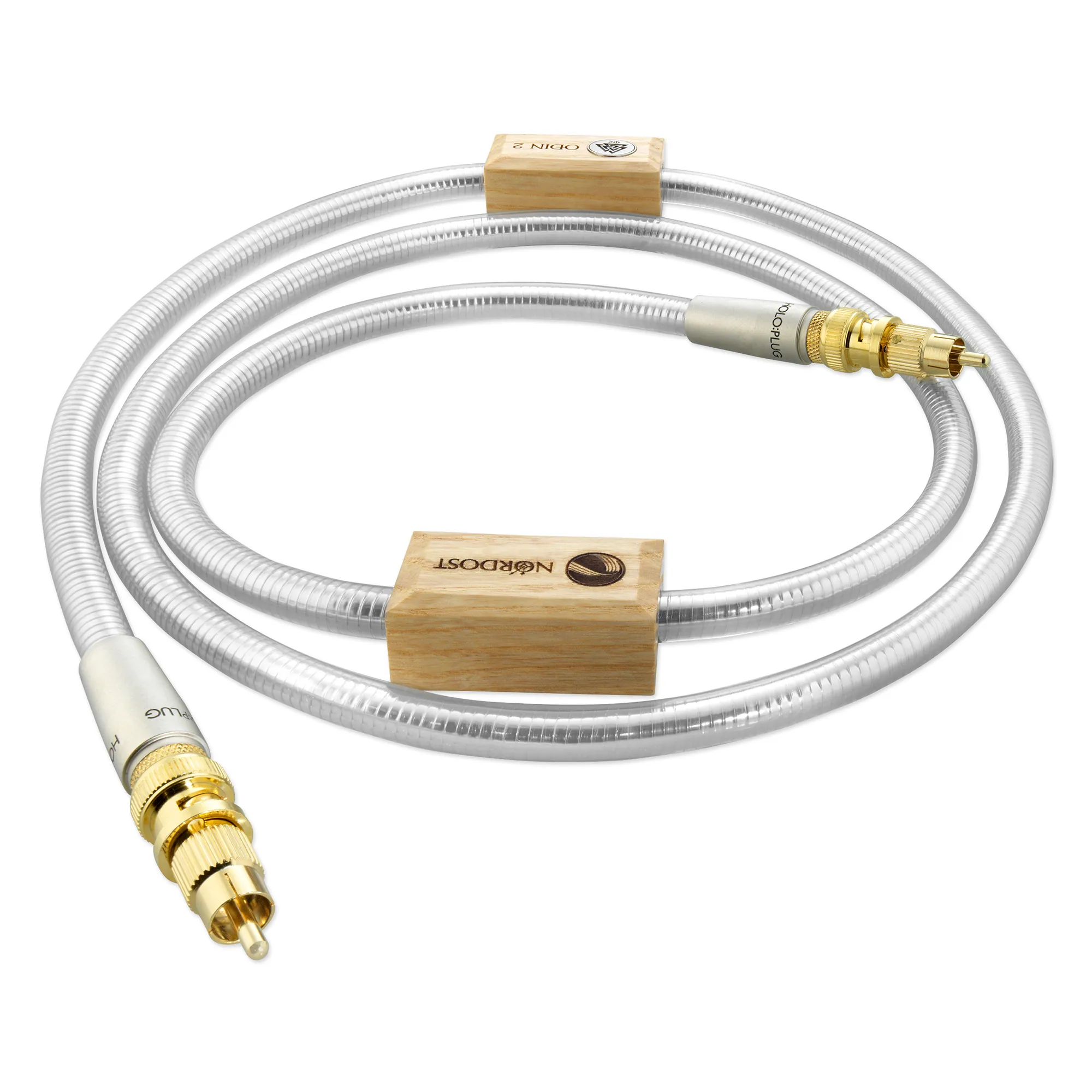

Odin 2 Digital Interconnects are built for S/PDIF and AES/EBU digital links. The 75 ohm version uses a 1 x 14 AWG silver-plated OFC conductor, co-axial construction, and a gold-plated HOLO:PLUG BNC with a BNC-to-RCA adapter. The 110 ohm version uses a twin-axial layout with 2 x 18 AWG conductors, 10.5pF/ft capacitance, and a gold-plated HOLO:PLUG XLR termination.
Specifications
| Insulation | High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned length and Dual Mono-Filament, TSC and Co-axial design |
| Conductors | 1 x 14 AWG |
| Material | Silver-plated 99.999999% solid core OFC |
| Capacitance | 15.3pF/ft |
| Impedance | 75 Ohm |
| Overall Shield Coverage | 100% Total coverage |
| Velocity of Propagation | 90% |
| Termination | HOLO:PLUG® gold-plated BNC. Gold-plated BNC to RCA adaptor included |
| Construction 2 | Mechanically tuned lay, length and Dual Mono-Filament, TSC and Twin-axial design |
| Conductors 2 | 2 x 18 AWG |
| Capacitance 2 | 10.5pF/ft |
| Impedance 2 | 110 Ohm |
| Termination 2 | HOLO:PLUG® gold-plated XLR |
