Nordost · Power Cables · Cables

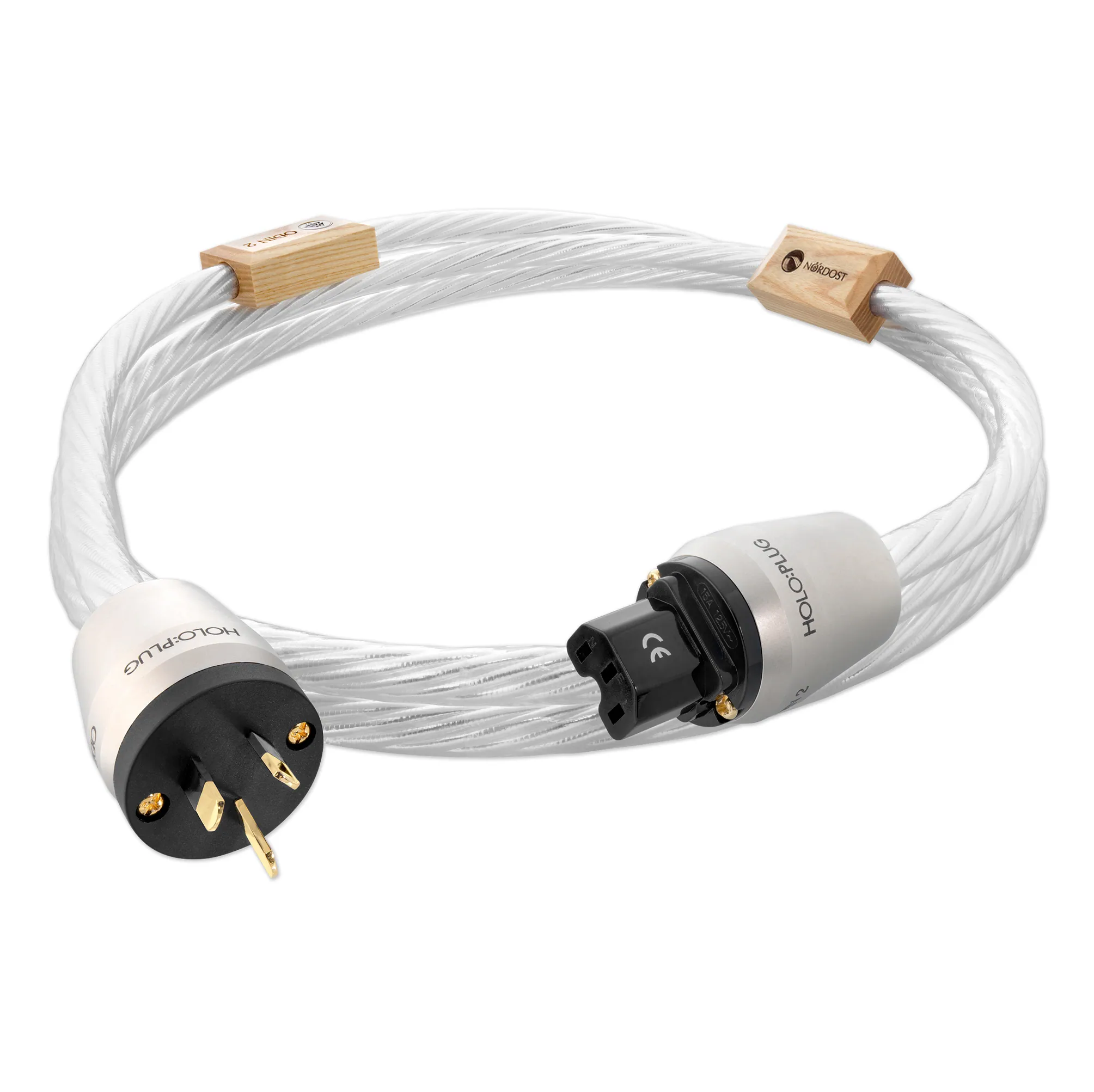

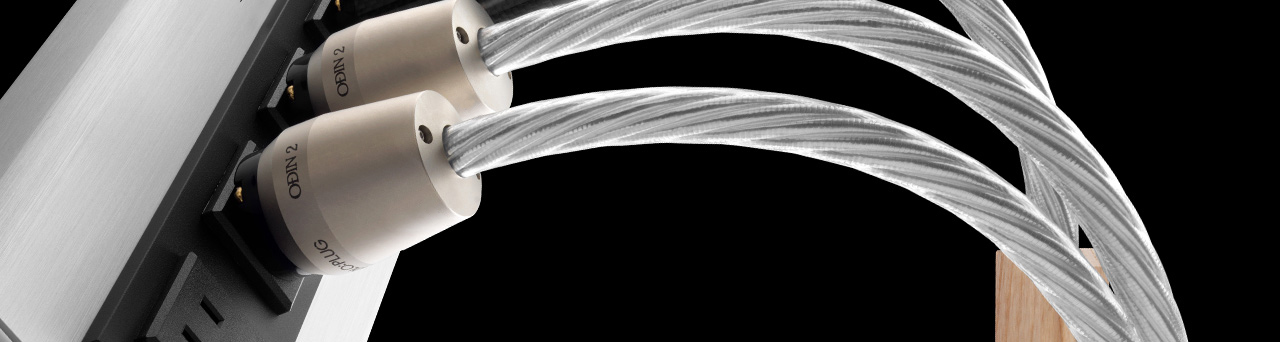

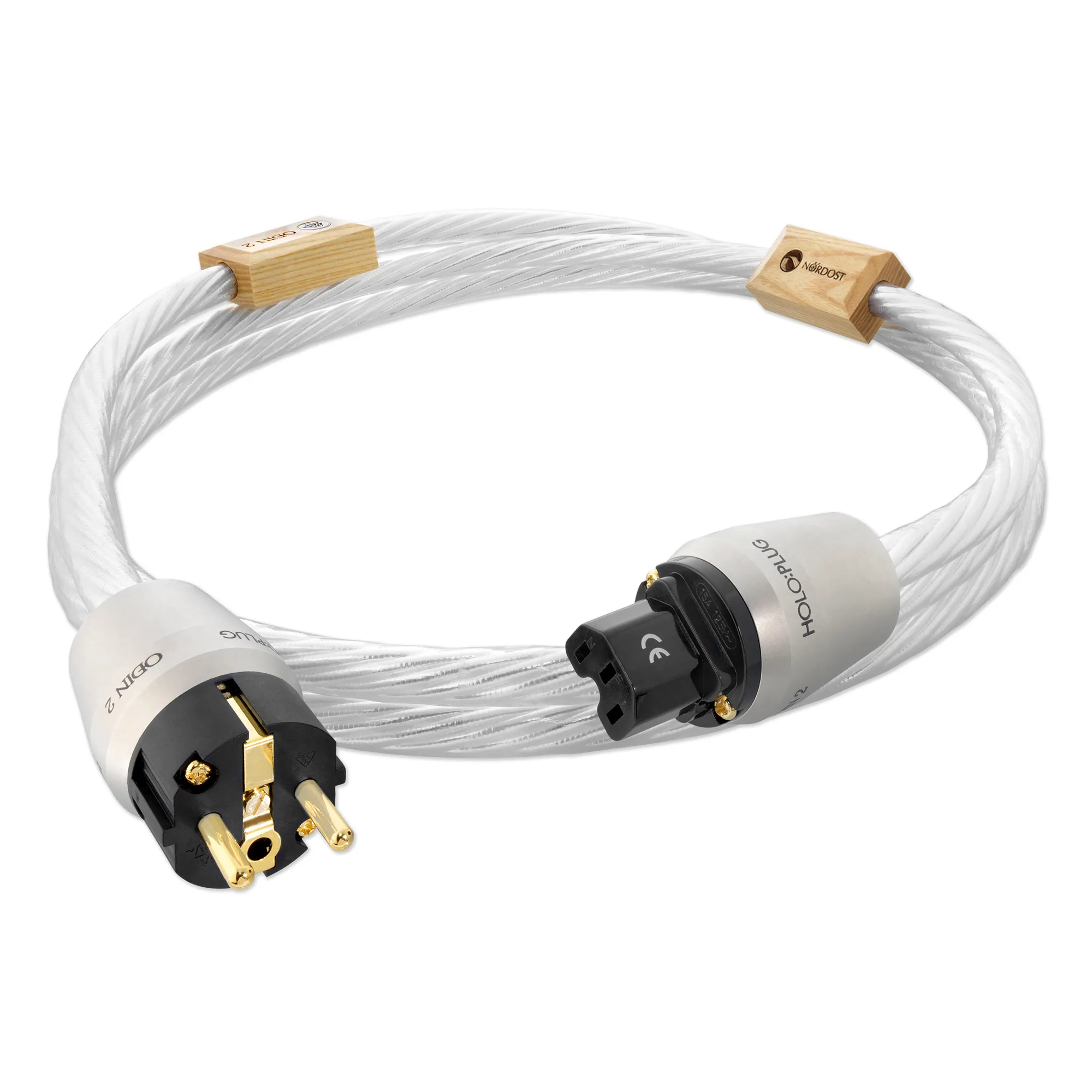

ODIN 2 POWER CORD
Power cord with 7 x 14 AWG individually shielded conductors.
fig. 01 · power cables
ODIN 2 POWER CORD
7 photographs · 5 shown
From Nordost
Odin 2 Power Cord uses 7 x 14 AWG silver-plated 99.999999% OFC solid-core conductors with Dual Mono-Filament/TSC construction. The saved specs list FEP insulation, 100% individually shielded total coverage, 1.33 ohms DC resistance per 1000 ft, and 88% velocity of propagation. Termination options include Odin 2 HOLO:PLUG gold-plated US, EU, AUS, or UK plugs to IEC-C15, IEC-C19, or low-profile IEC-C15 connectors.
Specifications
| Insulation | High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned spacing, length and Dual Mono-Filament, TSC design |
| Conductors | 7 x 14 AWG |
| Material | Silver-plated 99.999999% solid core OFC |
| DC Resistance | 1.33 Ohms per 1000ft |
| Overall Shield Coverage | 100% Individually shielded total coverage |
| Velocity of Propagation | 88% |
| Termination | Odin 2 HOLO:PLUG® gold-plated US (Nema), EU (Schuko), AUS or UK to Odin 2 HOLO:PLUG® IEC-C15, IEC-C19, or Low Profile HOLO:PLUG® IEC-C15 |
| Conductor gauge | 14 AWG |
| Conductor material | silver-plated 99.999999% oxygen-free copper |
