ODIN 2 SPEAKER CABLES

Supreme Reference speaker cable with 26 x 20 AWG conductors.

fig. 01 · speaker cables

ODIN 2 SPEAKER CABLES

Nordost ODIN 2 SPEAKER CABLES

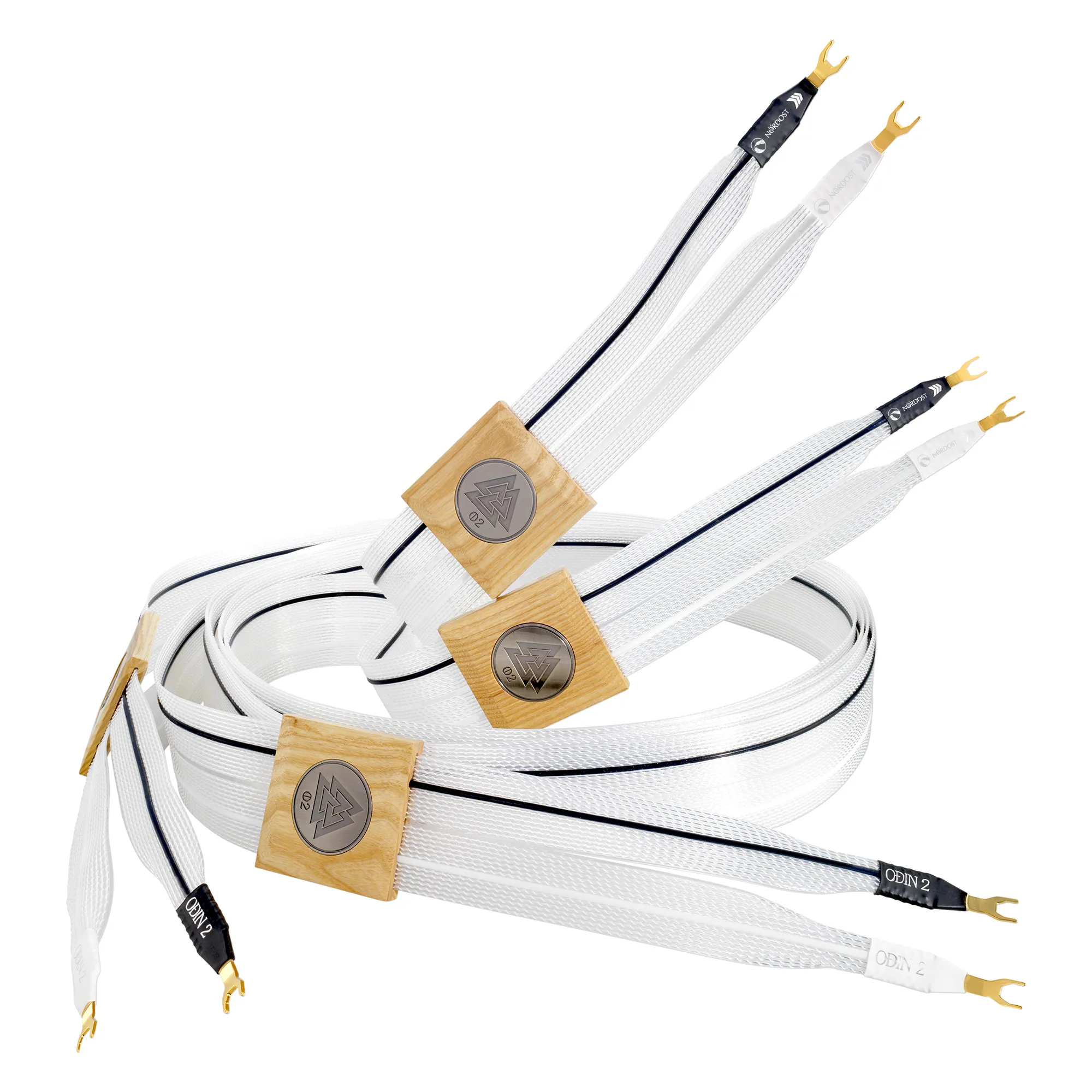

fig. 01 · ODIN 2 SPEAKER CABLESphotograph · Nordost

From Nordost

Odin 2 Speaker Cables are Nordost Supreme Reference loudspeaker cables built from 26 x 20 AWG silver-plated solid-core OFC conductors. The flat cable uses Dual Mono-Filament construction, high-purity class 1.003 FEP insulation, mechanically tuned spacing, 8.0pF/ft capacitance, and 98% velocity of propagation. Listed terminations are HOLO:PLUG gold-plated spade or low-mass Z-plug banana connectors.

Specifications

InsulationHigh purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned spacing, length and Dual Mono-Filament
Conductors26 x 20 AWG
MaterialSilver-plated 99.999999% solid core OFC
Capacitance8.0pF/ft
Inductance0.125μH/ft
Velocity of Propagation98%
TerminationHOLO:PLUG® gold-plated Spade (8.5mm internal, 12.6mm external) or HOLO:PLUG® gold-plated low-mass Z-plug Banana
Conductor count26
Conductor materialsilver-plated solid-core
Dielectric / insulationFEP extrusion
