ODIN 2 TONEARM CABLE +
Odin 2 tonearm cable with 23 AWG silver-plated conductors.
fig. 01 · interconnects
ODIN 2 TONEARM CABLE +
From Nordost

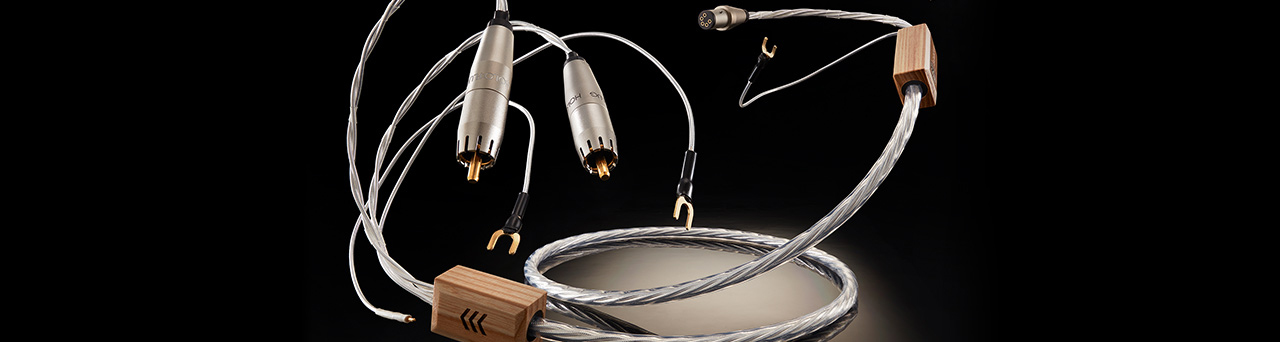

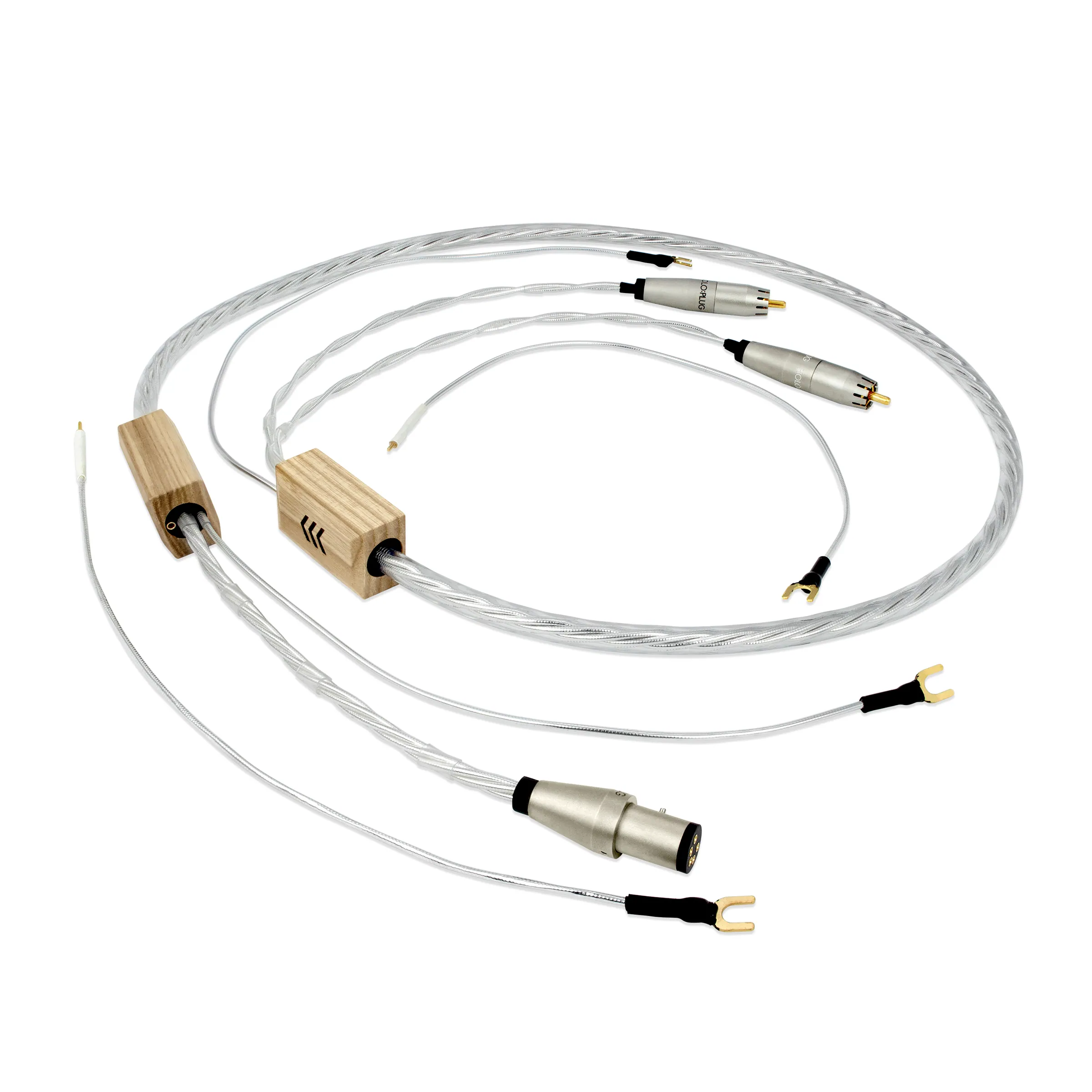

Odin 2 Tonearm Cable + is built for vinyl systems carrying the cartridge signal from tonearm to phono stage. Its design uses 4 x 23 AWG silver-plated 99.999999% OFC solid-core conductors, Dual Mono-Filament/TSC construction, and 100% individual shield coverage. RCA and XLR capacitance and inductance values are listed, with HOLO:PLUG gold-plated DIN, RCA, or XLR termination options and 5mm spade grounding leads.
Specifications
| Insulation | High purity extruded Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, length and Dual Mono-Filament, TSC design |
| Conductors | 4 x 23 AWG |
| Material | Silver plated 99.999999% OFC Solid Core |
| Capacitance | RCA: 9.75pF/ft | XLR: 23.5pF/ft |
| Inductance | RCA: 0.11μH/ft | XLR: 0.06μH/ft |
| Overall Shield Coverage | 100% Individually shielded |
| Bond / Grounding Whips | 23 AWG silver-plated, Solid Core OFC, Dual Mono-Filament design. |
| Velocity of Propagation | 90% |
| Termination | HOLO:PLUG® gold-plated Straight or 90० low-mass 5-pin Din, RCA, or XLR connectors. Whips and bond wire terminated with gold-plated 5mm spades. |
| Conductor material | silver-plated solid-core 99.999999% oxygen-free copper |
