ODIN GOLD BI-WIRE JUMPERS

Odin Gold bi-wire jumpers with 14 x 20 AWG gold-plated OFC conductors.

fig. 01 · speaker cables

ODIN GOLD BI-WIRE JUMPERS

Nordost ODIN GOLD BI-WIRE JUMPERS

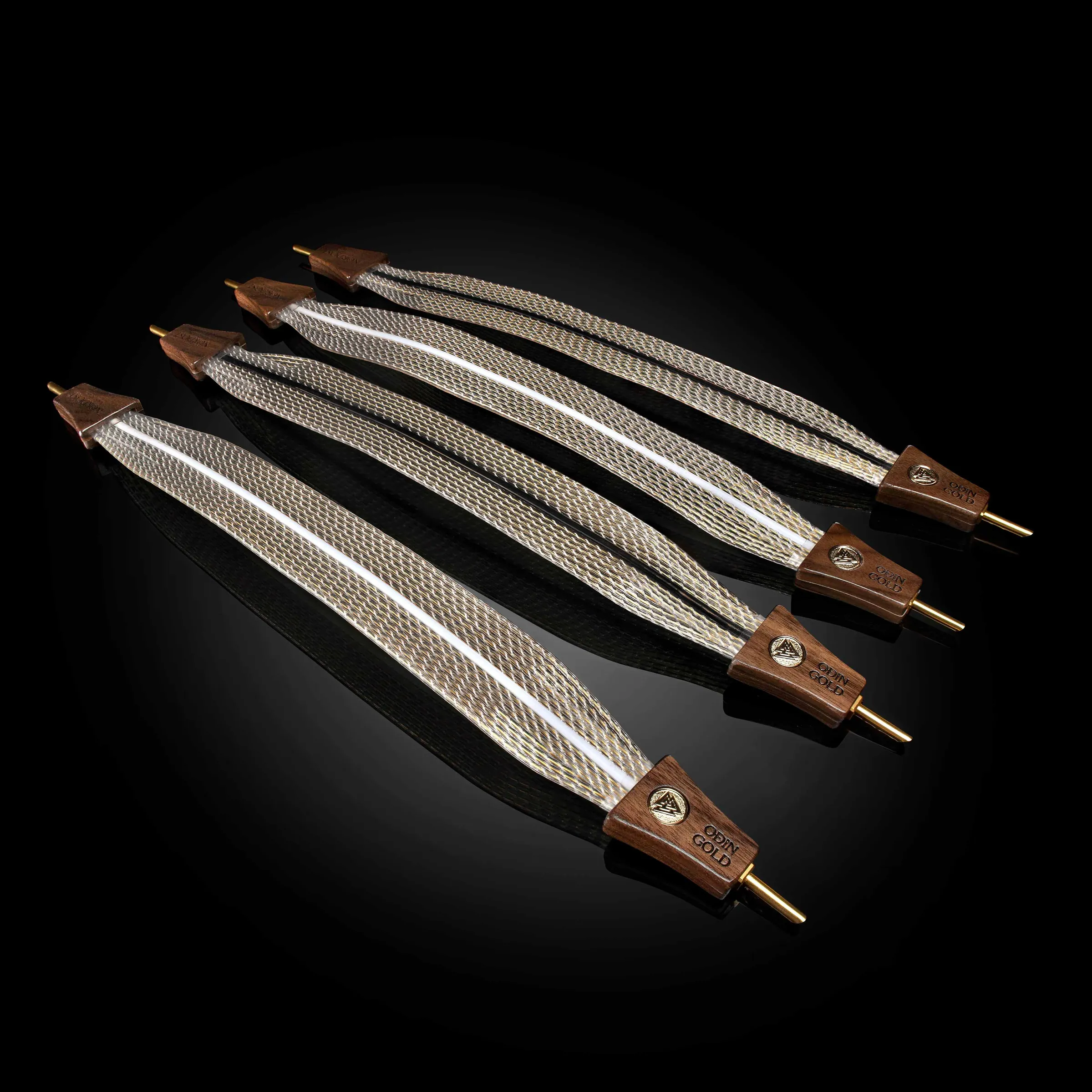

fig. 01 · ODIN GOLD BI-WIRE JUMPERSphotograph · Nordost

From Nordost

Odin Gold Bi-Wire Jumpers extend the Odin Gold loudspeaker-cable family to the short jumper links at the speaker terminals. The saved specs list 14 x 20 AWG gold-plated 99.999999% solid-core OFC conductors, FEP insulation, Dual Mono-Filament construction, 8.0pF/ft capacitance, and 98% velocity of propagation. Termination options are Odin Gold HOLO:PLUG gold-plated spades or low-mass Z-plug bananas.

Specifications

InsulationHigh purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned spacing, length and Dual Mono-Filament
Conductors14 x 20 AWG
MaterialGold-plated 99.999999% solid core OFC
Capacitance8.0pF/ft
Inductance0.125μH/ft
Velocity of Propagation98%

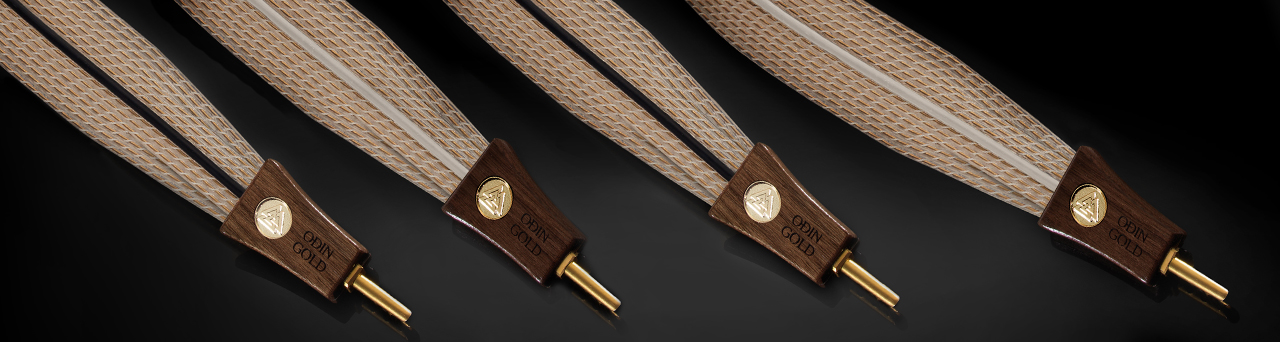

TerminationOdin Gold HOLO:PLUG® gold-plated Spade or Odin Gold HOLO:PLUG® gold-plated low mass Z-plug Banana
