Nordost · Speaker Cables · Cables

ODIN GOLD LOUDSPEAKER CABLES

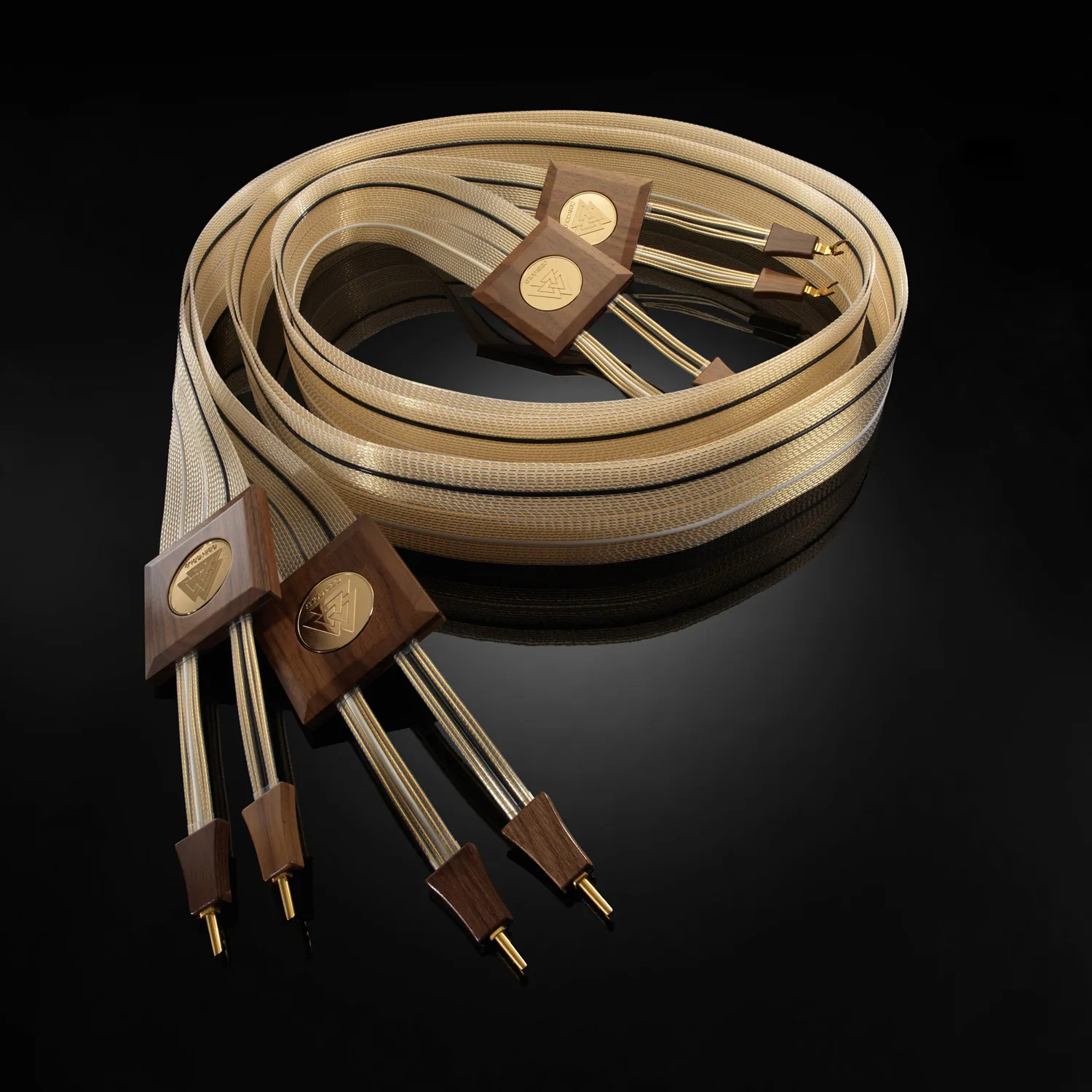

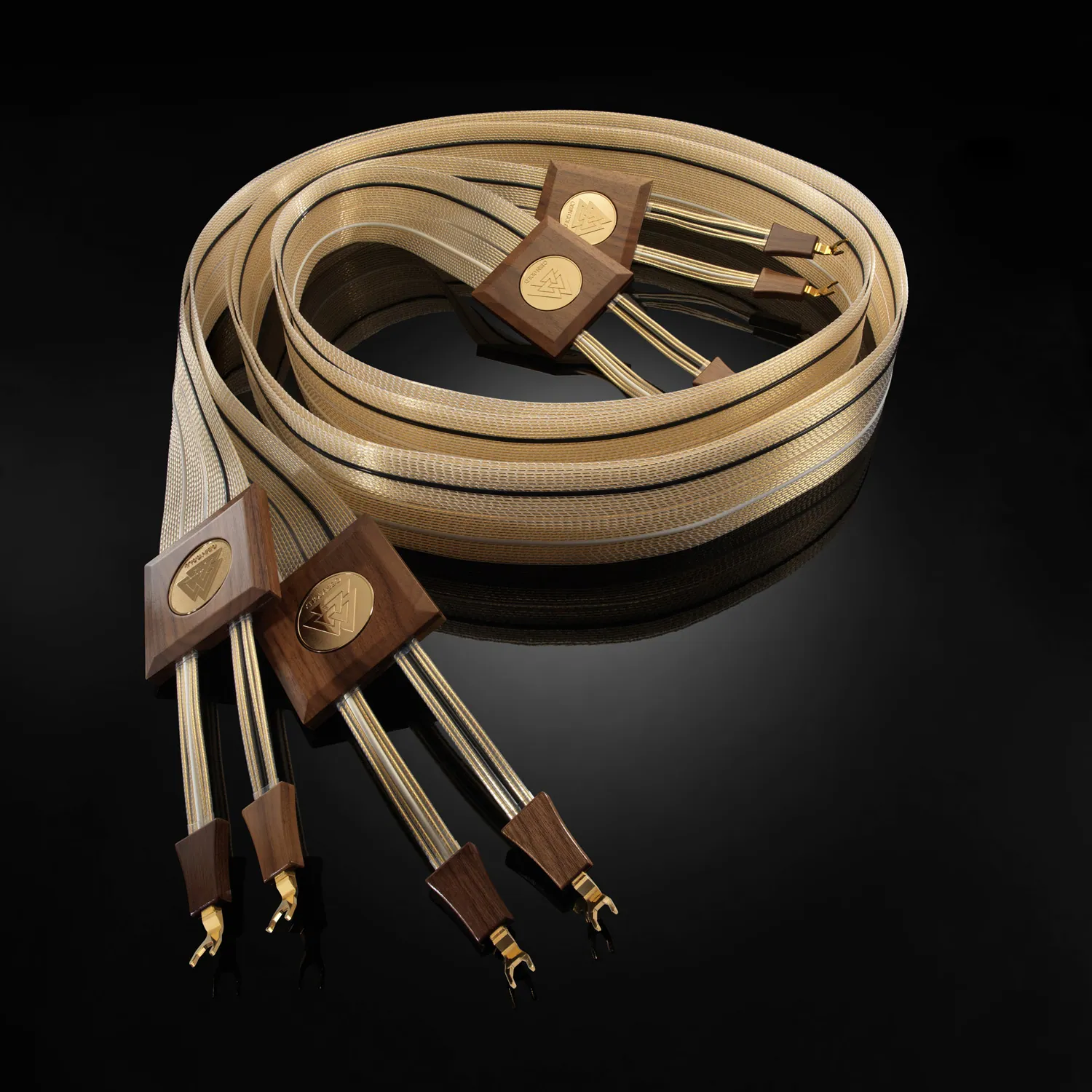

Odin Gold loudspeaker cable with gold-plated OFC conductors.

fig. 01 · speaker cables

ODIN GOLD LOUDSPEAKER CABLES

Nordost ODIN GOLD LOUDSPEAKER CABLES
fig. 01 · ODIN GOLD LOUDSPEAKER CABLESphotograph · Nordost

From Nordost

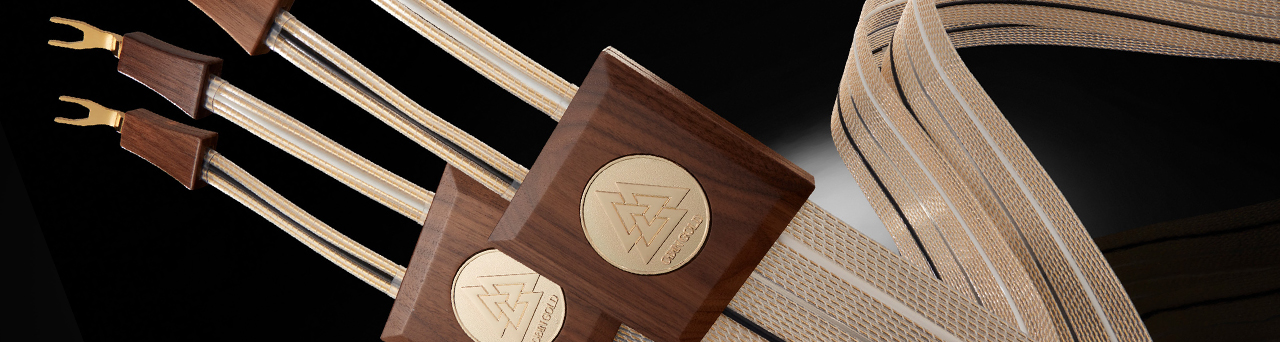

Odin Gold Loudspeaker Cables are Nordost Supreme Reference cables for the amplifier-to-speaker path. They use 28 x 20 AWG gold-plated 99.999999% solid-core OFC conductors, with an 8 x 14 AWG transition to the termination after breakout. The design also uses Dual Mono-Filament construction, high-purity class 1.003 FEP insulation, 8.0pF/ft capacitance, and 98% velocity of propagation, with Odin Gold HOLO:PLUG spade or low-mass Z-plug banana terminations.

Specifications

InsulationHigh purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned spacing, length and Dual Mono-Filament
Conductors28 x 20 AWG, 8 x 14 AWG transition to termination after breakout
MaterialGold-plated 99.999999% solid core OFC
Capacitance8.0pF/ft
Inductance0.125µH/ft
Velocity of Propagation98%
TerminationOdin Gold HOLO:PLUG® gold-plated Spade (8.5mm internal, 12.6mm external) or Odin Gold HOLO:PLUG® gold-plated low mass Z-plug Banana
