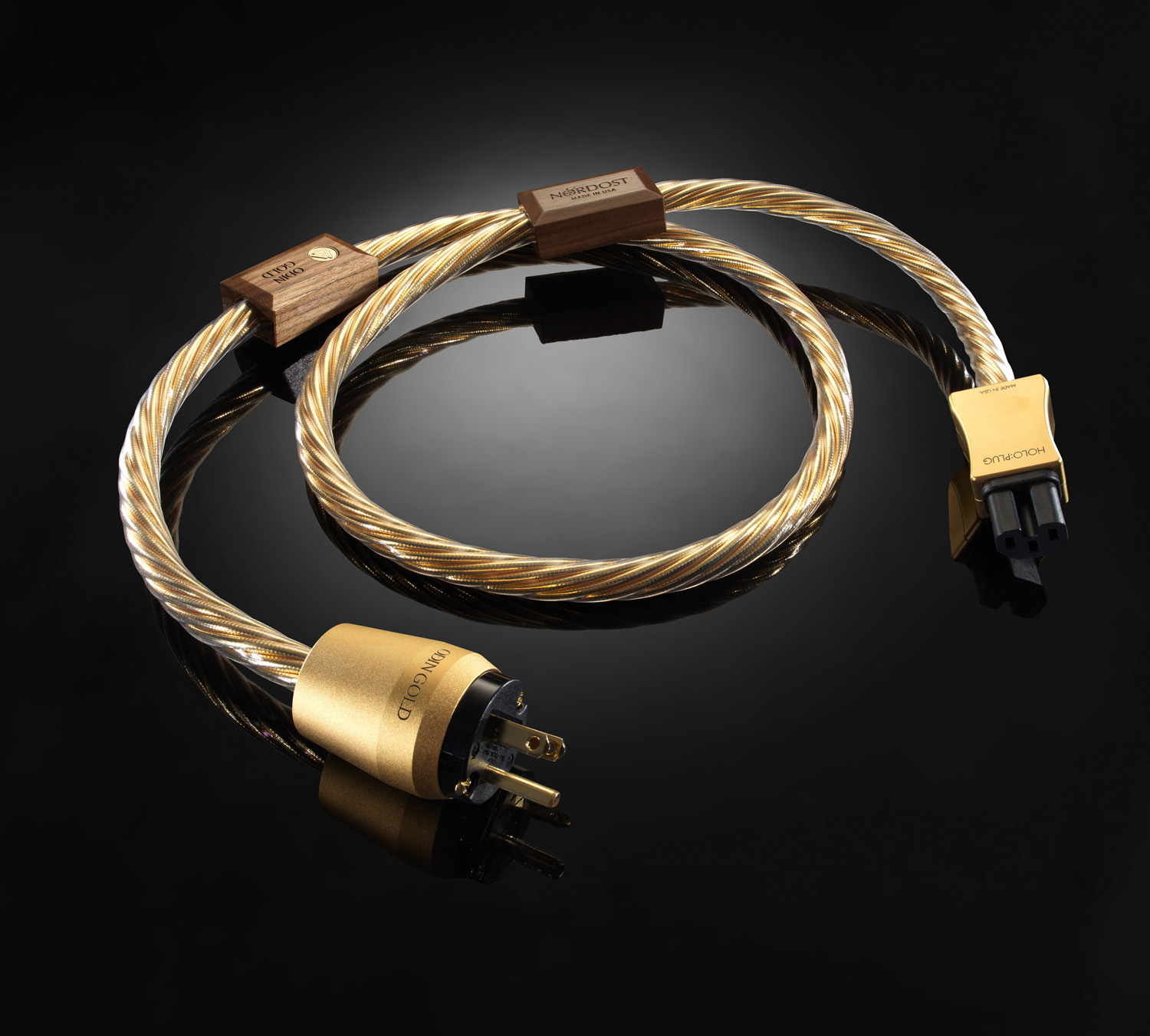

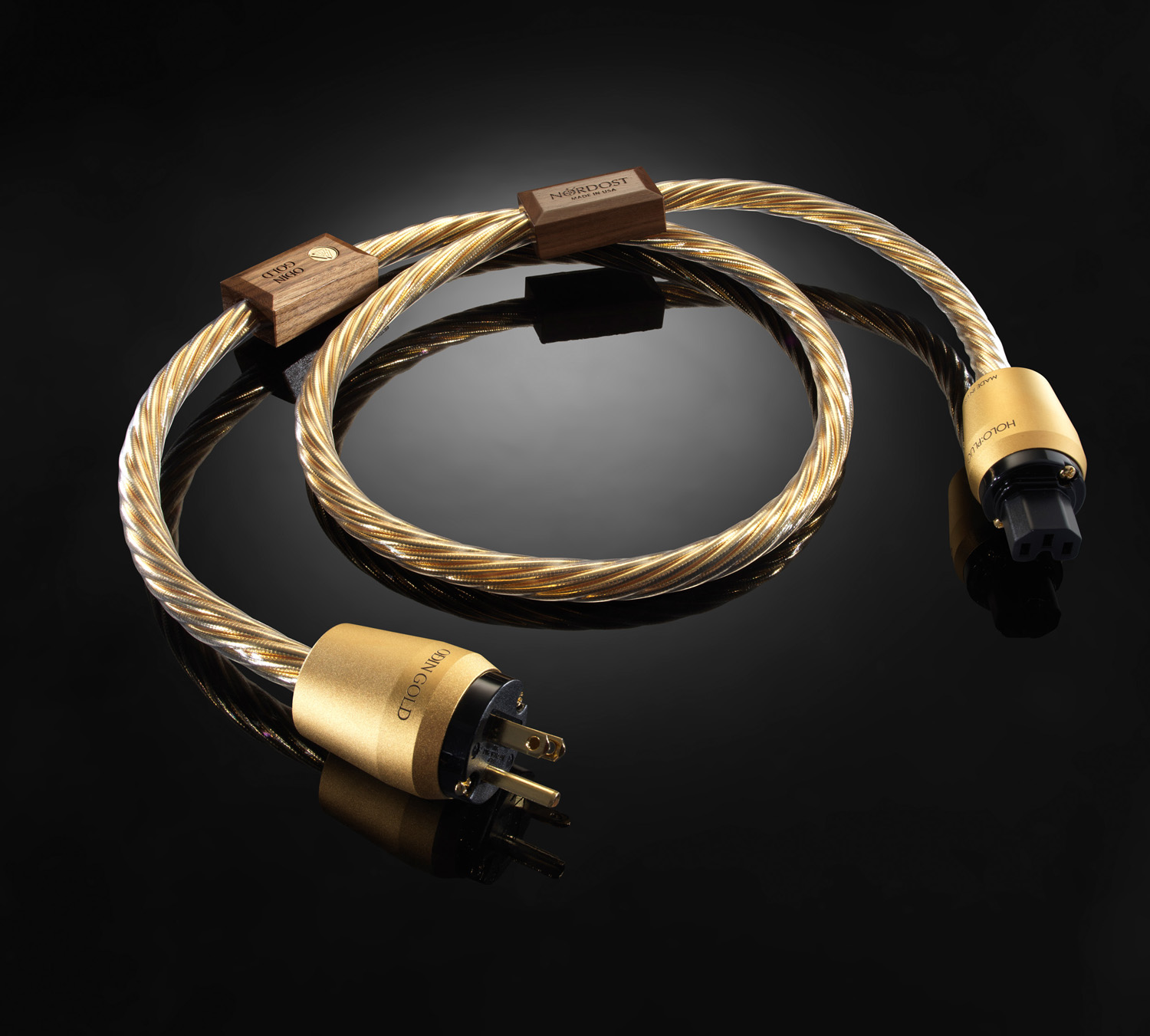

ODIN GOLD POWER CORD
Gold-plated power cord rated at 20 amps.
fig. 01 · power cables
ODIN GOLD POWER CORD
From Nordost
Odin Gold Power Cord uses 7 x 14 AWG gold-plated 99.999999% solid-core OFC conductors with Dual Mono-Filament/TSC construction. Its saved specs list FEP insulation, 20 amp power rating, 100% individually shielded gold-plated total coverage, 1.33 ohms DC resistance per 1000 ft, and 88% velocity of propagation. Termination options include Odin Gold HOLO:PLUG gold-plated US, EU, AUS, or UK plugs to IEC-C15 or IEC-C19 connectors.
Specifications
| Insulation | High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned spacing, length and Dual Mono-Filament, TSC design |
| Conductors | 7 x 14 AWG |
| Material | Gold-plated 99.999999% solid core OFC |
| DC Resistance | 1.33 Ohms per 1000ft |
| Cable Power Rating | 20 Amp |
| Overall Shield Coverage | 100% Individually shielded, gold-plated, total coverage |
| Velocity of Propagation | 88% |
| Termination | Odin Gold HOLO:PLUG® gold-plated US (Nema), EU (Schuko), AUS or UK to Odin Gold HOLO:PLUG® IEC-C15 or IEC-C19 |
