Nordost · Interconnects · Cables
ODIN GOLD TONEARM CABLE +

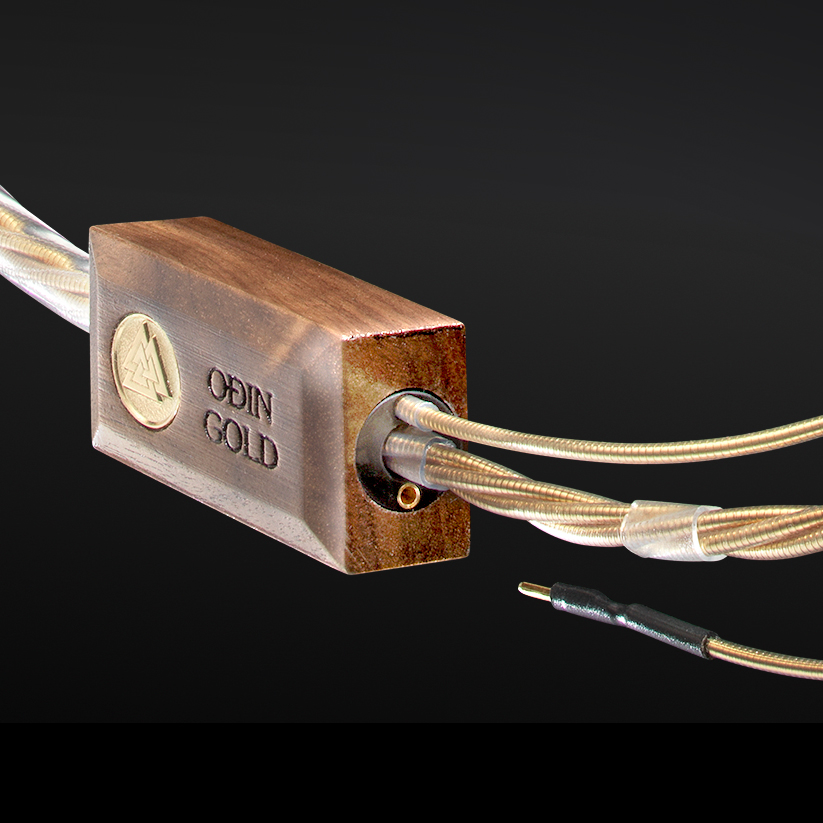

Odin Gold tonearm cable with gold-plated solid-core OFC conductors.
fig. 01 · interconnects
ODIN GOLD TONEARM CABLE +
From Nordost

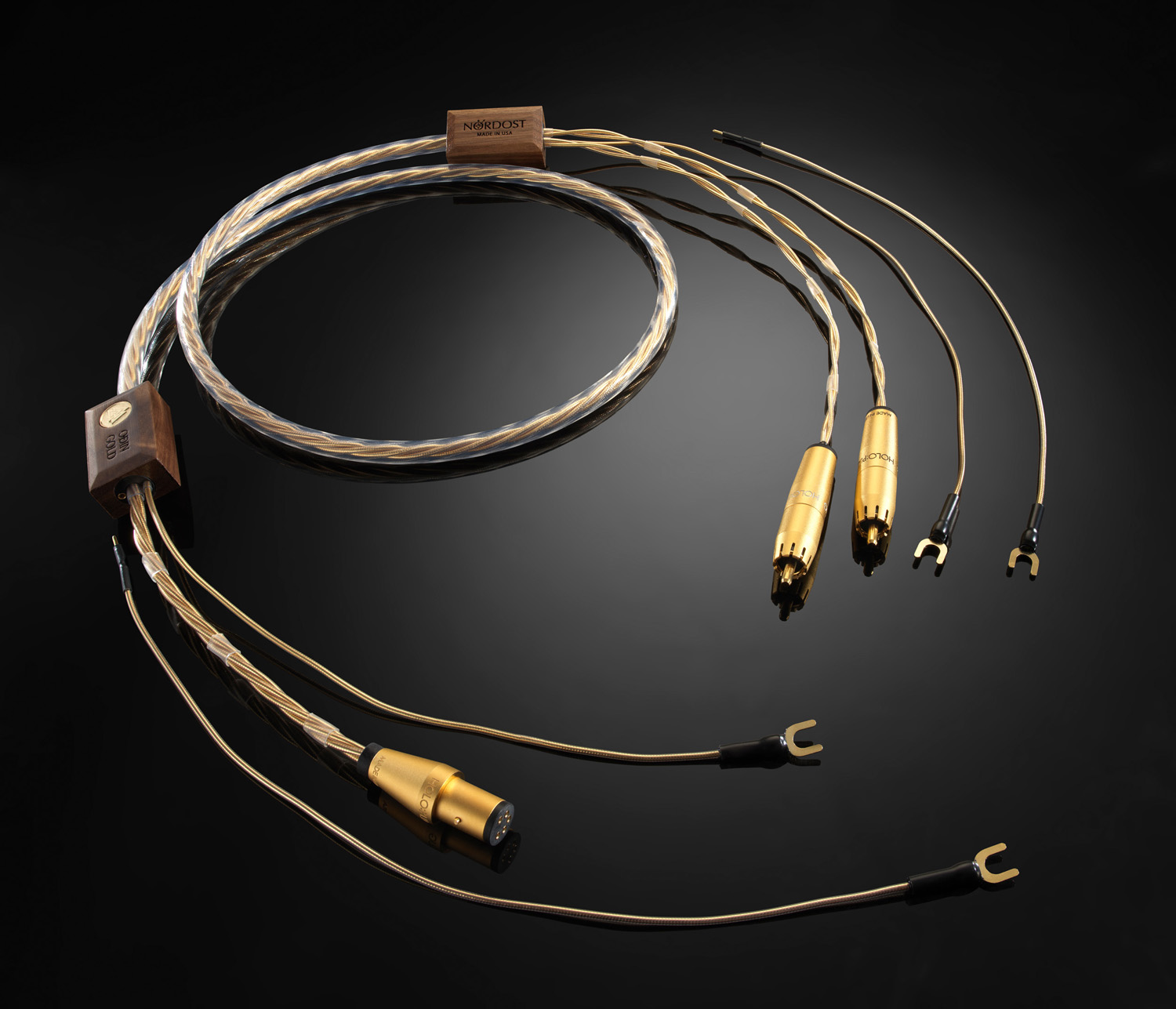

Odin Gold Tonearm Cable + is for vinyl systems where the tonearm-to-phono-stage link is the critical signal path. It uses 4 x 23 AWG gold-plated 99.999999% solid-core OFC conductors, Dual Mono-Filament/TSC construction, and 100% individually shielded gold-plated coverage. Termination options include gold-plated 5-pin DIN, RCA, or XLR connectors.
Specifications
| Insulation | High purity class 1.003 extruded Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, length and Dual Mono-Filament, TSC design |
| Conductors | 4 x 23 AWG |
| Material | Gold-plated 99.999999% solid core OFC |
| Bond/Grounding Whips | 23 AWG gold-plated, Solid Core OFC, Dual Mono-Filament |
| Capacitance | RCA: 9.75pF/ft | XLR: 23.5pF/ft |
| Inductance | RCA: 0.11µH/ft | XLR: 0.0611µH/ft |
| Overall Shield Coverage | 100% Individually shielded, gold-plated, total coverage |
| Velocity of Propagation | 90% |
| Termination | HOLO:PLUG® gold-plated Straight or 90° 5pin Din, RCA, or XLR connectors |
