PURPLE FLARE 3 POWER CORD
IEC-C15 power cord with 3 x 16 AWG OFC conductors.
fig. 01 · power cables
PURPLE FLARE 3 POWER CORD
From Nordost

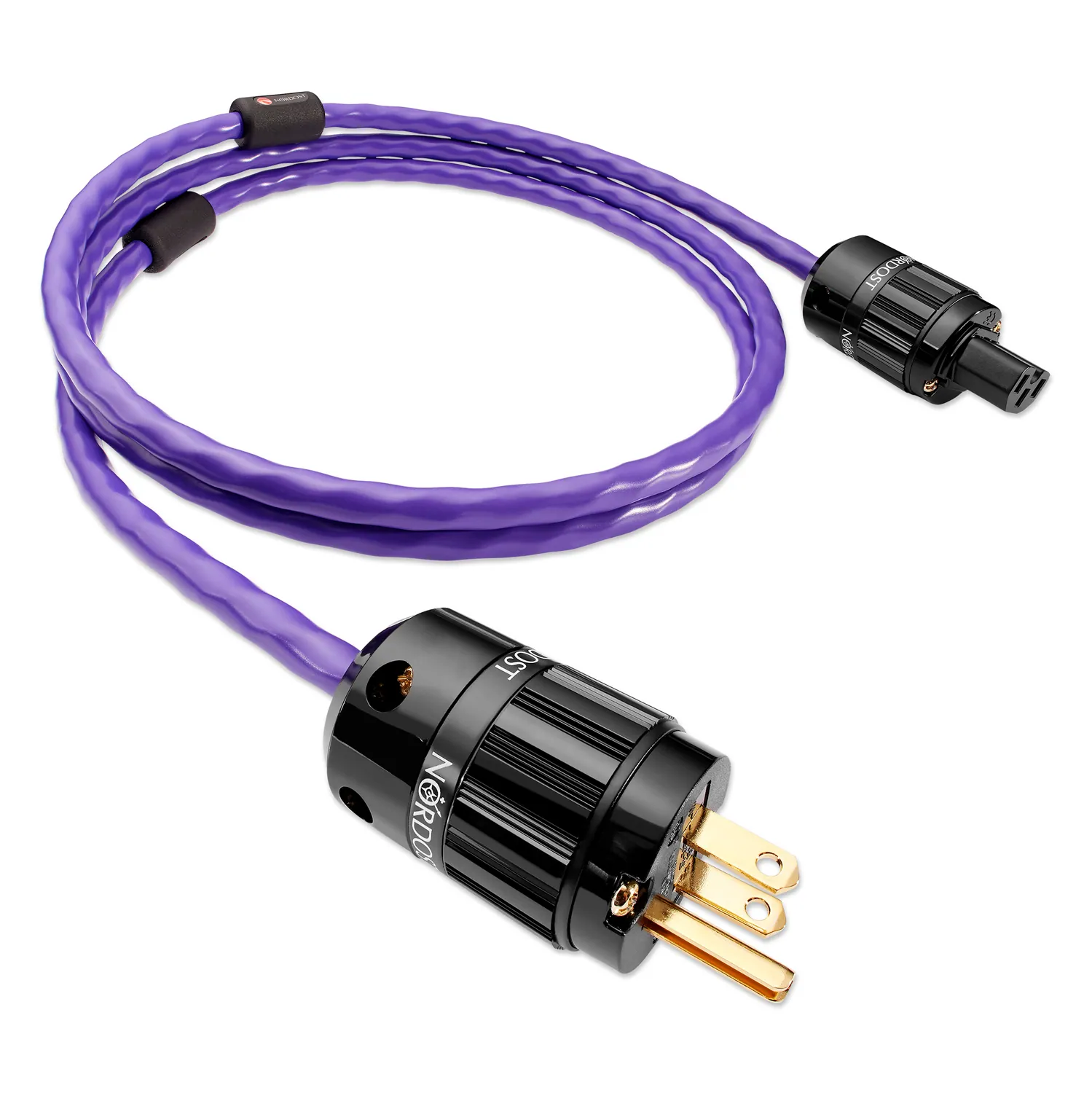

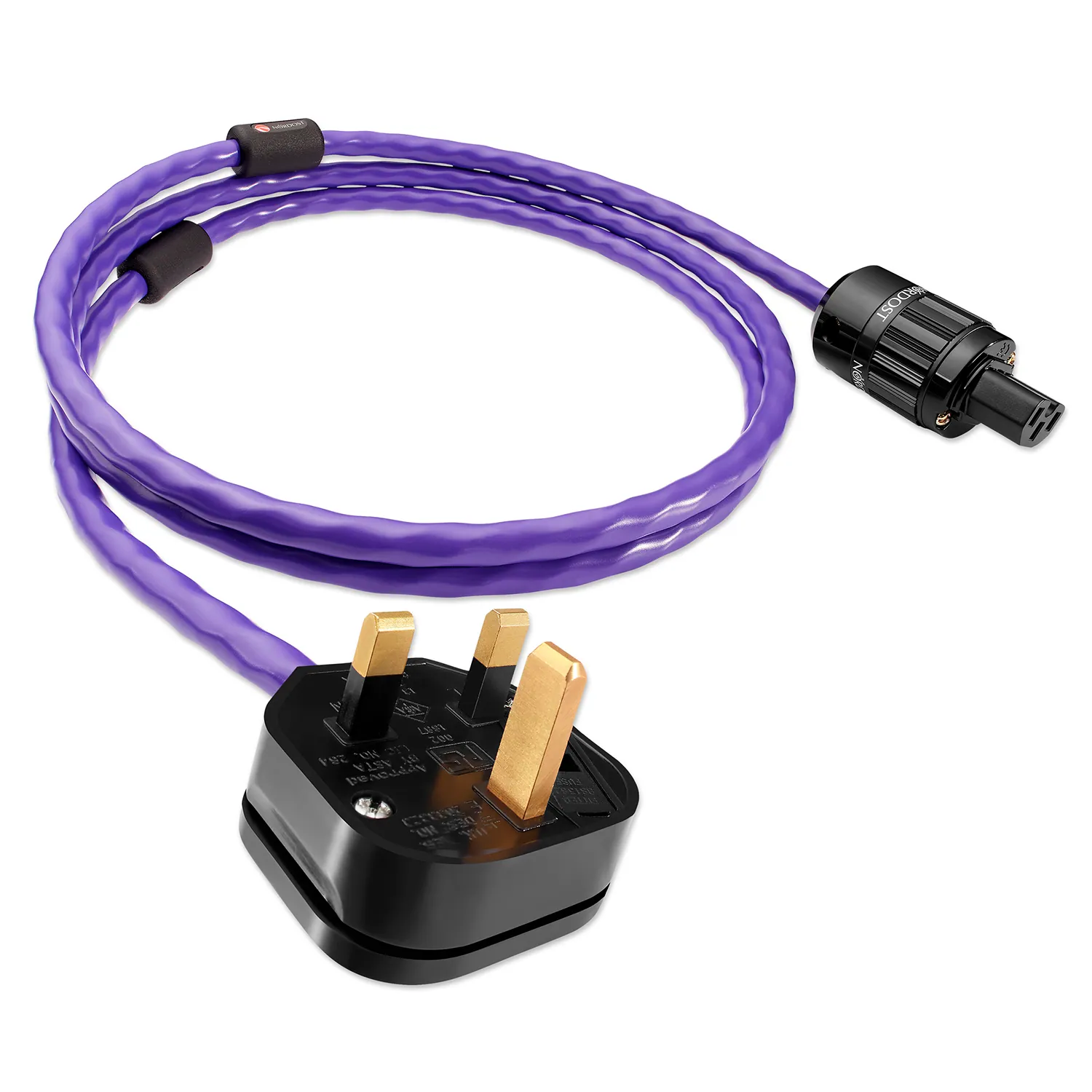

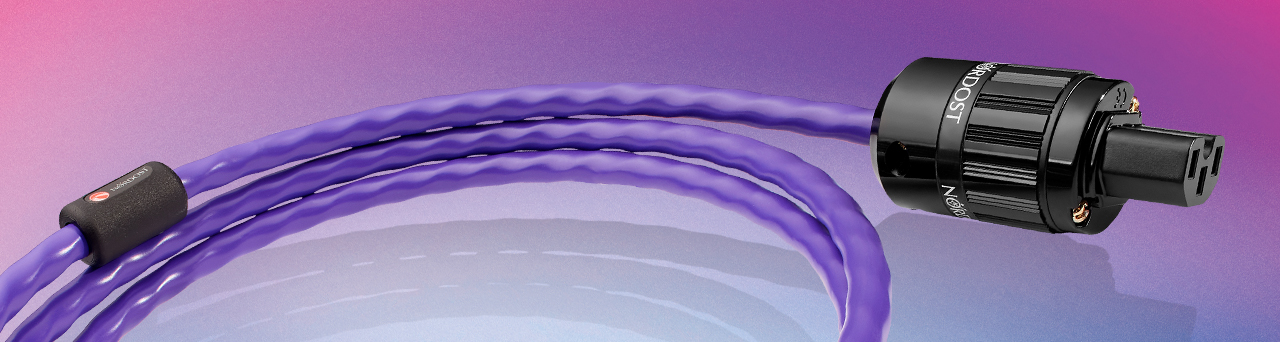

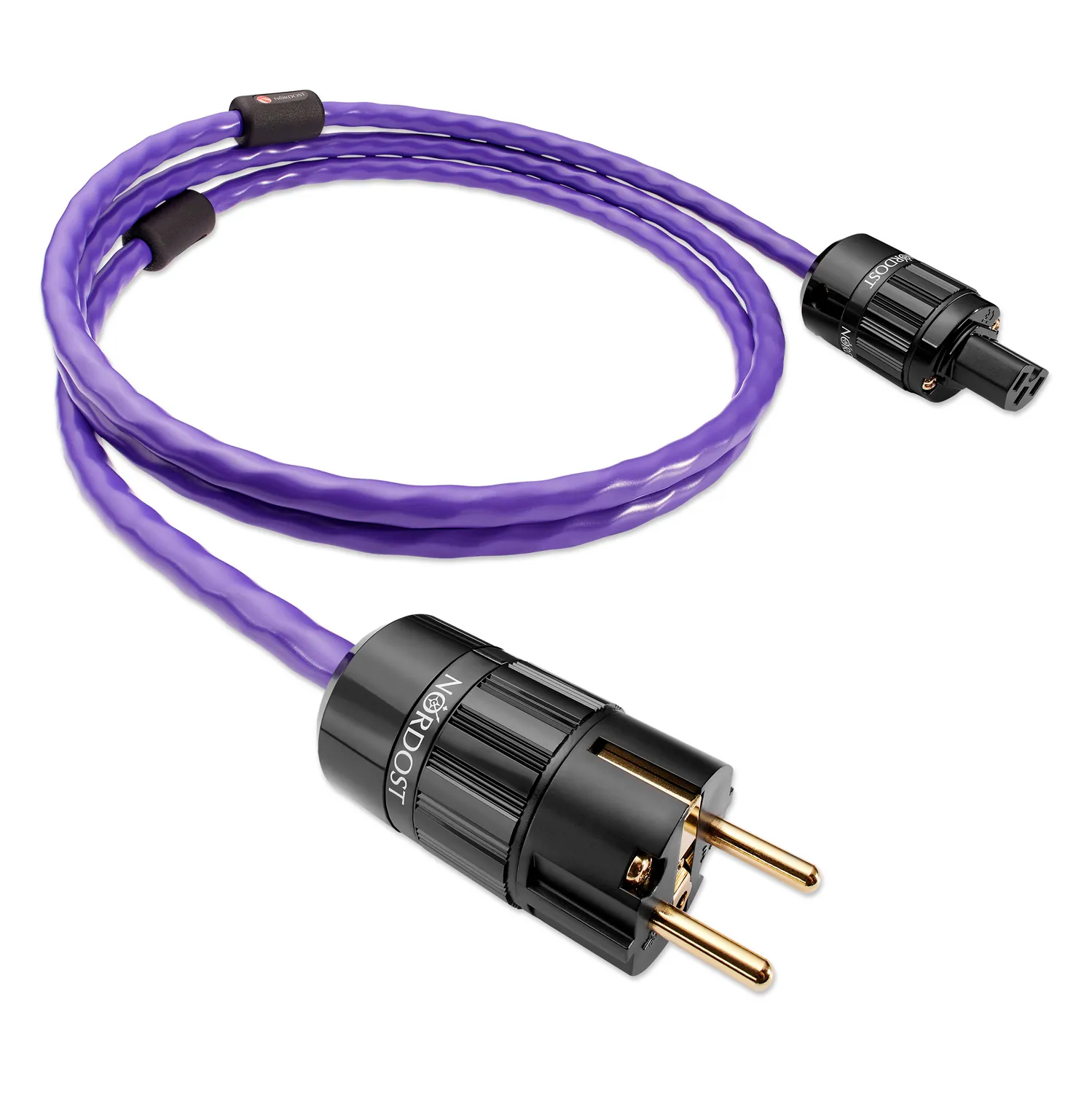

Purple Flare 3 Power Cord is a Nordost AC power cable with FEP insulation and Micro Mono-Filament construction. It uses 3 x 16 AWG, 65-strand 99.9999% OFC conductors. Listed termination options include US, EU, UK, or AUS mains plugs to an IEC-C15 connector.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, Micro Mono-Filament design |
| Conductors | 3 x 16 AWG |
| Material | 65 strand 99.9999% OFC |
| Capacitance | 10.0pF/ft |
| Inductance | 0.133µH/ft |
| DC Resistance | 4.4 Ohms per 1000ft |
| Velocity of Propagation | 81% |
| Termination | US (Nema), EU (Schuko), UK, or AUS to IEC-C15 connector |
