PURPLE FLARE ANALOG INTERCONNECTS

Analog interconnect with 6 x 26 AWG silver-plated OFC conductors.

fig. 01 · interconnects

PURPLE FLARE ANALOG INTERCONNECTS

Nordost PURPLE FLARE ANALOG INTERCONNECTS

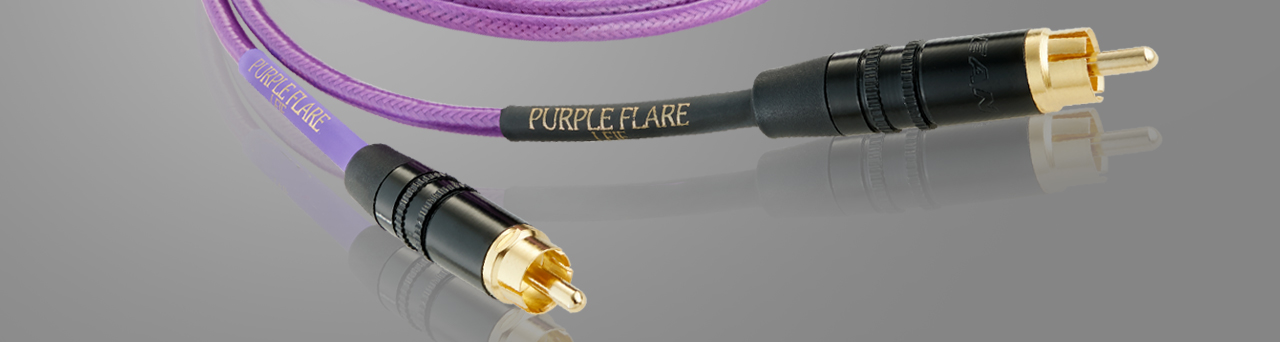

fig. 01 · PURPLE FLARE ANALOG INTERCONNECTSphotograph · Nordost

From Nordost

Purple Flare Analog Interconnects are fully shielded Nordost cables for balanced or single-ended line-level connections. They use 6 x 26 AWG silver-plated solid-core OFC conductors, FEP insulation, mechanically tuned lay, and 95% shield coverage. Listed termination options are gold-plated RCA or XLR.

Specifications

InsulationFluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned lay
Conductors6 x 26 AWG
MaterialSilver-plated 99.99999% solid core OFC
Capacitance55.0pF/ft
Inductance0.037μH/ft
Overall Shield Coverage95%
Velocity of Propagation80%
TerminationGold-plated RCA or XLR
Conductor count6
Conductor gauge26 AWG
Conductor materialsilver-plated solid-core 99.9999% OFC
All 12 specificationsFewer specifications
