PURPLE FLARE POWER CORD

Figure-8 power cord with 2 x 16 AWG OFC conductors.

fig. 01 · power cables

PURPLE FLARE POWER CORD

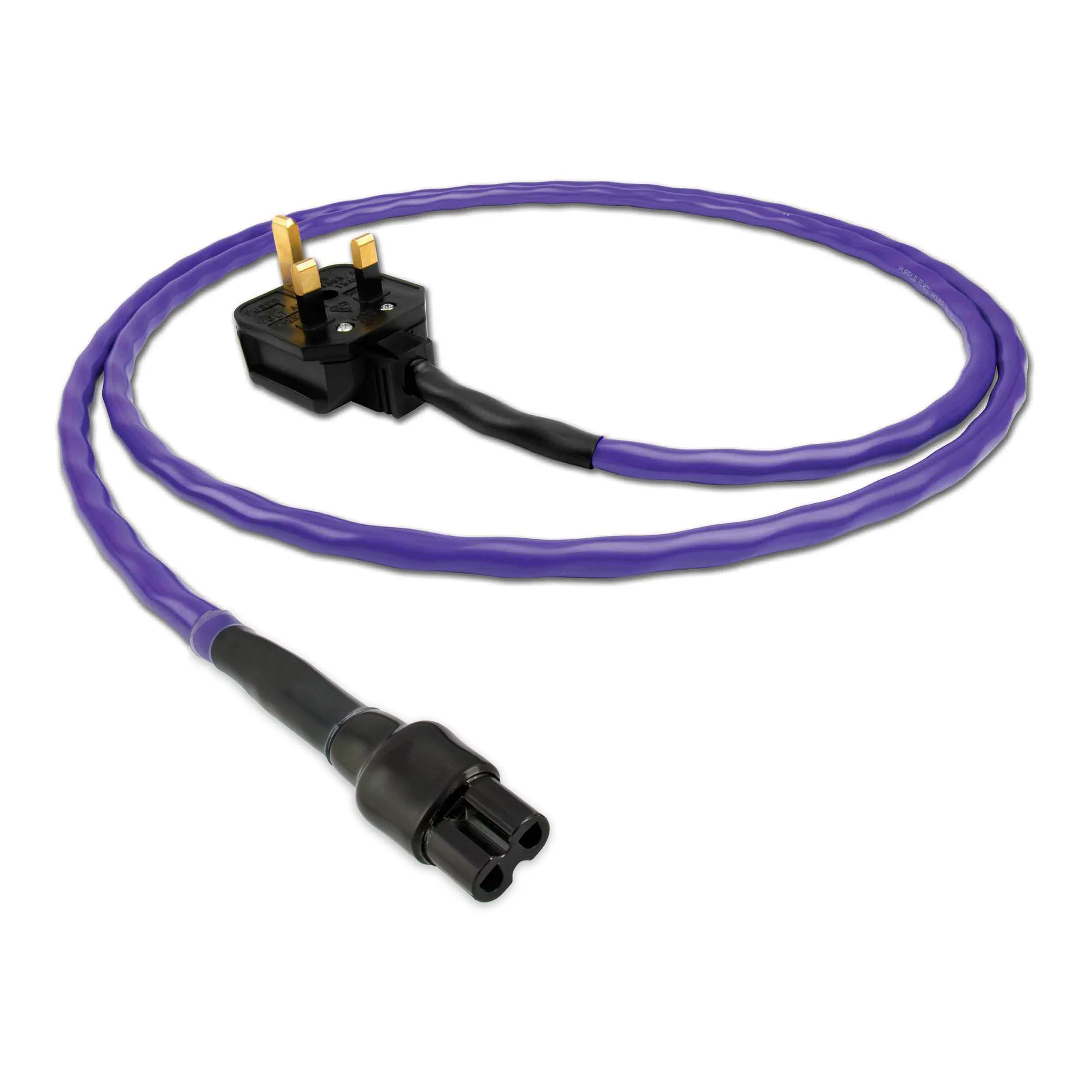

Nordost PURPLE FLARE POWER CORD

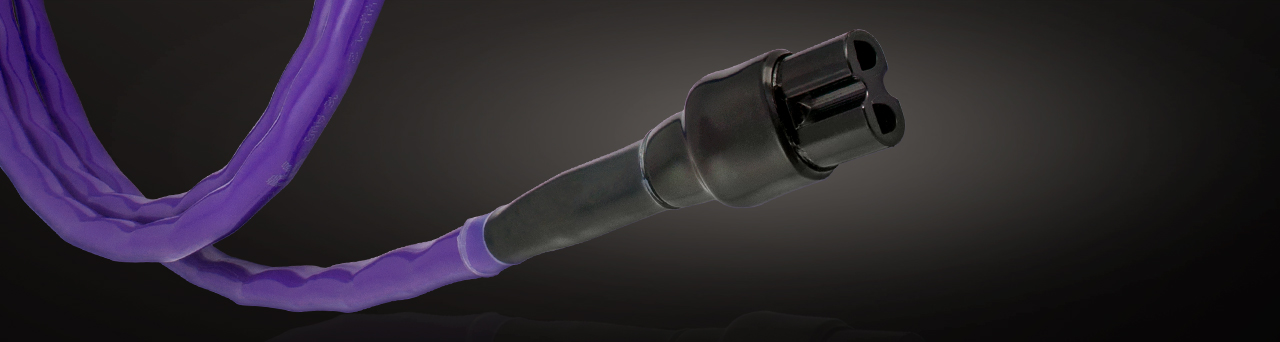

fig. 01 · PURPLE FLARE POWER CORDphotograph · Nordost

From Nordost

Purple Flare Power Cord is a Nordost AC power cable with FEP insulation and Micro Mono-Filament construction. It uses 2 x 16 AWG, 65-strand 99.9999% OFC conductors. Listed termination options include US, EU, UK, or AUS mains plugs to a Figure 8 IEC-C7 connector.

Specifications

InsulationFluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned lay, Micro Mono-Filament design
Conductors2 x 16 AWG
Material65 strand 99.9999% OFC
Capacitance10.0pF/ft
Inductance0.155μH/ft
DC Resistance4.4 Ohms per 1000ft
Velocity of Propagation81%

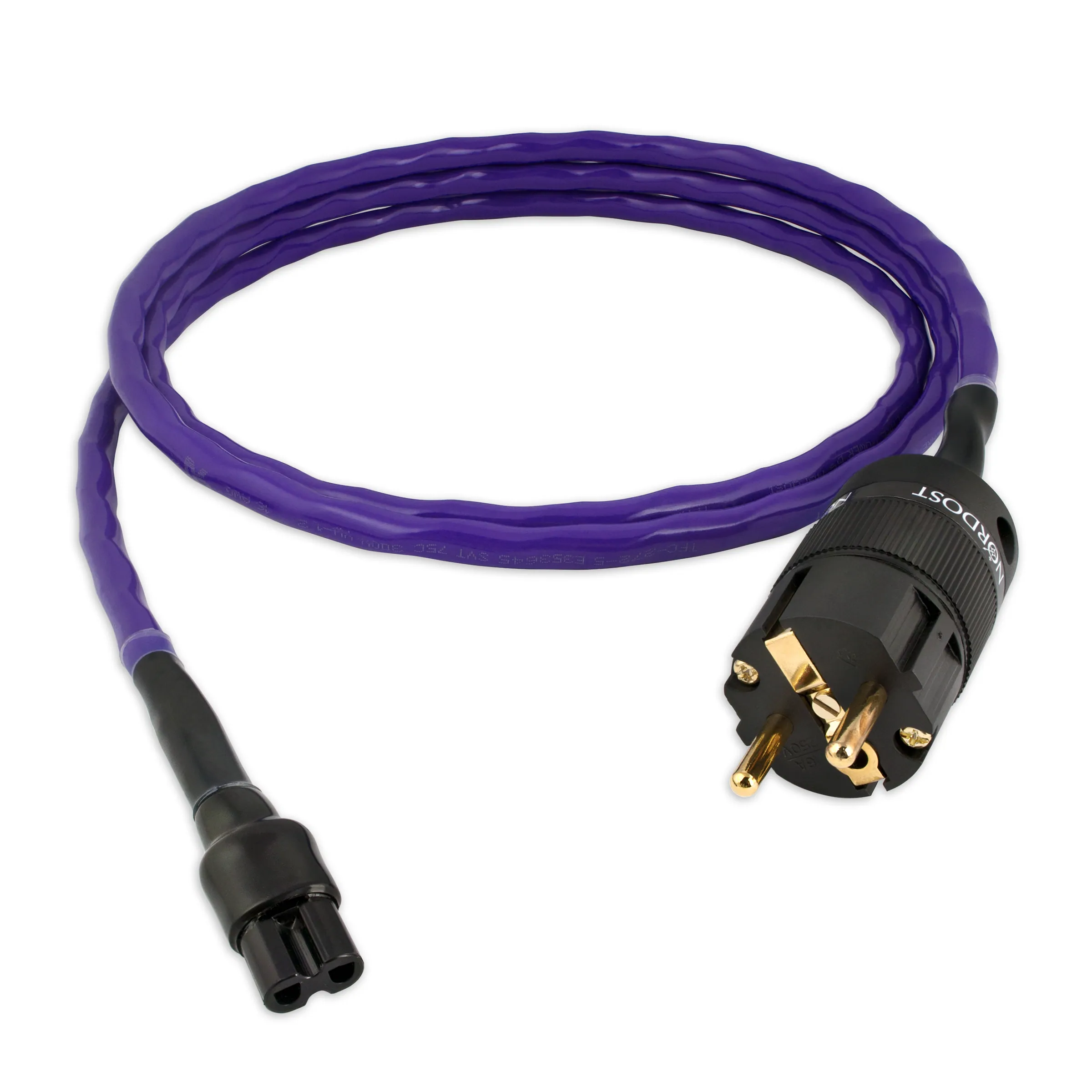

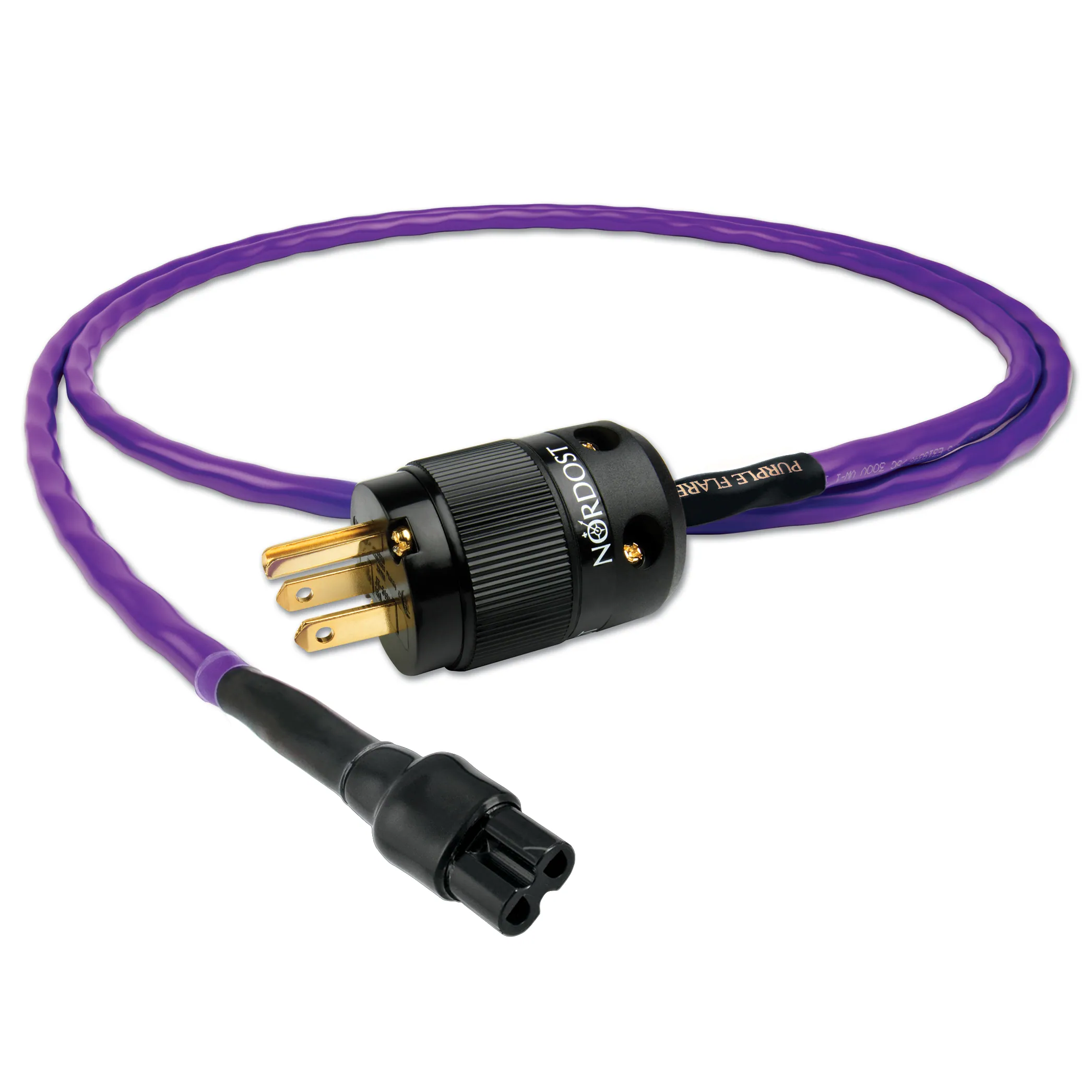

TerminationUS (Nema), EU (Schuko), UK or AUS to Figure 8 IEC-C7 connector
Dielectric / insulationFEP
Geometry / constructionMicro Mono-Filament
