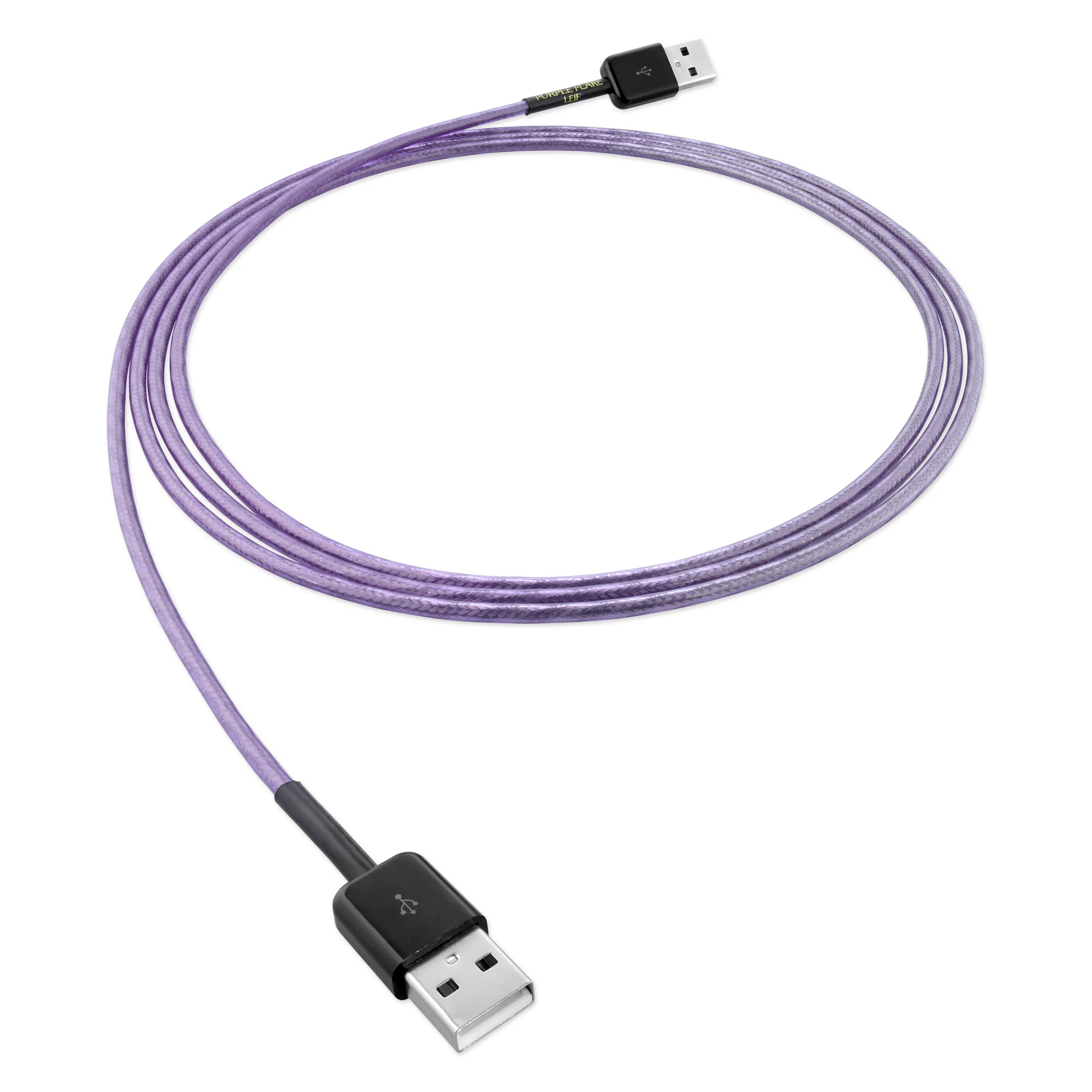

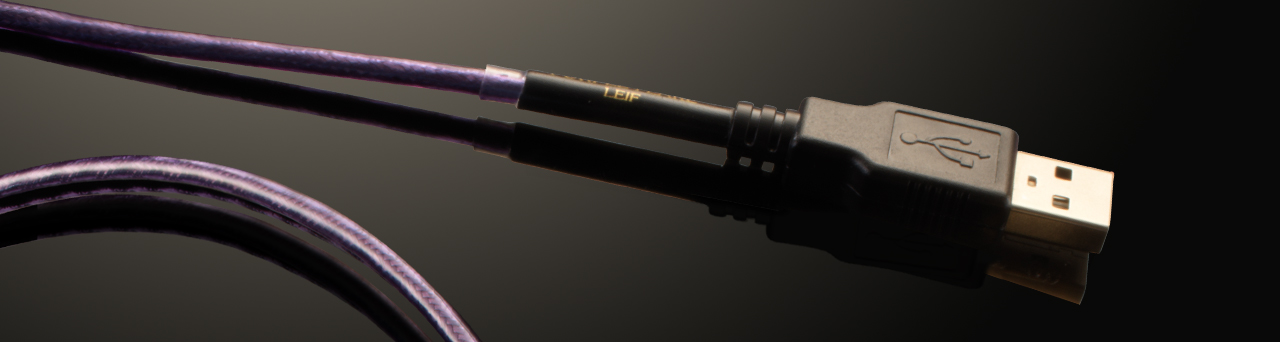

PURPLE FLARE USB 2.0 CABLE
USB 2.0 data cable with 4 x 28 AWG silver-plated OFC conductors.
fig. 01 · usb cables
PURPLE FLARE USB 2.0 CABLE
7 photographs · 5 shown
From Nordost
Purple Flare USB 2.0 Cable is a Nordost data cable for hi-fi systems that need USB connection options including Standard B, Micro-B, or Mini. It uses four 28 AWG stranded silver-plated 99.9999% OFC conductors, FEP insulation, and 100% shield coverage. Fully shielded metal-jacket connectors support the cable's signal-transfer path.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, twisted shielded pair design |
| Conductors | 4 x 28 AWG |
| Material | Stranded silver-plated 99.9999% OFC |
| Overall Shield Coverage | 100% Total Coverage |
| Velocity of Propagation | 70% |
| Termination | Standard Type A USB 2.0 to Standard A, Standard B, Micro-B, or Mini |
| Conductor count | 4 |
| Conductor material | silver-plated OFC |
| Dielectric / insulation | FEP extrusion |
| Shielding | double-shielded construction |
| Connectors / termination | metal jacket connectors |
