Nordost · Accessories

QNET7 NETWORK SWITCH

Seven-port unmanaged network switch with RJ45 and SFP connectivity.

fig. 01 · accessories

QNET7 NETWORK SWITCH

Nordost QNET7 NETWORK SWITCH

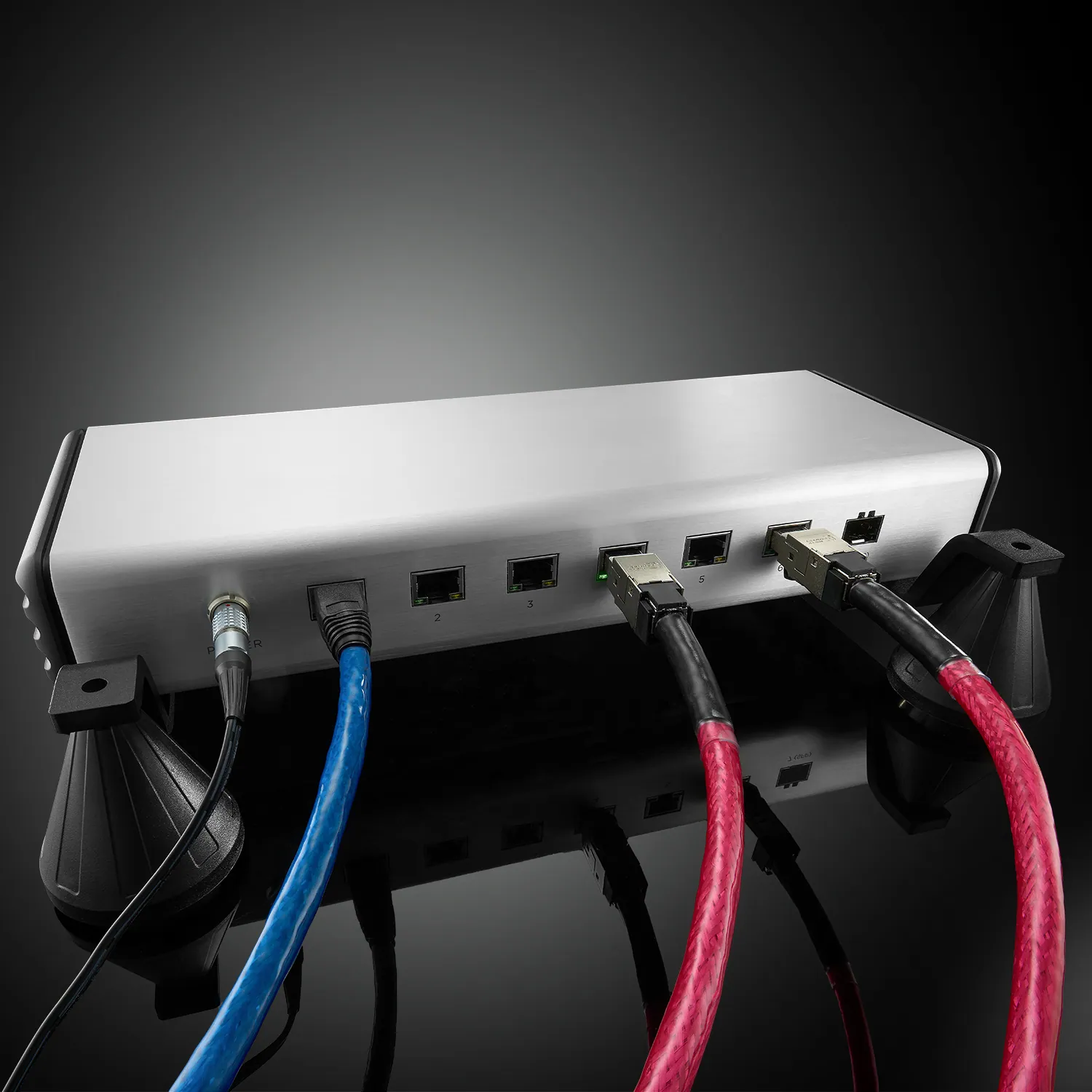

fig. 01 · QNET7 NETWORK SWITCHphotograph · Nordost

8 photographs · 5 shown

From Nordost

QNET7 is a Layer 2 unmanaged network switch for digitally sourced systems. It has 7 ports, including 6 RJ45 connectors and 1 SFP connection, with 5V/1A DC input and a 320 x 122 x 59.25mm chassis.

Specifications

TypeLayer 2 unmanaged switch
Number of Ports7
Ports capabilityPorts 1-5 are 1000BASE-T/100BASE-TX capable with auto-negotiation and auto-MDI/MDI-X support. Port 6 is 100BASE-TX capable with auto-negotiation and auto-MDI/MDI-X support. Port 7 is 1000BASE-T and 1000BASE-X (LX/SX) capable.
Connectors6x 8P8C (RJ45), 1x SFP
DC Power Input5V/1A
Weight1.65kg (3.64lb)
Dimensions320mm x 122mm x 59.25mm / 12.6in x 4.8in x 2.33in with feet
