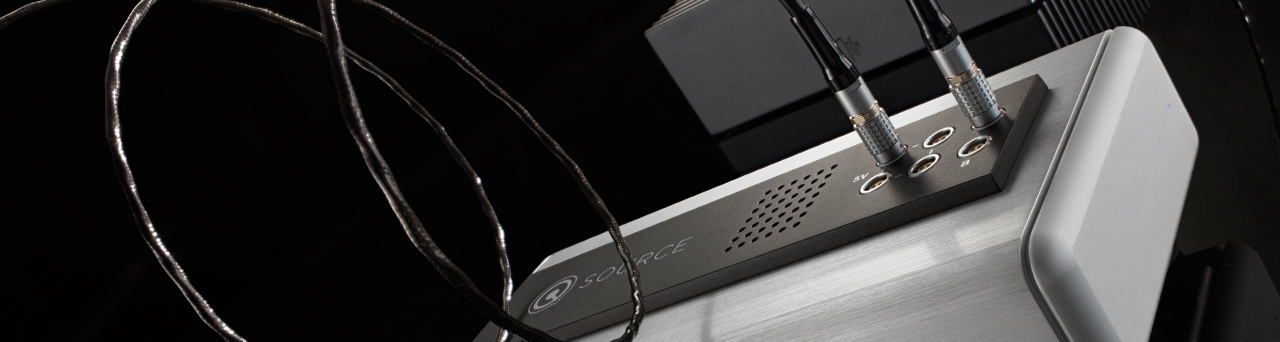

QSOURCE LINEAR POWER SUPPLY
Fanless linear power supply with selectable DC outputs.
fig. 01 · accessories
QSOURCE LINEAR POWER SUPPLY
From Nordost
QSOURCE is a fanless linear power supply for hi-fi components that need stable DC power. It has switchable 110/220 VAC input, 75 dB PSRR, variable DC outputs from 9V to 24V, and LEMO-based DC cable termination options.
Specifications
| AC Power Input | Switchable 110/220 VAC 50/60 Hz |
|---|---|
| AC Fuse | 1.25A Time-Lag, Ceramic Body |
| DC Power Output | For each variable output @ 19/24 VDC: 66 W For each variable output @ 12 VDC: 20 W For each variable output @ 9 VDC: 10 W For all 5V outputs combined: 5 W |
| PSRR | 75 dB |
| Dimensions | 280 x 121 x 67mm (11in x 4.75in x 2.625in) w/ feet |
| Weight | 2.7kg (6lb) |
| Insulation | Fluorinated Ethylene Propylene (FEP) |
| Construction | Micro Mono-Filament Design, Shielded Twisted Pairs |
| Conductors | 2 x 22 AWG |
| Material | Solid Core, Silver-plated, OFC |
| Termination | LEMO to LEMO, LEMO to 5.5mm x 2.1mm DC connector, or LEMO to 5.5mm x 2.5mm DC connector |
| Conductors 2 | 2 x 18 AWG |
| Termination 2 | LEMO to LEMO, LEMO to 5.5mm x 2.1mm DC connector, or LEMO to 5.5mm x 2.5mm DC connector |
