Nordost · Speaker Cables · Cables
RED DAWN 3 SPEAKER CABLES
Flat speaker cable with 22 x 24 AWG silver-plated OFC conductors.

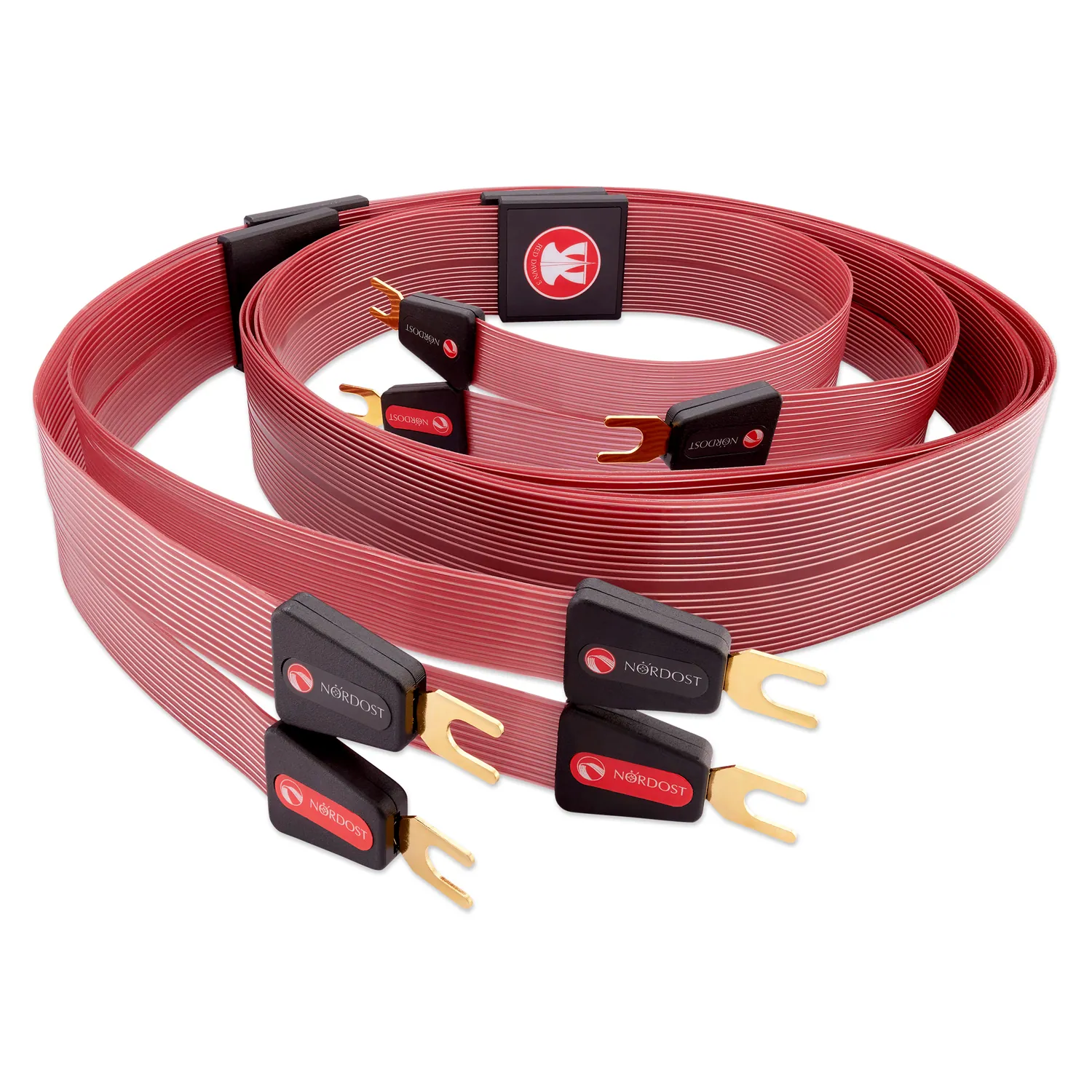

fig. 01 · speaker cables
RED DAWN 3 SPEAKER CABLES
From Nordost
Red Dawn 3 Speaker Cables are Nordost Leif-series loudspeaker cables with flat geometry and mechanically tuned spacing. Each cable uses 22 x 24 AWG silver-plated 99.9999% solid-core OFC conductors with FEP insulation. Standard termination is gold-plated Z-plug banana or gold-plated spade, with a larger spade option available.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned spacing |
| Conductors | 22 x 24 AWG |
| Material | Silver-plated 99.9999% solid core OFC |
| Capacitance | 25.4 pF/m (7.7 pF/ft) |
| Inductance | 0.53 μH/m (0.16 μH/ft) |
| Velocity of Propagation | 91% |
| Termination | Gold-plated Z-plug Banana or Gold-plated Spade (6.5mm [1/4in] internal, 12mm external) standard. Large Gold-plated Spade also available (8.5mm internal, 15mm external). |
