RED DAWN ANALOG INTERCONNECTS

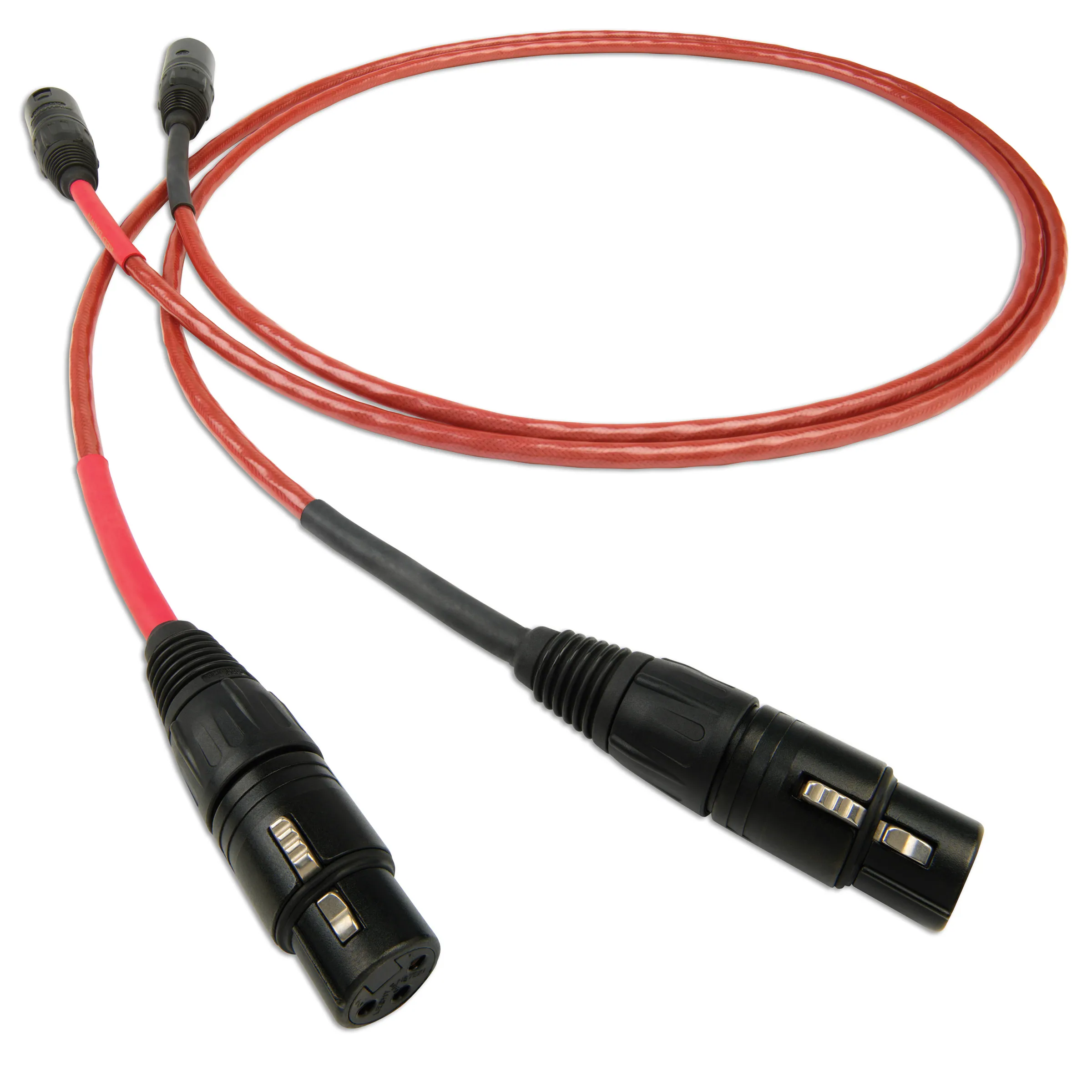

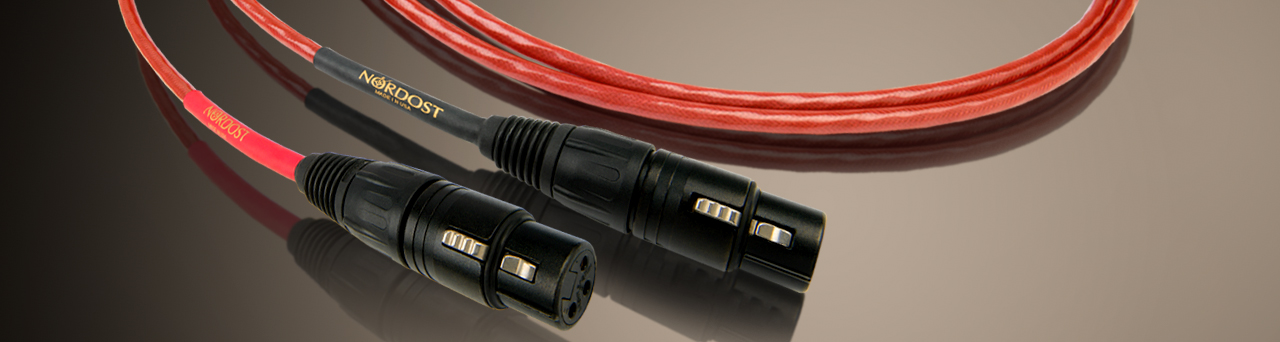

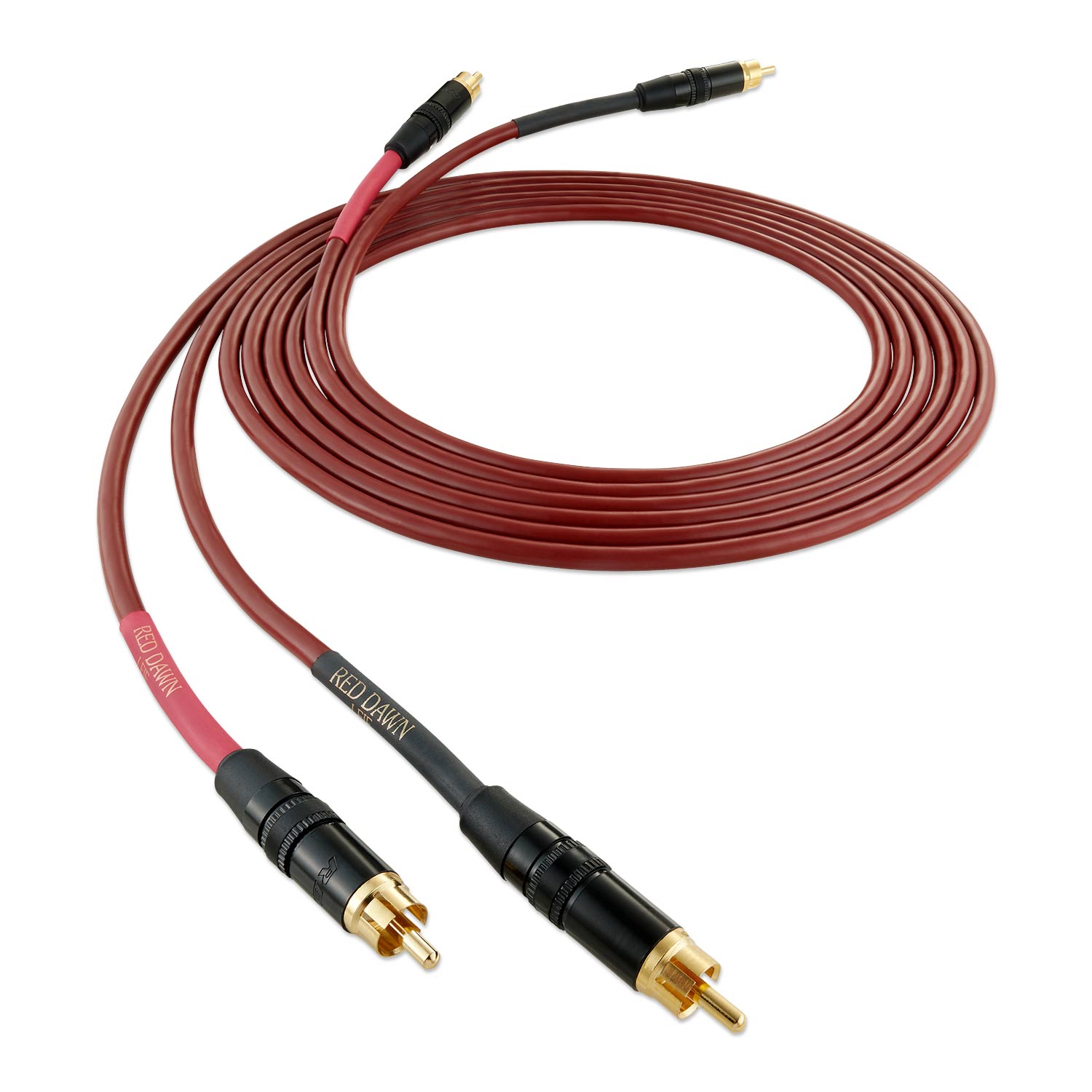

Analog interconnect with 6 x 24 AWG silver-plated OFC conductors.
fig. 01 · interconnects
RED DAWN ANALOG INTERCONNECTS
From Nordost
Red Dawn Analog Interconnects are Nordost Leif-series cables for line-level connections. They use 6 x 24 AWG silver-plated solid-core OFC conductors, FEP insulation, mechanically tuned lay, and 95% shield coverage. Listed termination options are gold-plated RCA or XLR.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay |
| Conductors | 6 x 24 AWG |
| Material | Silver-plated 99.9999% solid core OFC |
| Capacitance | 60.0pF/ft |
| Inductance | 0.035μH/ft |
| Overall Shield Coverage | 95% |
| Velocity of Propagation | 80% |
| Termination | Gold-plated RCA or XLR |
