RED DAWN POWER CORD
Power cord with 3 x 14 AWG OFC conductors.
fig. 01 · power cables
RED DAWN POWER CORD
From Nordost

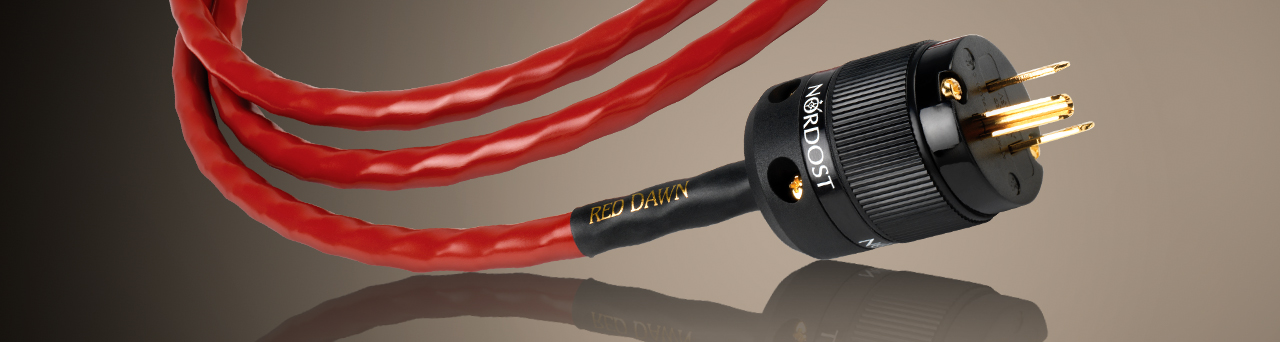

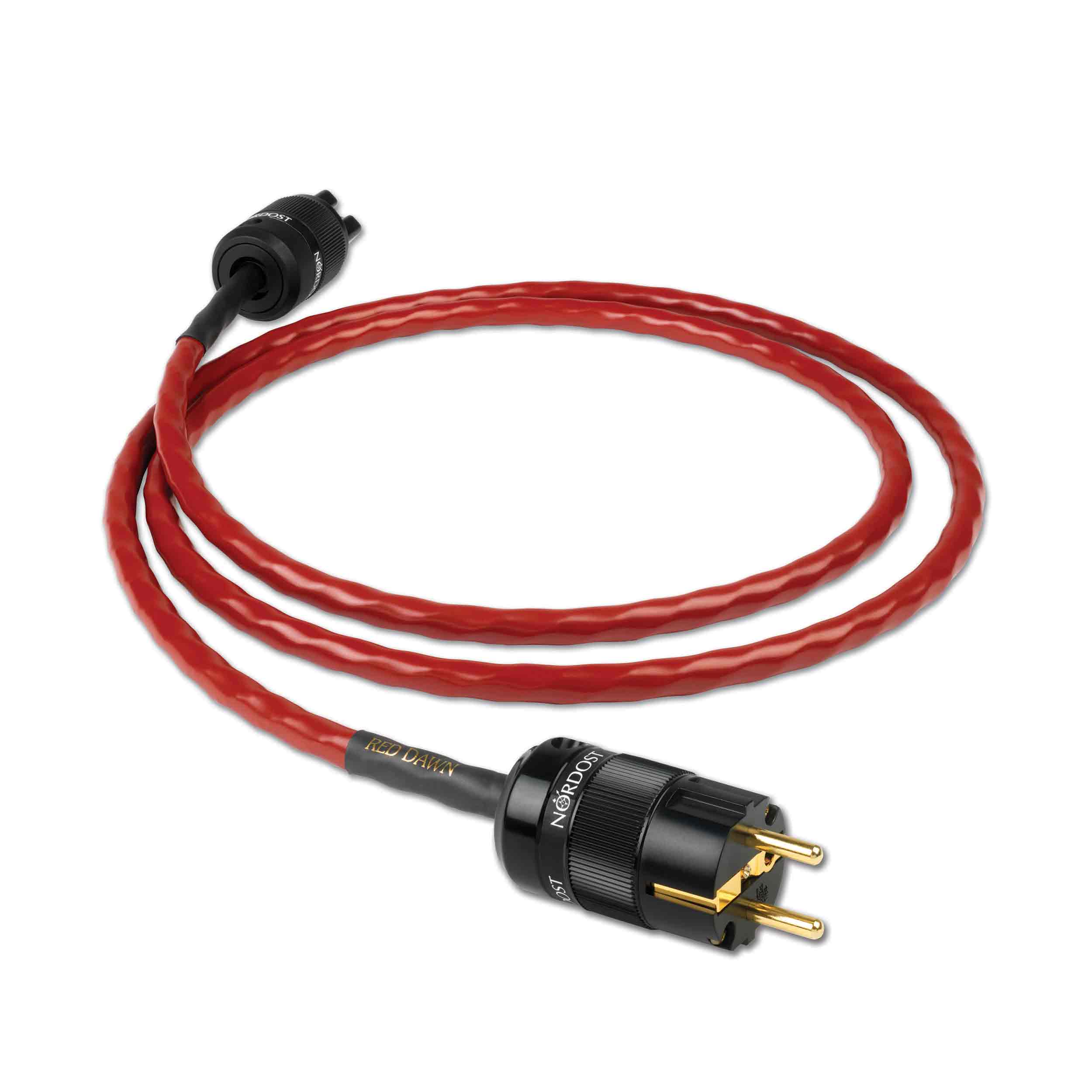

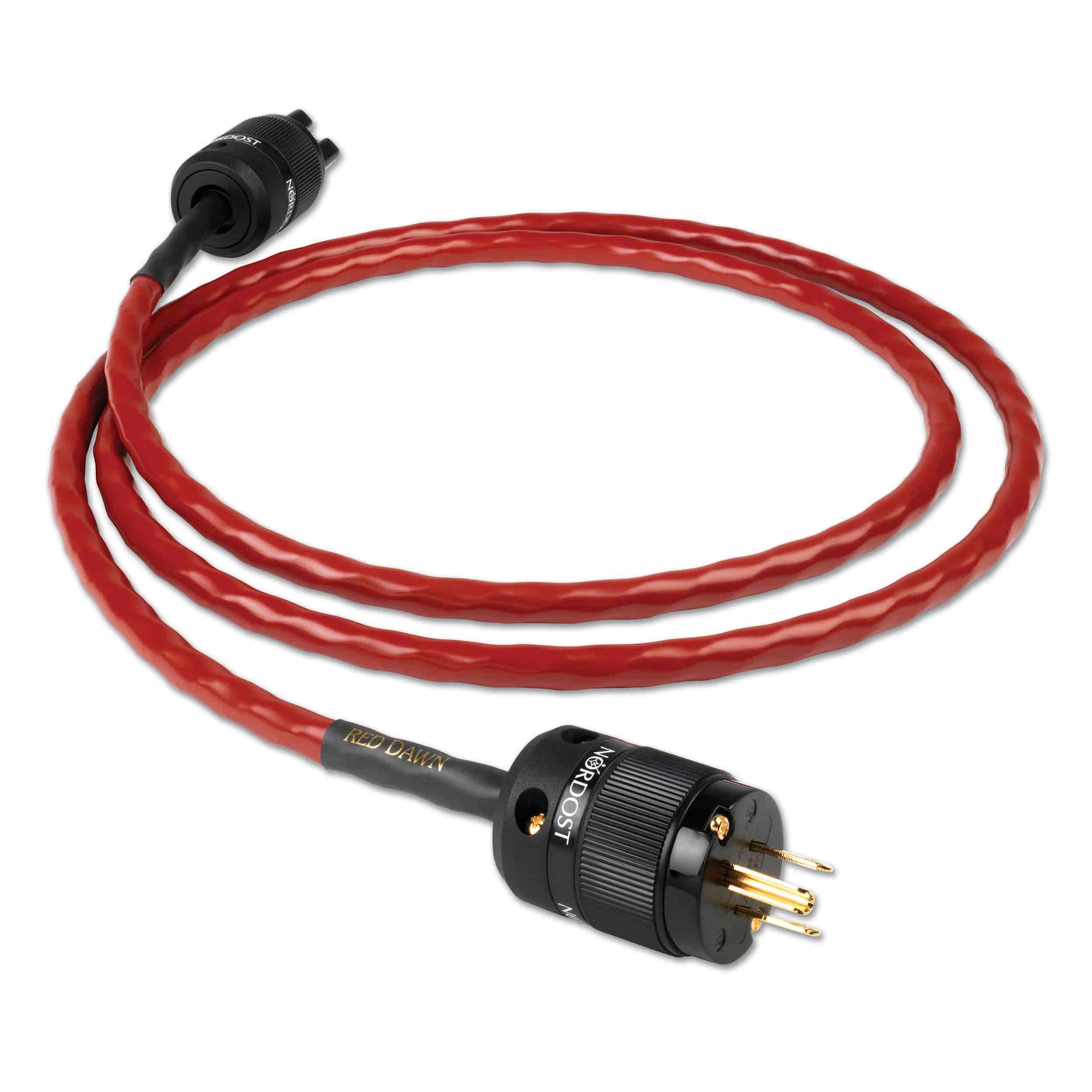

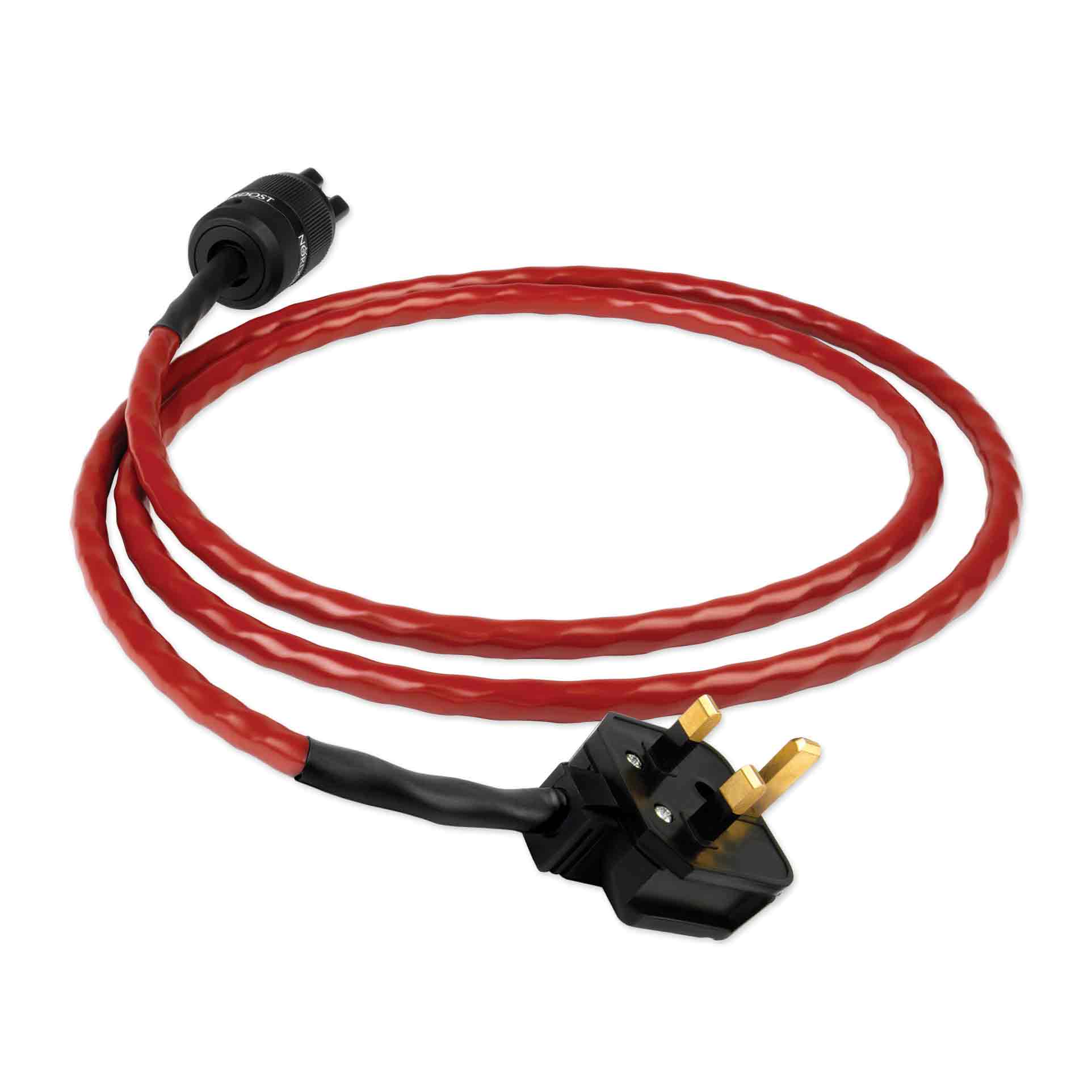

Red Dawn Power Cord is a Nordost AC power cable with FEP insulation and Micro Mono-Filament construction. It uses 3 x 14 AWG, 105-strand 99.9999% OFC conductors. Listed termination options include US, EU, UK, or AUS mains plugs to IEC-C15 or IEC-C19 connectors, with Figure 8 IEC-C7 also available.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, Micro Mono-Filament design |
| Conductors | 3 x 14 AWG |
| Material | 105 strand 99.9999% OFC |
| Capacitance | 10pF/ft |
| Inductance | 0.10 μH/ft |
| DC Resistance | 2.8 Ohms per 1000ft |
| Velocity of Propagation | 81% |
| Termination | US (Nema), EU (Schuko), UK or AUS to IEC-C15 or IEC-C19 connectors. Figure 8 IEC-C7 also available |
