Nordost · Speaker Cables · Cables

RED DAWN SPEAKER CABLES

Top Leif-series speaker cable with 20 x 26 AWG conductors.

fig. 01 · speaker cables

RED DAWN SPEAKER CABLES

Nordost RED DAWN SPEAKER CABLES

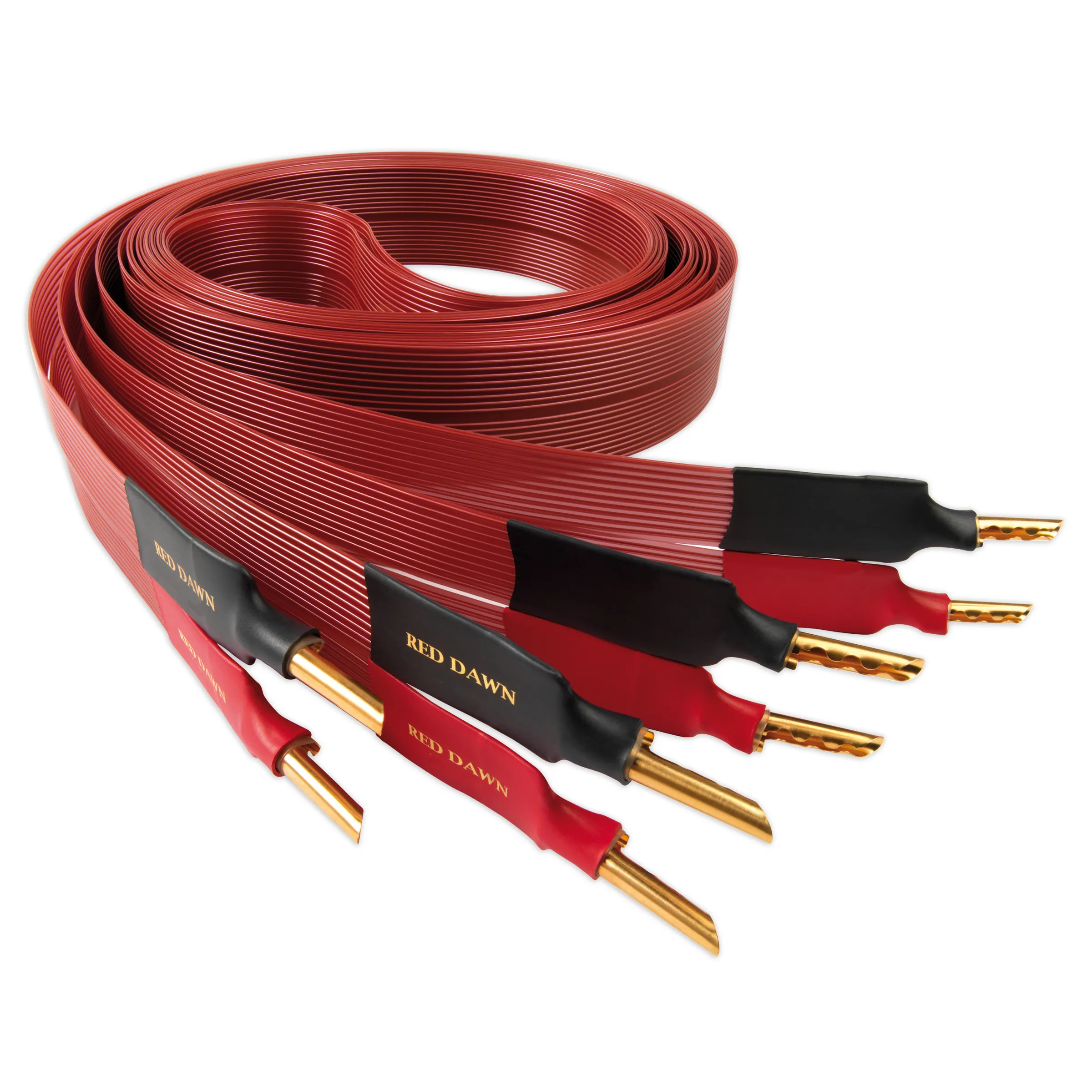

fig. 01 · RED DAWN SPEAKER CABLESphotograph · Nordost

From Nordost

Red Dawn Speaker Cables sit at the top of Nordost's Leif speaker-cable range. Each cable uses 20 x 26 AWG silver-plated 99.9999% solid-core OFC conductors, FEP insulation, and mechanically tuned spacing. Standard termination is gold-plated Z-plug banana or gold-plated spade, with a larger spade option available.

Specifications

InsulationFluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned spacing
Conductors20 x 26 AWG
MaterialSilver-plated 99.9999% solid core OFC
Capacitance10.0pF/ft
Inductance0.155μH/ft
Velocity of Propagation95%

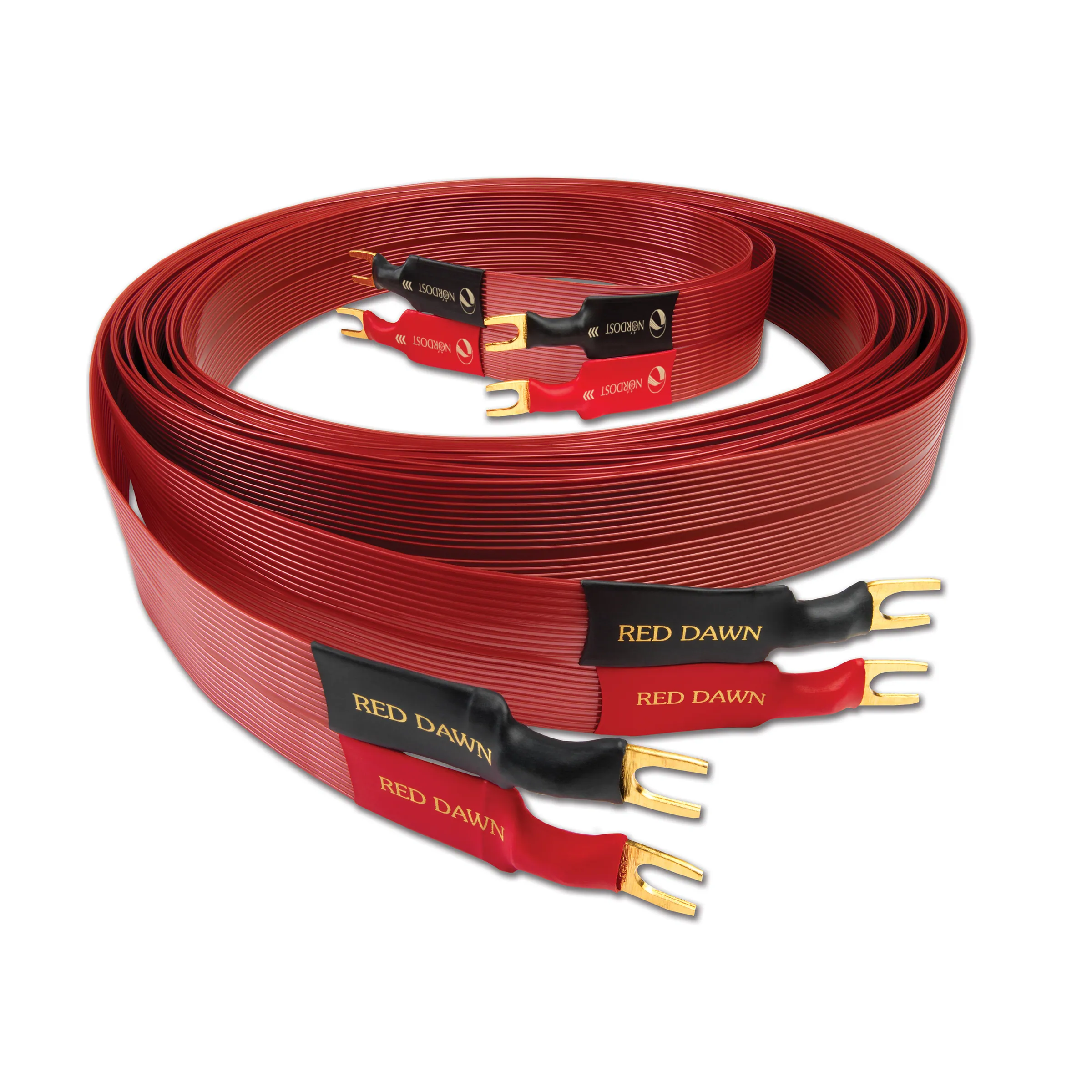

TerminationGold-plated Z-plug Banana or Gold-plated Spade (6.5mm [1/4in] internal, 12mm external) standard. Large Gold-plated Spade also available (8.5mm internal, 15mm external).
Conductor count20
Conductor gauge26 AWG
Conductor materialsilver-plated solid-core OFC
All 11 specificationsFewer specifications
