RED DAWN SPECIALTY CABLES

Red Dawn specialty cable for listed NAIM connection paths.

fig. 01 · cables

RED DAWN SPECIALTY CABLES

Nordost RED DAWN SPECIALTY CABLES

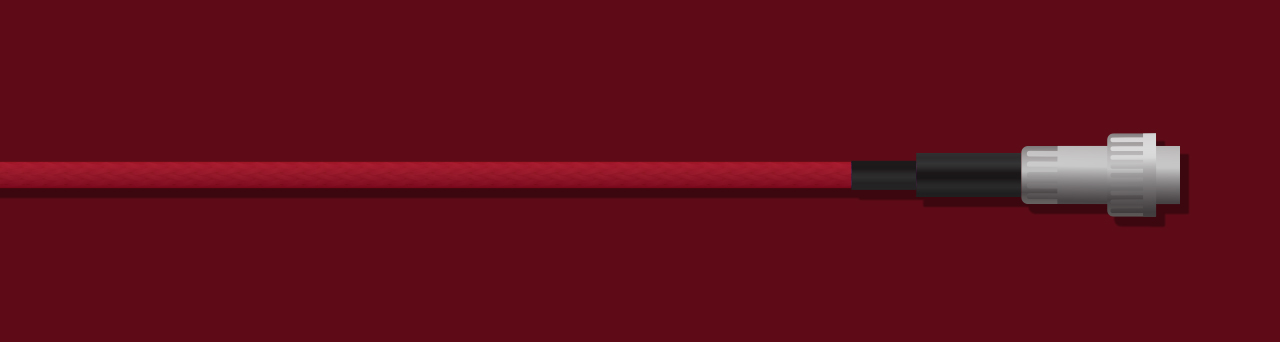

fig. 01 · RED DAWN SPECIALTY CABLESphotograph · Nordost

From Nordost

Red Dawn Specialty Cables are Nordost cables for NAIM component connection paths listed in the saved specs. They use 6 x 24 AWG silver-plated 99.9999% solid-core OFC conductors, FEP insulation, mechanically tuned lay, and 95% shield coverage. Listed termination options include 4-pin DIN to Neutrik XLR, 5-pin DIN to 5-pin DIN, and 4-pin DIN to 4-pin DIN.

Specifications

InsulationFluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned lay
Conductors6 x 24 AWG
MaterialSilver-plated 99.9999% solid core OFC
Capacitance60.0pF/ft
Inductance0.035μH/ft
Overall Shield Coverage95%

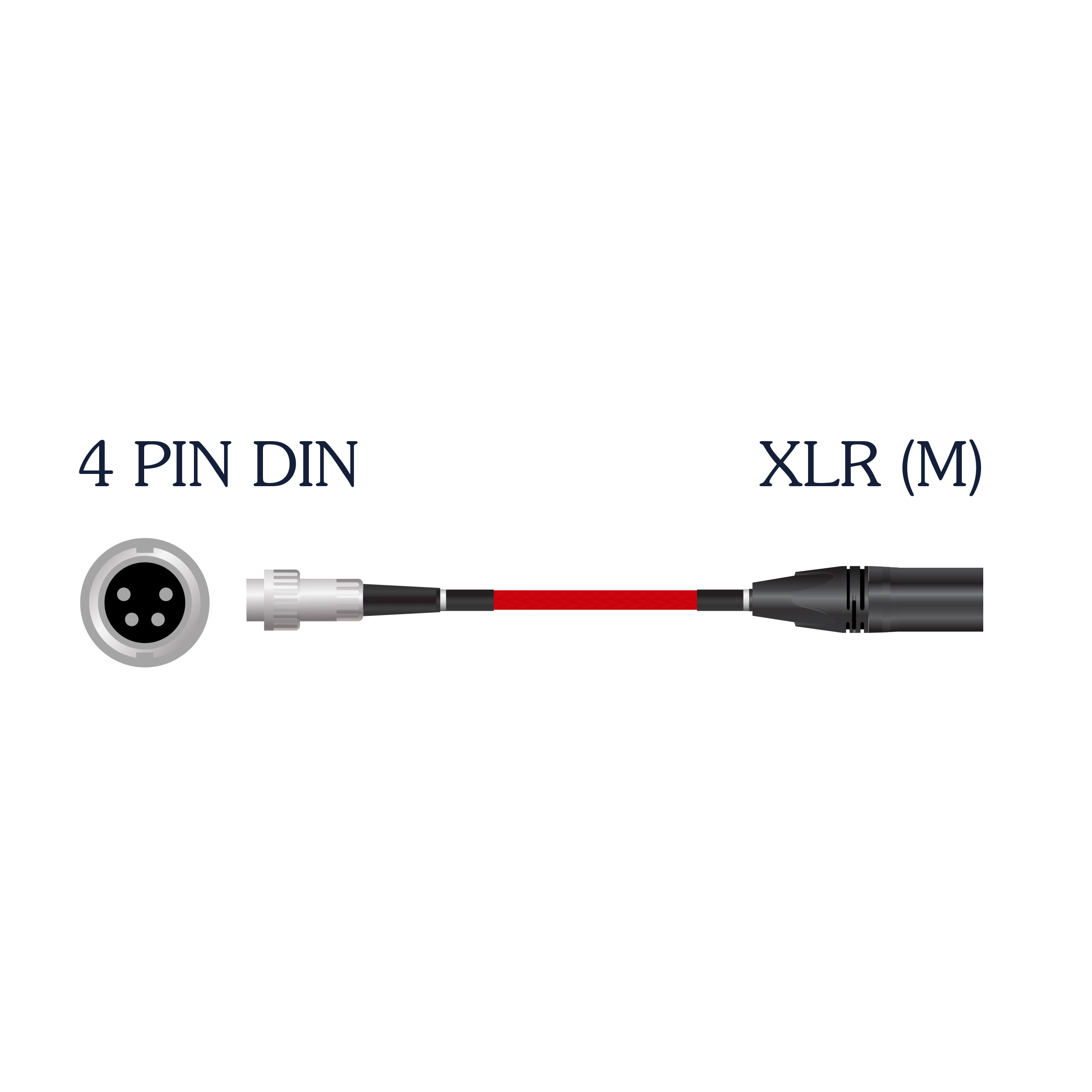

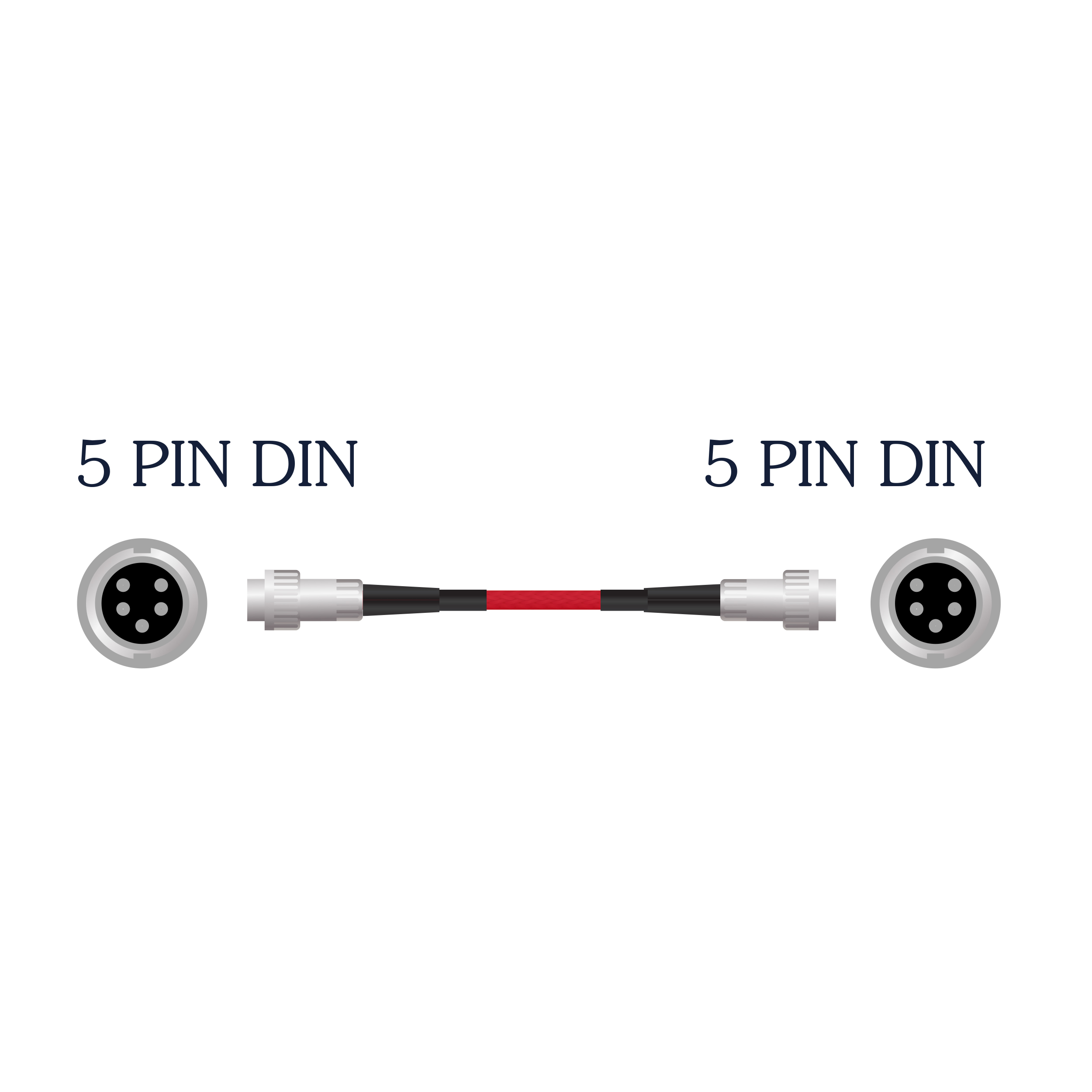

Termination Options4 Pin Din to Neutrik XLR (male) Set 4 Pin Din to Neutrik XLR (male) 5 Pin Din (240) to 5 Pin Din (240) 4 Pin Din to 4 Pin Din
