TYR 2 ANALOG INTERCONNECTS
The Tyr 2 is a Norse 2 analog interconnect with 7 silver-plated 24 AWG OFC conductors and Dual Mono-Filament construction.
fig. 01 · interconnects
TYR 2 ANALOG INTERCONNECTS
From Nordost

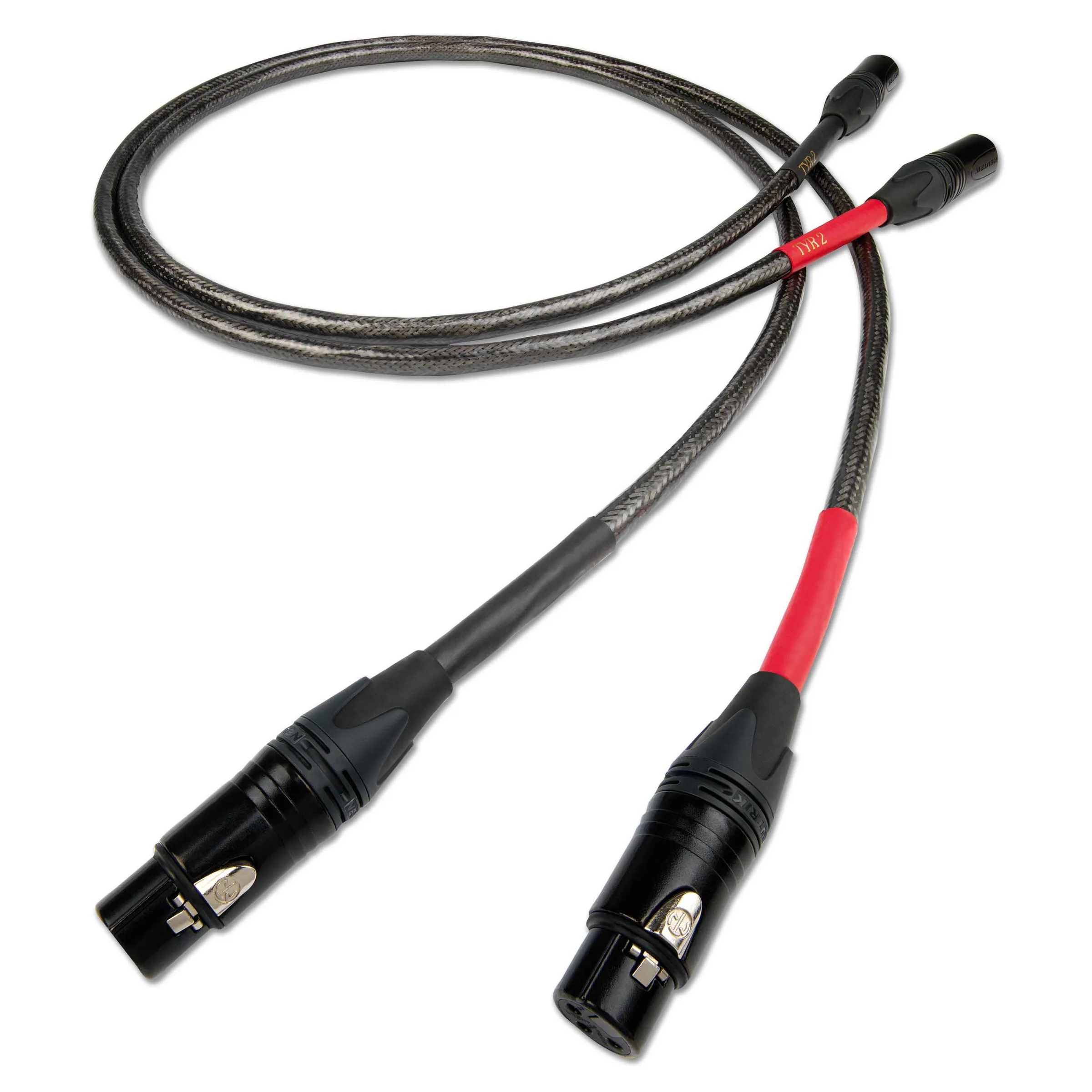

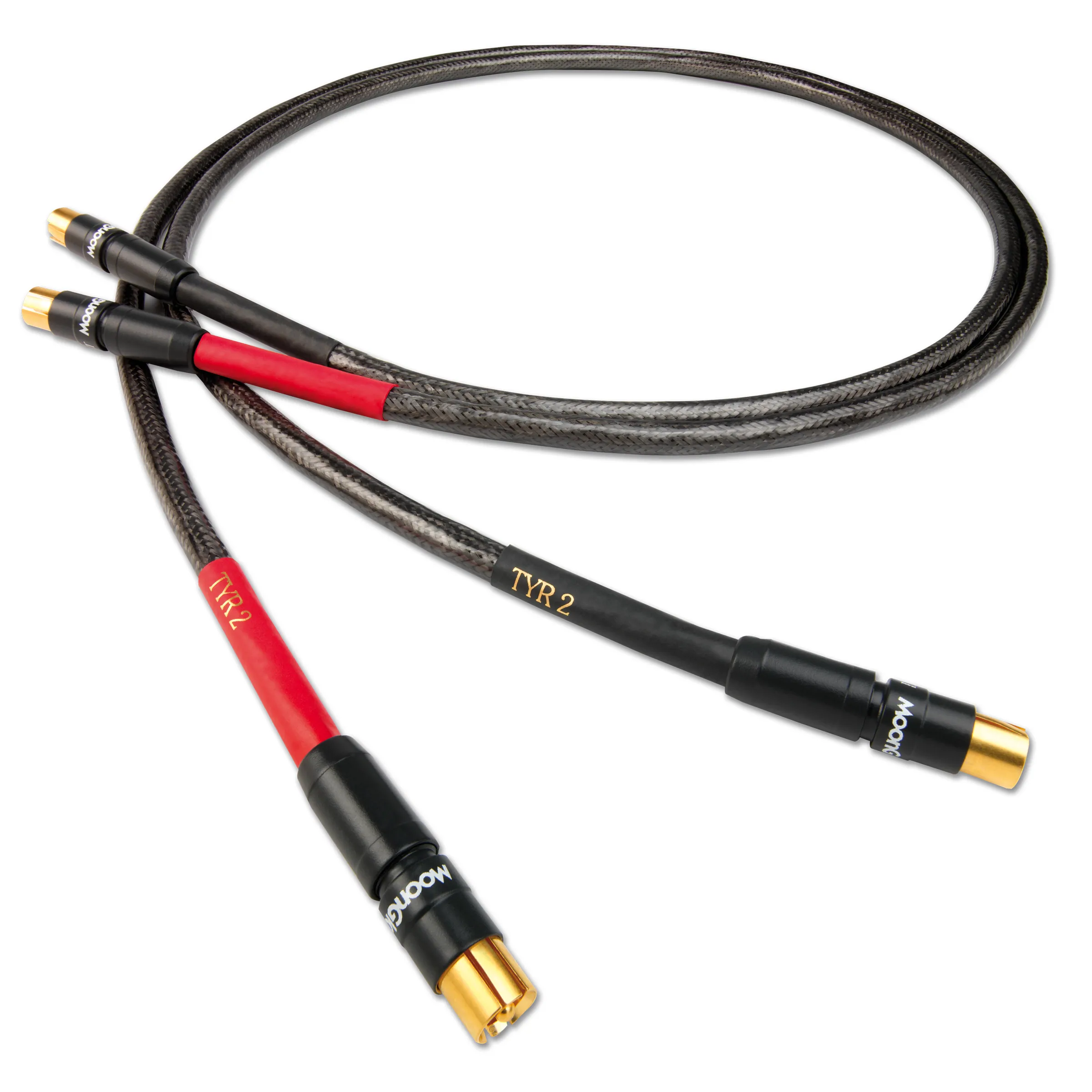

The Tyr 2 is Nordost's Norse 2 analog interconnect for RCA or XLR runs. It uses 7 x 24 AWG silver-plated OFC conductors, FEP insulation, 97% shield coverage, and Nordost MoonGlo terminations, built for a low-loss signal path that matches the rest of the Norse 2 line.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, length and Dual Mono-Filament design |
| Conductors | 7 x 24 AWG |
| Material | Silver-plated 99.99999% solid core OFC |
| Capacitance | 33.0pF/ft |
| Inductance | 0.045μH/ft |
| Overall Shield Coverage | 97% |
| Velocity of Propagation | 86% |
| Termination | Gold-plated Nordost MoonGlo® RCA or XLR |
| Conductor material | silver-plated solid-core OFC |
| Dielectric / insulation | FEP |
