TYR 2 DIGITAL INTERCONNECTS
Digital interconnect for 75 ohm S/PDIF and 110 ohm AES/EBU connections.
fig. 01 · digital cables
TYR 2 DIGITAL INTERCONNECTS
From Nordost
Tyr 2 Digital Interconnects cover two connection standards: a 75 ohm co-axial S/PDIF cable with a 1 x 18 AWG silver-plated solid-core OFC conductor, and a 110 ohm twin-axial AES/EBU cable with 2 x 19 AWG conductors. Both versions use FEP insulation, Dual Mono-Filament construction, 97% shield coverage, and gold-plated Neutrik terminations. Use this row for digital links where impedance matching and connector format need to be explicit.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned spacing, length and Dual Mono-Filament, co-axial design |
| Conductors | 1 x 18 AWG |
| Material | Silver-plated 99.99999% solid-core OFC |
| Capacitance | 15.9 pF/ft |
| Impedance | 75 Ohm |
| Overall Shield Coverage | 97% |
| Velocity of Propagation | 88% |

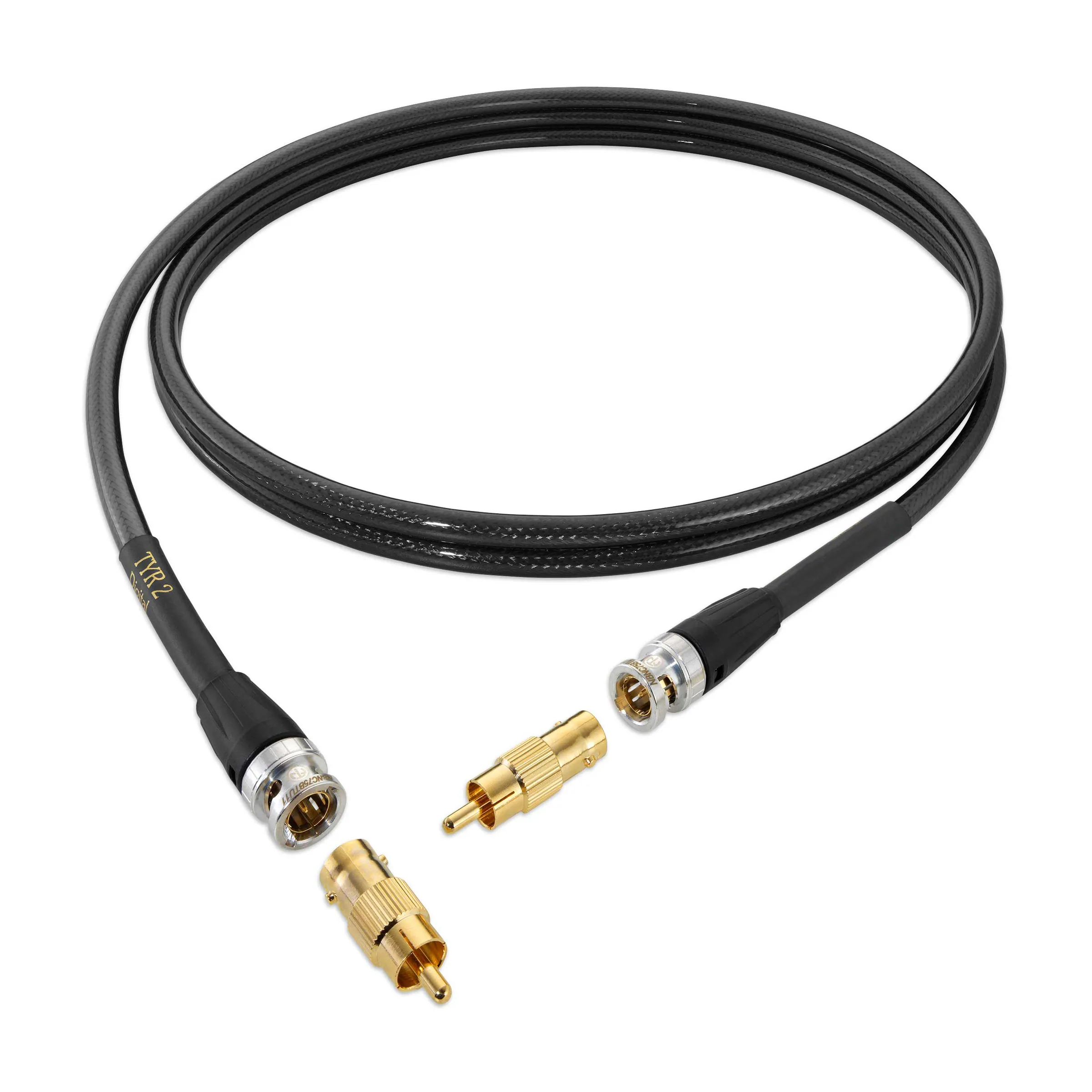

| Termination | Gold-plated true 75 Ohm Neutrik BNC. Gold-plated BNC to RCA adapter included. |
| Construction 2 | Mechanically tuned spacing, length and Dual Mono-Filament, twin-axial design |
| Conductors 2 | 2 x 19 AWG |
| Material 2 | Silver-plated 99.99999% solid core OFC |
| Capacitance 2 | 11.0pF/ft |
| Impedance 2 | 110 Ohm |

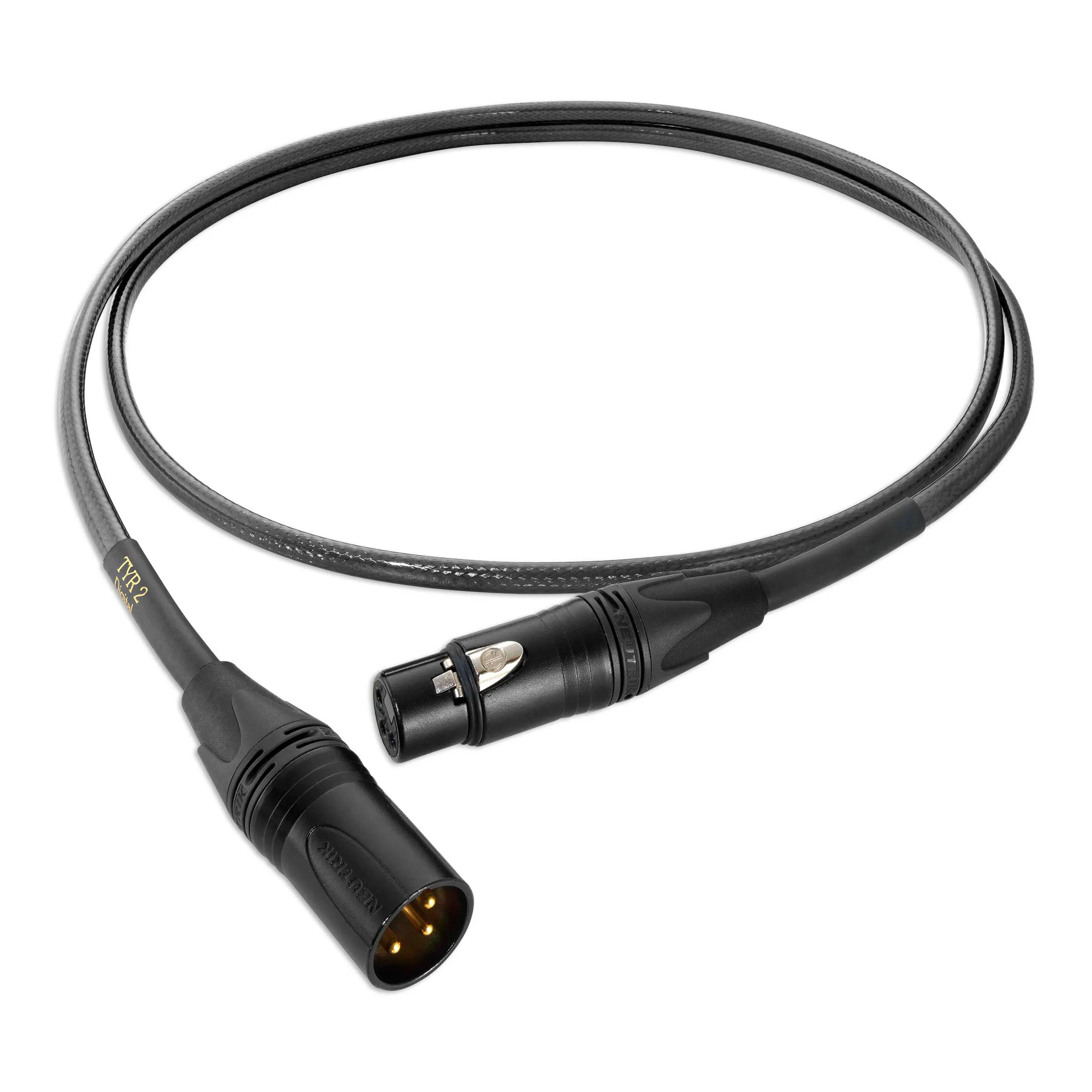

| Termination 2 | Gold-plated true 110 Ohm Neutrik XLR |
| Conductor material | silver-plated solid-core |
