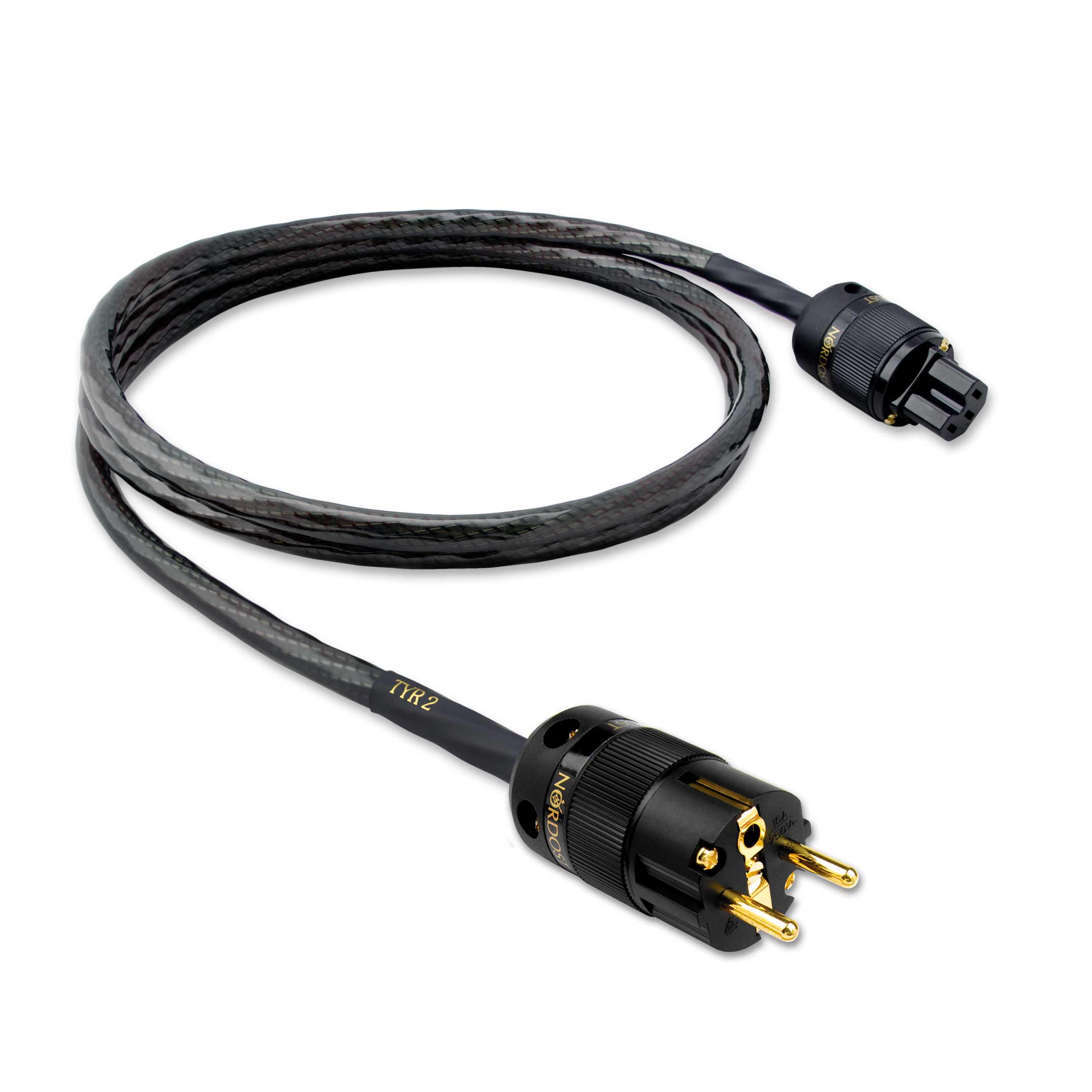

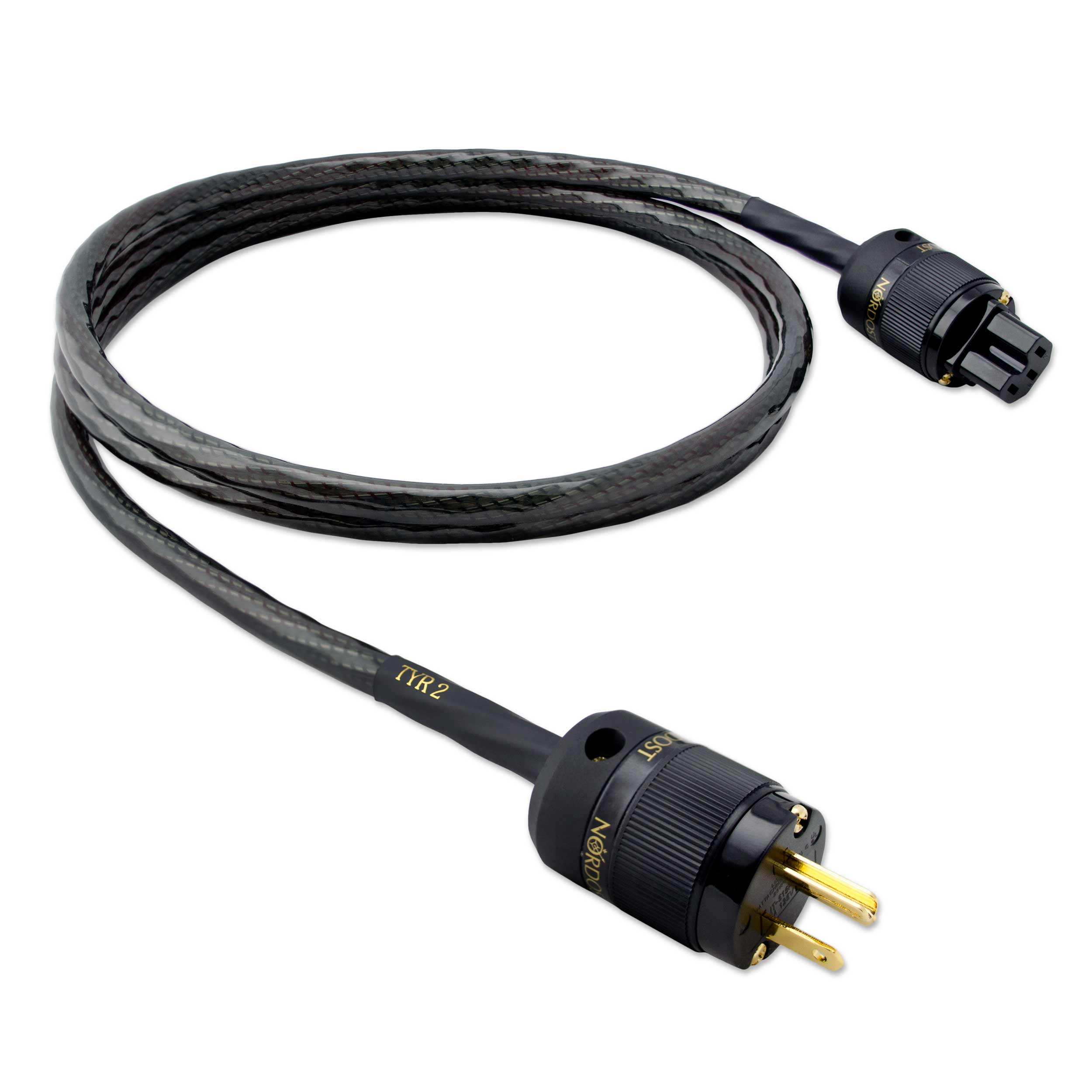

TYR 2 POWER CORD
Norse 2 power cord with 7 x 16 AWG silver-plated OFC conductors.
fig. 01 · power cables
TYR 2 POWER CORD
From Nordost
Tyr 2 Power Cord uses Dual Mono-Filament construction, FEP insulation, and 7 x 16 AWG silver-plated solid-core OFC conductors. The saved specs list 1.33 ohms per 1000ft DC resistance, 91% velocity of propagation, and US, EU, UK, AUS, IEC-C15, IEC-C19, and Figure 8 IEC-C7 termination options. The source positions Tyr 2 as the Norse 2 power cord tied most closely to Valhalla 2 construction.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, length and Dual Mono-Filament design |
| Conductors | 7 x 16 AWG |
| Material | Silver-plated 99.99999% solid core OFC |
| DC Resistance | 1.33 Ohms per 1000ft |
| Velocity of Propagation | 91% |
| Termination | US (Nema), EU (Schuko), UK or AUS to IEC-C15 to IEC-C19. Figure 8 IEC-C7 also available |
| Conductor count | 7 |
| Conductor gauge | 16 AWG |
| Conductor material | solid-core OFC |
