TYR 2 SPEAKER CABLES

Norse 2 speaker cable with 26 x 22 AWG silver-plated OFC conductors.

fig. 01 · speaker cables

TYR 2 SPEAKER CABLES

Nordost TYR 2 SPEAKER CABLES

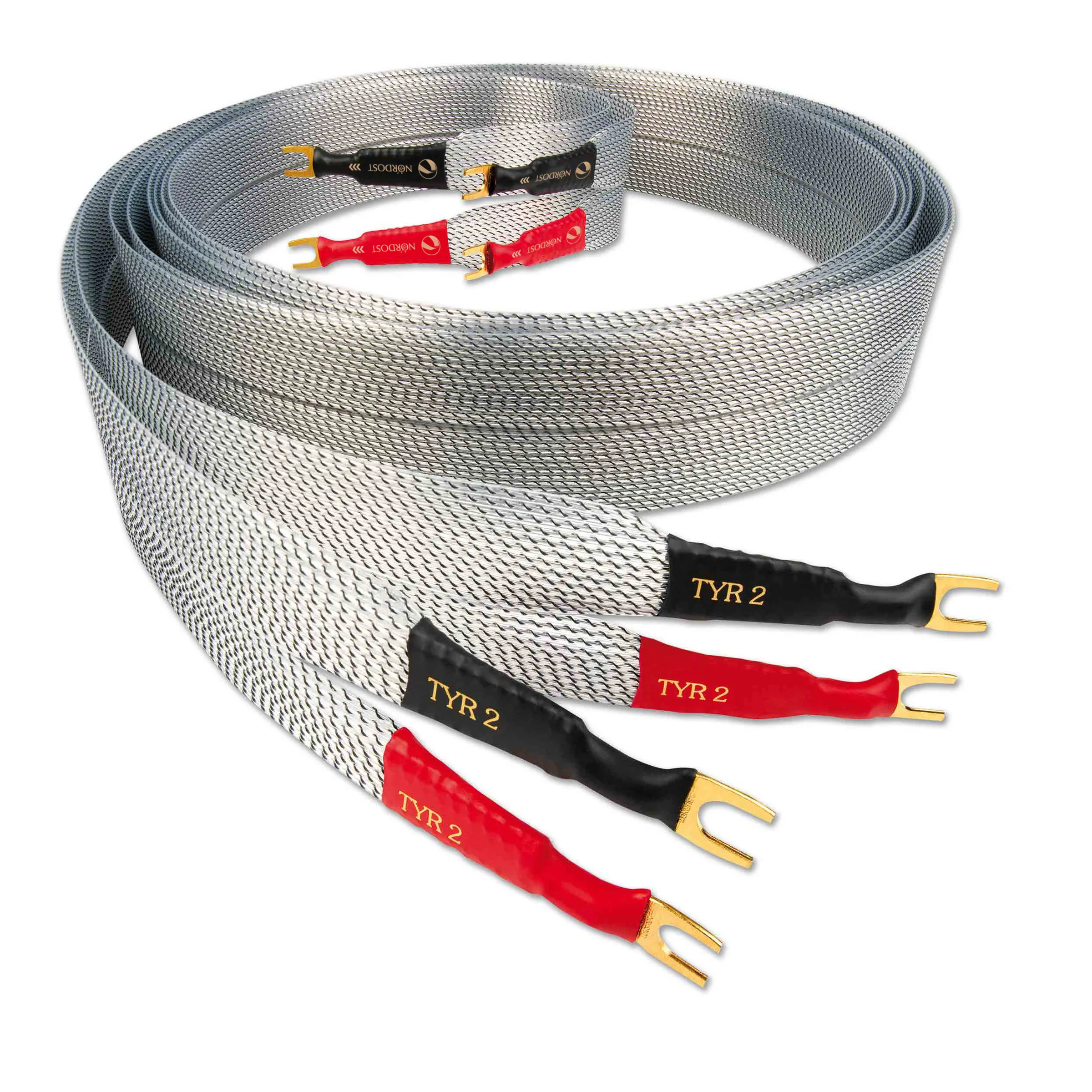

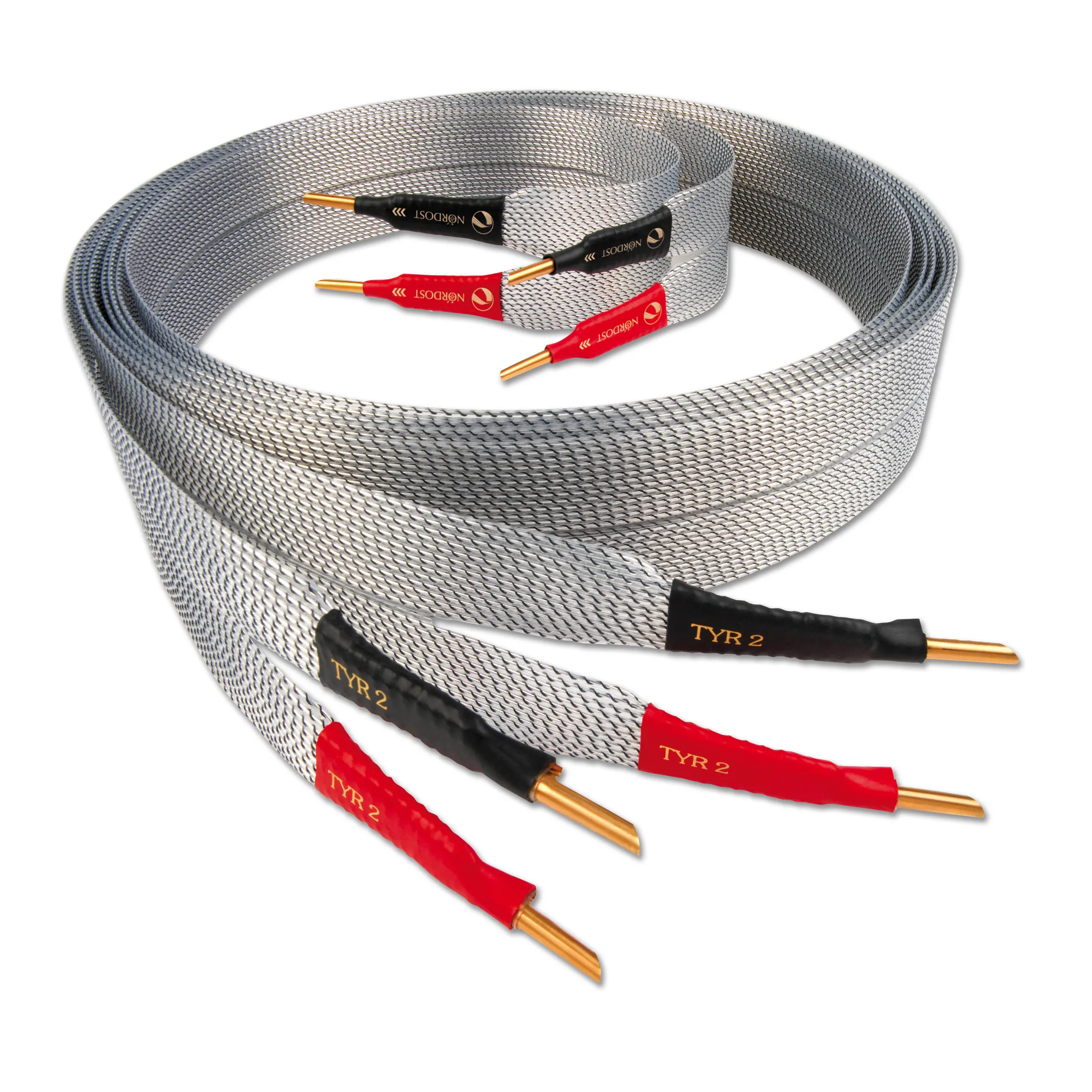

fig. 01 · TYR 2 SPEAKER CABLESphotograph · Nordost

From Nordost

Tyr 2 Speaker Cables are Nordost Norse 2 loudspeaker cables for the amplifier-to-speaker path. They use 26 x 22 AWG silver-plated solid-core OFC conductors, FEP insulation, mechanically tuned spacing, and Micro Mono-Filament construction. Standard termination options are gold-plated Z-plug banana or gold-plated spade, with a larger spade option also listed.

Specifications

InsulationFluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned spacing, length and Micro Mono-Filament design
Conductors26 x 22 AWG
MaterialSilver-plated 99.99999% solid core OFC
Capacitance10.7pF/f
Inductance0.13μH/ft
Velocity of Propagation96%
TerminationGold-plated Z-plug Banana or Gold-plated Spade (6.5mm [1/4in] internal, 12mm external) standard. Large Gold-plated Spade also available (8.5mm internal, 15mm external).
Conductor materialsilver-plated solid-core OFC
Dielectric / insulationFEP
All 10 specificationsFewer specifications
