TYR 2 SPECIALTY CABLES
Specialty cable set for NAIM and CH-PRECISION components.
fig. 01 · cables
TYR 2 SPECIALTY CABLES
8 photographs · 5 shown
From Nordost
Tyr 2 Specialty Cables cover NAIM and CH-PRECISION component links with multiple Burndy-style and X-1 configurations. The saved specs list FEP insulation, Micro Mono-Filament construction, 97% shield coverage, and silver-plated 99.99999% solid-core OFC conductors across the main cable set options. Terminations use full-metal ruggedized connectors with screw-machine contacts and gold-plated pins.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned spacing, length and Micro Mono-Filament design |

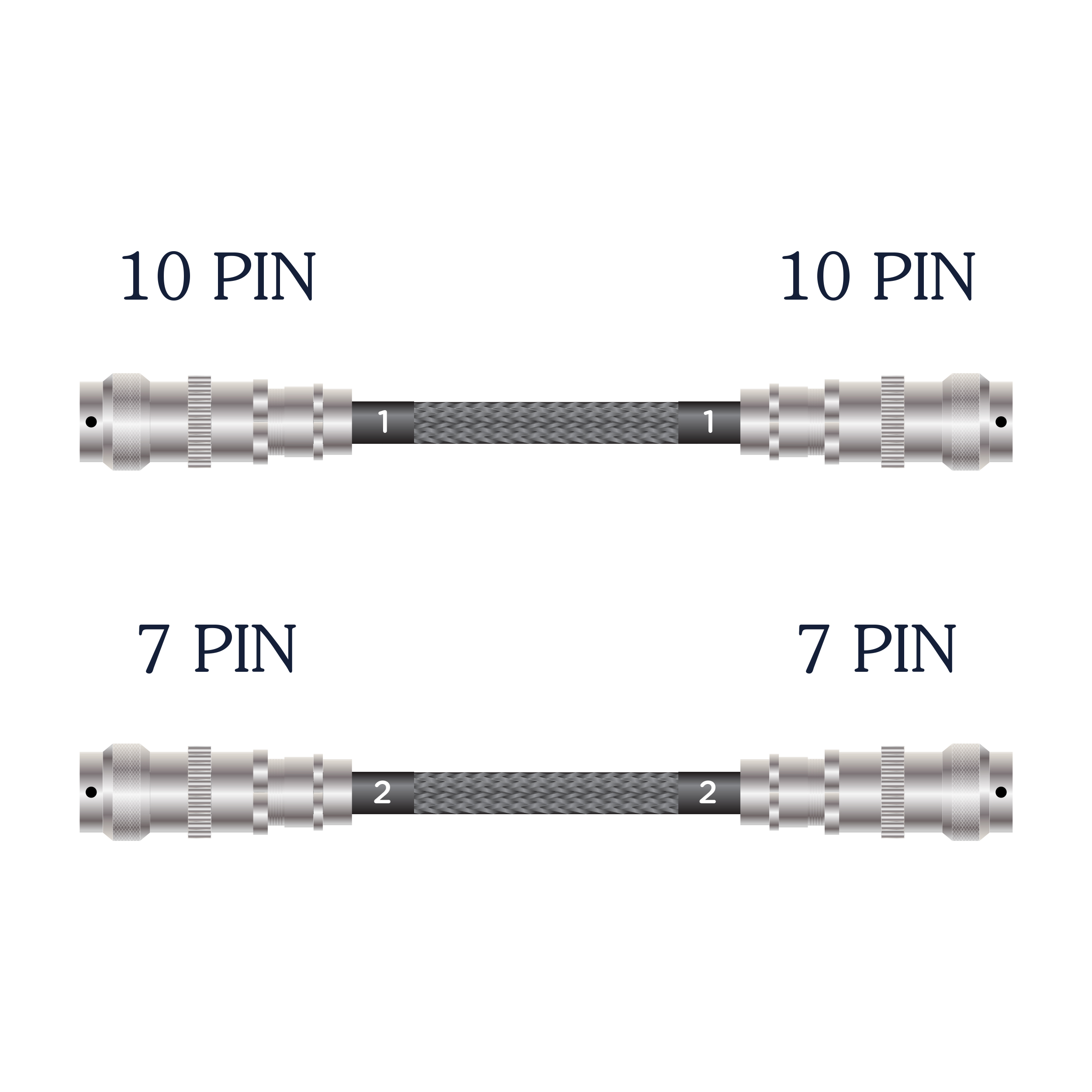

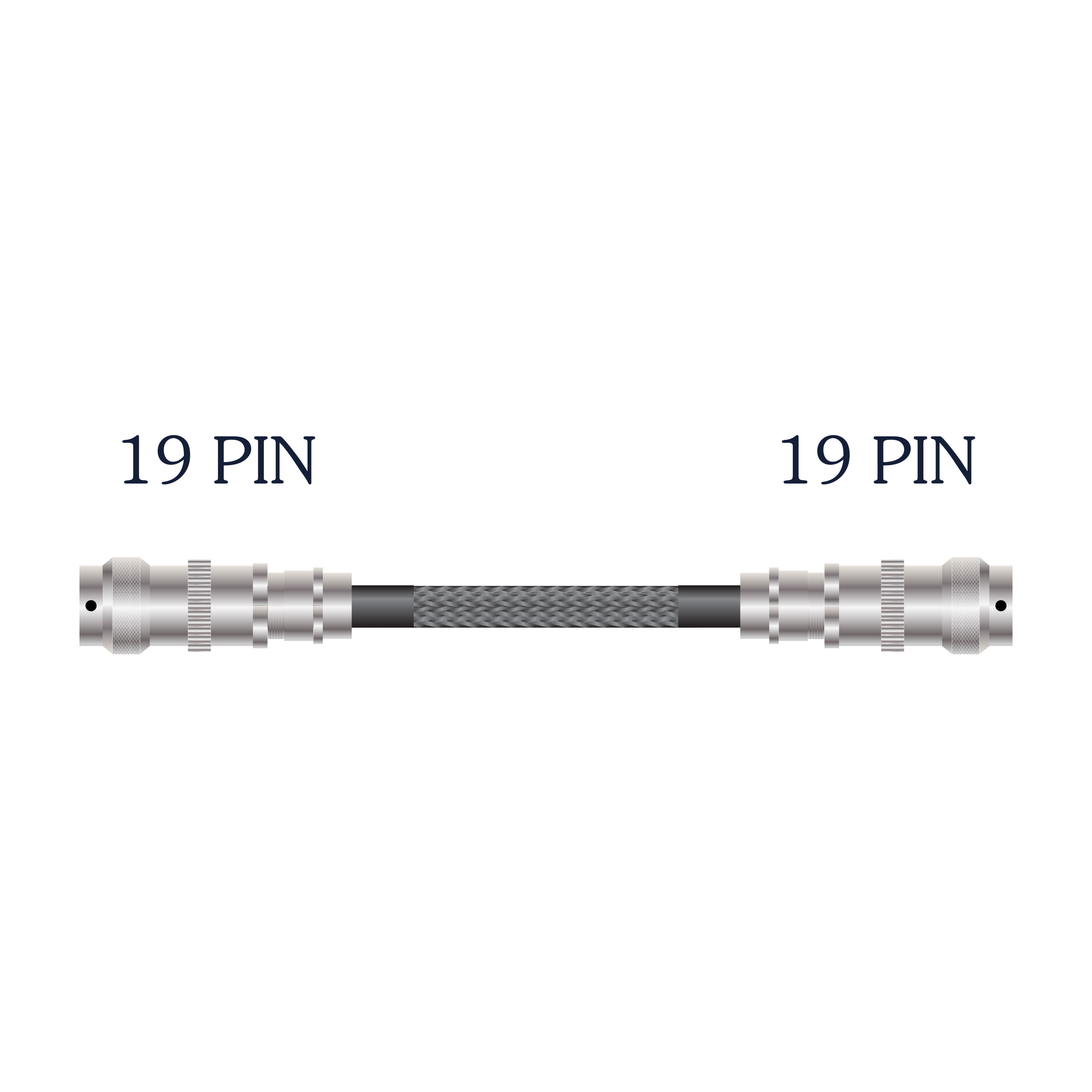

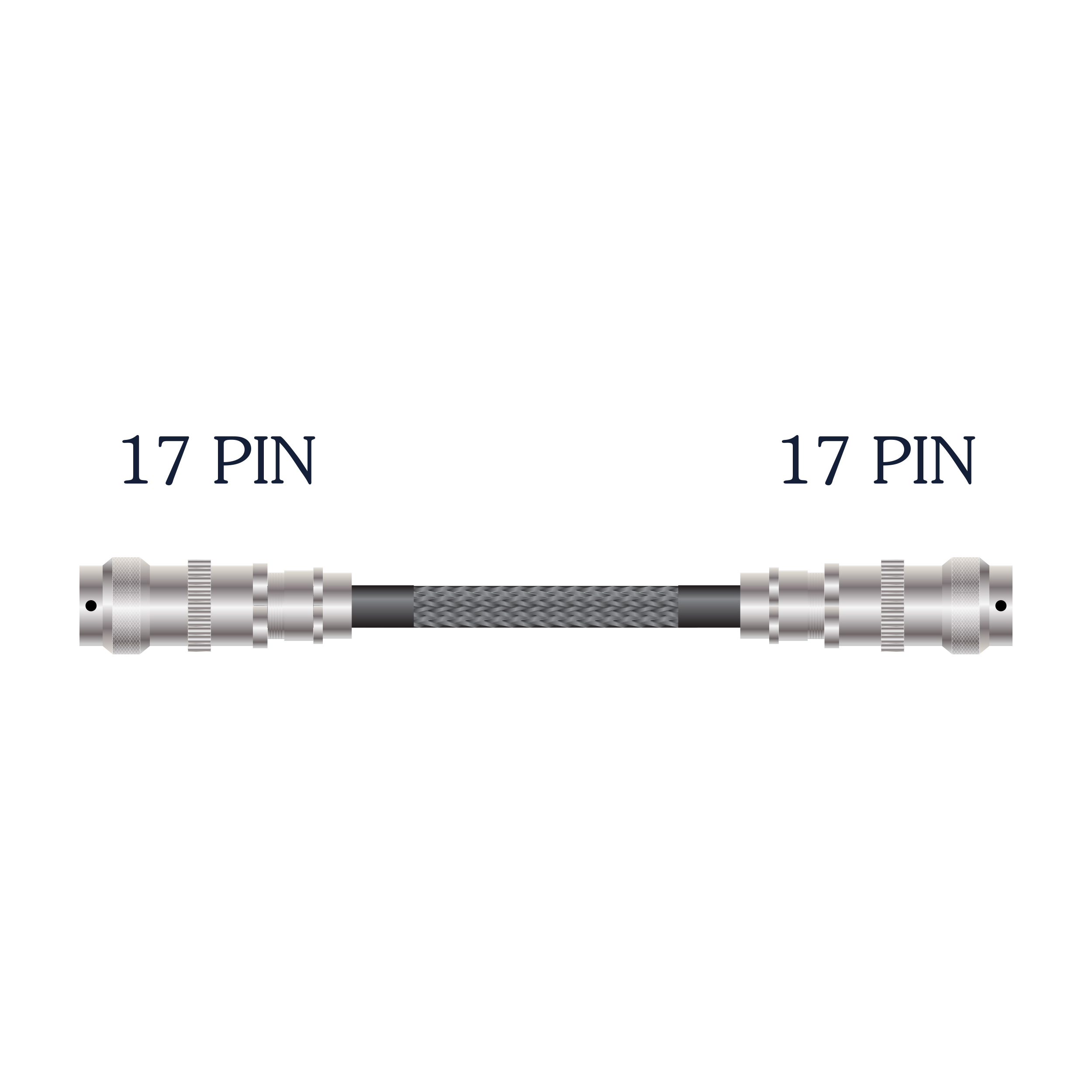

| Conductors | 10 Pin / 7 Pin Cable Set: 10 x 18 / 7 x 18 19 Pin Cable: 19 x 18 AWG 17 Pin Cable: 17 x 18 AWG 15 Pin Cable: 15 x 18 AWG 11 Pin Cable: 11 x 18 AWG 9 Pin / 9 Pin Cable Pair: 9 x 18 AWG each 7 Pin / 7 Pin Cable Pair: 7 x 18 AWG each |
| Material | Silver-plated 99.99999% solid core OFC |
| Overall Shield Coverage | 97% |

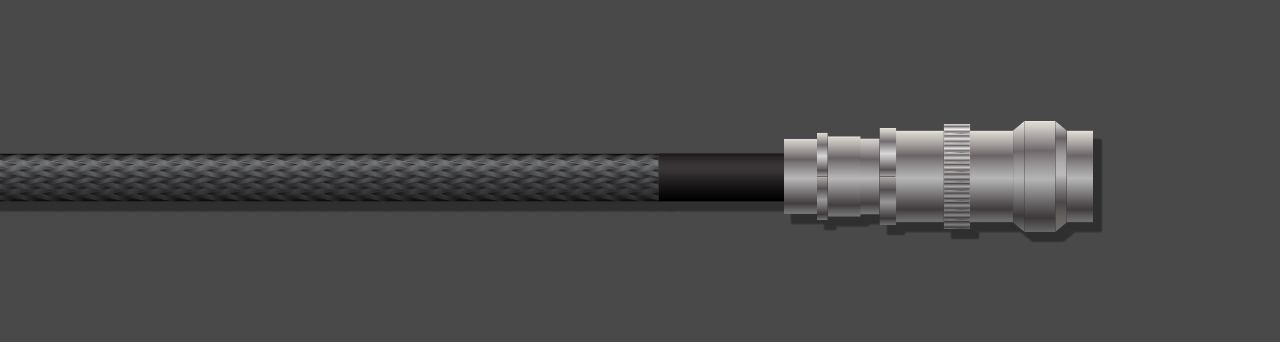

| Termination | Full Metal Jacket, Burndy Style Connectors w/ Screw Machine Contacts and Gold Plated Pins |
| Conductors / Material | 3x18 AWG silver-plated 99.99999% OFC solid core conductors 16 x 24 AWG silver-plated 99.99999% OFC stranded conductors |
| Termination 2 | Full Metal, Ruggedized Connectors w/ Screw Machine Contacts and Gold Plated Pins |
