VALHALLA 2 4K UHD CABLE
4K UHD HDMI cable with 19 x 24 AWG silver-plated conductors.

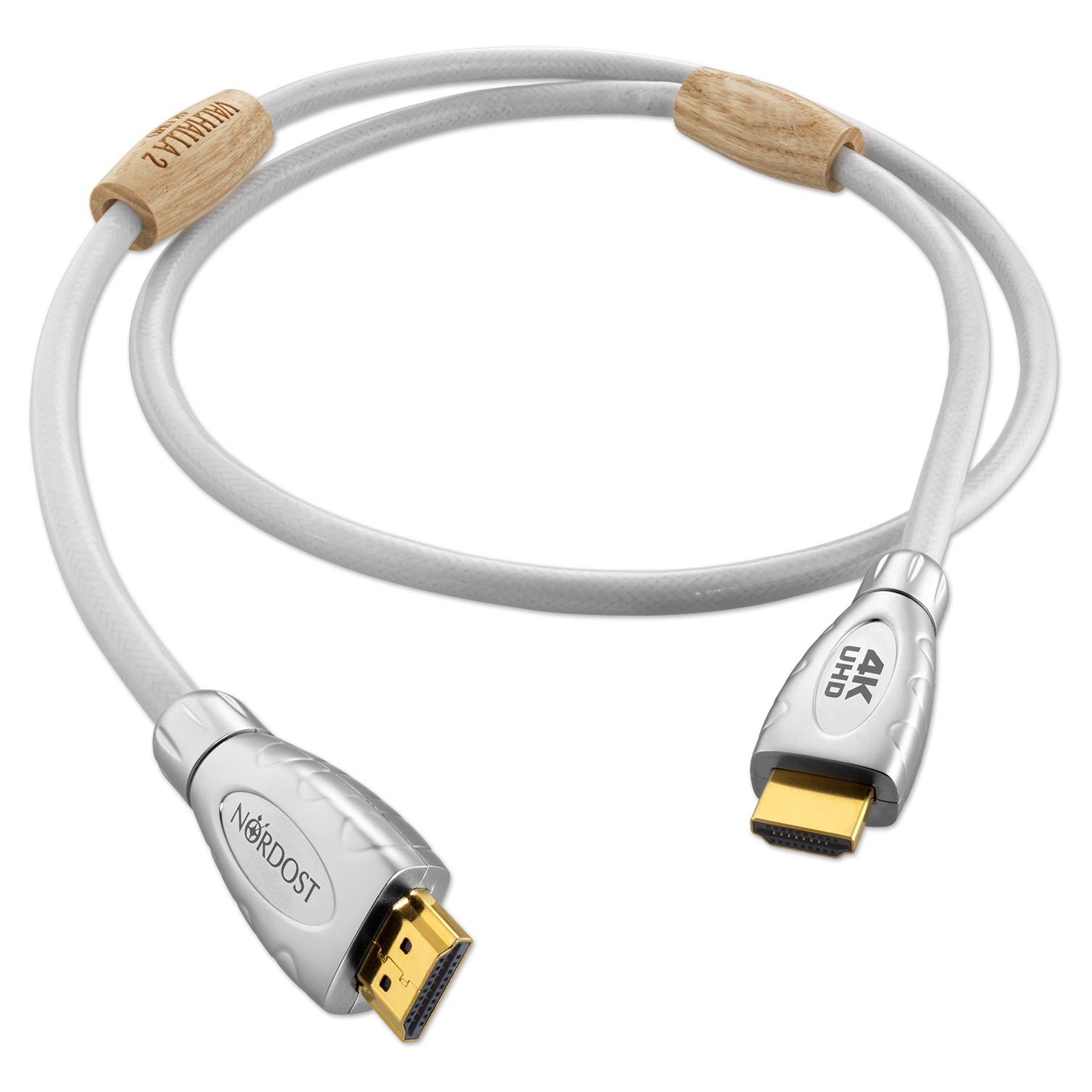

fig. 01 · digital cables
VALHALLA 2 4K UHD CABLE
From Nordost
Valhalla 2 4K UHD Cable is an HDMI cable for high-speed digital signaling. It uses 19 x 24 AWG silver-plated 99.999999% OFC solid-core conductors, FEP insulation, and Micro Mono-Filament twin-axial shielded pair construction. The cable has 100% total shield coverage, 86% velocity of propagation, a gold-plated shielded 19-pin Type A connector, and DPL 4K Certification.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, Micro Mono-Filament, twin-axial shielded pair design |
| Conductors | 19 x 24 AWG |
| Material | Silver plated 99.999999% OFC Solid Core Conductors |
| Overall Shield Coverage | 100% Total coverage |
| Velocity of Propagation | 86% |
| Termination | Gold-plated, shielded, 19 pin, type A, High Definition connector |
| Approvals | DPL 4K Certification |
| Conductor gauge | 24 AWG |
| Conductor material | silver-plated solid-core |
| Dielectric / insulation | Micro Mono-Filament |
| Geometry / construction | Micro Mono-Filament |
