Nordost · Interconnects · Cables

VALHALLA 2 ANALOG INTERCONNECTS

Reference analog interconnect with 10 silver-plated OFC conductors and dual-layer shielding.

fig. 01 · interconnects

VALHALLA 2 ANALOG INTERCONNECTS

Nordost VALHALLA 2 ANALOG INTERCONNECTS
fig. 01 · VALHALLA 2 ANALOG INTERCONNECTSphotograph · Nordost

7 photographs · 5 shown

From Nordost

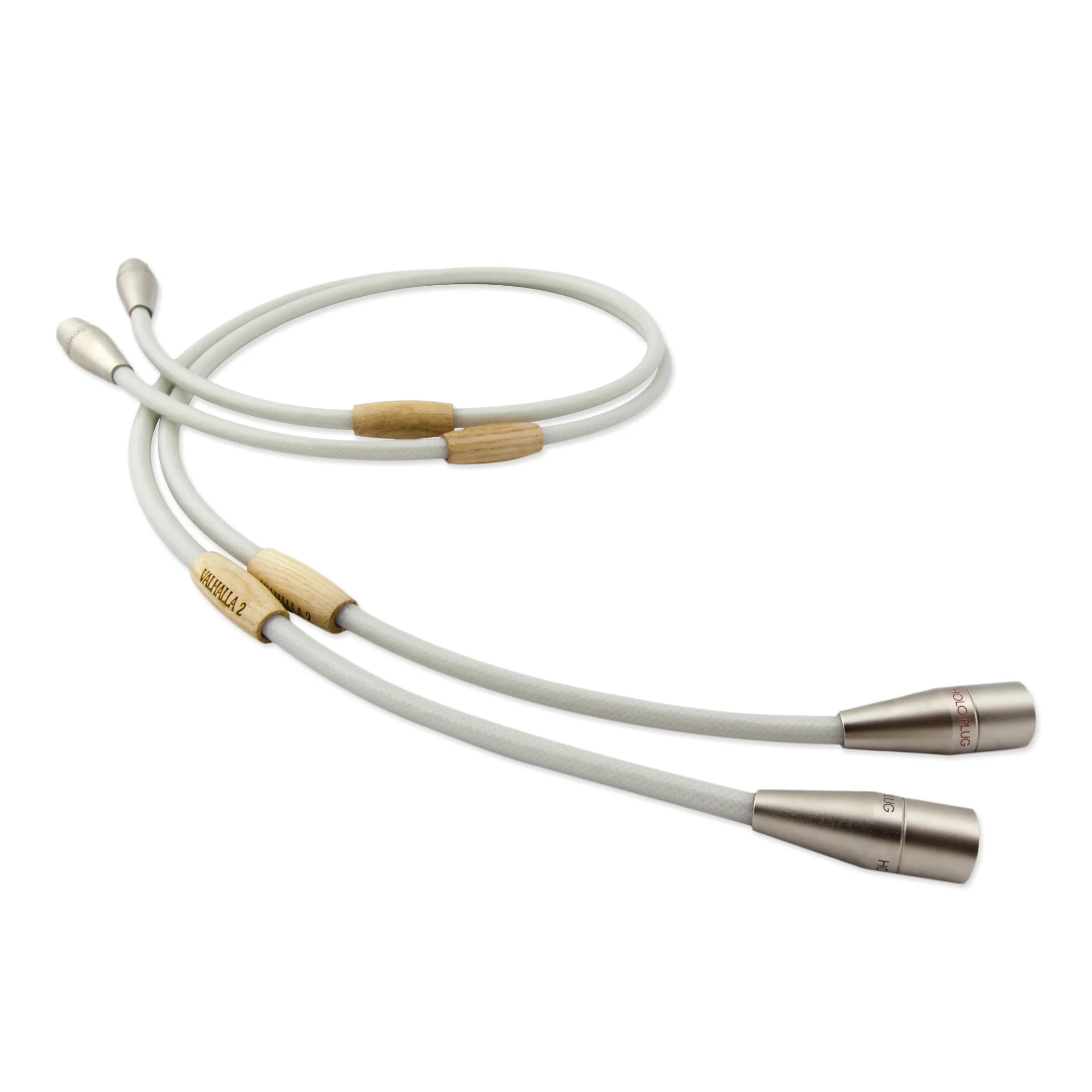

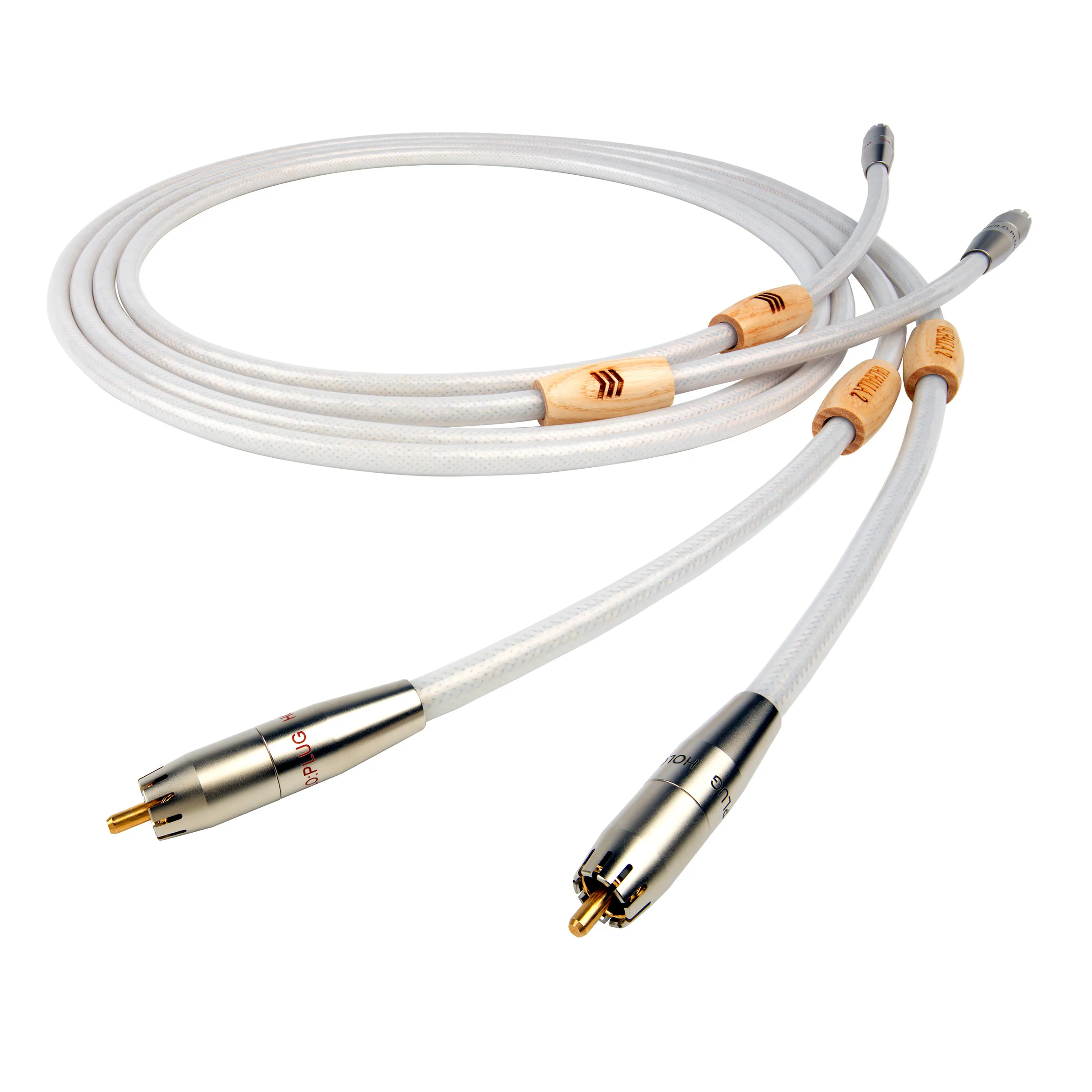

Valhalla 2 is available with RCA or XLR HOLO:PLUG connectors. The saved specs list 10 x 24 AWG silver-plated 99.999999% OFC conductors, FEP insulation, 97% total shield coverage in two silver-plated layers, and 87% velocity of propagation. Use it where the system needs a heavily shielded line-level cable with documented conductor and connector details.

Specifications

InsulationHigh purity class 1.1 extruded Fluorinated Ethylene Propylene (FEP)
ConstructionMechanically tuned lay, length and Dual Mono-Filament design
Conductors10 x 24 AWG
MaterialSilver-plated 99.999999% solid core OFC
Capacitance17.0pF/ft
Inductance0.076μH/ft
Overall Shield Coverage97% Total coverage with 2 layers of silver-plated shielding
Velocity of Propagation87%
TerminationNordost HOLO:PLUG® Gold Plated RCA or XLR
Conductor count10
Conductor material99.999999% oxygen-free copper
All 11 specificationsFewer specifications
