VALHALLA 2 DIGITAL INTERCONNECTS
Digital interconnect with 75 ohm BNC/RCA and 110 ohm XLR formats.
fig. 01 · digital cables
VALHALLA 2 DIGITAL INTERCONNECTS
From Nordost

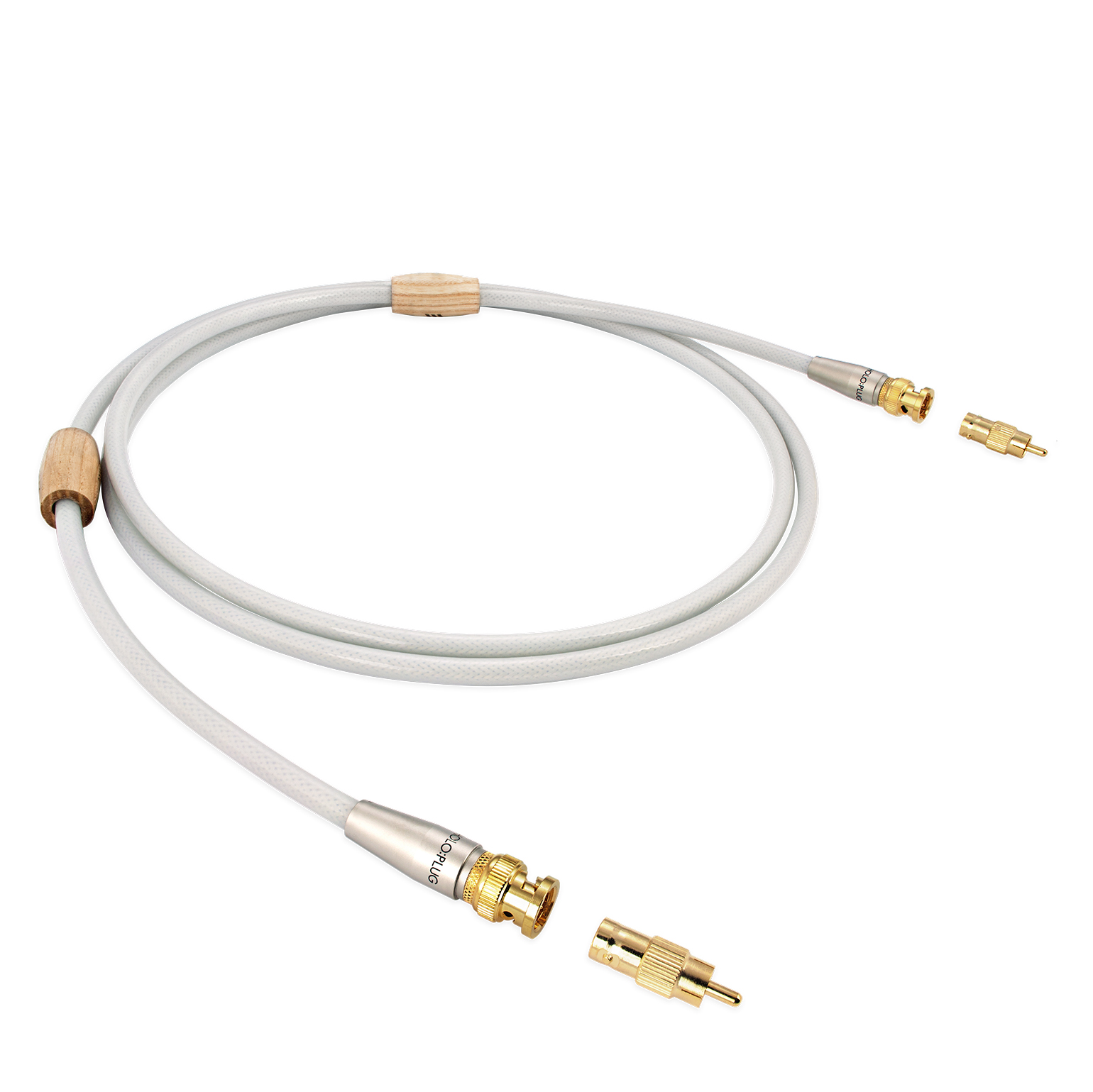

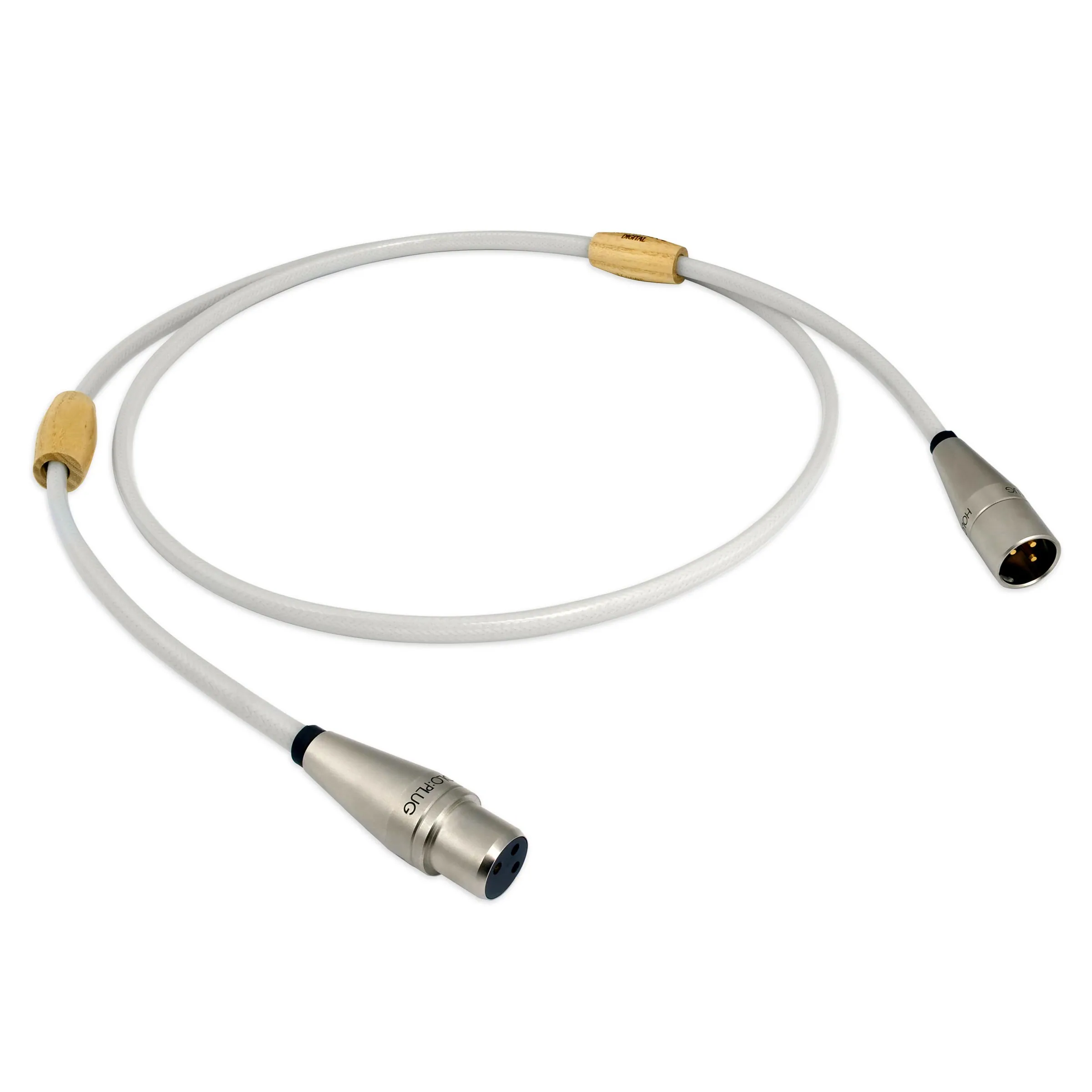

Valhalla 2 Digital Interconnects support 75 ohm S/PDIF and 110 ohm AES/EBU paths. The 75 ohm version uses a 1 x 16 AWG silver-plated OFC conductor, 98% total shield coverage, and a HOLO:PLUG BNC termination with a BNC-to-RCA adapter. The 110 ohm version uses a twin-axial layout with 2 x 18 AWG conductors and a true 110 ohm HOLO:PLUG XLR termination.
Specifications
| Insulation | High purity class 1.1 extruded Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned length and Dual Mono-Filament, Co-axial design |
| Conductors | 1 x 16 AWG |
| Material | Silver-plated 99.999999% solid core OFC |
| Capacitance | 15.3pF/ft |
| Impedance | 75 Ohm |
| Overall Shield Coverage | 98% Total coverage with 2 layers of silver-plated shielding |
| Velocity of Propagation | 89% |
| Termination | Gold-plated true 75 Ohm HOLO:PLUG® BNC. Gold-plated BNC to RCA adapter included. |
| Construction 2 | Mechanically tuned lay, length and Dual Mono-Filament, Twin-axial design |
| Conductors 2 | 2 x 18 AWG |
| Capacitance 2 | 10.5pF/ft |
| Impedance 2 | 110 Ohm |
| Termination 2 | Gold-plated true 110 Ohm HOLO:PLUG® XLR |
| Conductor material | silver-plated |
