VALHALLA 2 SPEAKER CABLES
Speaker cable with 28 silver-plated solid-core OFC conductors.

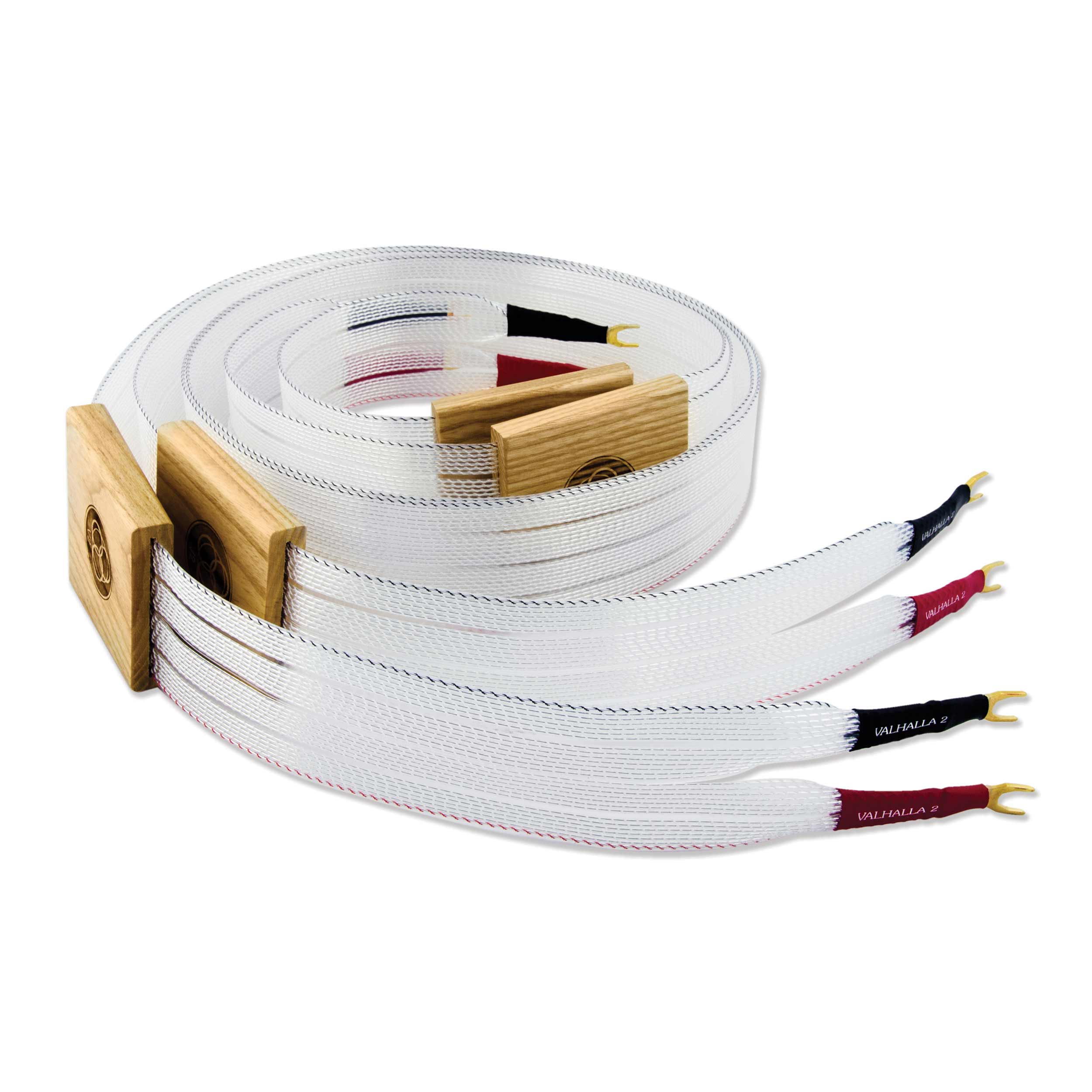

fig. 01 · speaker cables
VALHALLA 2 SPEAKER CABLES
7 photographs · 5 shown
From Nordost
Valhalla 2 Speaker Cables use 28 x 22 AWG silver-plated 99.999999% solid-core OFC conductors divided into 4 groups of 7. The design uses FEP insulation, mechanically tuned spacing and length, and Dual Mono-Filament construction. Nordost lists 10.9pF/ft capacitance, 0.125uH/ft inductance, 97% velocity of propagation, and HOLO:PLUG gold-plated spade or low-mass Z-plug banana termination.
Specifications
| Insulation | High purity class 1.1 extruded Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned spacing, length and Dual Mono-Filament design |
| Conductors | 28 x 22 AWG |
| Material | Silver-plated 99.999999% solid core OFC |
| Capacitance | 10.9pF/ft |
| Inductance | 0.125μH/ft |
| Velocity of Propagation | 97% |
| Termination | Nordost HOLO:PLUG® gold-plated Spade (8.5mm internal, 12.6mm external) or Nordost’s gold-plated, low-mass Z-plug Banana |
| Conductor count | 28 |
| Conductor material | solid-core 99.999999% oxygen-free copper |
| Dielectric / insulation | FEP |
