Nordost · USB Cables · Cables
VALHALLA 2 USB 2.0 CABLE
Flat twin-axial USB 2.0 cable with 4 x 19 AWG conductors.

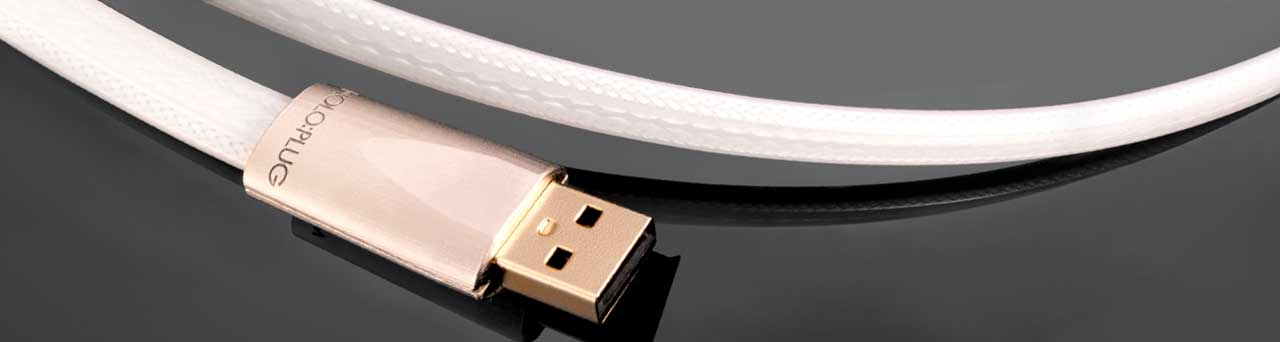

fig. 01 · usb cables
VALHALLA 2 USB 2.0 CABLE
From Nordost
Valhalla 2 USB 2.0 Cable uses a flat twin-axial layout with individually shielded power and signal conductors. Its 4 x 19 AWG silver-plated 99.999999% OFC solid-core conductors sit in FEP insulation with Dual Mono-Filament construction. Nordost lists 100% total shield coverage, a full metal HOLO:PLUG backshell, 90% velocity of propagation, and gold-plated Type A or Type B USB 2.0 termination.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned length, Dual Mono-Filament, Flat, Twin-axial design, with individually shielded power and signal conductors |
| Conductors | 4 x 19 AWG |
| Material | Silver plated 99.999999% OFC Solid Core Conductors |
| Overall Shield Coverage | 100% Total coverage, dual-layer silver foil and braid, with full metal HOLO:PLUG® backshell |
| Velocity of Propagation | 90% |
| Termination | Gold plated HOLO:PLUG® Type A or B USB 2.0 |
