WHITE LIGHTNING 3 POWER CORD
Figure-8 power cord with 2 x 18 AWG OFC conductors.
fig. 01 · power cables
WHITE LIGHTNING 3 POWER CORD
From Nordost

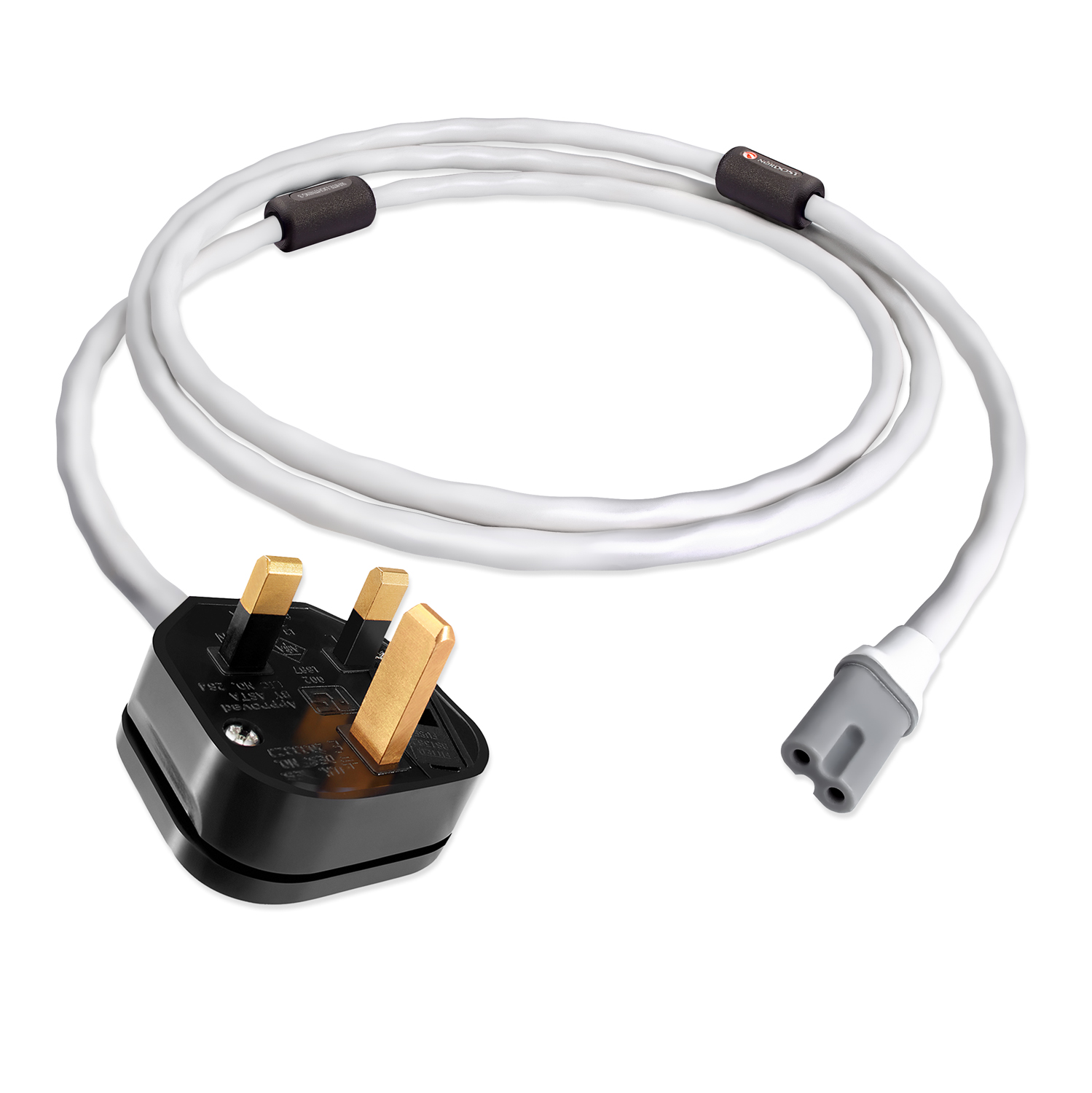

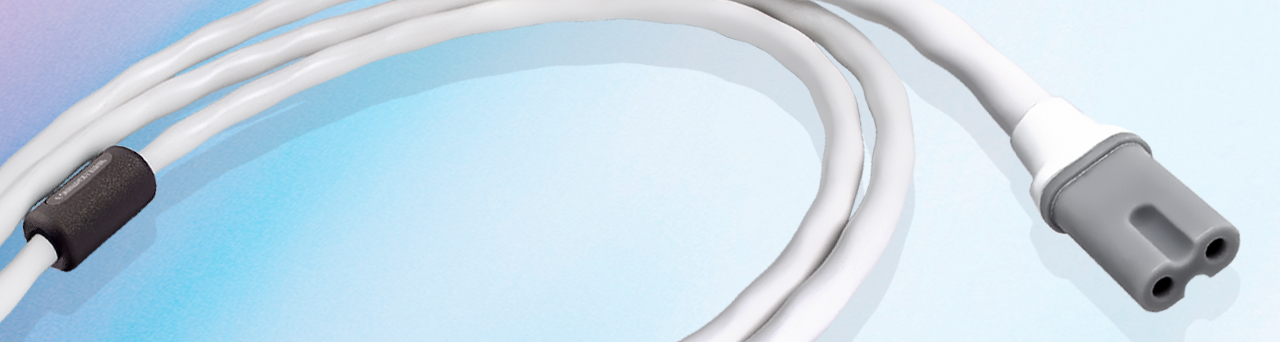

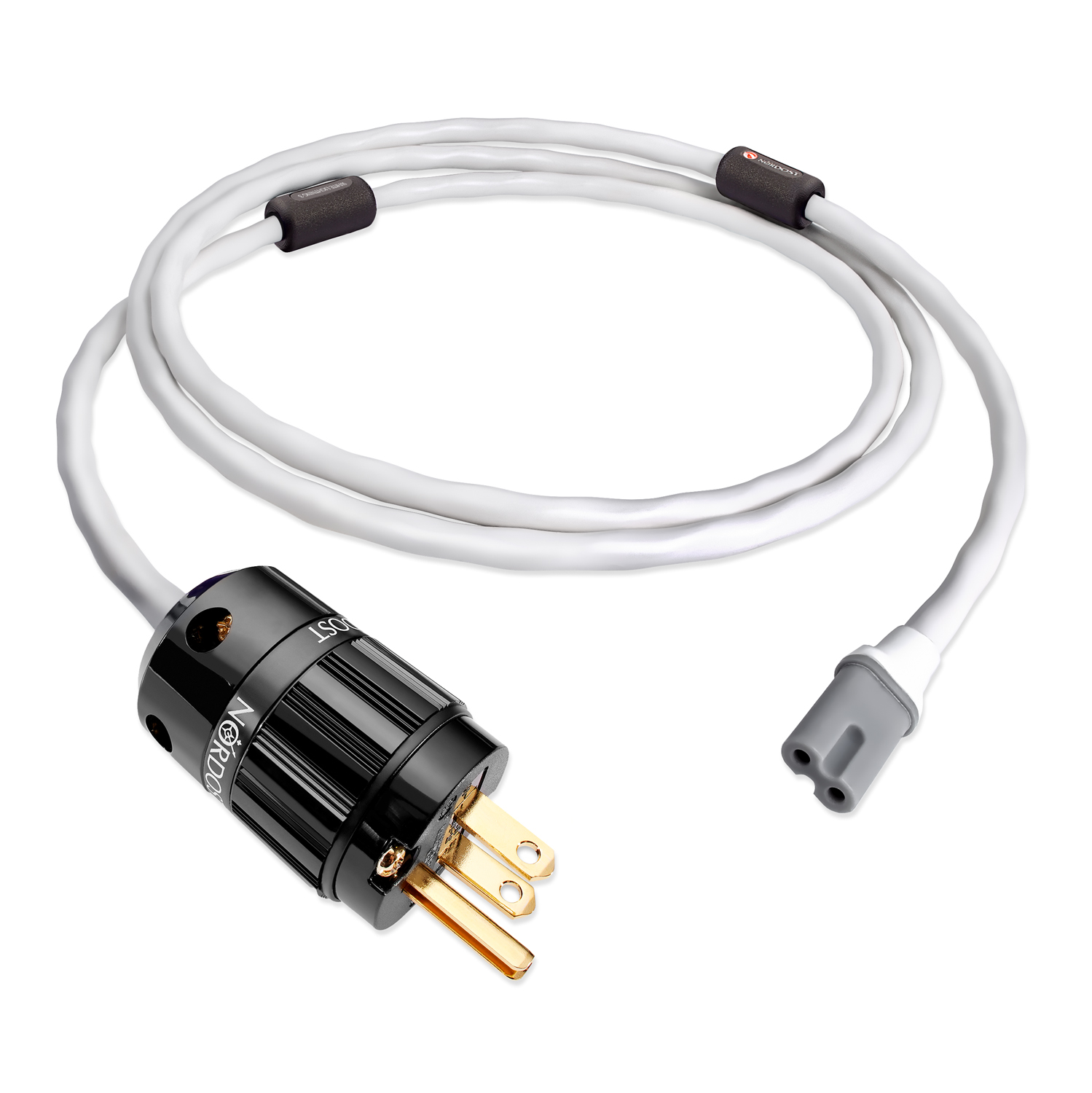

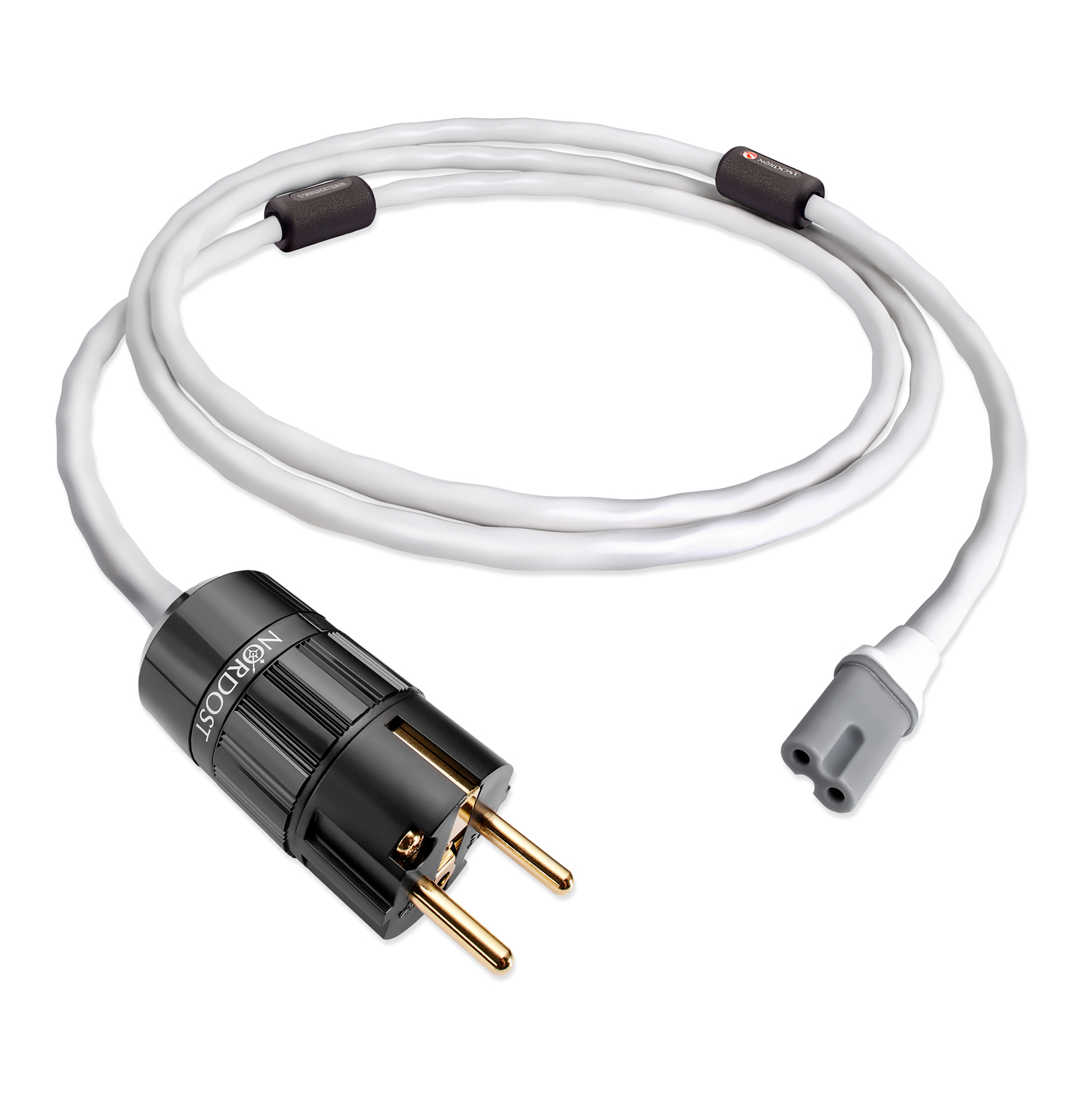

White Lightning 3 Power Cord is a Nordost AC power cable with FEP insulation and Micro Mono-Filament construction. It uses 2 x 18 AWG, 65-strand 99.9999% OFC conductors. Listed termination options include US, EU, UK, or AUS mains plugs to a Figure 8 IEC-C7 connector.
Specifications
| Insulation | Fluorinated Ethylene Propylene (FEP) |
|---|---|
| Construction | Mechanically tuned lay, Micro Mono-Filament Design |
| Conductors | 2 x 18 AWG |
| Material | 65 Strand 99.9999% OFC |
| Capacitance | 10.0pF/ft |
| Inductance | 0.146µH/ft |
| DC Resistance | 6.6 Ohms per 1000ft |
| Velocity of Propagation | 81% |
| Termination | US (Nema), EU (Schuko), UK or AUS to Figure 8 IEC-C7 connector |
