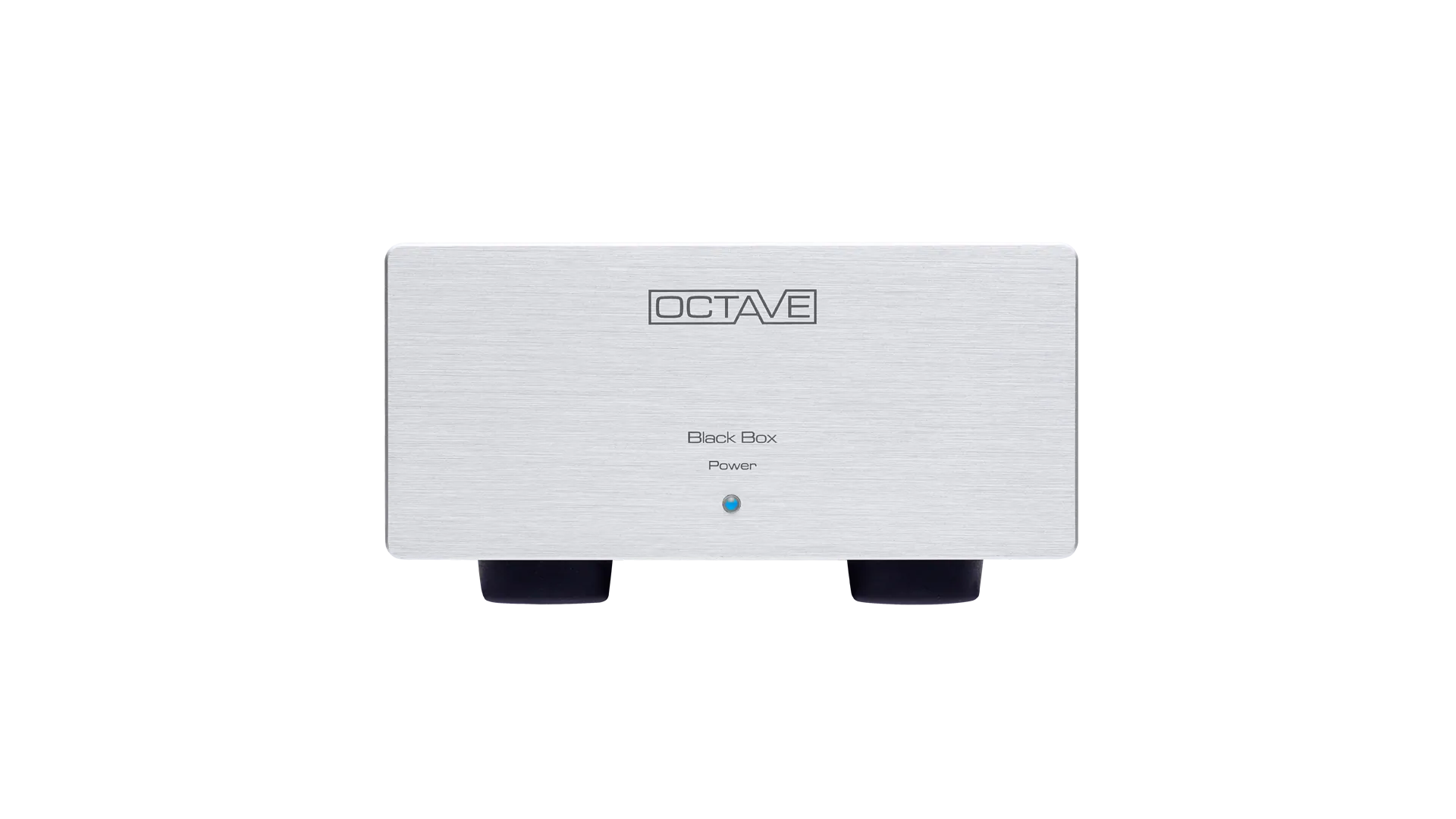

Black Box
The Black Box is a passive external power supply that increases an Octave amplifier's capacitance by a factor of 4.
fig. 01 · accessories
Black Box
current
From Octave
Like the Super Black Box, the Black Box adds storage capacitance to an amplifier's internal power supply, stabilizing it against mains fluctuations and suppressing low-frequency network interference. The added capacity lets the connected amplifier handle loudspeakers with minimum impedances down to 2 ohms without losing control.
It works with the V 40 (SE), V 50, V 70 (SE), V 70 Class A, V 80 (SE), V 110 (SE), and V 16 Single Ended all-in-one amplifiers, as well as the RE 280 MK2, RE 290, RE 320, MRE 130, and MRE 220 (SE) power amplifiers.

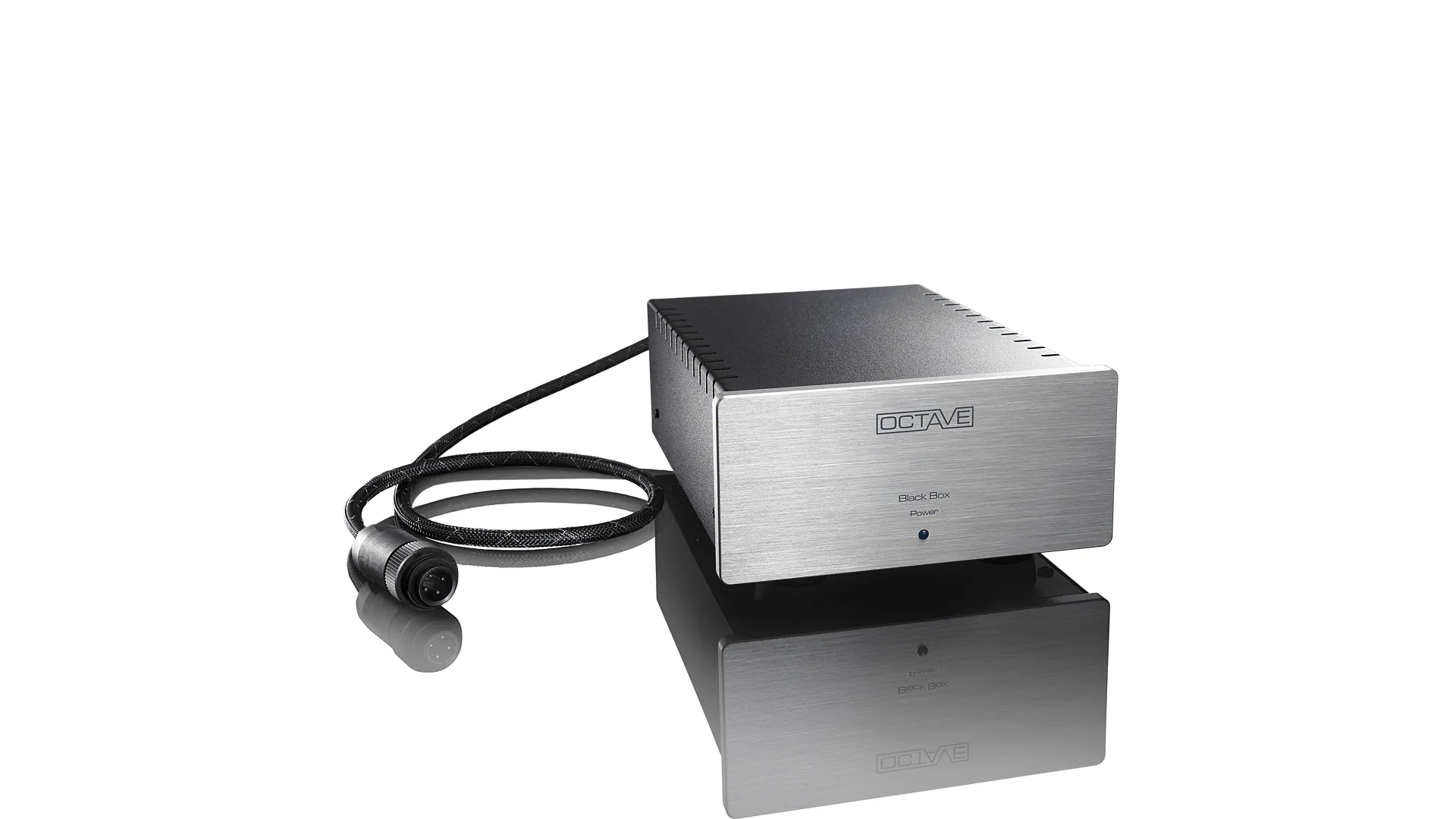

The Black Box connects through a dedicated high-current connector with a 1 meter cable and has its own housing separate from the amplifier. Discharge electronics clear the stored charge within 2 seconds of powering down.
Specifications
| Basic model | Black Box |
|---|---|
| Design | Silver or Black |
| Dimensions | 185 x 100 x 310 mm (W x H x D) |
| Weight | 3.2 kg |
| Cable length | 1m; Special lengths also possible upon request |
| Discharge electronics | Discharge within 2 seconds |
