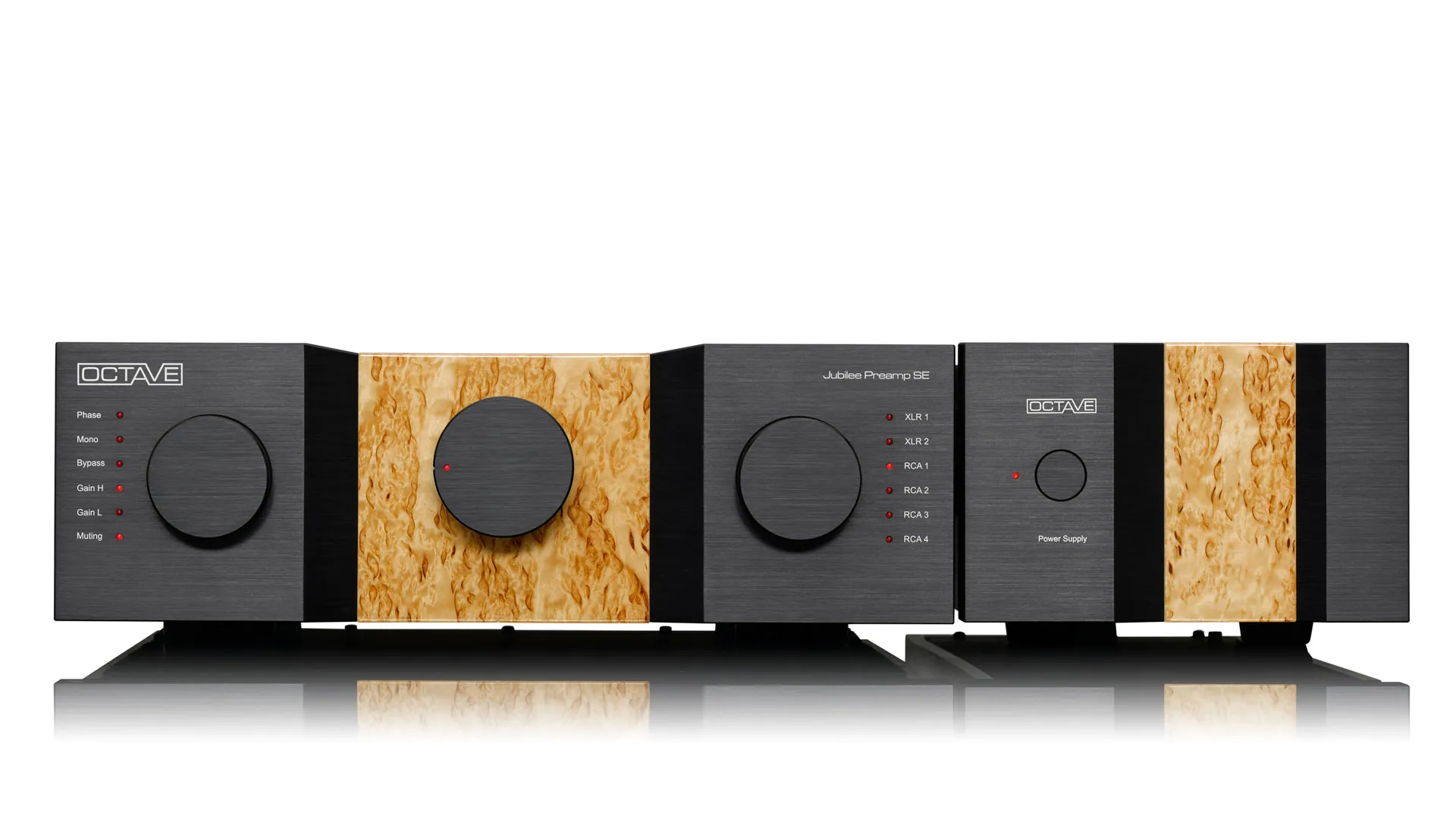

Jubilee Preamp SE
The Jubilee Preamp SE is Octave's flagship line preamplifier, built around four 12AU7 Tung Sol tubes and a discrete semiconductor output stage that runs without negative feedback.
fig. 01 · preamplifiers
Jubilee Preamp SE
current
8 photographs · 5 shown
From Octave
The four ECC82-type tubes at the heart of the Jubilee Preamp SE feed a discrete semiconductor output stage with an output impedance of just 33 ohms. That low impedance means the preamp can drive power amplifiers with input impedance as low as 600 ohms over cable runs up to 8 meters without losing stability.
The XLR inputs use input transformers built in-house, specified for modern DACs with output levels up to 8V RMS, an input impedance of 80kOhm, and a frequency range of 5Hz to 150kHz at 0.005% total harmonic distortion. Gain is switchable between 10dB and 16dB on RCA, or 16dB and 22dB on XLR.
Dual RCA and XLR outputs support bi-amping, tri-amping, or quad-amping setups, and switchable gain, phase, and mono controls round out the configuration options. A 47-position stepped attenuator is available as an option for the volume control.
Specifications
| Basic model | Jubilee Preamp SE Line |
|---|---|
| Options | Stepped attenuator; 47-position rotary switch for volume |

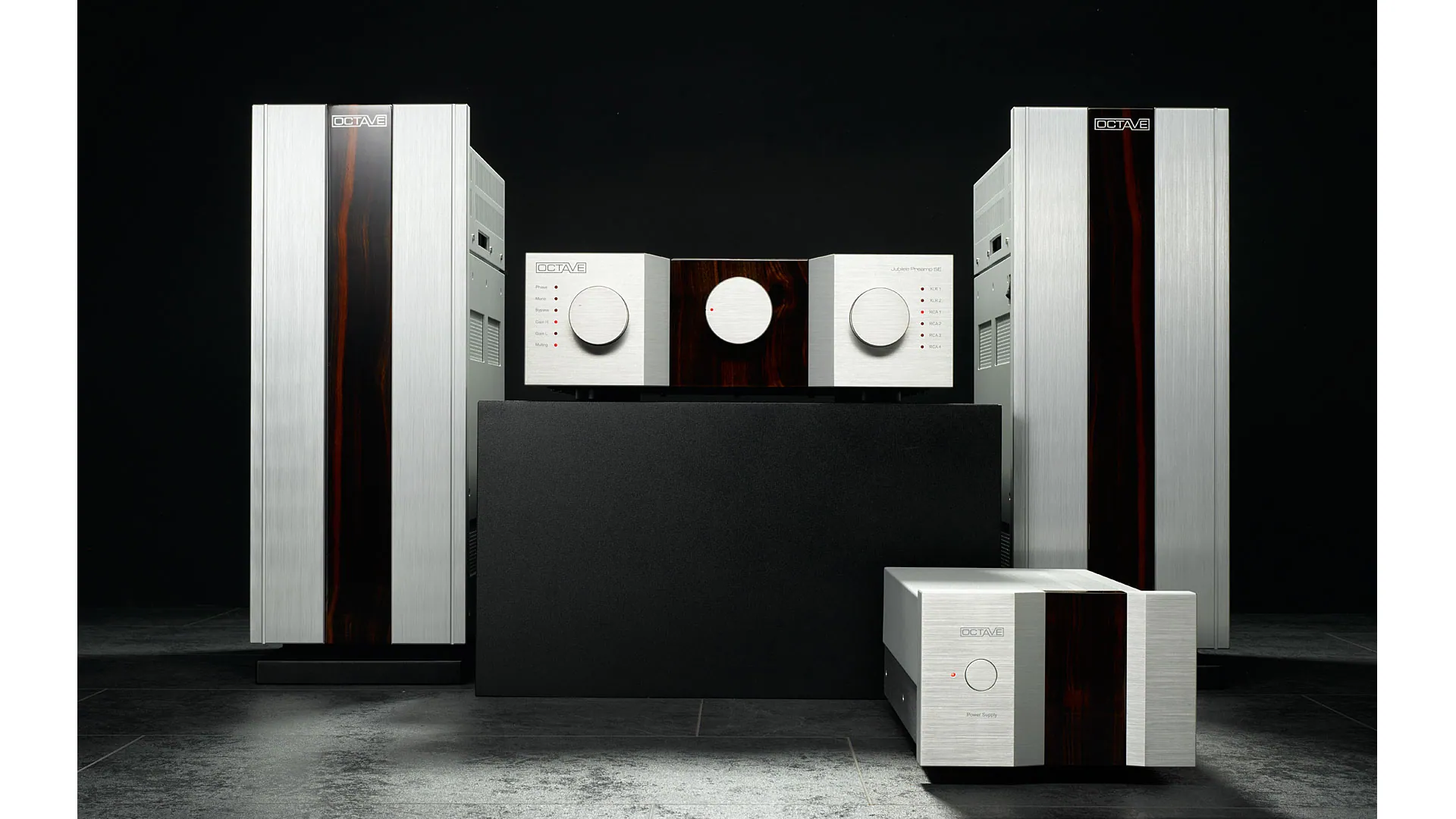

| Design | Silver or black; standard front center panels: slate, birch, Makassar; on request: granite, jungle stone, walnut |
| Tube configuration | 4 x 12AU7 Tung Sol (ECC82) |
| Inputs | 4 x RCA, 2 x XLR, 1 x Home Theatre Bypass (RCA) |
| Outputs | 2 x RCA, 2 x XLR, 1 x Monitor (RCA) |
| Dimensions Preamplifier / Power Supply | 44.5 x 15.2 x 48.0 cm / 22.0 x 15.2 x 48.0 cm (W x H x D) |
| Weight Preamplifier / Power Supply | 17.2 kg / 11.5 kg |
| External Power Supply | Equipped with a vacuum-encapsulated low-noise mains transformer |
| Option Stepped Attenuator for Volume | 47-position rotary switch for maximum signal purity |
| Gain selectable in two levels | Adaptation to the efficiency of the speaker |
| XLR inputs with transformers | Input transformer for optimal symmetry and low noise |
| Zero Feedback | Minimal phase distortion |

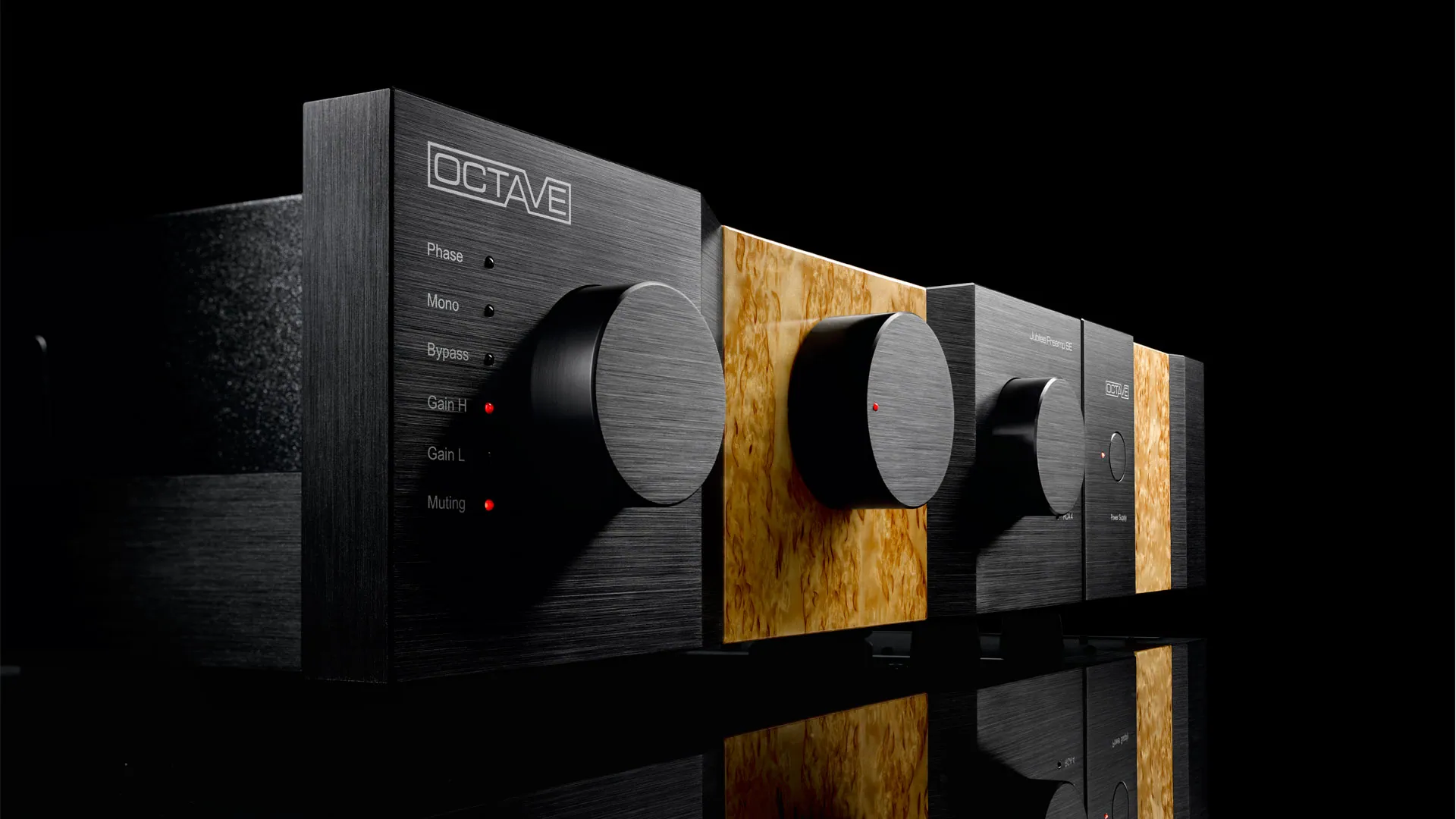

| New operating and display concept | Clear display of the functions, volume control with LED indicator |
| Option LED color | Standard LED color is red; other LED colors available upon request |
| HT Bypass | Standard with a separate RCA input |
| Mono button | For the alignment of the loudspeakers for precise center localization |
| Newly developed device feet | Resonance-optimized three-layer construction |
| Monitor Output | E.g. for external headphone amplifiers with volume control. |
| RCA Gain factor | 10 dB / 16 dB (Gain Low / High) |
| XLR Gain factor | 16 dB / 22 dB (Gain Low / High) |
| Frequency range | 3 Hz – 100 kHz 1.5 dB |
| Harmonic distortion | 0.1% at 3 V / 7.5 kOhm |
| Signal-to-noise ratio | 100 dB (Gain High) / 98 dB (Gain Low) |
