Output Modules configure the Octave Phono Module's output stage, covering standard line-level, single-ended direct drive, and balanced direct drive connections.
fig. 01 · accessories
Output Modules
current
From Octave

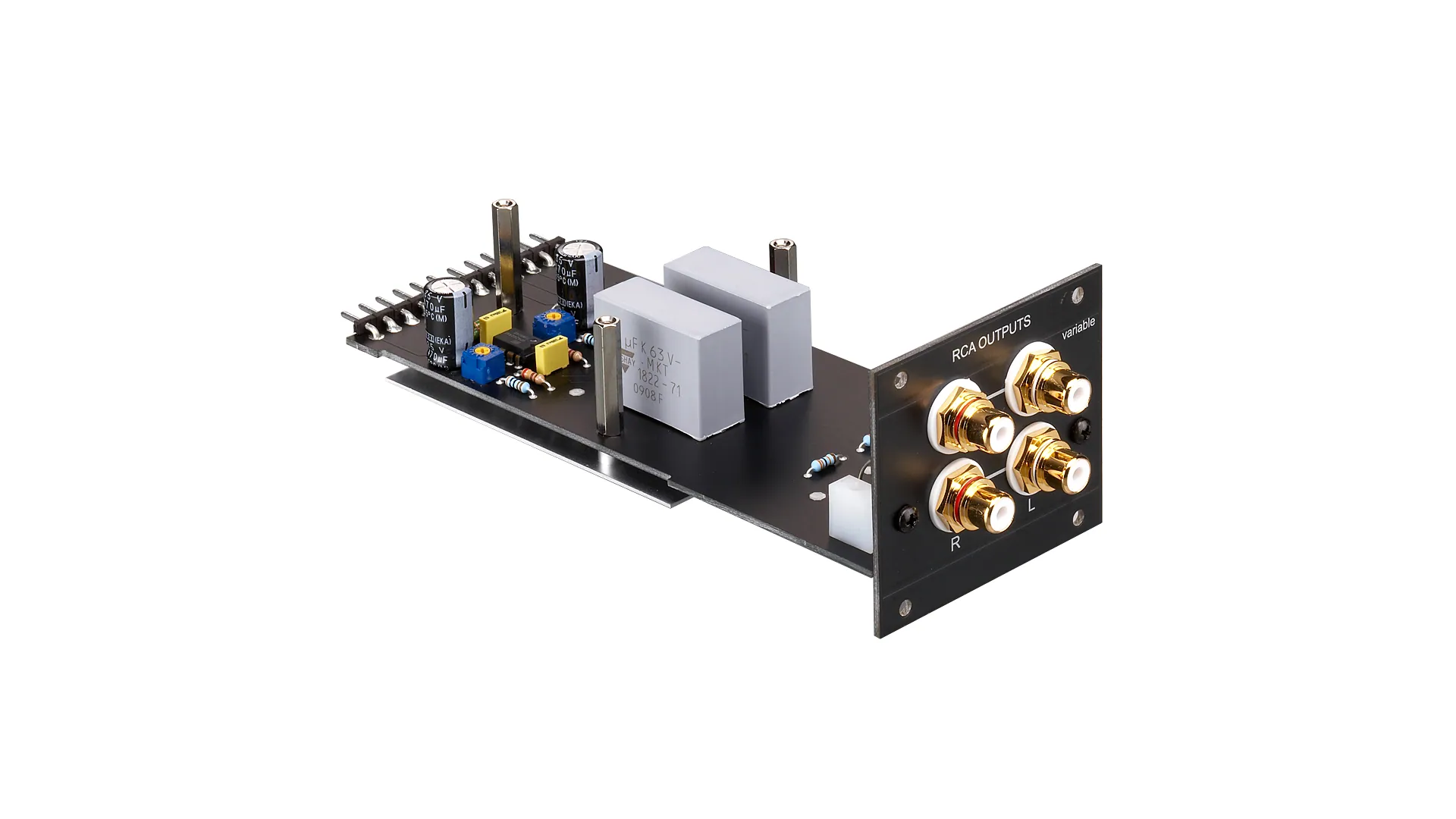

OUT1 is the standard module, giving a fixed and a variable RCA output from the Phono Module. The fixed output feeds a preamplifier's high-level input, while the variable output works for an external headphone amplifier or as a direct recording feed to tape or a computer.

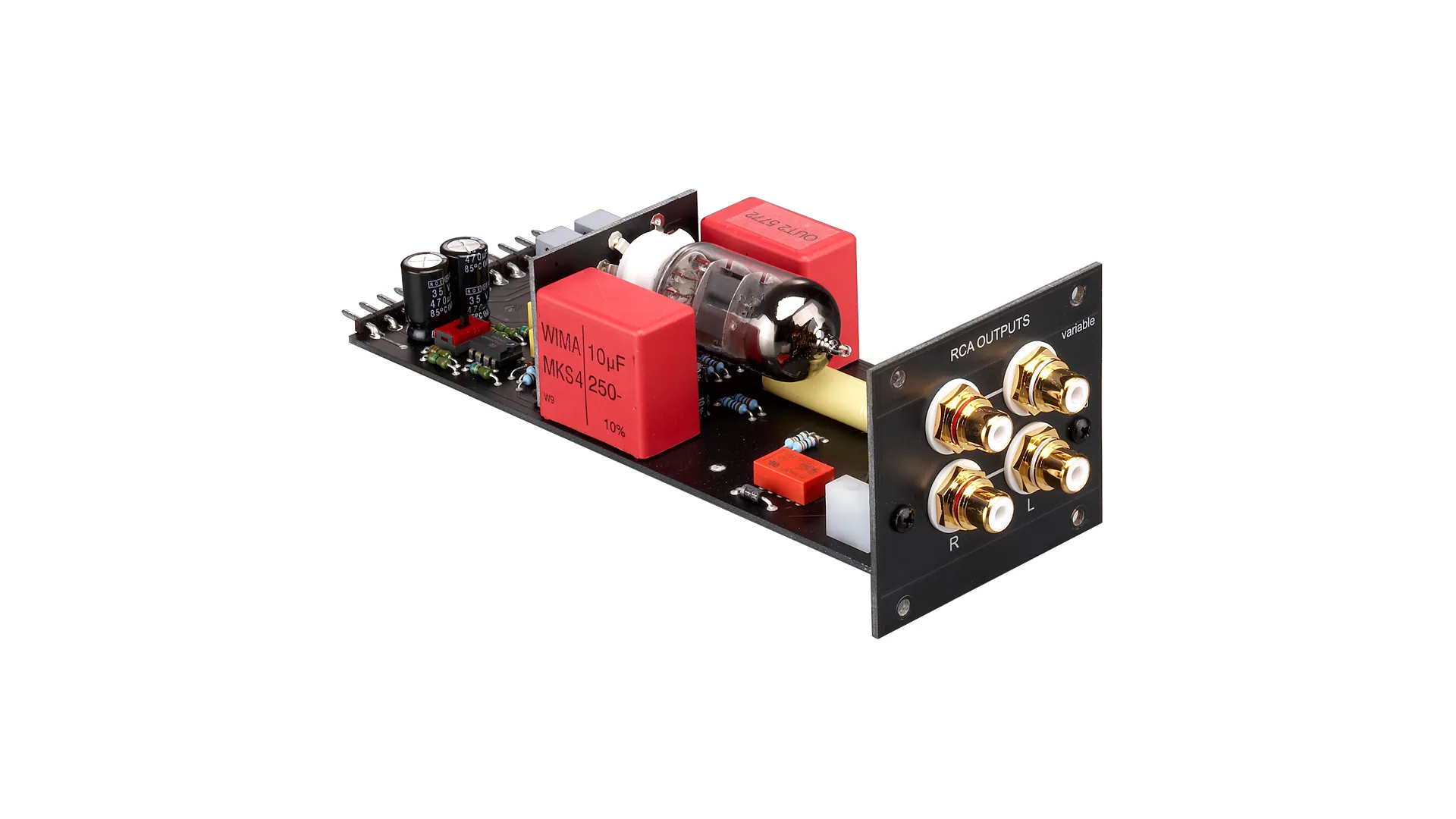

OUT2 uses a tube-based variable output built to drive an unbalanced power amplifier directly, bypassing a separate preamplifier stage; its fixed output still connects to a high-level input as usual. OUT3 does the same job over a balanced connection, with a tube variable output built to drive balanced power amplifiers directly.
Specifications
| Output Voltage fixed / variable | 2 V / 0 - 2 V |
|---|---|
| Output Resistance fixed / variable | 250 Ohm |
| Signal-to-noise ratio | -100 dB Gain high / -110 dB Gain low, regulated output |
| Output Voltage | 0.5 - 1 V fix / 0 - 7 V variable |
| Output Resistance | 250 Ohm fix / 320 Ohm variable |
| Frequency Response | 10 Hz - 200 kHz / -0.5 dB |
| Total Harmonic Distortion | 0.001% at 2 V / 1 kHz |
| Output voltage | 0.5 - 1 V fix / 0 - 14 V variable |
| Output resistance | 250 Ohm fix / 320 Ohm variable |
| Frequency response | 10 Hz - 200 kHz / -0.8 dB |
| Total harmonic distortion /THD + noise | 0.001% at 4 V / 1 kHz |
