Octave · Integrated Amplifiers
V 16 Single Ended
The V 16 Single Ended is a compact single-ended Class A amplifier and headphone amp, running a KT120 pentode in triode mode for 2x8W RMS.
fig. 01 · integrated amplifiers

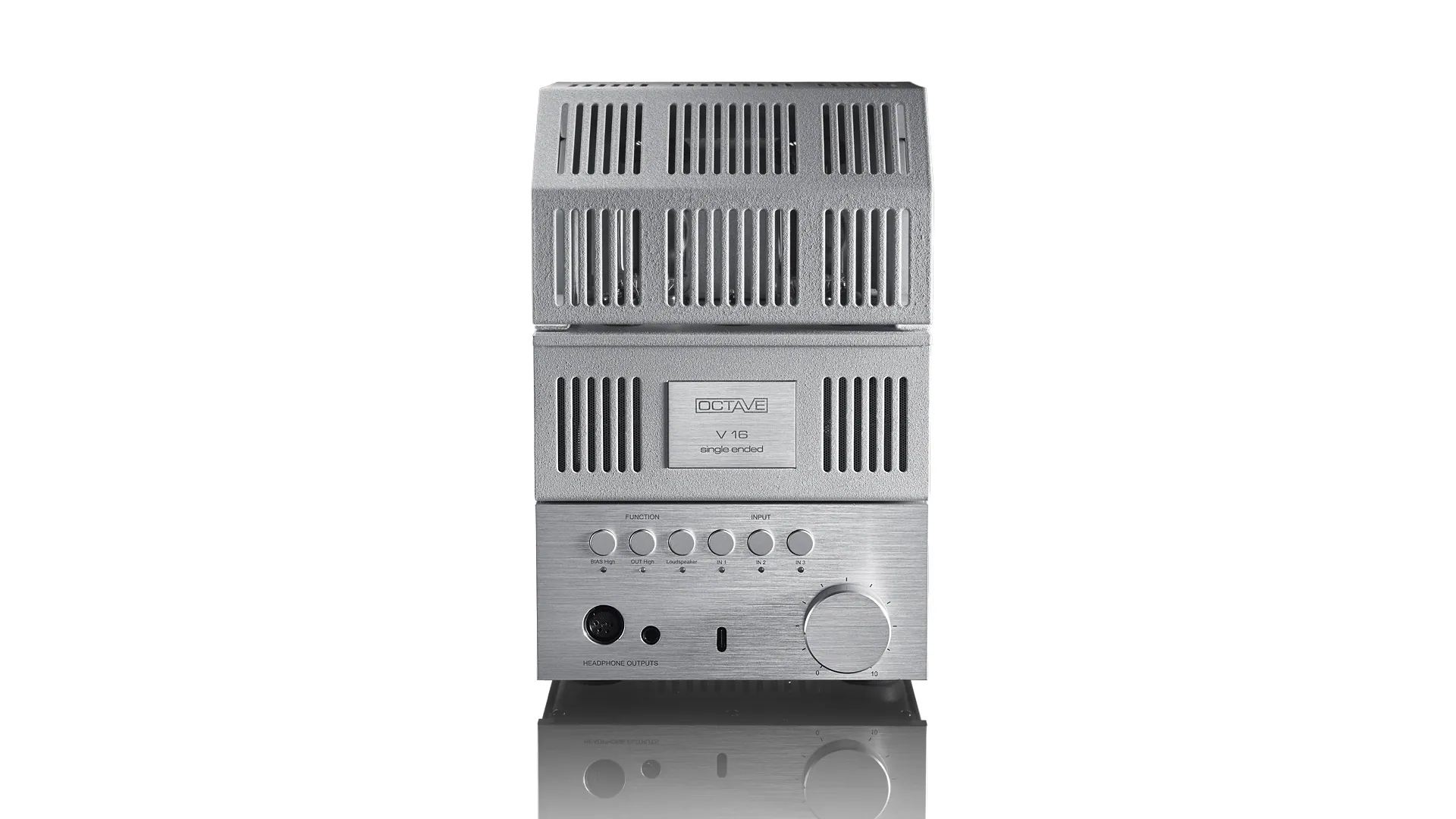

V 16 Single Ended
current
8 photographs · 5 shown
From Octave

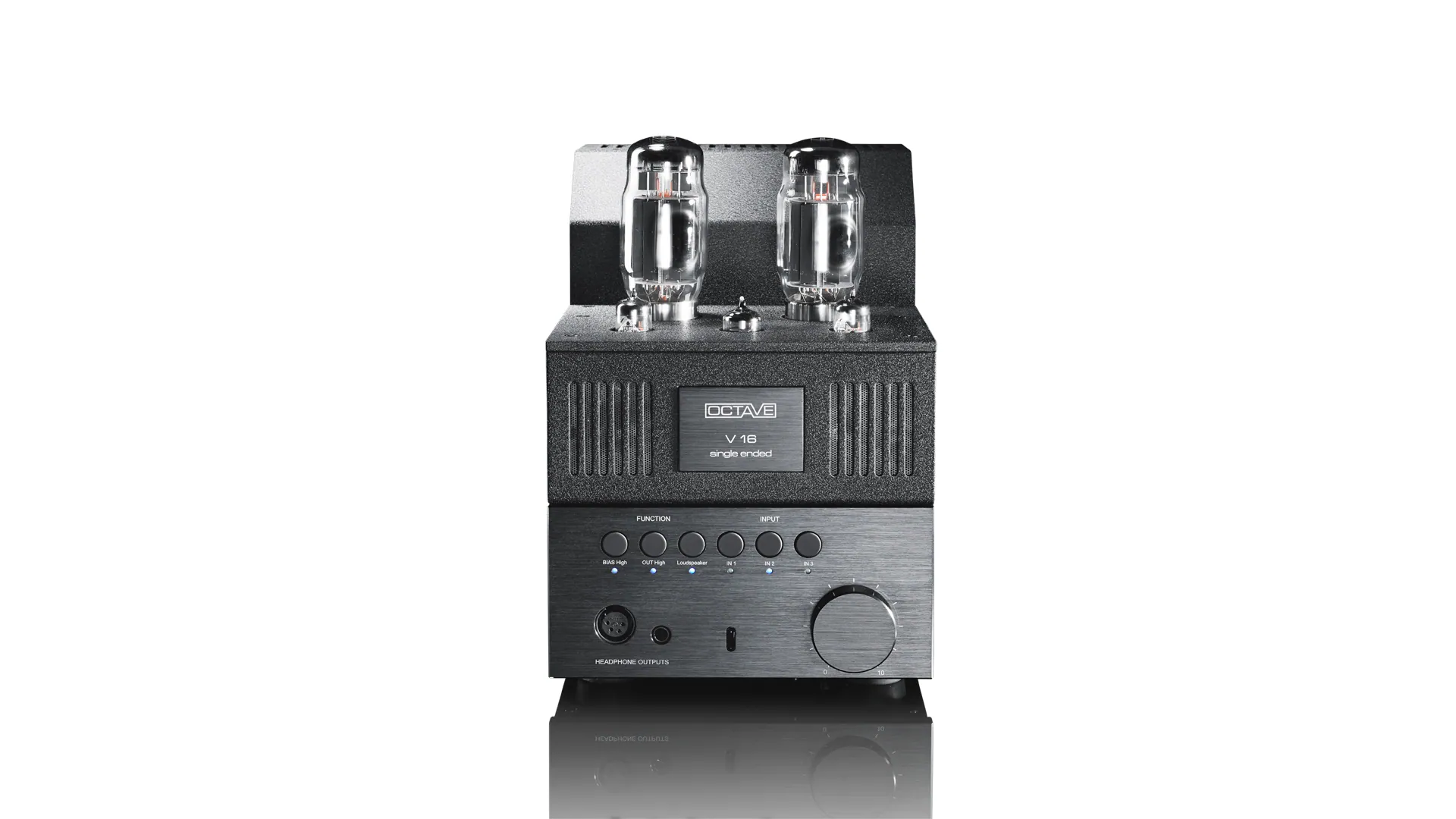

The V 16 runs a KT120 tube per channel in a triode circuit for its single-ended Class A operation, with KT150, KT88, or 6550 tubes also compatible. Octave built a magnetic-field compensated output transformer specifically to address the bass rolloff single-ended designs usually suffer, keeping bandwidth linear down to 10Hz and extending it up to 100kHz on the top end.
An adaptive Class A bias circuit steps between 100% and 35% based on the load, whether that's a 4 or 8 ohm speaker or a pair of headphones, cutting operating temperature and extending tube life compared to a fixed-bias Class A design. Eco Mode further drops the Class A level to 35% during quiet passages and rises again when the signal returns.

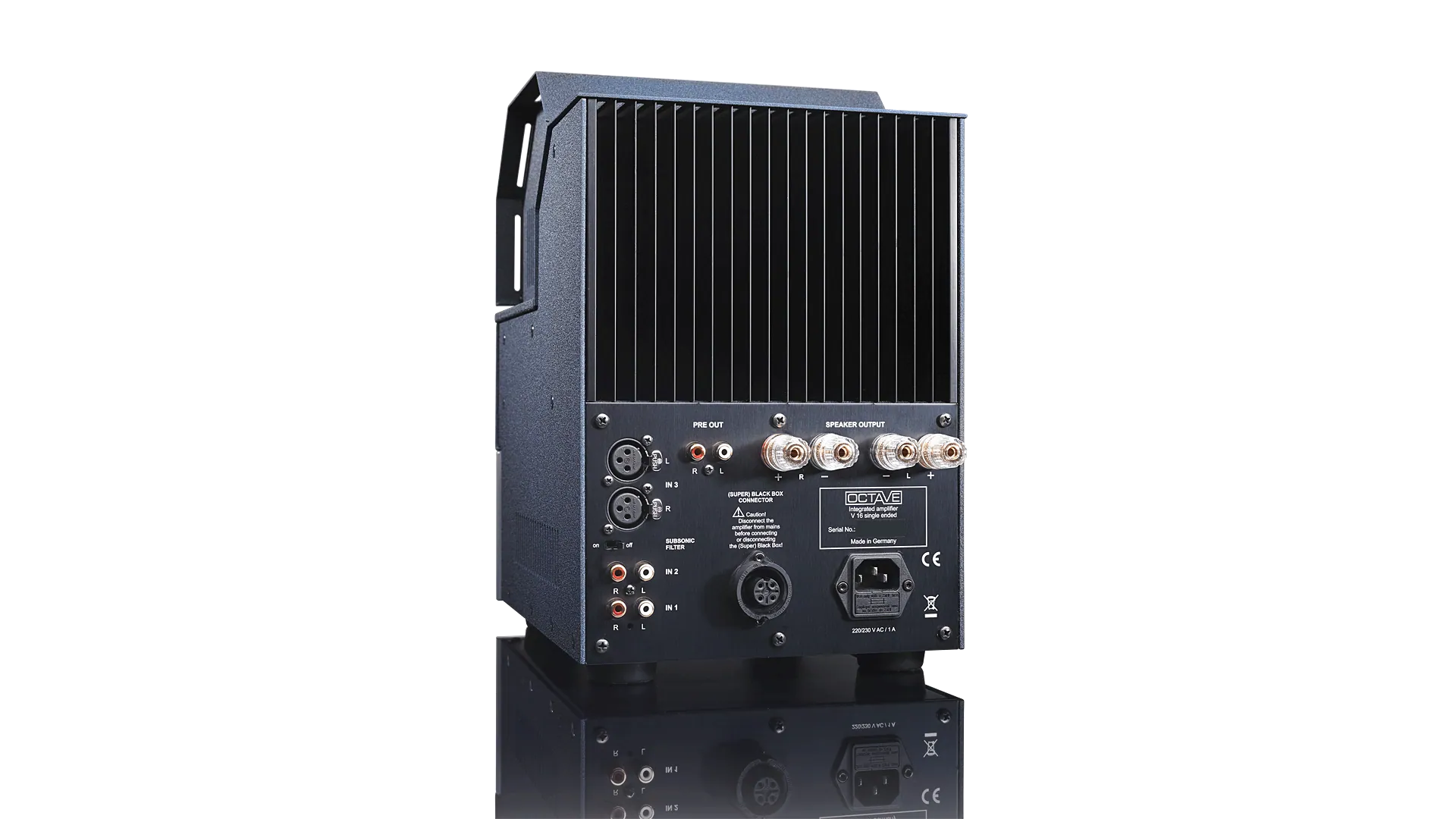

Speaker output runs 2x8W RMS with a noise floor around -110dB at 1W into 8 ohms, roughly 15 to 20 microvolts at 50Hz. Two headphone outputs, a 6.3mm jack and a 4-pin XLR, both handle 8 ohm loads, and two RCA inputs plus one XLR input round out the connections; a regulated preamplifier output is available as a factory option.
Specifications
| Basic model | V 16 Single Ended Line |
|---|---|

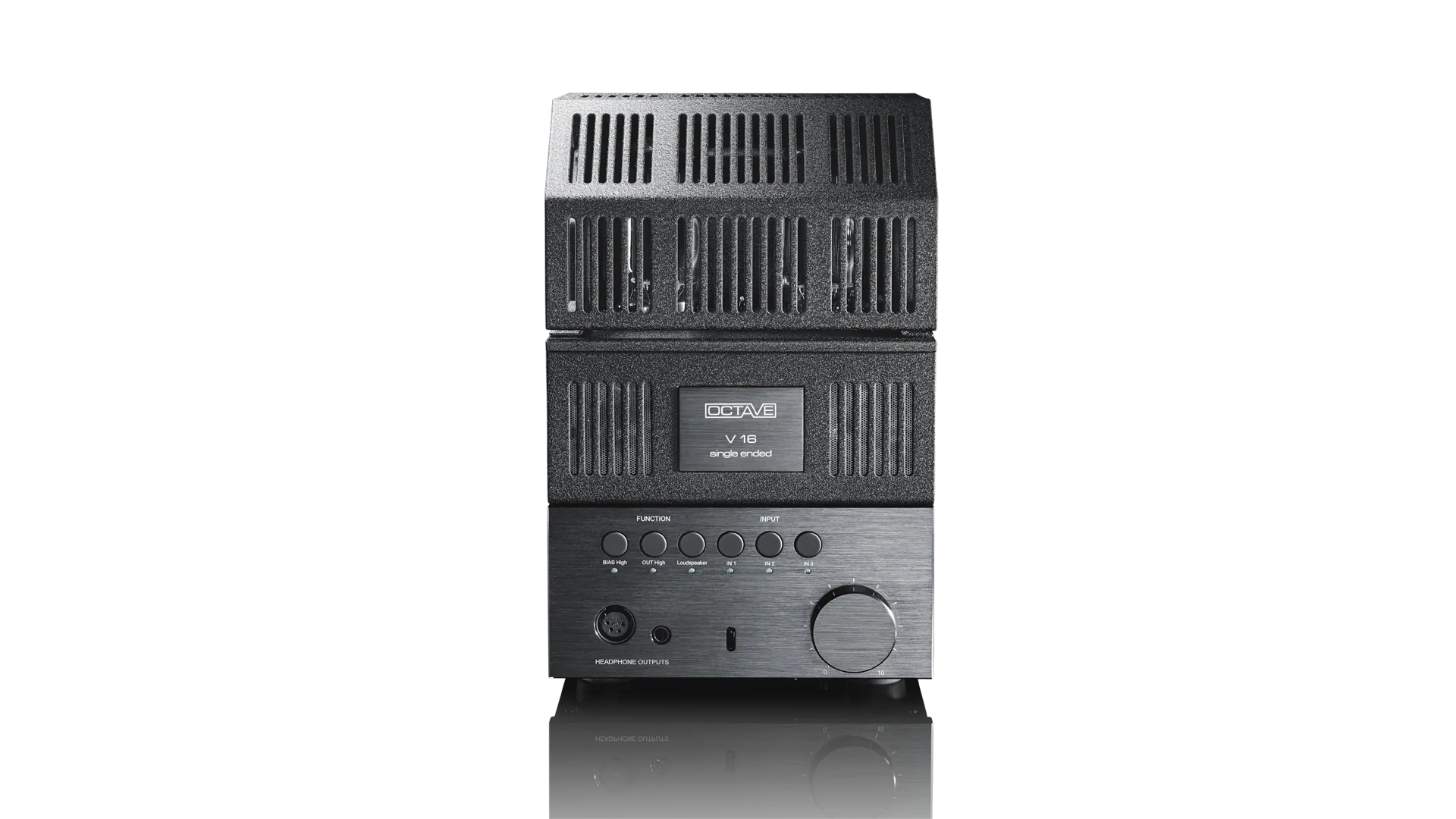

| Design | Ice Grey or Metallic Black |
| Tube configuration | 2 x KT 120 |
| Inputs | 2 x RCA, 1 x XLR |
| Outputs | 1 x Loudspeaker output / 1 x Headphone output 6.3 mm jack / 1 x Headphone output 4 pin XLR / 1 x Regulated preamplifier output RCA (optional only ex factory) |
| Dimensions | 210 x 335 x 380 mm (W x H x D) |
| Weight | 19.0 kg |
| Eco Mode | Power saving mode |
| Protection System | Soft Start; Protection circuit for device and output tubes |
| Headphone output | 1 x 6.3 mm jack (8 Ohms), 1 x Headphone output 4 pin XLR (8 Ohms) |
| Full metal remote control | Volume control |
| Output power | 2 x 8 W RMS |
| Frequency response | 10 Hz - 80 kHz at 5 W 0 / -3 dB |
| Total harmonic distortion | 0.5 % at 3 W into 4 ohms |
| Signal-to-noise ratio | -110 dB / 8 W |
