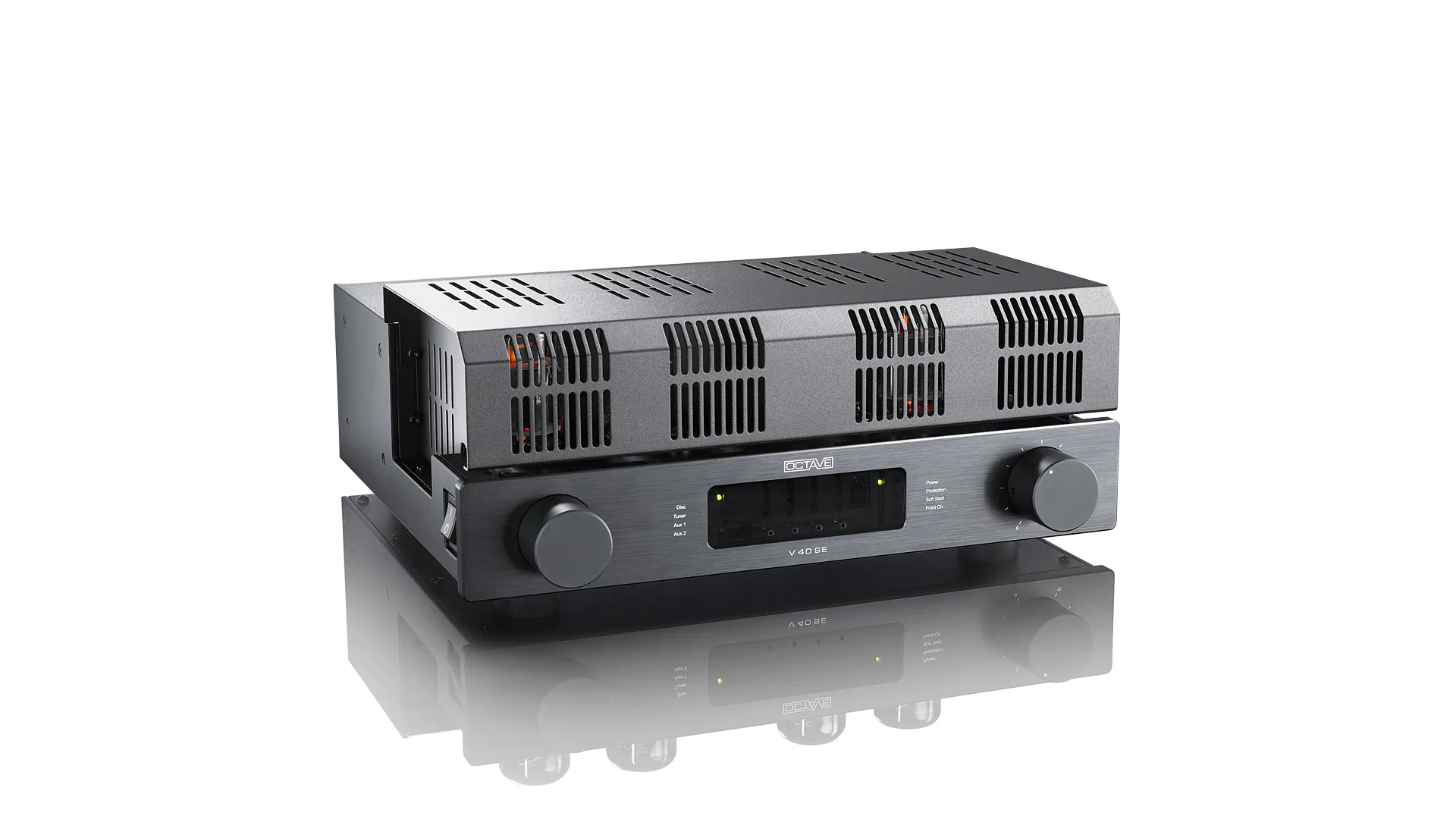

V 40 SE
The V 40 SE is a line-level tube amplifier running four 6550 JJ output tubes for 40W RMS (50W at 4 ohms).
fig. 01 · integrated amplifiers
V 40 SE
current
8 photographs · 5 shown
From Octave

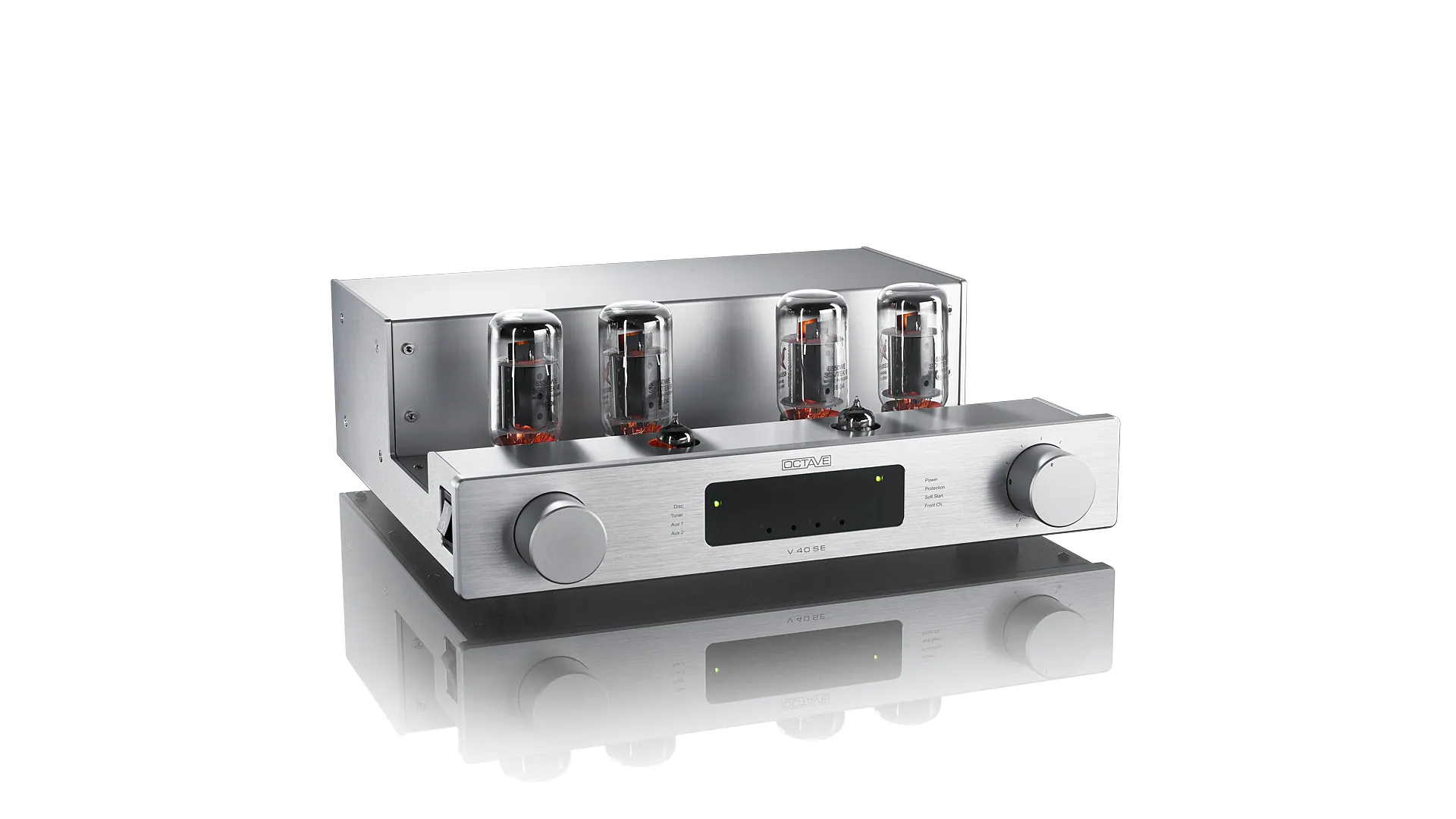

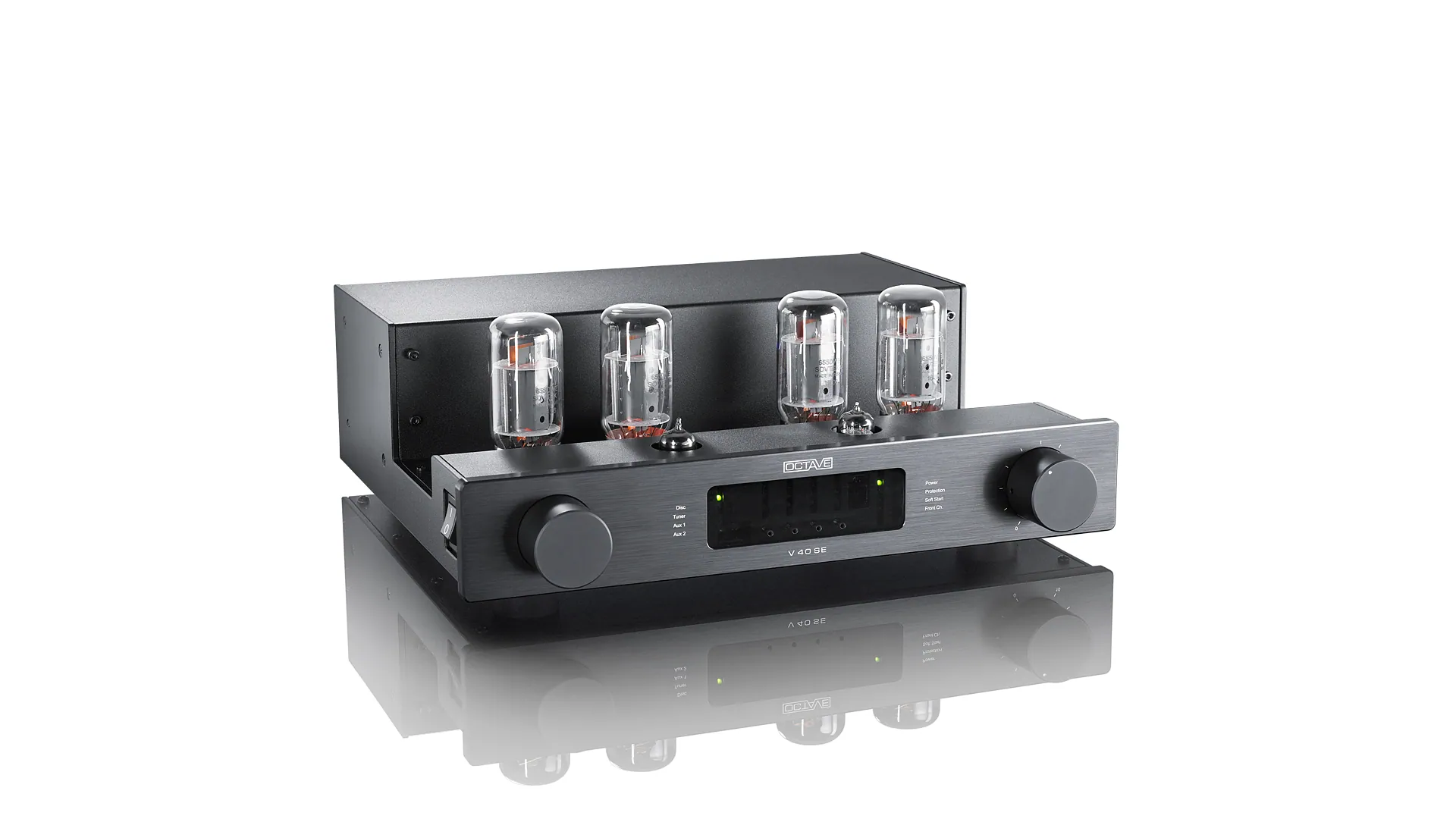

Two 6550 JJ power pentodes per channel produce 40W RMS (50W at 4 ohms) from the V 40 SE, with the BIAS control system allowing other pin-compatible output tubes. The single impedance output transformer keeps the amplifier stable down to a 2 ohm load, unaffected by the swings in impedance that real loudspeakers present.

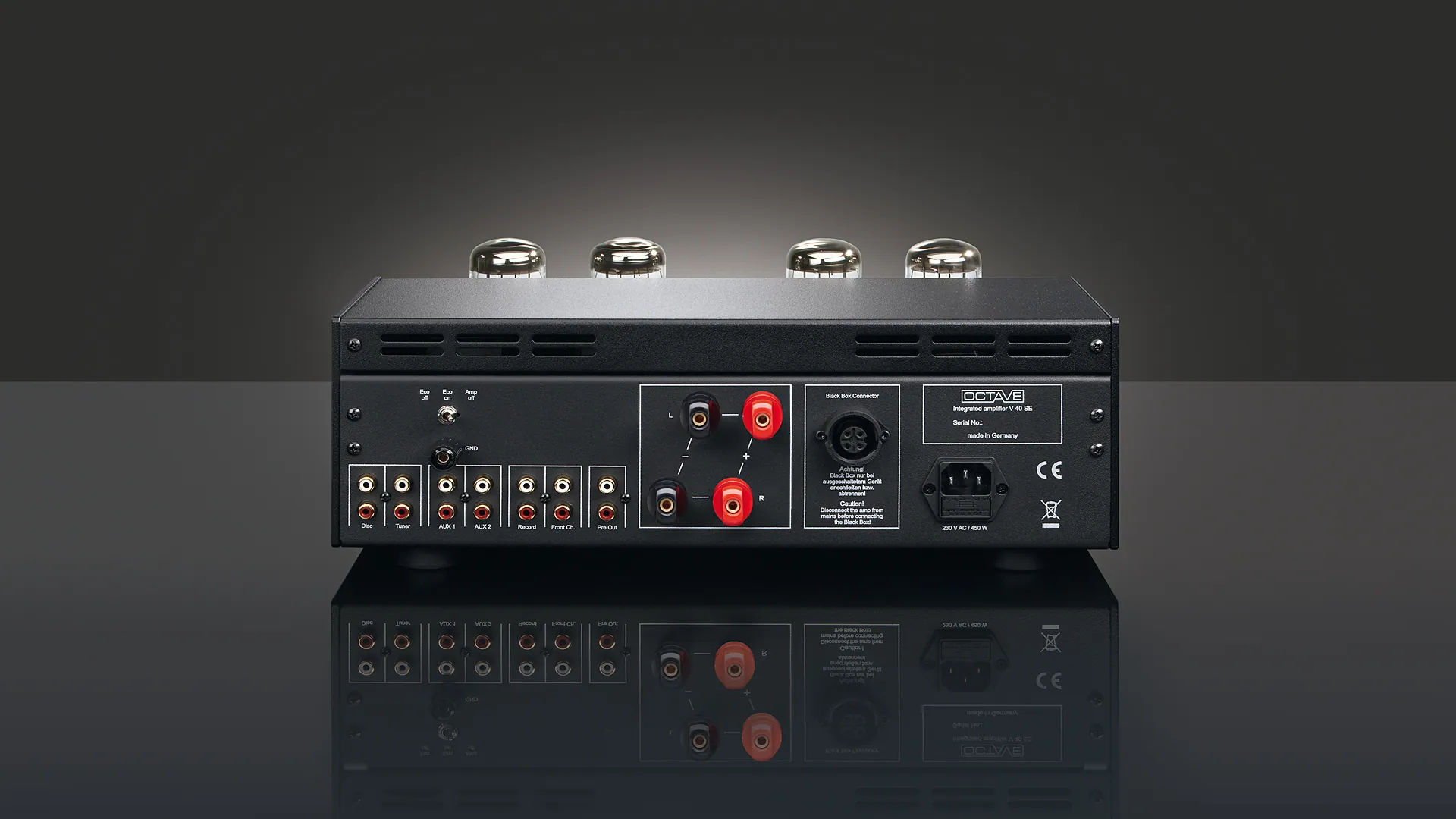

Five RCA inputs include one wired for home theater bypass, feeding a record output, a regulated preamp output, and speaker terminals. Gain runs at 38dB, with a signal-to-noise ratio of -100dB at 40W.
Eco Mode, a full metal remote for volume control, a BIAS display, and soft-start protection carry over from the rest of the V-series. A connection for the Black Box or Super Black Box power supply extension is included for pairing with more demanding speakers.
Specifications
| Basic model | V 40 SE Line |
|---|---|
| Design | Silver or Black |
| Tube Configuration | 4 x 6550 JJ |
| Inputs | 5 x RCA (including one home theatre bypass input) |
| Outputs | 1 x RCA record output / 1 x regulated preamplifier output / 1 x loudspeaker output |
| Dimensions | 408 x 159 x 490 mm (W x H x D) |
| Weight | 18.0 kg |
| Full metal remote control | Volume control |
| Eco mode | Power saving mode |
| Bias control | Bias current control |
| Adjustable Pre-Out | Preamp output RCA |
| HT Bypass | Bypass-function for multichannel/home cinema |
| Protection System | Soft Start; Protection circuit for device and output tubes |
| Output power | 40 W RMS, 50 W / 4 ohms |
| Frequency response | 20 Hz – 70 kHz |
| Total harmonic distortion | < 0.1 % @ 10 Watt into 4 ohms |
| Signal-to-noise ratio | -100 dB / 40W |
| Amplification | 38 dB |
