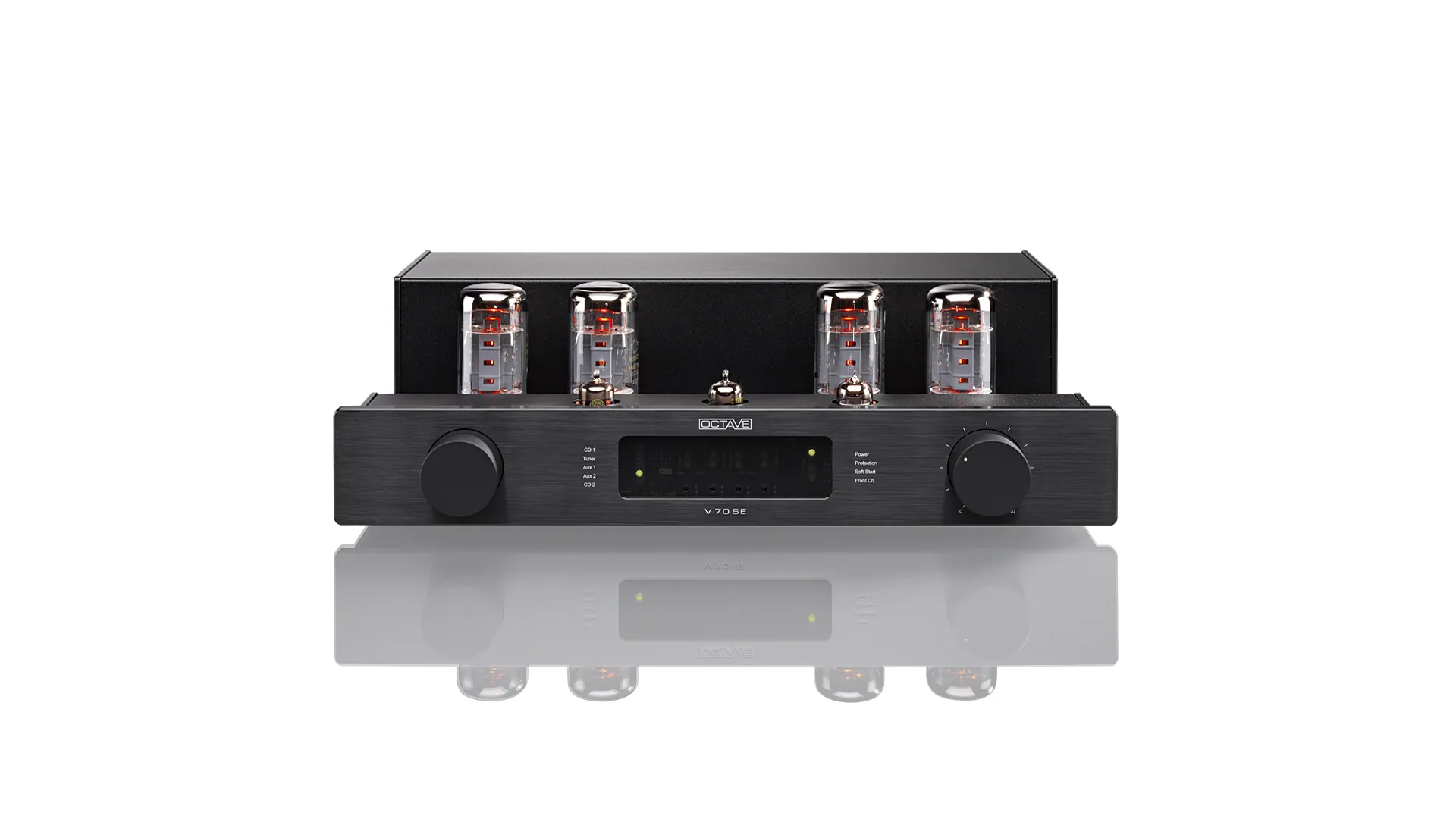

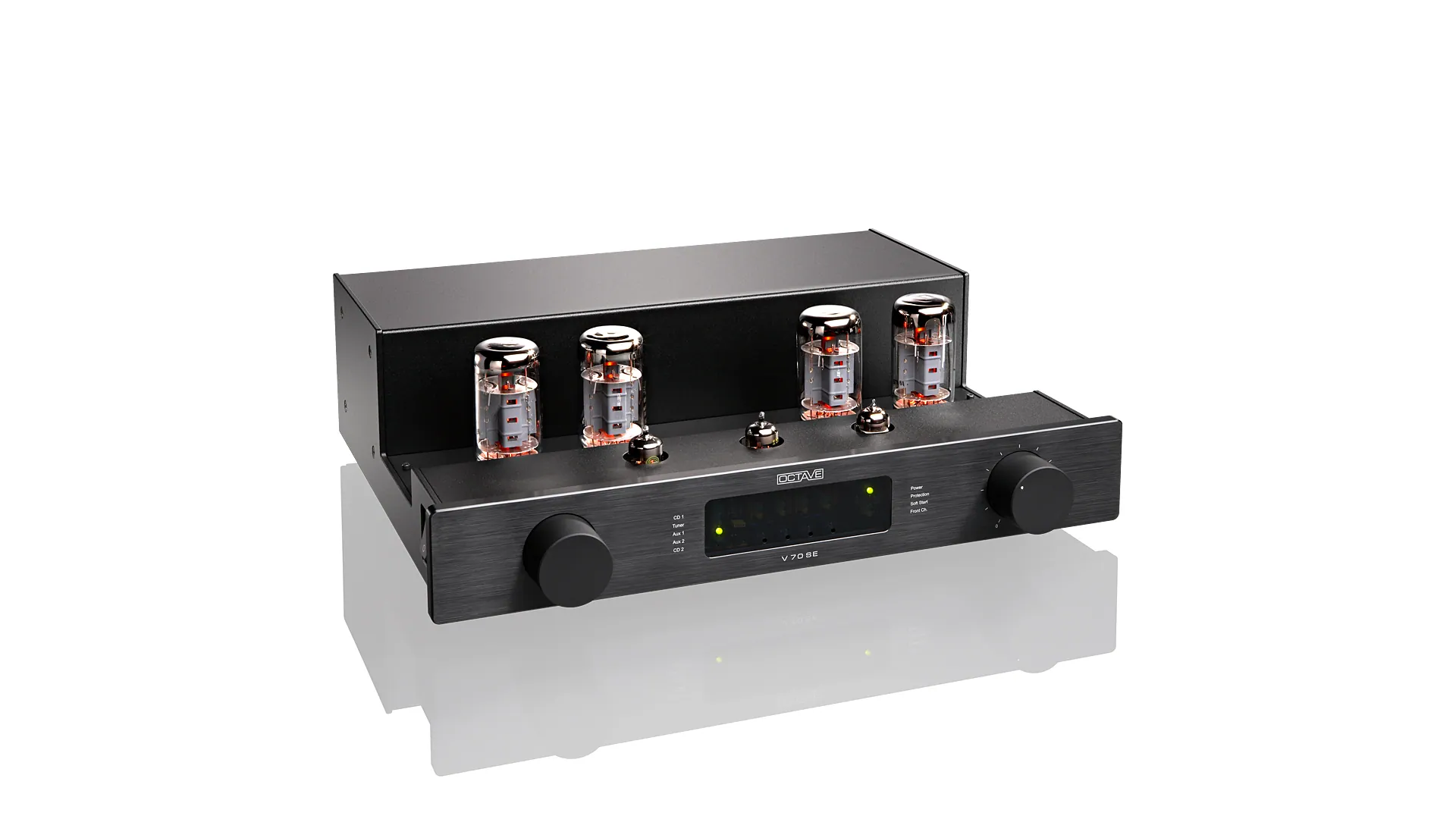

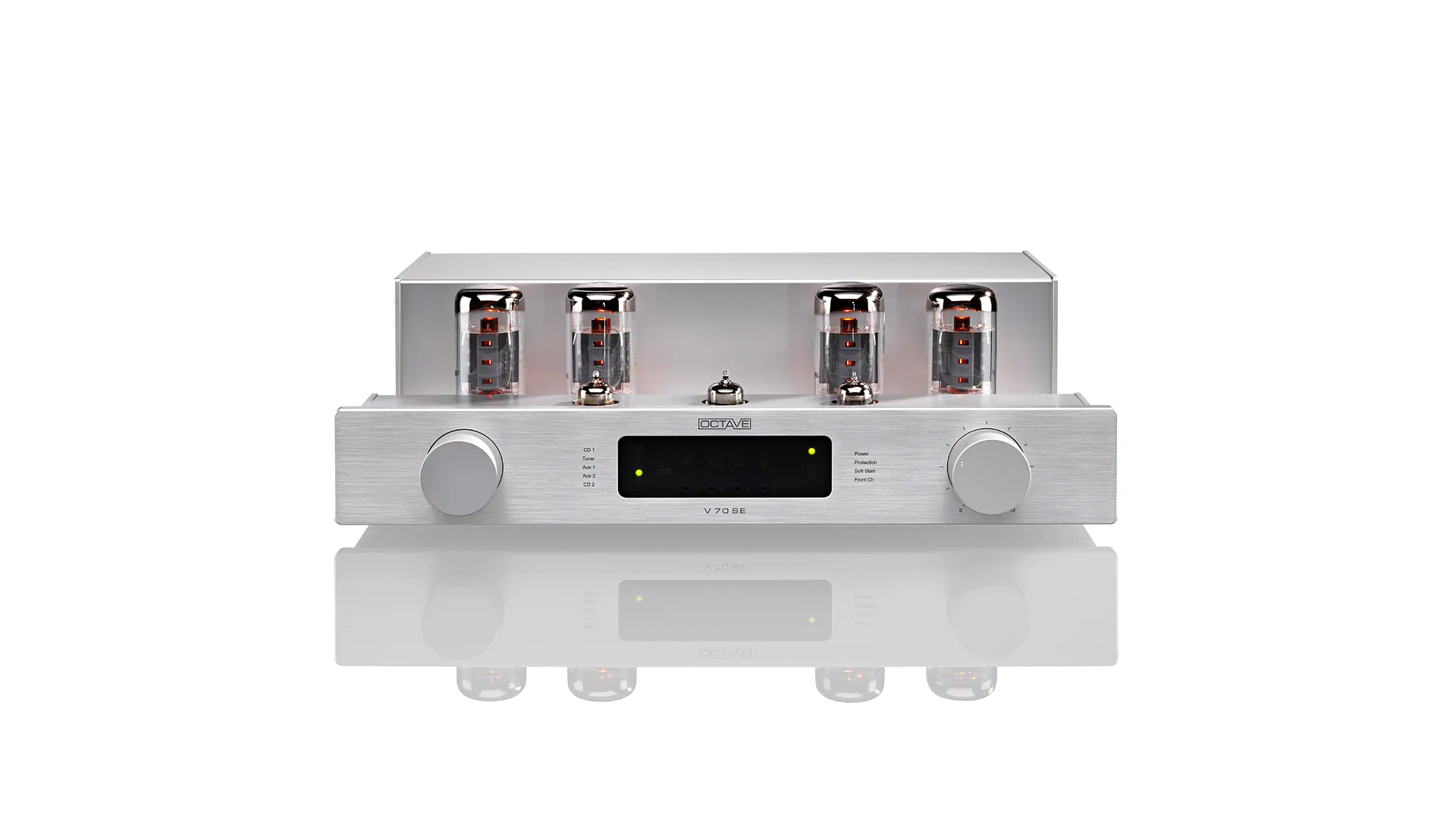

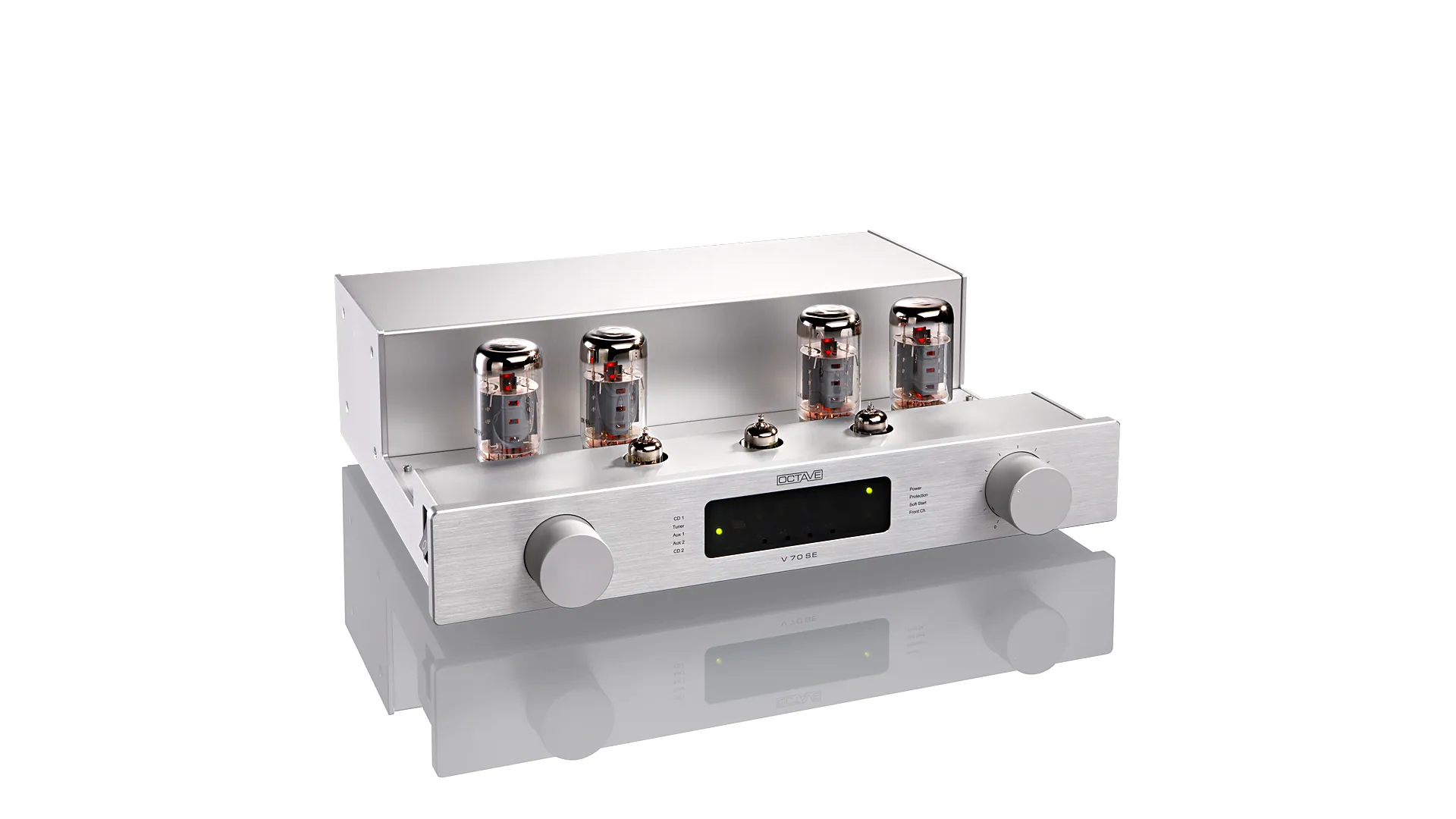

V 70 SE
The V 70 SE is a line-level tube amplifier running four 6550 JJ output tubes, delivering 70W at 4 ohms. Its enhanced pentode configuration stays stable down to a 3 ohm load.
fig. 01 · integrated amplifiers
V 70 SE
current
8 photographs · 5 shown
From Octave
Two 6550 JJ power tetrodes per channel drive the V 70 SE to 70W at 4 ohms, with the BIAS control and monitoring system allowing other pin-compatible output tubes if you want to experiment with tone or take advantage of newer tube types. A single impedance output transformer keeps the amplifier stable against unstable loudspeaker impedance, down to a 3 ohm minimum.
Five line-level RCA inputs, one wired as a Home Theatre Bypass and one available as a phono input with the optional MC or MM board, join a single XLR input. A regulated preamp output, record output, and speaker terminals cover the outputs.
Eco Mode, a BIAS display, soft-start protection circuitry, and a connection for the Black Box or Super Black Box round out the feature set. The V 70 SE shares its chassis family with the V 40 SE but runs at higher power for larger rooms or less efficient speakers.
Specifications
| Basic Model | V 70 SE Line |
|---|---|
| Options | Phono MC or MM |
| Design | Silver or Black |
| Tube Configuration | 4 x 6550 JJ |
| Inputs | 5 x line level RCA (one is a Home Theatre Bypass and one is a phono input with the phono option) / 1 x XLR |
| Outputs | 1 x pre-out regulated / 1 x record output RCA / 1 x loudspeaker terminals |
| Dimensions | 451 x 150 x 415 mm (W x H x D) |
| Weight | 22.1 kg |
| Full metal remote control | Volume control |
| Eco Mode | Power saving mode |
| Bias Control | Quiescent current display and setting |
| Adjustable Pre-Out | Preamp output RCA |
| HT Bypass | Bypass-function for multichannel receiver / TV |
| Protection System | Soft Start; Protection circuit for amplifier and output tubes |
| Phono MC (MM) | Option |
| Black Box connector | High voltage connector for an external power supply enlargement (Black Box and Super Black Box) |
| Output power | 70 W / 4 ohms |
| Frequency response | 20 Hz - 70 kHz @ 10 W - 0 / -2 dB |
| Total harmonic distortion | 0.1 % at 10 W / 4 ohms |
| Signal-to-noise ratio | -100 dB / 40 W |
