Octave · Integrated Amplifiers
V 80 SE
The V 80 SE is Octave's flagship all-in-one amplifier, pairing a new driver stage with a built-in discrete headphone amplifier for 120W RMS per channel at 4 ohms.
fig. 01 · integrated amplifiers

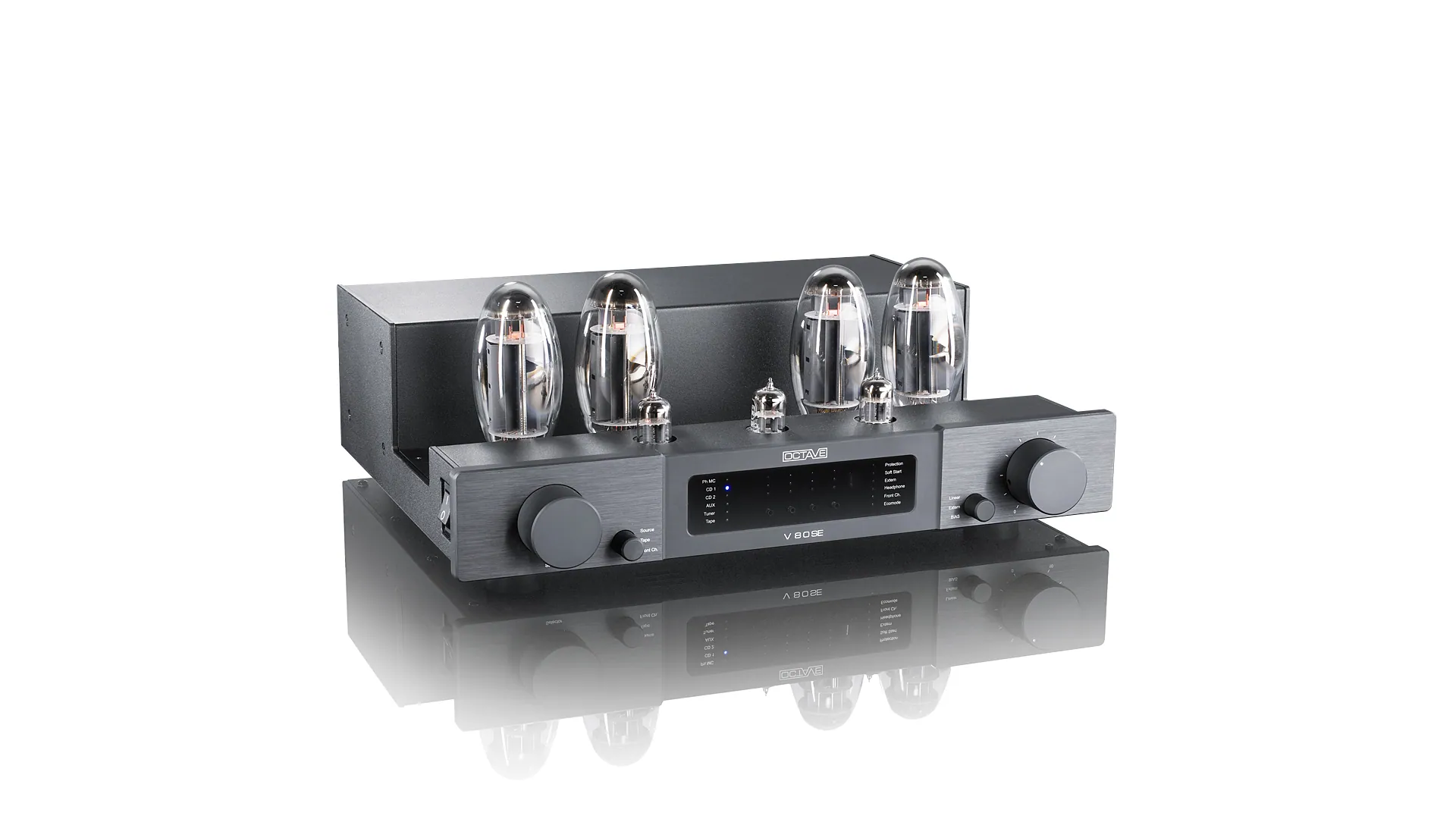

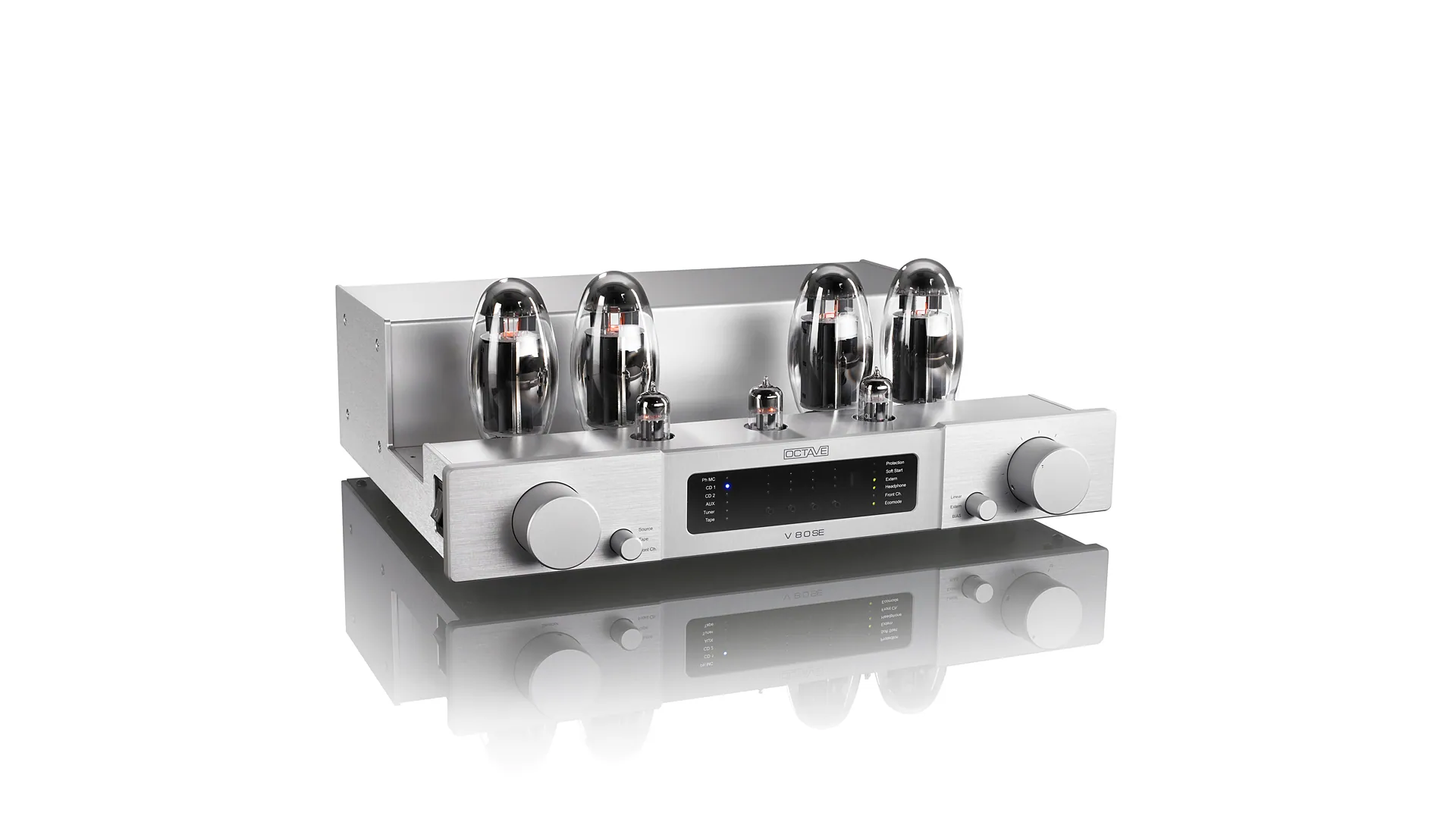

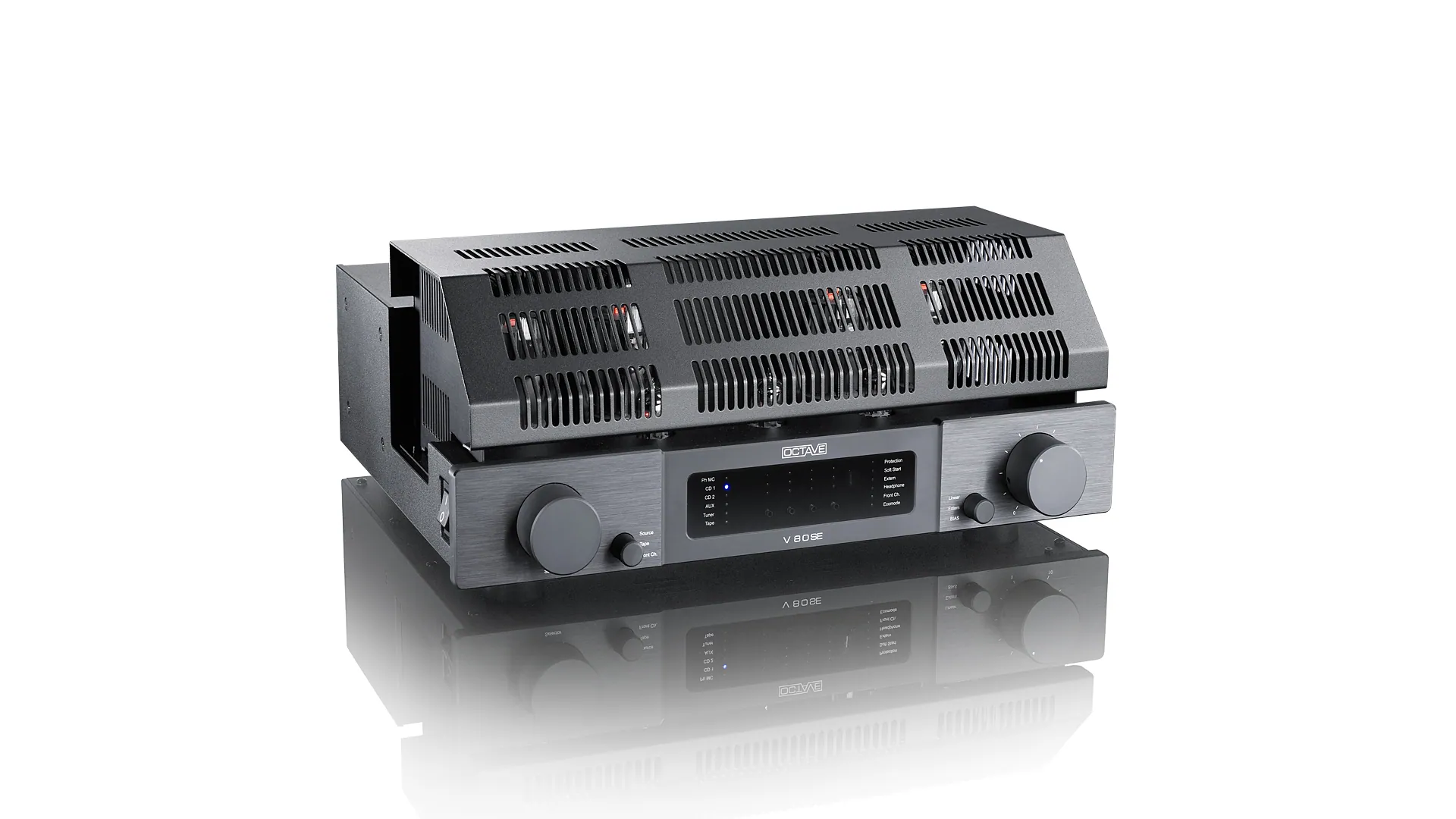

V 80 SE
current
7 photographs · 5 shown
From Octave
A redesigned driver stage, upgraded output transformers, a more sophisticated power transformer, and a new feedback loop separate the V 80 SE from earlier Octave all-in-one amplifiers. Running four KT88-S4A-Carbon tubes as standard, with KT150 TS tubes optional, output reaches 120W RMS per channel (150W peak) at 4 ohms across a 10Hz to 80kHz frequency response.
The headphone output uses a discrete amplifier circuit specified at under 0.008% distortion into 200 ohms, driven through a 6.3mm jack. BIAS adjusts in three steps via a small screwdriver at the front panel, a system precise enough that no measurement tools or technician are needed, which also makes swapping in different tube types simple.

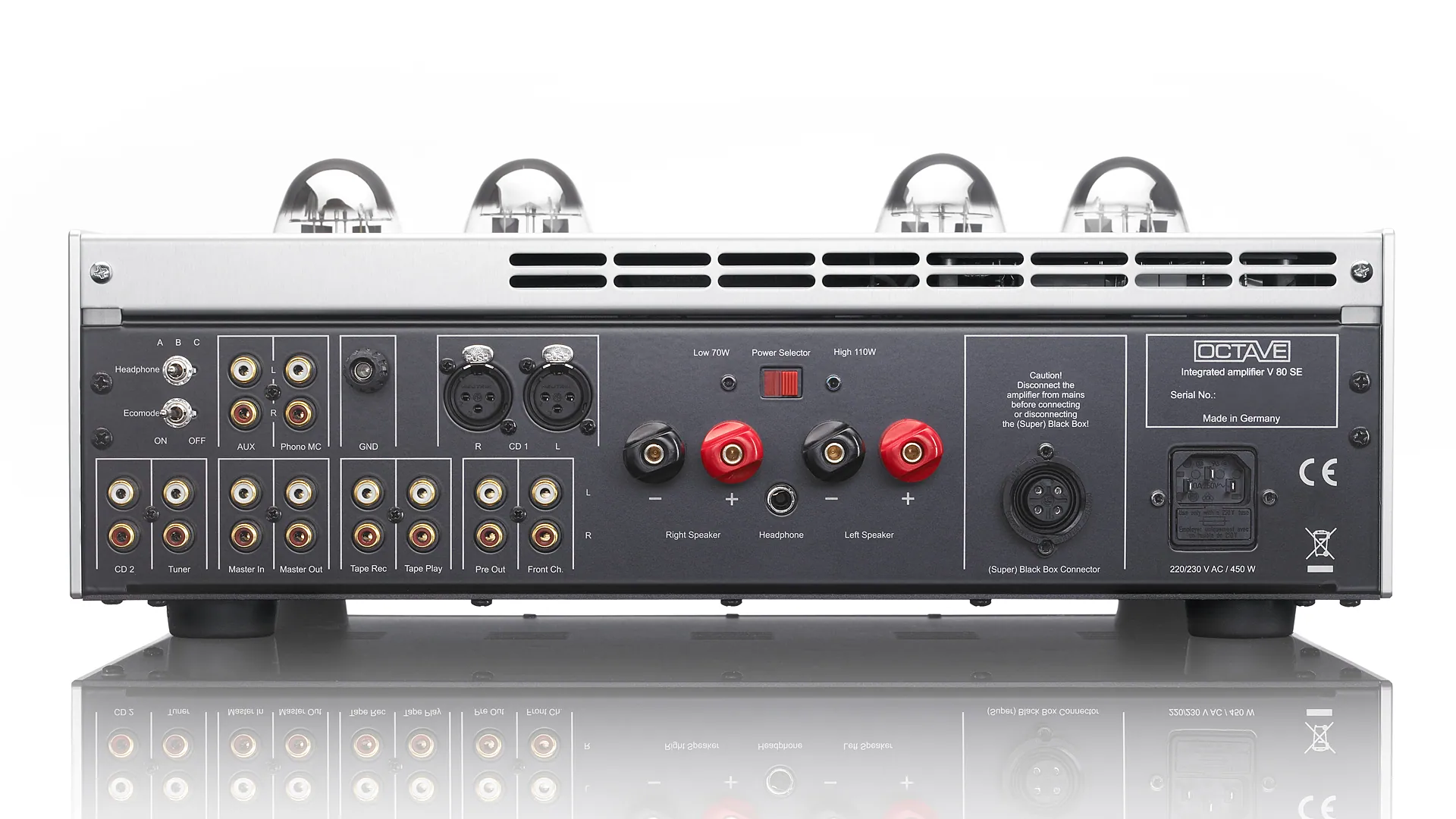

Six line-level RCA inputs (one set as a bypass, one available as a phono input with the optional MC or MM board) join a single XLR input, with an adjustable preamp output, tape record output, and speaker terminals on the back. The Home Theater Bypass circuit lets the V 80 SE drive the front channels of a multichannel system, and a connection for the Black Box or Super Black Box adds power supply capacitance for harder-to-drive speakers.
Specifications
| Basic Model | V 80 SE Line |
|---|---|
| Options | Phono MC or MM |
| Design | Silver or Black |
| Tube Configuration | 4 x KT 88-S4A-Carbon, optional 4 x KT 150 TS |
| Inputs | 6 x Line Level RCA (1 x Bypass-Input, 1 x Phono-Input Option), 1 x XLR |
| Outputs | 1 x adjustable Preamp Output (RCA) / 1 x Tape Record (RCA) / 1 x Headphone Output / 1 x Loudspeaker Output |
| Dimensions | 451 x 175 x 415 mm (W x H x D) |
| Weight | 23.4 kg |
| Full Metal Remote Control | Volume Control |
| Eco Mode | Power Save Modus |
| Bias Control | Bias current control |
| Adjustable Pre-Out | Preamp Output RCA |
| HT Bypass | Bypass-Function for Multichannel/Home Cinema |
| Protection System | Soft Start; Protection Circuit for Device and Power Tubes |
| Power Selection | For different power tubes |
| Headphone Output | 6.3 mm Input for Headphones > 200 ohms |
| Output Power | 120 W RMS, 150 W Peak / 4 ohms |
| Frequency Response | 10 Hz - 80 kHz |
| Total Harmonic Distortion | 0.1% at 10 W / 4 Ohm |
| Signal-to-noise ratio | - 103 dB |
