PrimaLuna EVO 200 Tube Power Amplifier
A stereo or mono EVO 200 tube power amplifier with RCA inputs.
fig. 01 · power amplifiers
PrimaLuna EVO 200 Tube Power Amplifier
8 photographs · 5 shown
From Prima Luna

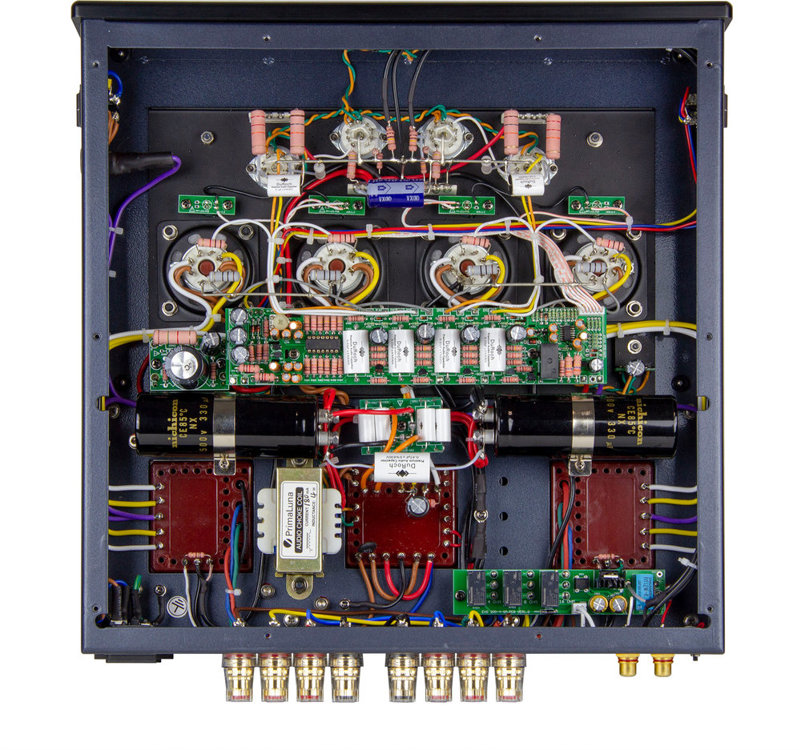

The EVO 200 Tube Power Amplifier uses EL34 or KT88 tubes and can run in stereo or mono mode. It has RCA inputs for stereo and mono use, speaker taps for both modes, 4 EL34 and 4 12AU7 tube positions, and the Adaptive Auto Bias circuit described across PrimaLuna's EVO power amp pages.
Specifications
| Model | Model EVO 200-4 for EL34 / KT88 |
|---|---|
| Power Ultra-Linear | 44 / 45 Watts per channel Stereo 88 / 90 Watts Mono |
| Frequency Response | 12 Hz – 65 kHz +/- 1 dB10 Hz – 95 kHz +/- 3 dB |
| THD with AABB | < 0.1% @ 1W; less than 2% at rated power Stereo < 0.17% @ 1W; less than 2% at rated power Mono |
| S/N Ratio | 92 dB Stereo / 93 dB Mono |
| Input Impedance | 100 kOhm |
| Input Sensitivity | 870 / 880 mV for rated power at maximum volume |
| Maximum Gain | 26.5 dB / 29 dB (EL34 / KT88) |
| Power Consumption | 280 Watts |
| Weight | Net weight: 50.6 lbs / 23 kg Shipping Weight: 61.6 lbs / 28 kg |
| Dimensions | 15.9" x 14.4" x 8.1" / 405 x 365 x 205 mm (L x W x H) |
| Shipping Dimensions | 22.7" x 18.4" x 12.4" / 577 x 468 x 315 mm (L x W x H) |
| Inputs | 1 pair Stereo RCA , 1 piece Mono RCA |
| Outputs | 4, 8 & 16 / 2, 4 & 8 Ohm Speaker Taps |
| Tube Complement | 4 x EL34, 4 x 12AU7 |
| Damping Coefficient | 4 KD (1 kHz) |
| Remote Control | - |
| Product type | tube power amplifier |
| Series | EVO 200 |
