PrimaLuna EVO 300 Hybrid Integrated Amplifier
A hybrid amplifier with PrimaLuna tube preamp circuitry and Floyd Design solid-state output.
fig. 01 · integrated amplifiers
PrimaLuna EVO 300 Hybrid Integrated Amplifier
7 photographs · 5 shown
From Prima Luna

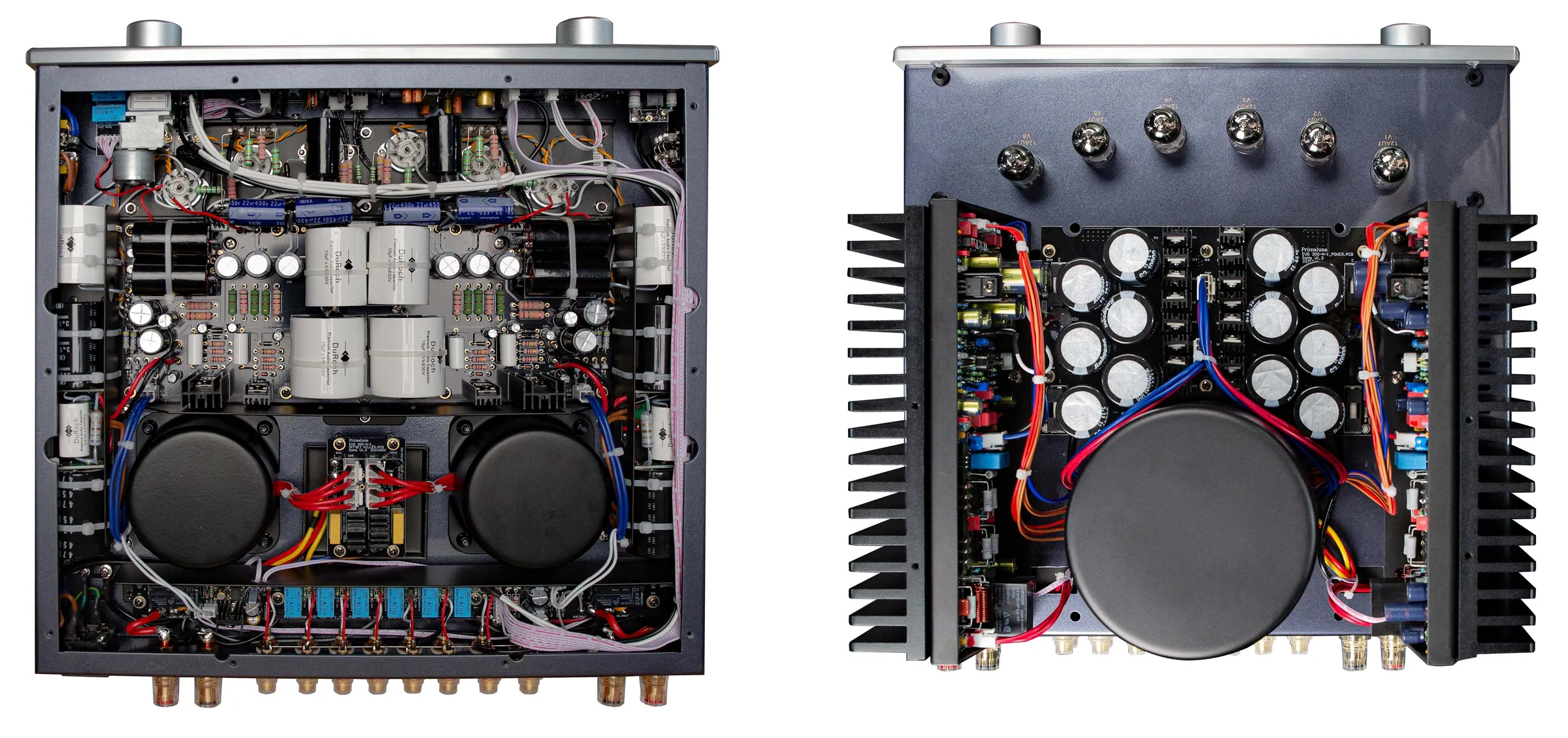

The EVO 300 Hybrid amp pairs a PrimaLuna valve preamp stage with a Floyd Design solid-state power stage. It is rated above 100 watts per channel into 8 ohms, has 5 stereo RCA inputs plus a home-theater input, and includes speaker taps, tape, subwoofer, and headphone outputs.
Specifications
| Model | Model EVO 300 Hybrid Integrated Amplifier |
|---|---|
| Power 8 Ohm | >100 Watts per channel (typical 115 Watts) |
| Power 4 Ohm | >150 Watts per channel (typical 170 Watts) |
| Frequency Response | 10 Hz – 80 kHz +/- 3 dB |
| THD | < 0.2% 100W @ 8 Ohm |
| S/N Ratio | -105dB (A-Weighted) |
| Input Impedance | 34 kOhm |
| Input Sensitivity | 415 mV |
| Total Gain | 37.2 dB (7dB + 30.2dB) |
| Power Consumption | 99 Watts (no signal in); 645W@4R |
| Weight | Net weight: 68.3 lbs / 31 kgShipping Weight: 77.2 lbs / 35 kg |
| Dimensions | 15.9" x 15.2" x 8.1" / 405 x 385 x 205 mm (L x W x H) |
| Shipping dimensions | 22.7" x 18.4" x 12.4" / 578 x 468 x 316 mm (L x W x H) |
| Inputs | 5 pairs Stereo RCA, 1 pair Home Theater Input |
| Outputs | 4/8 Ohm Speaker Taps, Tape, Stereo/Mono Sub, Headphone |
| Tube Complement | 6 x 12AU7 |
| Damping Coefficient | 160 (1 kHz) |
| Remote Control Unit | Slim |
| Product type | hybrid integrated amplifier |
| Series | EVO 300 Hybrid |
| Amplifier topology | tube preamp stage and solid-state power stage |
