Wavedream DAC
Rockna's flagship DAC with 132 dB range and custom 68-bit integer digital filtering.

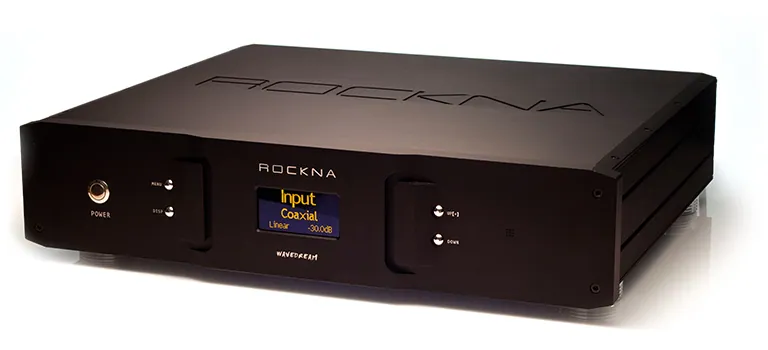

fig. 01 · dacs
Wavedream DAC
From Rockna Audio
The Wavedream DAC accepts PCM up to 384 kHz and DSD up to DSD512 over USB, with S/PDIF and AES/EBU covering standard rates. Its digital processing runs at 68-bit integer precision through Parks-McClellan convolution filters (4820 taps), and the asynchronous capture stage samples at 560 MHz with 300-femtosecond jitter.
Measured range hits 132 dB. Outputs are single-ended (10 Vpp) and balanced (20 Vpp), with a 256-step volume control in 0.5 dB increments. Three filter modes (linear, minimum, and hybrid phase) let you tune the sound to taste.
Specifications
| S/PDIF | 24bit 44.1-192k PCM , DoP DSD64 |
|---|---|
| AES/EBU | 24bit 44.1-192k PCM, DoP DSD64 |
| USB | 32bit 44.1-384k PCM, DSD64-512 |
| HD-Link1 (LVDS) | 32bit 44.1-384k PCM, DSD64-512 |
| HD-Link2 (LVDS) | 32bit 44.1-384k PCM, DSD64-512 |
| THD+N (at - 6dB): | 0.003% or -90 dB |
| S/N ratio (0 dB): | 132 dB |
| Dynamic range: | 132 dB |
| Output impedance: | 0.5 ohms |
| Max. voltage: | 10Vpp(SE); 20Vpp(XLR) |
| THD+N (at -6db): | 0.0008% or -102 dB |
| High-frequency asynchronous capture digital inputs: | 560MHz sampling |
| Memory-based PLL, digital domain only: | 300 fS jitter |
| Custom digital filters: | linear, minimum and hybrid phase, 16x |
| Filter type: (advanced convolution) | Parks-McClellan, 4820 taps |
| Mathematical precision: | 68 bit INTEGER |
| Stopband attenuation: | - 145 dB |
| Passband ripple: | 0,0001 dB |
| Dither: | Triangular shaped distribution |
| Volume control: | custom multiplier array, 256 steps, 0.5 dB step |
