Wavelight Server

An FPGA-based music server with dual precision clocks, linear power supply, and up to 16 TB of storage.

fig. 01 · music servers & streamers

Wavelight Server

Rockna Audio Wavelight Server

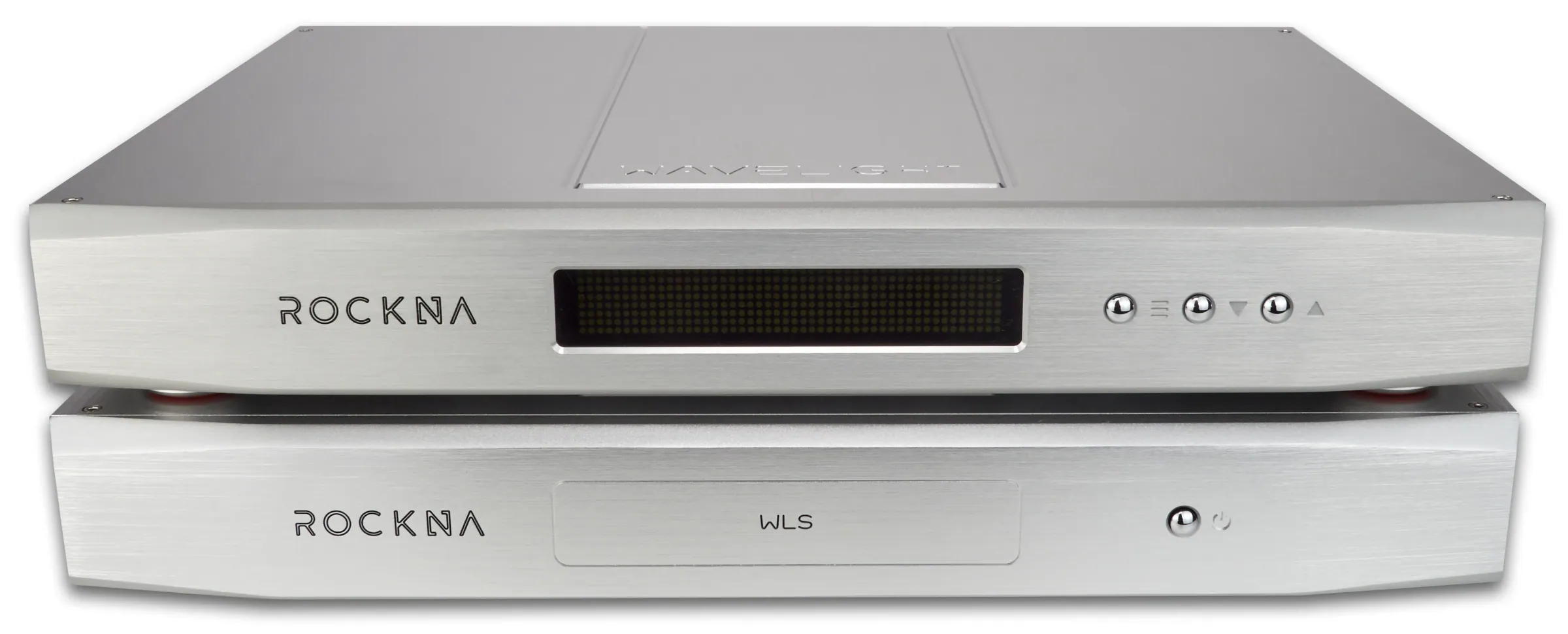

fig. 01 · Wavelight Serverphotograph · Rockna Audio

From Rockna Audio

The Wavelight Server runs its audio engine on an AMD Series 7 FPGA, clocked by a pair of CCHD-957 oscillators. A linear power supply with two toroidal transformers keeps the power clean.

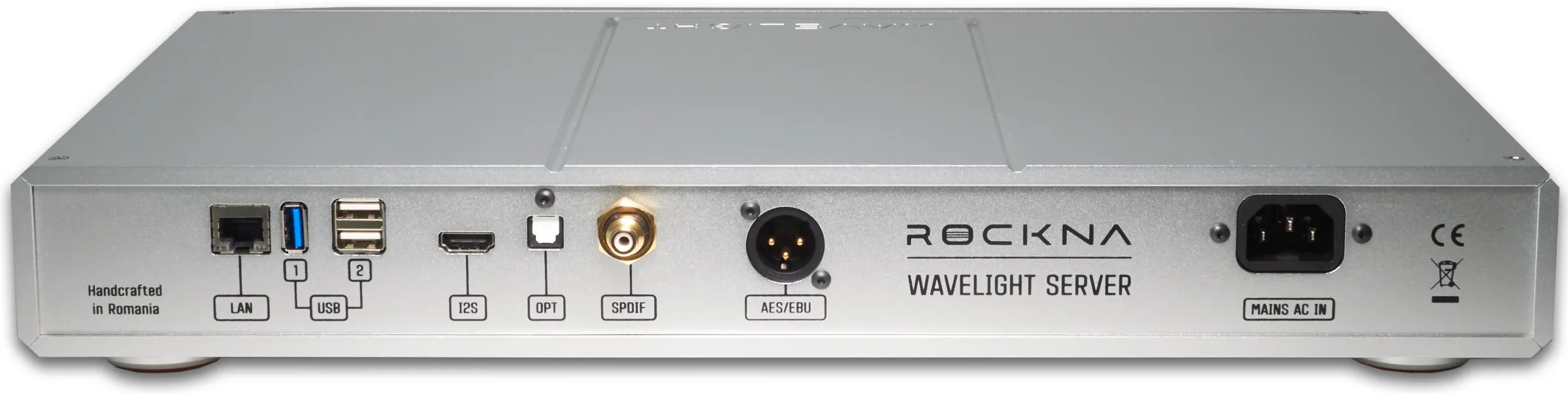

Storage runs from 2 to 16 TB. Outputs include I2S (the native path to Rockna DACs), plus AES/EBU, S/PDIF, optical, and USB. Ethernet is the only input, so it's a streaming and local-playback box, not a CD transport.

Specifications

Server side:2/4 core low power CPU, 8GB RAM, 2TB – 16TB storage
Audio engine:AMD 7 series FPGA
Clock system:2 x CCHD957 clocks
Power supply:linear, 2 x toroidal transformers
Outputs:I2S, AES/EBU, SPDIF, TOSLINK, USB(no upsampling on USB)
Input:Ethernet(LAN)
