HiFi Rose · Music Servers & Streamers
RS130 Network Transport
The RS130 is a network transport with a 15.4-inch touch display, an OCXO clock, fiber optic Ethernet and USB isolation, an external clock input, and SSD music caching.
fig. 01 · music servers & streamers
RS130 Network Transport
HFRRNSRS130SLV
current
6 photographs · 5 shown
From HiFi Rose

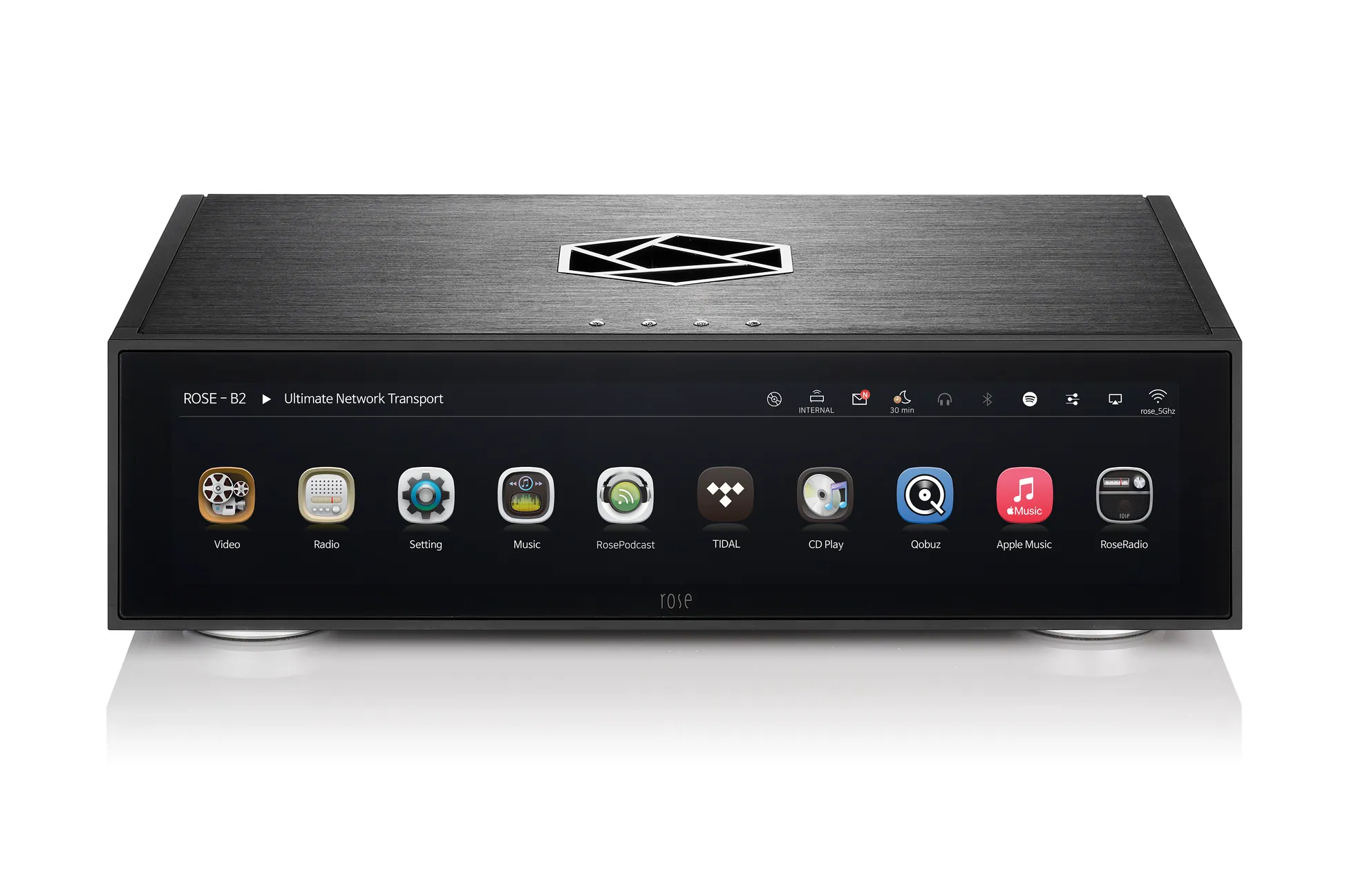

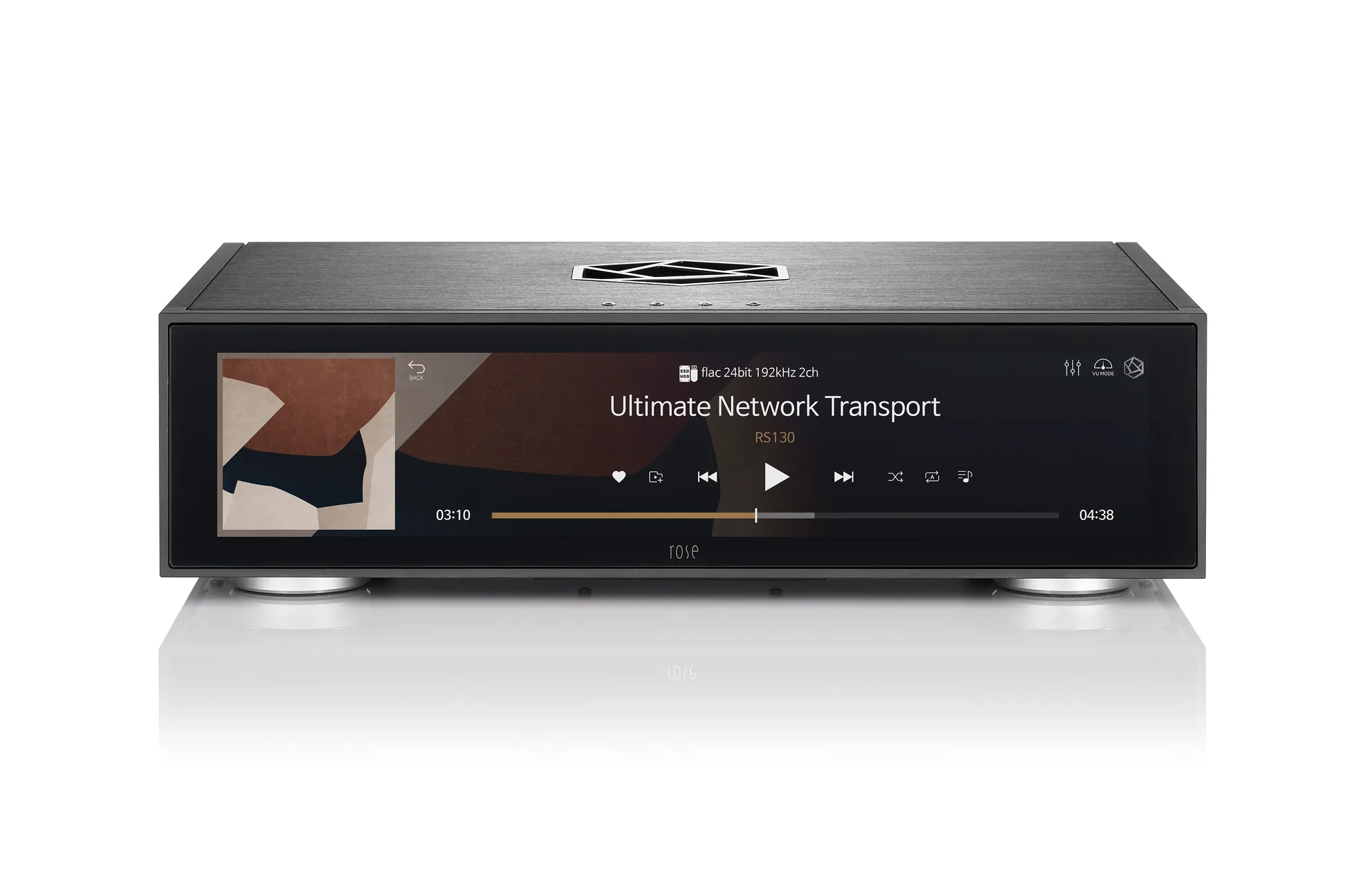

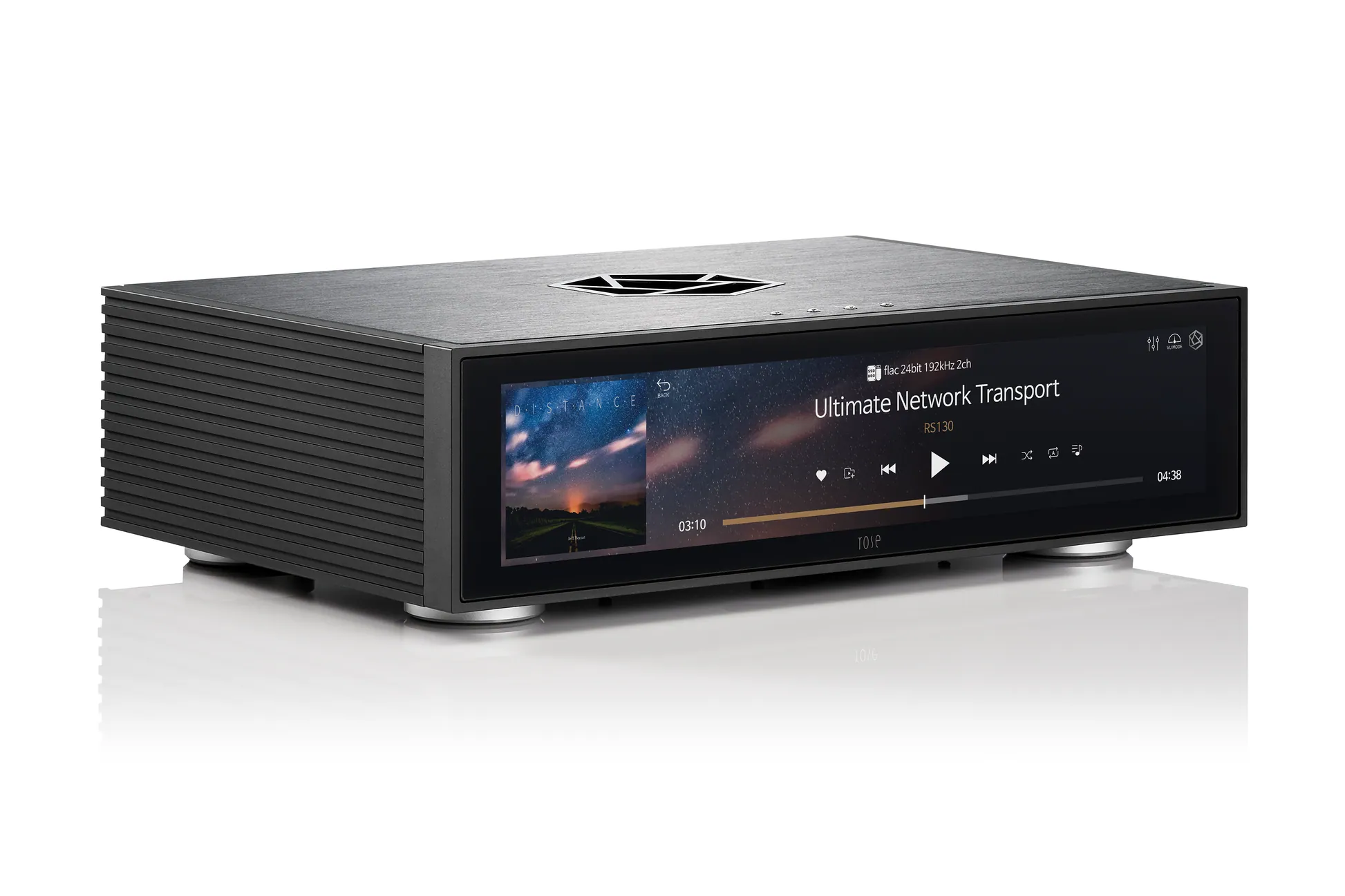

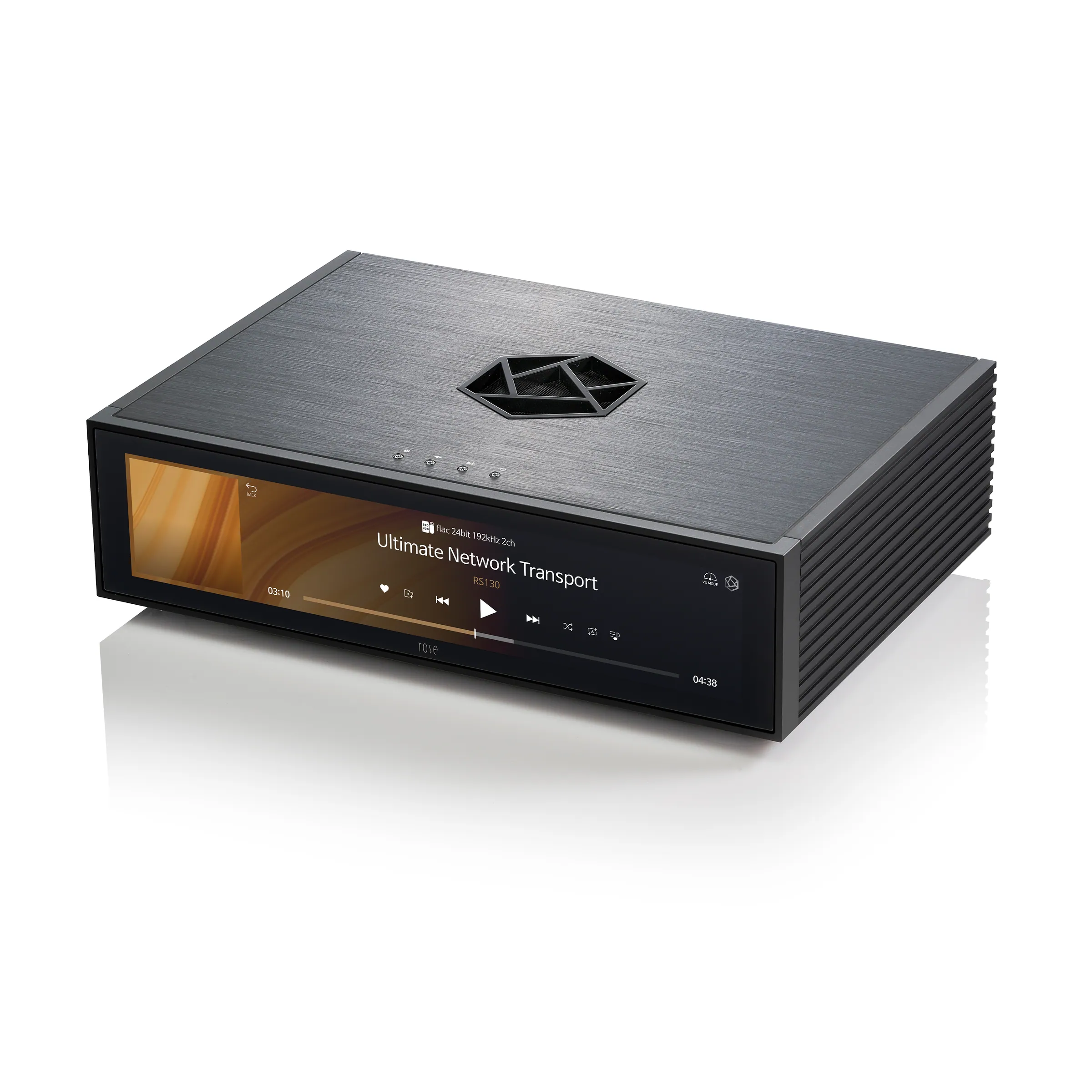

The RS130 is a digital network transport built to feed an external DAC. It has a 15.4-inch touchscreen, a high-precision OCXO clock, fiber optic Ethernet and USB paths for noise isolation, AES/EBU, coaxial, optical, and HDMI I2S outputs, an external master clock input, and SSD caching for stable playback.
Specifications
| Operating System: | Customized Android 7.1 |
|---|---|
| Dimensions: | 430(W) x 317(D) x 125(H) mm |
| Weight: | 12kg |
| Display: | 15.4" TFT LCD & Capacitive Touch Screen (eDP) |
| CPU: | Dual-Core Cortex-A72 and Quad-Core Cortex-A53 with separate NEON coprocessor |
| GPU: | ARM Mali-T860 MP4 Quad-Core GPU |
| Memory: | LPDDR4 4GB |
| Cache Storage: | NVMe SSD 256GB |
| Network: | SFP Ethernet 10/100/1000 BASE-T(SFP COPPER Type) |
| WiFi: | 802.11ac Dualband USB Wireless LAN Card (Dongle) |
| Bluetooth: | V4.2 (USB Dongle) |
| Supported Streaming Platforms: | Airplay, DLNA, Roon Ready, Spotify Connect, Bluetooth |
| Supported Streaming Services: | TIDAL, Qobuz, Apple Music, Bugs, ROSE Tube, Internet Radio, ROSE Podcast |
| Audio Output: | Optical x 1, Coaxial x 1, AES/EBU OUT x1, HDMI 12S OUT x 1 |
| Video Output: | HDMI 2.0 x 1 (up to 3840 x 2160/60Hz) |
| File System: | NTFS / exFAT/FAT32 |
| Network Protocol: | SMBv2/FTP/WebDav |
| Storage Interface: | USB3.0 x 2, SATA X 1, USB 3.0 Fiber |
| Clock Sync Input: | 5002 BNC x 1, 7502 BNC x 1 Inputable Frequency: 10MHz |
| Audio: | MQA, WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A, ALAC, PCM : 8kHz~768kHz(8/16/24/32bit per Sample), Native DSD: DSD64(2.8MHz)/ DSD128(5.6MHz)/DSD256(11.2MHz)/ DSD512(22.4MHz) |
| Video: | ASF, AVI, MKV, MP4, WMV, H.264/AVC, Base/Main/High/High10 profile @ level 5.1; up to 4Kx2K @ 30fps H.265/HEVC, Main/Main 10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps VP9, profile 0, up to 4Kx2K @ 60fps MPEG-1, ISO/IEC 11172-2, up to 1080P @ 60fps MPEG-2, ISO/IEC 13818-2, SP@ML, MP@HL, up to 1080P @ 60fps MPEG-4, ISO/IEC 14496-2, SP@LO-3, ASP@LO-5, up to 1080P @ 60fps VC-1, SP@ML, MP@HL, AP@LO-3, up to 1080P @ 60fps |
| Input Voltage: | AC100-240V 50/60Hz |
| Circuit Breaker: | 6A Thermal Circuit Breaker |
| SW Update: | SW update via internet, USB OTA, ROSE Store |
| App: | ROSE Connect (Android, iOS, PC) |
| Physical: | IR Remote Control, Bluetooth Remote Control |
| Included Accessories: | Power Cord x 1, Remote Controller x 1 (AAA Battery x 2), Manual x 1, SSD Screw x 4 SFP RJ45 COPPER TRANSCEIVER MODULE x 1, WiFi/BT Dongle x 1 |
| The Absolute SoundMay 2024 | Editor's Choice "It's beautifully executed, and it executed beautifully. It enhanced the musicality of every DAC it came in contact with. Its state-of-the-art graphic interface thoroughly enhanced the experience of selecting my music." — Neil Gader Read More → |
| hi-fi+Apr. 2024 | hi-fi+ Award Winner 2025 — Network Streamer "This is a seriously proficient streaming front end that is a pleasure to operate and look at. This device doesn't forget the golden rule of network streaming, that the experience must match the cleverness, and the result is a seriously impressive network front end that will drop into a wide selection of systems and delight with all of them." — Ed Selley Read More → |
| Future Audiophile2024 | "The RS130 is a next-level performer that compares with the absolute best streamers in the world today. The fit and finish of the RS130 is stunning. HiFi Rose uses fiber optics on Ethernet input and USB output to control the noise that enters and exits the network player — a genuinely sophisticated approach." Read More → |
| Steve Huff ReviewsOct. 2023 | "After weeks of use and tests I can tell you this is the nicest sounding, nicest looking and nicest built streamer I have heard to date just using the coax and USB out." Read More → |
| Product type | network transport |
| Display | 15.4-inch TFT LCD capacitive touchscreen |
| Clock | high-precision OCXO clock |
| Digital isolation | fiber optic Ethernet and USB |
| Storage cache | SSD music caching |
