HiFi Rose · Music Servers & Streamers
RS150B High Performance Network Streamer
Network streamer and DAC with a 14.9-inch touchscreen, ESS SABRE ES9038PRO DAC, balanced outputs, HDMI ARC, and local storage options.
fig. 01 · music servers & streamers

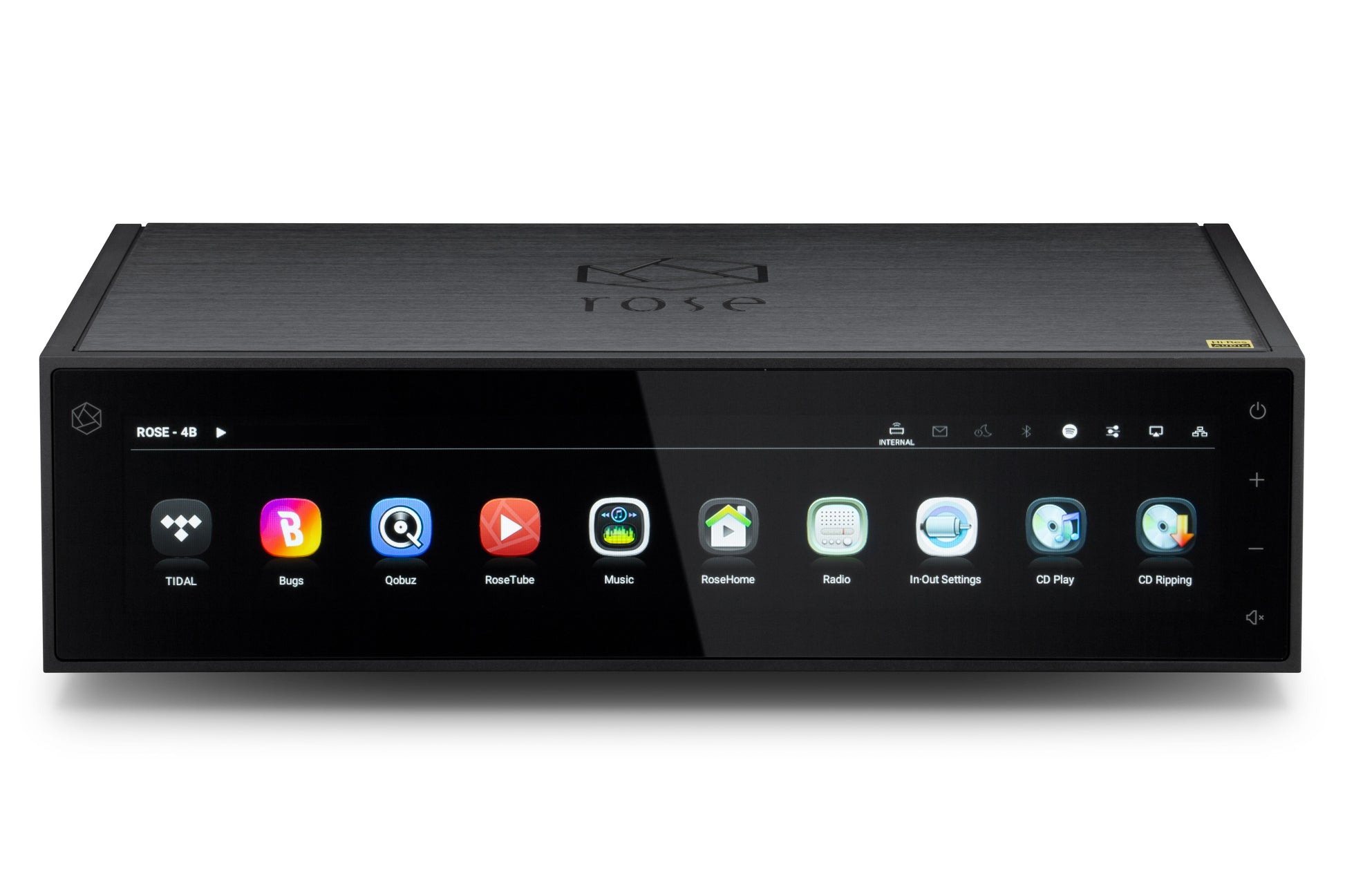

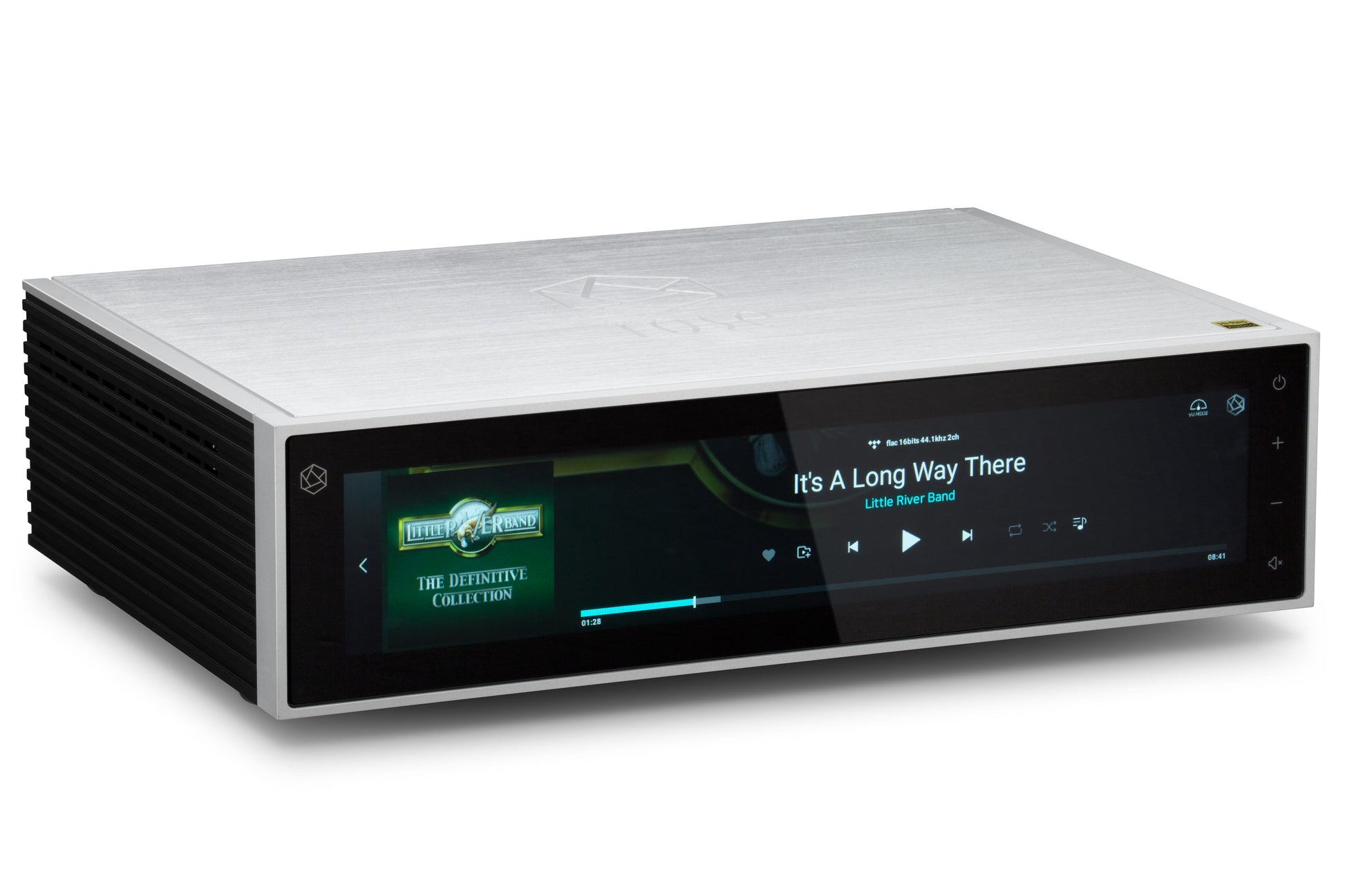

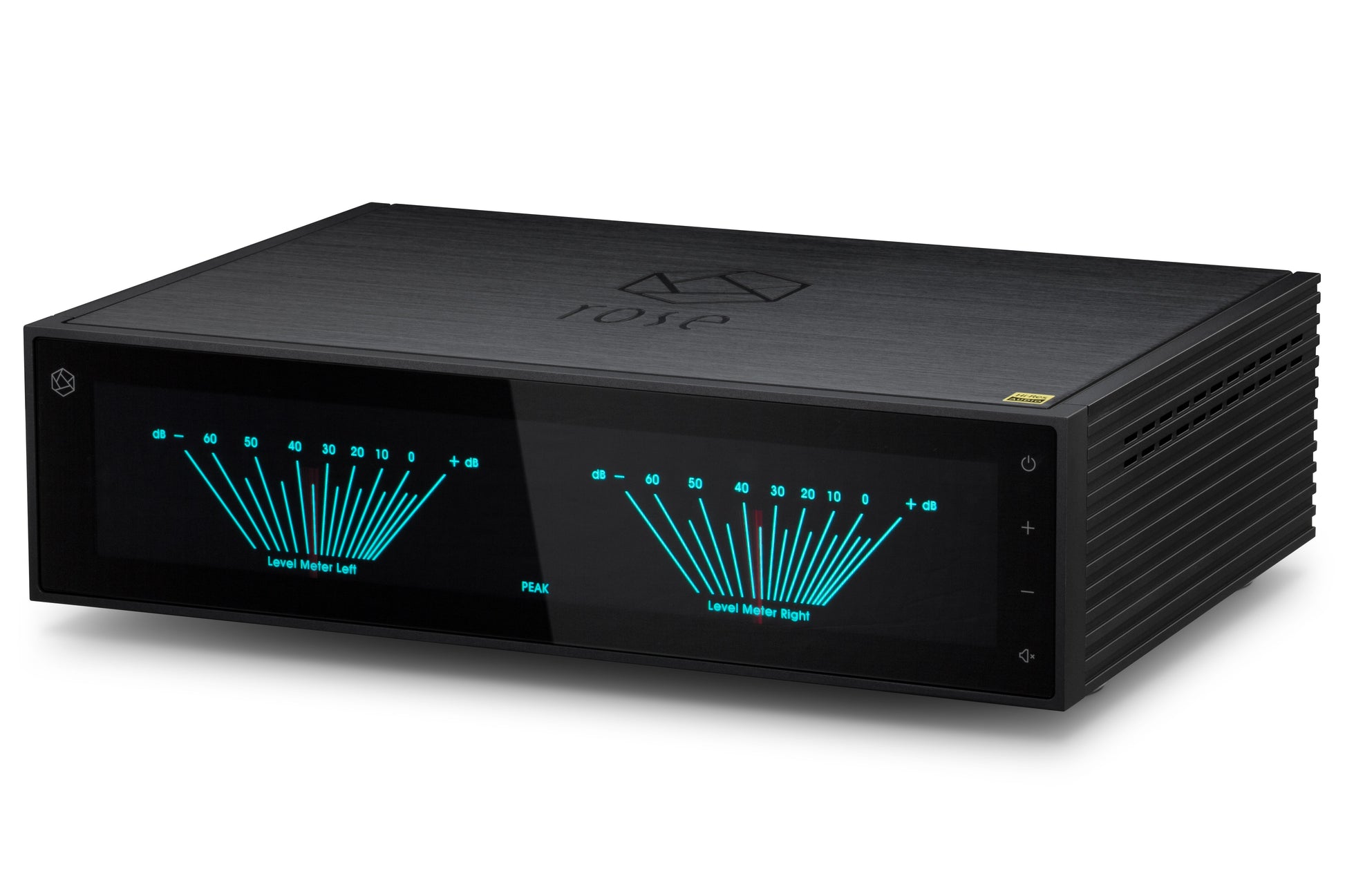

RS150B High Performance Network Streamer
HFRRNSRS150BBLK
current
6 photographs · 5 shown
From HiFi Rose
RS150B pairs Rose OS with an ESS SABRE ES9038PRO DAC, Femto Clock, toroidal linear power supply, and balanced XLR/RCA output. It supports Native DSD512 and 32-bit / 768kHz PCM, HDMI ARC input, HDMI 4K video output, and storage through SSD, Micro SD, external USB, or NAS.
Specifications
| Operating System: | Customized Android 7.1 based Rose OS Ver 1.22.4 |
|---|---|
| Dimensions: | 430(W) x 316(D) x 123(H) mm |
| Weight: | 13 kg |
| Materials: | Luxurious finish and minimal vibration by cutting all-aluminum |
| Display: | Front 14.9" HD class IPS LCD adoption |
| CPU: | Hexa Core CPUDual-core Cortex-A72 up to 1.8GHzQuad-core Cortex-A53 up to 1.4GHz |
| GPU: | Mali-T864 GPU, OpenGL ES 1.1/2.0/3.0/3.1, OenVG1.1, OpenCL, DX11 |
| Memory: | LPDDR3 4GByte |
| DAC Chip: | ESS Technology, SABER ES9038PRO |
| Output Level: | 6.5Vrms (Balanced),2.2Vrms (Unbalanced) |
| THD: | 0.0002%(Balanced,1KHz 6.5Vrms),0.0003%(Unbalanced,1KHz 2.2Vrms) |
| THD + N: | 0.0003%(Balanced, 1KHz 6.5Vrms),0.0004%(Unbalanced, 1KHz 2.2Vrms) |
| IMD: | -103dB (Balanced), -103dB (Unbalanced),SMPTE 4:1, 60Hz:7kHz |
| Signal to Noise Ratio: | 121dB (Balanced), 118dB (Unbalanced),A-wt |
| Dynamic Range: | Max 132 dB (CCITT filter) |
| Stereo Crosstalk: | Max -138dB, 20-20kHz |
| Output Frequency Response: | 20Hz to 40,000 (+/-0.5dB) |
| Output Impedance: | 50Ω |
| Network Support: | Wired: Ethernet 10/100/1000 BASE-TWireless: External USB type WiFi dongle supported. |
| Bluetooth: | BT : Supports external USB type BT dongle. ( A2DP Sink, AVRCP v1.3 )* Use of some WiFi and BT dongle products may be restricted. |
| Streaming: | Airplay / DLNA / Roon Ready / MQA Full Decoder |
| Music Service: | TIDAL / Internet Radio / Podcast |

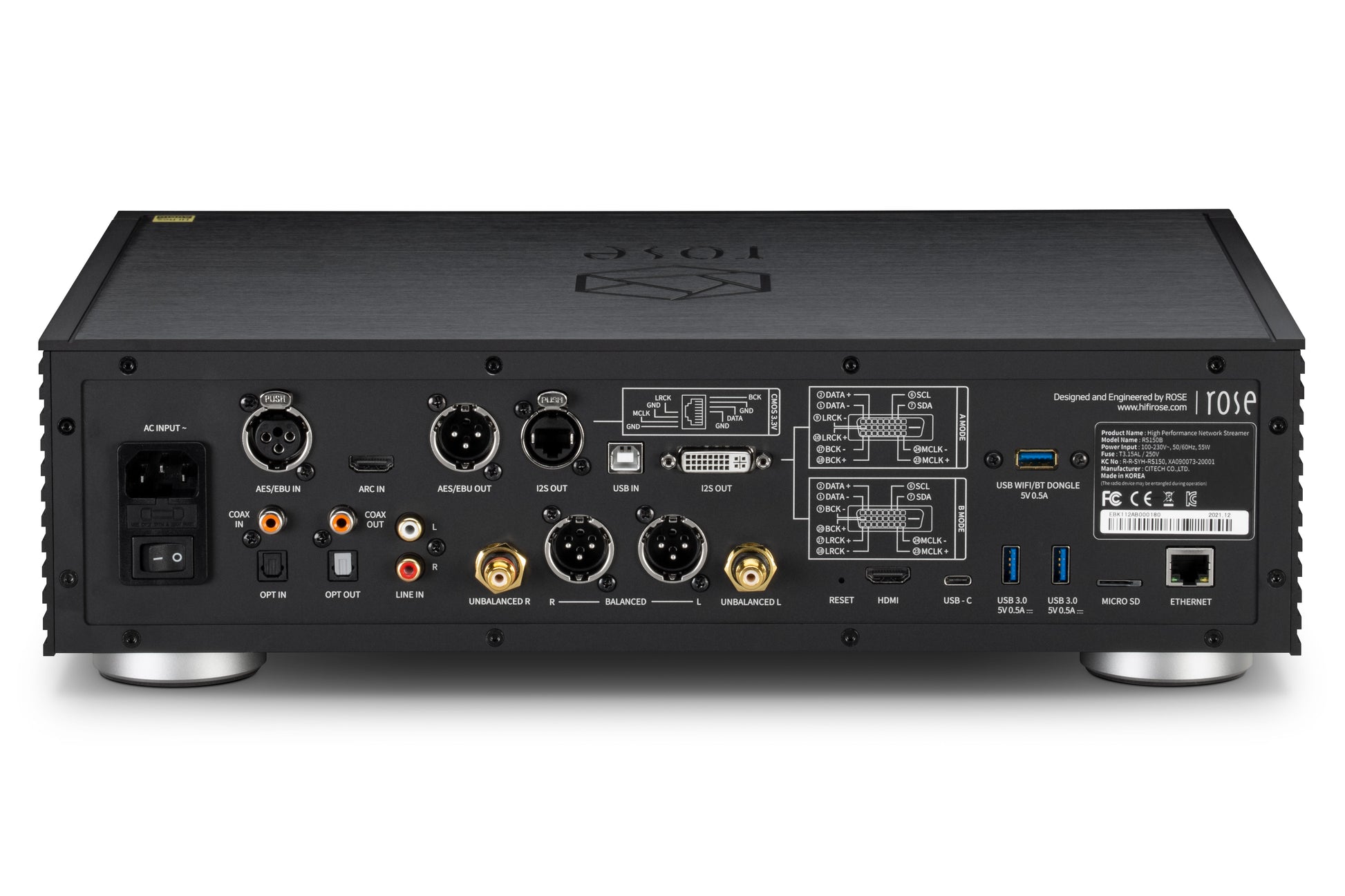

| Audio Input: | Optical x 1, COAX x 1, Line-IN x 1, AES/EBU x 1, HDMI ARC x 1, USB DAC mode x 1 |
| Audio Output: | OOptical x 1, COAX x 1, Pre-OUT (Balanced x 1, Unbalanced x 1), I2S-DVI x 1, I2S-RJ45 x 1, AES/EBU x 1 |
| Video Output: | HDMI 2.0x 1 ( up to 3840 x 2160 / 60Hz ) |
| Media Connection: | File System: SMBv1, SMBv2 /FTP / WebDav / NTFS / eXfat / FAT32Storage Interface: USB3.0 x 2, MicroSD x 1, SSD x 1 |
| Audio: | MQA, WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4APCM: 8KHz~768KHz (8/16/24/32bit per Sample)Native DSD: DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)/DSD512(22.5792Mhz) |
| Video: | ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVCH.264/AVC, Base/ Main/High/High10 profile@level5.1 up to 4Kx2K@30fps H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps |
| Power: | Input Voltage : AC100-230V 50/60HzInput Power : 55W Fuse : T3.0AL/250V |
| Update: | Software update via Internet, USB OTA, Rose Store |
| Remote Control: | bluetooth remote control |
| Remote App: | ROSE Connect (Android, iOS) / Google PlayStore, App Store |
| Accessories: | Power cord x 1, Bluetooth remote control x 1 (AAA battery x 2 included), Simple manual x 1,SSD mounting screw x 4, Bluetooth/Wi-Fi dongle x 1 |
| The Absolute Sound2022 | Editor's Choice Award 2022 "The Rose 150B gave me many hours of great listening. I was impressed with the build quality achieved at this price point — both the fit and finish as well as the component selection were at a level I would expect for a component costing at least double the price. I have never heard streaming quality like this before and thoroughly enjoyed exploring new music with the HiFi Rose." — Rives Bird Read More → |
| hi-fi+Apr. 2024 | Editor's Choice Award 2024 "You can get a better streaming DAC for the RS150B's asking price but not one with anything like the feature set on offer here, nor the video processing powers. Its sheer flexibility is remarkable in itself. All in all, this product sounds as good as it looks — and it looks pretty slick." Read More → |
| EISA2021–2022 | EISA Award — High-End Music Player 2021–2022 "The RS150B serves up a performance that is big and bold, but packed with detail. So much more than just a beautifully designed component showing others the way to go, the RS150 backs up the stunning aesthetics with a performance to match." |
| Hi-Fi News2022 | Highly Commended "Initial impressions of the RS150 are created by the visuals, from its build quality to that eye-popping full-width touch screen, but it soon becomes clear there's more to it than meets the eye." — Andrew Everard |
| Hi-Fi Choice2022 | Five Stars — Recommended "The RS150B delivers a performance that is big and bold, packed with detail. So much more than just a beautifully designed component showing others the way to go, it backs up the stunning aesthetics with a performance to match." |
| Product type | network streamer and DAC |
| Display | 14.9-inch high-resolution touchscreen |
| DAC platform | ESS SABRE ES9038PRO |
| Digital format support | up to Native DSD512 and 32-bit / 768kHz PCM |
| Storage support | 2.5-inch SSD, Micro SD, external USB, and NAS |
