THETA Clock-50
50 ohm coaxial clock cable with an SPC center conductor, SPC braided shield, PTFE dielectric, and BNC connectors.

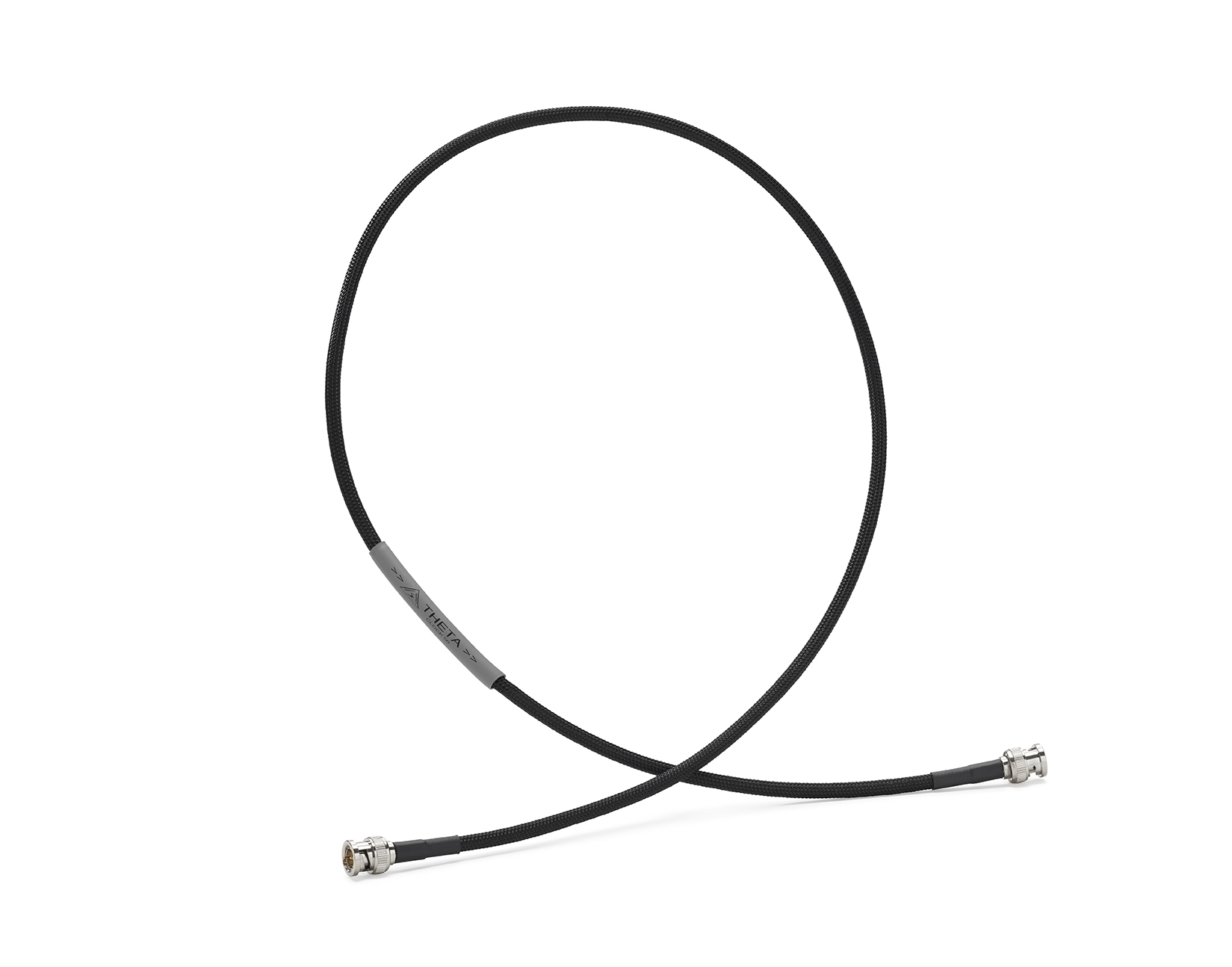

fig. 01 · digital cables
THETA Clock-50
DI-THT-CLC/50-100
current
From Shunyata
Theta Clock-50 is a 50 ohm coaxial clock cable built with an SPC center conductor, SPC braided shield, PTFE dielectric, and metal BNC connectors with gold-plated brass contacts. The saved specs list 20-gauge construction, PMZ, 4 days of KPIP processing, a 1.00 m standard length, and continuity, polarity, and HiPOT safety checks.
Specifications
| Precision Matched Z | Shunyata Research produces select cables using a (PMZ) concept. This means that tolerances of the conductor surface, dielectric extrusion, and the precision of the braided shield are held to minute variances. To achieve these tight tolerances, the extrusion and braiding machines must be run at one-quarter speed during the manufacturing process. (Note: Z means impedance) |
|---|---|
| Ohno | wire, also called PCOCC was invented in 1986 by professor Atsumi Ohno of the Chiba Institute of Technology in Japan. Copper wire is created by an extrusion process that pulls a rod of cold copper through a small orifice which creates multiple crystalline boundaries. By contrast, Ohno wire is made by a process using heated molds that cast a wire to form a single crystalline structure. Ohno wire is well known for its exceptionally pure, grain-free sonic qualities. |
| Cable Type | Coaxial |
| Conductors | SPC center conductor |
| Shield | SPC braided shield |
| Characteristic Impedance | 50 ohm |
| Dielectric | PTFE |
| Connectors | BNC, High quality metal, gold plated brass contacts |
| Tech | PMZ |
| Gauge | Gauge: 20 |
| Color | Black flex |
| KPIP Processing | 4-days |
| Standard Length | 1.00 meters |
| Safety Assurance | Safety Assurance: Continuity and polarity tests – by two technicians HiPOT tests insulation breakdown @ 1,200 VAC |
