Shunyata · Power Conditioning

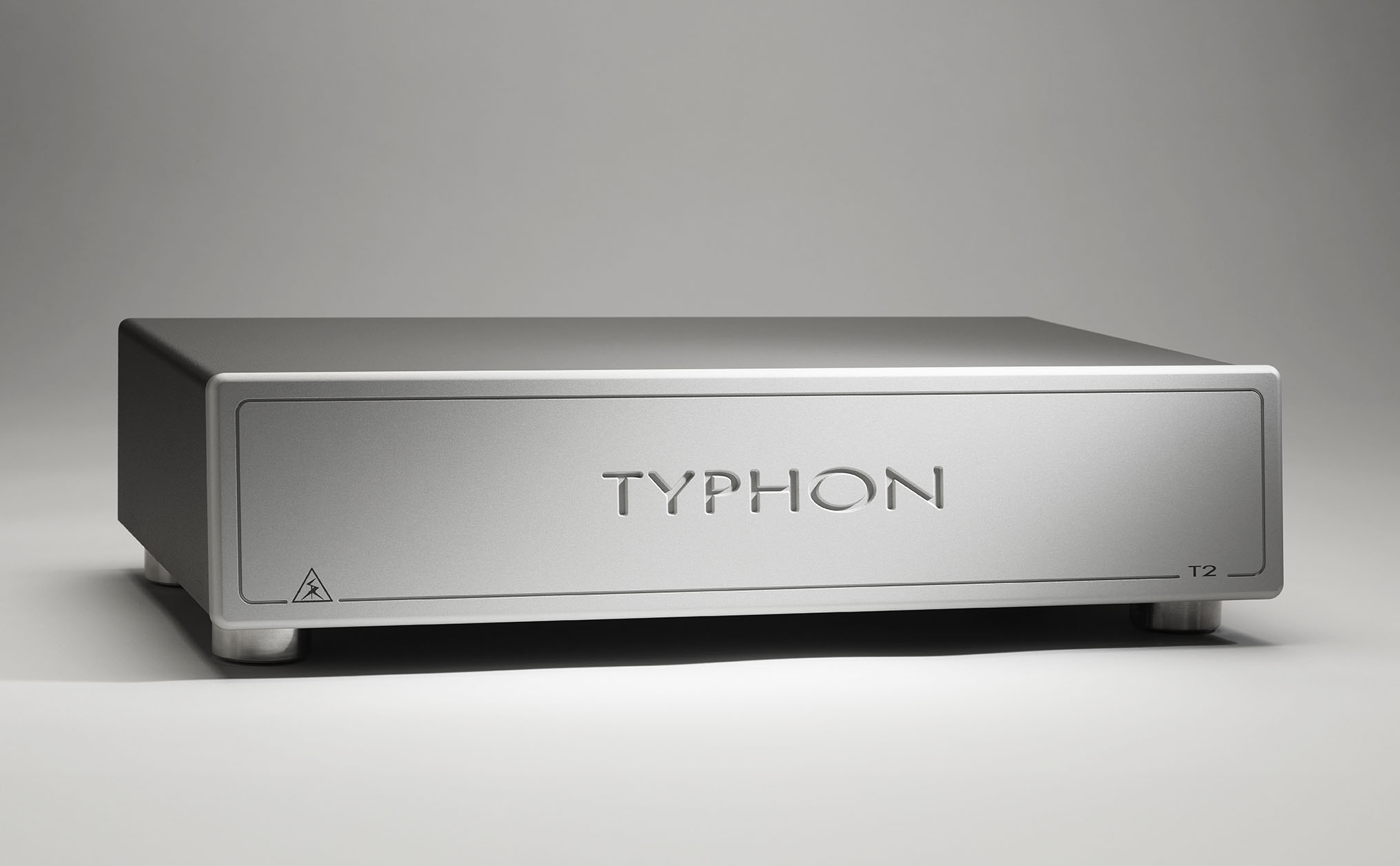

Typhon T2
Typhon-series power distributor with QR/BB energy storage, CCI filtering, NIC noise reduction, and optional 30A input support.
fig. 01 · power conditioning
Typhon T2
22970
current
From Shunyata
Typhon T2 is a power distributor for amplifiers, preamps, DACs, and CD players that focuses on low-impedance current delivery. Its saved specs list a C19 inlet, optional 30A Amphenol input, 3 isolation zones, 8-gauge ArNi VTX-Ag buss wiring, CGS grounding, NIC, CCI, QR/BB, and 4 days of KPIP v2 processing.
Specifications
| NIC™ | The NIC™ (Noise Isolation Chamber) is a patented Shunyata Research device that reduces high frequency power line noise. It employs a ferroelectric substance that actually absorbs high frequency noise without any of the reactive negatives associated with transformers and large capacitors as used in conventional power conditioners. |
|---|---|
| KPIP v2 Processing | Shunyata Research’s proprietary Kinetic Phase Inversion Process includes four days of continuous KPIP v2™ processing which refines conductor metals at the atomic level. This dramatically reduces burn-in time and significantly improves sonic performance, delivering a relaxed and life-like presentation. When compared to the original process, KPIP v2™ represents a dramatic performance upgrade on par with a component-level upgrade. | 4-days |
| ArNi | Shunyata Research’s conductors are designed to be the finest quality wire available for power and audio purposes. They start life using the highest purity copper available – OFE C10100 (or Ohno single crystal). Then they are formed into “virtual hollow tubes” that we call VTX™. The core of the conductor is completely hollow forcing the current to only travel through the periphery of the conductor, therby eliminating skin effects and random eddy currents. |
| CopperCONN® | Many audiophile grade connectors are made from brass or bronze. While some may get a plating of silver, gold or rhodium, the majority of the current is carried by the contact’s base-metal. connectors contain pure copper contacts which have a much higher conductivity than brass. The difference in performance is clearly audible. |
| CGS | The (Chassis Grounding System) is an internal ground-buss that uses patented NIC™ technology to reduce ground plane noise. CGS provides a common grounding point and extends the noise reduction capability of the power conditioner’s internal NICs to other electronic components. CGS helps to minimize inter-component voltage differences between component chassis and may reduce the hum associated with ground loops. |
| Maximum Voltage | Maximum Voltage: 90 – 125 VAC r.m.s. unregulated (US) 220-240VAC r.m.s. unregulated (EU, UK, AS) |
| Input Current Ratings | Input Current Ratings: US/AS maximum continuous current: 20A US/AS maximum continuous current: 30A (optional) EU maximum continuous current: 16A UK maximum continuous current: 16A |
| Output Current Ratings | Output Current Ratings: US/AS max current/outlet: 15A EU max current/socket: 16A UK max current/socket: 13A |
| Transient Suppression | Transient Suppression: Maximum transient pulse 40,000 Amps @ 8/50 μs |
| Over-Current Protection | Over-Current Protection: Hydraulic electromagnetic breaker |
| Wiring System | Wiring System: 8 gauge ArNi® VTX-Ag™ buss system 10 gauge ArNi® VTX-Ag™ wiring Ratings: 600 V 105° C |
| Noise Suppression | Noise Suppression: Input to Output (100 kHz – 30 MHz): > 50 dB reduction Zone to Zone (100 kHz – 30 MHz): > 40 dB reduction |
| Connectors / sockets | Connectors & Sockets: Inlet: IEC C19R Inlet: Proprietary 30A Amphenol (30A Model only) Twist-lock outlet: Proprietary Amphenol US outlets: 2 NEMA 5-20R AS outlets: 2 NEMA 5-20R EU sockets: 2 CEE7/3 UK sockets: 2 BS 1363 (3 Pin) |
| Isolation Zones | 3 zones |
| Vibration Control | Vibration Control: Vibration dampening panels (internal) AC outlet dampening gaskets Shunyata Isolation SSF-38 Footer |
| Construction | Construction: All aluminum chassis Anodized, brushed aluminum faceplate |
| Dimensions | Dimensions: Width: 17 inches (43.2 cm) Depth: 10 inches (25.4 cm) Height: 4.4 inches (11.2 cm) Weight: 17.5 lbs (7.95 kg) |
| Product type | power distributor / conditioner |
| Series / family | Typhon |
